Lenovo Global Technology ThinkSystem SR650 160590 SPECjbb2015-Composite max-jOPS
79789 SPECjbb2015-Composite critical-jOPS
Tested by: Lenovo Global Technology Test Sponsor: Lenovo Global Technology Test location: Beijing, China Test date: Sep 12, 2017
SPEC license #: 9017 Hardware Availability: Aug-2017 Software Availability: Jul-2017 Publication: Thu Oct 26 18:23:05 EDT 2017
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores56
Total Threads112
Total Memory Amount (GB)768
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameThinkSystem SR650
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
AvailableAug-2017
ModelThinkSystem SR650
Form Factor2U
CPU NameIntel Xeon Platinum 8180
CPU Characteristics28 core, 2.50GHz, 38.5 MB L3 Cache (Turbo Boost Technology up to 3.80 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System56
Cores Per Chip28
Threads Per System112
Threads Per Core2
VersionNone
CPU Frequency (MHz)2500
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache1 MB I+D on chip per core
Tertiary Cache38.5 MB I+D on chip per chip
Other CacheNone
Disk1x 800GB SATA SSD
File Systemxfs
Memory Amount (GB)768
# and size of DIMM(s)24 x 32GB
Memory Details32GB 2Rx4 PC4-2666V-R
# and type of Network Interface Cards (NICs)1x 10 Gbit NIC
Power Supply Quantity and Rating (W)2 x 1600W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server
VendorSUSE
Vendor URLhttp://www.suse.com/
VersionSUSE Linux Enterprise Server 12 SP2 (x86_64)
AvailableNov-2016
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u144
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-Bit Server VM, version 1.8.0_144
AvailableJul-2017
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Configuration:
  • Operating Mode set to Maximum Performance
  • Per Core P-state set to Disable
  • Patrol Scrub set to Disable
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(1)
OS Image Description os_1
Tuning
  • ulimit -l 800000000
  • ulimit -m 800000000
  • ulimit -v 800000000
  • echo 16000000 > /proc/sys/kernel/sched_latency_ns
  • echo 6000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 990000 > /proc/sys/kernel/sched_rt_runtime_us
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line -server -Xms500g -Xmx500g -Xmn470g -XX:SurvivorRatio=50 -XX:MaxTenuringThreshold=15 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseParallelOldGC -Xnoclassgc -XX:+AggressiveOpts -XX:+UseNUMA -XX:-BiasedLocking -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:-UsePerfData -XX:TargetSurvivorRatio=98 -XX:ParallelGCThreads=112 -verbose:gc -XX:+PrintGCDetails -XX:+PrintGCDateStamps
Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 158826 160590 162355 164120 165885
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 63677 70873 82353 90589 96051 79789
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 1765 - / 1765 - / 1765 - / 1765 - / 1765 - / 1765
1000us 141178 / 142943 1765 / 3529 - / 1765 - / 1765 - / 1765 - / 1765
5000us 150002 / 151767 141178 / 137649 52942 / 54707 44118 / 45883 31765 / 26471 10588 / 5294
10000us 150002 / 151767 141178 / 137649 95295 / 93531 82942 / 84707 67060 / 26471 10588 / 5294
25000us 153532 / 151767 142943 / 144708 123531 / 125296 118237 / 120002 79413 / 26471 28236 / 8824
50000us 153532 / 155296 144708 / 146473 128825 / 130590 121766 / 123531 95295 / 75883 47648 / 8824
75000us 155296 / 157061 144708 / 146473 134119 / 130590 121766 / 123531 97060 / 77648 58236 / 8824
100000us 155296 / 157061 146473 / 148237 134119 / 130590 123531 / 125296 100590 / 90001 70589 / 8824
200000us 155296 / 157061 150002 / 151767 141178 / 137649 132355 / 130590 118237 / 111178 86472 / 35295
500000us 160590 / - 155296 / 157061 142943 / 144708 142943 / 144708 134119 / 130590 118237 / 90001
1000000us 160590 / - 160590 / - 160590 / - 160590 / - 158826 / 151767 141178 / 125296
Probes jOPS / Total jOPS

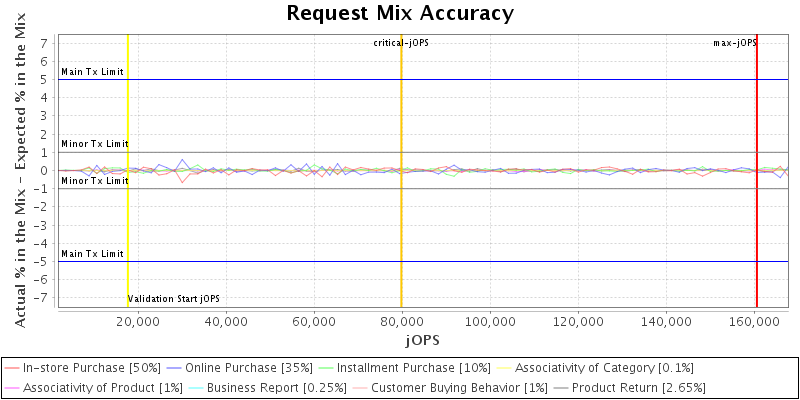

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.client.pool.size 256 300
specjbb.comm.connect.worker.pool.max 256 300
specjbb.comm.connect.worker.pool.min 1 64
specjbb.customerDriver.threads 64 {probe=64, saturate=64}
specjbb.forkjoin.workers 112 {Tier1=200, Tier2=1, Tier3=28}
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 176473 IR
High-bound (settled) is 170354 IR
