Lenovo Global Technology ThinkSystem SR650 76640 SPECjbb2015-MultiJVM max-jOPS
64196 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Lenovo Global Technology Test Sponsor: Lenovo Global Technology Test location: Beijing, China Test date: Aug 29, 17
SPEC license #: 9017 Hardware Availability: Aug-2017 Software Availability: Jul-2017 Publication: Thu Oct 26 18:23:05 EDT 2017
Benchmark Results Summary

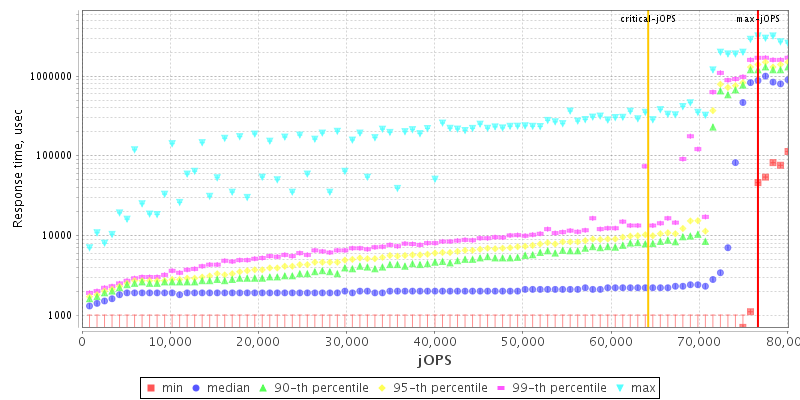

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips1
Total Cores28
Total Threads56
Total Memory Amount (GB)384
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameThinkSystem SR650
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
AvailableAug-2017
ModelThinkSystem SR650
Form Factor2U
CPU NameIntel Xeon Platinum 8180
CPU Characteristics28 core, 2.50GHz, 38.5MB L3 Cache (Turbo Boost Technology up to 3.80 GHz)
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System28
Cores Per Chip28
Threads Per System56
Threads Per Core2
VersionNone
CPU Frequency (MHz)2500
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache1024 KB I+D on chip per core
Tertiary Cache38.5 MB I+D on chip per chip
Other CacheNone
Disk1x 800GB SATA SSD
File Systemxfs
Memory Amount (GB)384
# and size of DIMM(s)12 x 32 GB
Memory Details32GB 2Rx4 PC4-2666V-R
# and type of Network Interface Cards (NICs)1x 10 Gbit NIC
Power Supply Quantity and Rating (W)1 x 1600W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRedHat Linux Enterprise Server
VendorRedHat
Vendor URLhttp://www.redhat.com/
VersionRedHat Linux Enterprise Server 7.3 (x86_64)
AvailableNov-2016
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u144
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-Bit Server VM, version 1.8.0_144
AvailableJul-2017
Bitness64
Notesnote
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Configuration:
  • Operating Mode = Maximum Performance
  • COD Preference set to Enable
  • Early Snoop Preference set to Disable
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning
  • SELINUX=disabled
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -server -Xmn1536m -Xms2g -Xmx2g
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -showversion -server -Xmx350g -Xms350g -Xmn320g -XX:MaxPermSize=256m -XX:+UseParallelOldGC -XX:ParallelGCThreads=56 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:+AggressiveOpts -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=35 -verbose:gc -XX:+PrintGCDetails -XX:+PrintGCTimeStamps
Tuning numactl used to affinitize each Backend JVM to a single memory node, eg:
  • numactl --cpunodebind=$gnum --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -server -Xms2g -Xmx2g -Xmn1536m
Tuning numactl used to affinitize each Backend JVM to a single memory node, eg:
  • numactl --cpunodebind=$gnum --localalloc
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 75789 76640 77492 78344 79195
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 49816 67651 67651 68763 69543 64196
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 852 - / 852 - / 852 - / 852 - / 852 - / 852
1000us 36617 / 852 - / 852 - / 852 - / 852 - / 852 - / 852
5000us 74086 / 74937 72383 / 73234 44281 / 45133 30656 / 31508 18734 / 19586 - / 852
10000us 74086 / 74937 73234 / 74086 70679 / 69828 64719 / 63867 50242 / 49390 2555 / 1703
25000us 74086 / 74937 73234 / 74086 70679 / 71531 70679 / 71531 70679 / 63867 8516 / 5961
50000us 74086 / 74937 73234 / 74086 70679 / 71531 70679 / 71531 70679 / 63867 35766 / 5961
75000us 74086 / 74937 73234 / 74086 70679 / 71531 70679 / 71531 70679 / 68125 40023 / 5961
100000us 74086 / 74937 74086 / 74937 70679 / 71531 70679 / 71531 70679 / 68976 40023 / 5961
200000us 74937 / 75789 74086 / 74937 70679 / 71531 70679 / 71531 70679 / 71531 40023 / 28953
500000us 75789 / 76640 74937 / 75789 71531 / 72383 71531 / 72383 70679 / 71531 70679 / 71531
1000000us 76640 / - 76640 / - 74937 / 75789 74937 / 75789 74937 / 72383 70679 / 71531

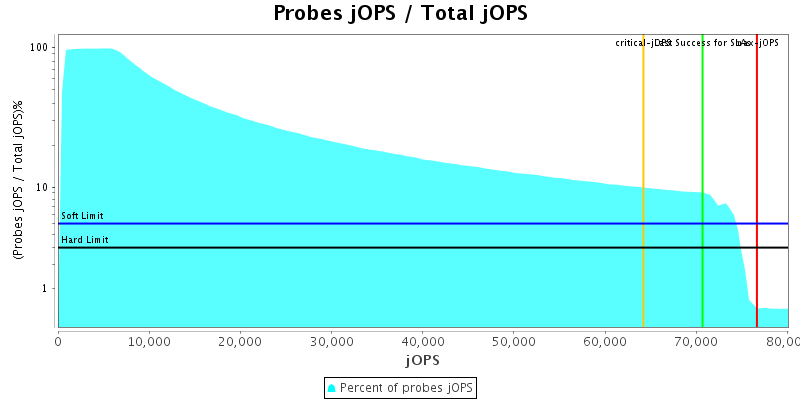

Probes jOPS / Total jOPS

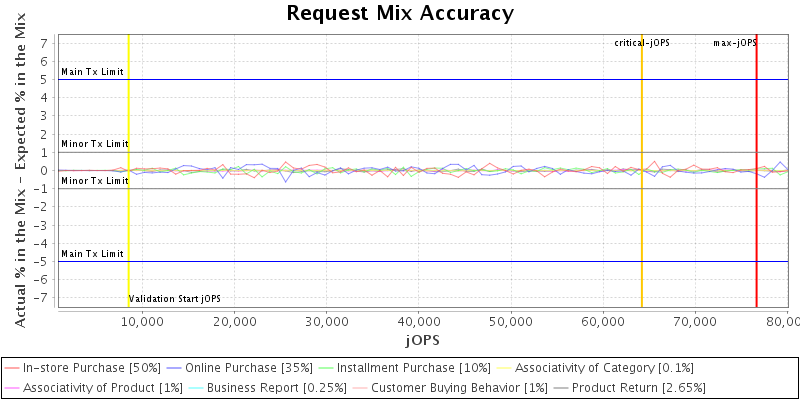

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

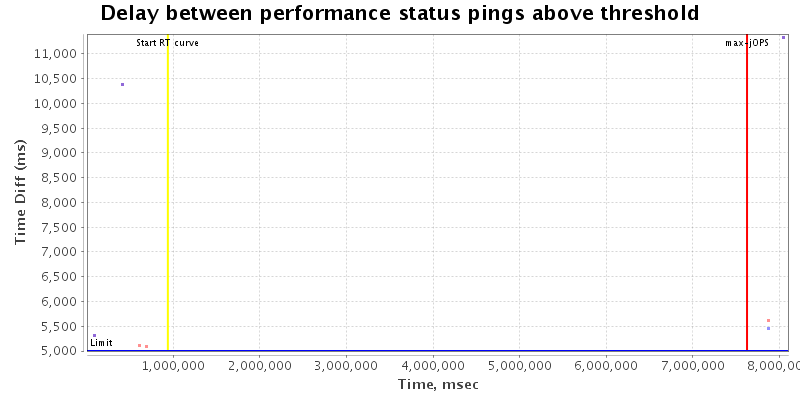

Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.client.pool.size 256 192
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.comm.connect.worker.pool.max 256 56
specjbb.comm.connect.worker.pool.min 1 56
specjbb.customerDriver.threads 64 64
specjbb.forkjoin.workers 56 {Tier1=180, Tier2=1, Tier3=25}
specjbb.group.count 1 1
specjbb.mapreducer.pool.size 56 56
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 85156 IR
High-bound (settled) is 82428 IR
