Lenovo Global Technology ThinkSystem SR950 359067 SPECjbb2015-Distributed max-jOPS
101942 SPECjbb2015-Distributed critical-jOPS
Tested by: Lenovo Global Technology Test Sponsor: Lenovo Global Technology Test location: Beijing, China Test date: Sep 8, 2017
SPEC license #: 9017 Hardware Availability: Sep-2017 Software Availability: Jul-2017 Publication: Thu Oct 26 18:23:05 EDT 2017
Benchmark Results Summary

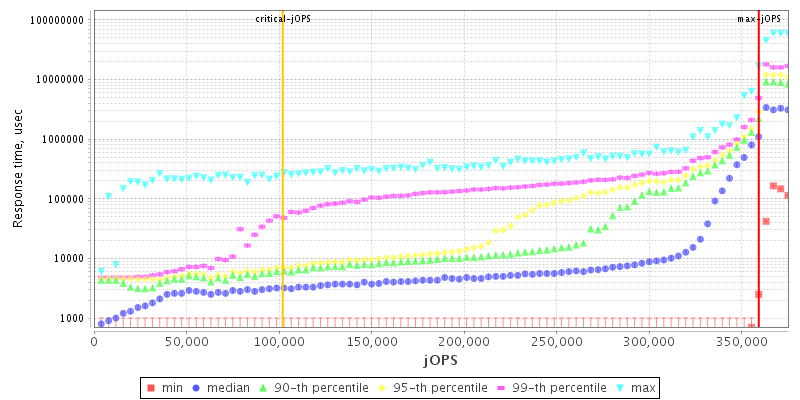

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips4
Total Cores112
Total Threads224
Total Memory Amount (GB)768
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameThinkSystem SR950
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
AvailableSep-2017
ModelThinkSystem SR950
Form Factor4U
CPU NameIntel Xeon Platinum 8180
CPU Characteristics28 core, 2.50GHz, 38.5 MB L3 Cache (Turbo Boost Technology up to 3.80 GHz)
Number of Systems1
Nodes Per System1
Chips Per System4
Cores Per System112
Cores Per Chip28
Threads Per System224
Threads Per Core2
VersionNone
CPU Frequency (MHz)2500
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache1 MB I+D on chip per core
Tertiary Cache38.5 MB I+D on chip per chip
Other CacheNone
Disk1x 800GB SAS SSD
File Systemxfs
Memory Amount (GB)768
# and size of DIMM(s)48 x 16GB
Memory Details16GB 2Rx8 PC4-2666V-R
# and type of Network Interface Cards (NICs)1x 10 Gbit NIC
Power Supply Quantity and Rating (W)4 x 1600W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server
VendorSUSE
Vendor URLhttp://www.suse.com/
VersionSUSE Linux Enterprise Server 12 SP2 (x86_64)
AvailableNov-2016
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u144
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-Bit Server VM, version 1.8.0_144
AvailableJul-2017
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware hw_2
NameThinkSystem SR650
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
AvailableAug-2017
ModelThinkSystem SR650
Form Factor2U
CPU NameIntel Xeon Platinum 8180
CPU Characteristics28 core, 2.50GHz, 38.5 MB L3 Cache (Turbo Boost Technology up to 3.80 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System56
Cores Per Chip28
Threads Per System112
Threads Per Core2
VersionNone
CPU Frequency (MHz)2500
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache1 MB I+D on chip per core
Tertiary Cache38.5 MB I+D on chip per chip
Other CacheNone
Disk1x 800GB SATA SSD
File Systemxfs
Memory Amount (GB)384
# and size of DIMM(s)24 x 16GB
Memory Details16GB 2Rx8 PC4-2666V-R
# and type of Network Interface Cards (NICs)1x 10 Gbit NIC
Power Supply Quantity and Rating (W)2 x 1600W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_2
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_2
NameSUSE Linux Enterprise Server
VendorSUSE
Vendor URLhttp://www.suse.com/
VersionSUSE Linux Enterprise Server 12 SP2 (x86_64)
AvailableNov-2016
Bitness64
NotesNone
Java Virtual Machine jvm_2
NameOracle Java SE 8u144
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-Bit Server VM, version 1.8.0_144
AvailableJul-2017
Bitness64
NotesNone
Other Software other_2
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Configuration:
  • Operating Mode set to Maximum Performance
  • Per Core P-state set to Disable
  • SNC set to Enable
  • Patrol Scrub set to Disable
Notes None
OS Image os_Image_1
JVM Instances jvm_Backend_1(8)
OS Image Description os_1
Tuning
  • echo 990000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 16000000 > /proc/sys/kernel/sched_latency_ns
  • echo 6000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 15000000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • echo 10000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 10 > /proc/sys/vm/dirty_background_ratio
  • echo 10 > /proc/sys/vm/swappiness
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -server -Xms29g -Xmx29g -Xmn27g -XX:SurvivorRatio=28 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseParallelOldGC -XX:+AggressiveOpts -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:-UsePerfData -XX:TargetSurvivorRatio=95 -XX:ParallelGCThreads=28 -verbose:gc -XX:+PrintGCDetails -XX:+PrintTenuringDistribution -XX:+PrintGCTimeStamps -XX:-UseBiasedLocking -XX:AllocatePrefetchInstr=2
Tuning numactl used to affinitize each Backend JVM to a single memory node, eg:
  • numactl --cpunodebind=$gnum --localalloc
Notes None
Hardware
OS Images os_Image_2(1)
Hardware Description hw_2
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Configuration:
  • Operating Mode set to Maximum Performance
  • SNC set to Enable
Notes None
OS Image os_Image_2
JVM Instances jvm_Ctr_1(1), jvm_TxInjector_1(8)
OS Image Description os_2
Tuning
  • ulimit -n 32768
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_2
Command Line -server -Xms2g -Xmx2g -Xmn1536m -XX:+UseCondCardMark -XX:+UseParallelOldGC -XX:ParallelGCThreads=14
Tuning None
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_2
Command Line -server -Xms2g -Xmx2g -Xmn1536m -XX:+UseCondCardMark -XX:+UseParallelOldGC -XX:ParallelGCThreads=14
Tuning numactl used to affinitize each TxInjector JVM to a single memory node, eg:
  • numactl --cpunodebind=$gnum --localalloc
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 355121 359067 363013 366958 370904
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 72997 84176 100618 120346 147967 101942
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 3946 - / 3946 - / 3946 - / 3946 - / 3946 - / 3946
1000us 35512 / 39458 11837 / 15783 - / 3946 - / 3946 - / 3946 - / 3946
5000us 331446 / 335392 220964 / 224910 86807 / 51295 71024 / 47349 27621 / 31566 - / 3946
10000us 339338 / 343284 307772 / 311717 197289 / 201235 153886 / 157832 71024 / 74970 11837 / 7892
25000us 343284 / 347230 327501 / 331446 264368 / 268314 213073 / 217018 86807 / 78916 11837 / 7892
50000us 343284 / 347230 331446 / 335392 276205 / 280151 228856 / 232802 102591 / 98645 11837 / 7892
75000us 343284 / 347230 331446 / 335392 288043 / 291988 236747 / 240693 118374 / 122319 11837 / 7892
100000us 343284 / 347230 335392 / 339338 291988 / 295934 256476 / 260422 145994 / 149940 11837 / 7892
200000us 351175 / 355121 339338 / 343284 319609 / 323555 307772 / 311717 264368 / 268314 82862 / 31566
500000us 355121 / 359067 351175 / 355121 339338 / 343284 335392 / 339338 331446 / 335392 288043 / 264368
1000000us 359067 / - 355121 / 359067 351175 / 355121 347230 / 351175 347230 / 351175 319609 / 323555

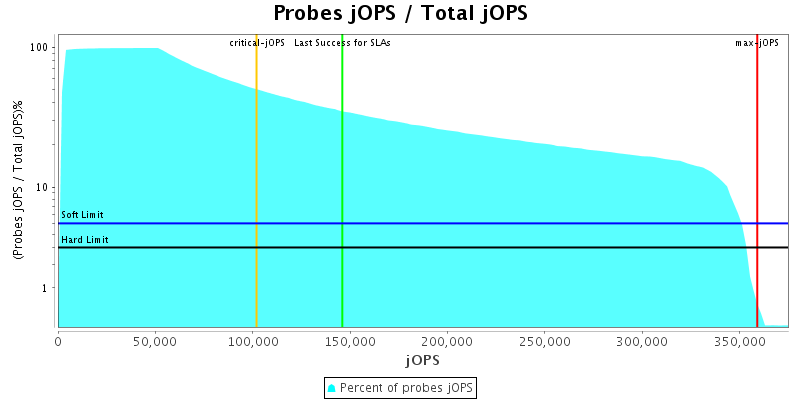

Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

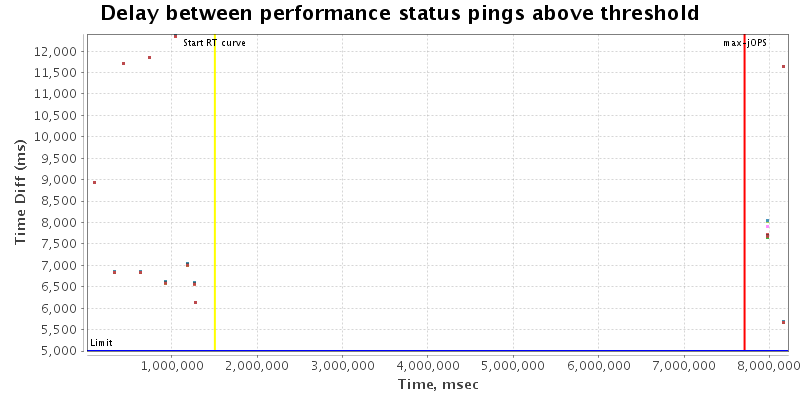

Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.client.pool.size 256 300
specjbb.comm.connect.selector.runner.count 0 4
specjbb.comm.connect.timeouts.connect 60000 700000
specjbb.comm.connect.timeouts.read 60000 700000
specjbb.comm.connect.timeouts.write 60000 700000
specjbb.comm.connect.worker.pool.max 256 120
specjbb.controller.host localhost 10.10.10.112
specjbb.customerDriver.threads 64 {probe=64, saturate=64}
specjbb.forkjoin.workers 22 {Tier1=180, Tier2=1, Tier3=25}
specjbb.group.count 1 8
specjbb.heartbeat.threshold 100000 200000
specjbb.mapreducer.pool.size 22 4
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 394579 IR
High-bound (settled) is 379219 IR
