Hewlett Packard Enterprise ProLiant DL385 Gen10 133603 SPECjbb2015-MultiJVM max-jOPS
51616 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Hewlett Packard Enterprise Test Sponsor: Hewlett Packard Enterprise Test location: Houston, TX Test date: October 19, 2017
SPEC license #: 3 Hardware Availability: Nov-2017 Software Availability: Sep-2017 Publication: Tue Nov 21 12:21:24 EST 2017
Benchmark Results Summary

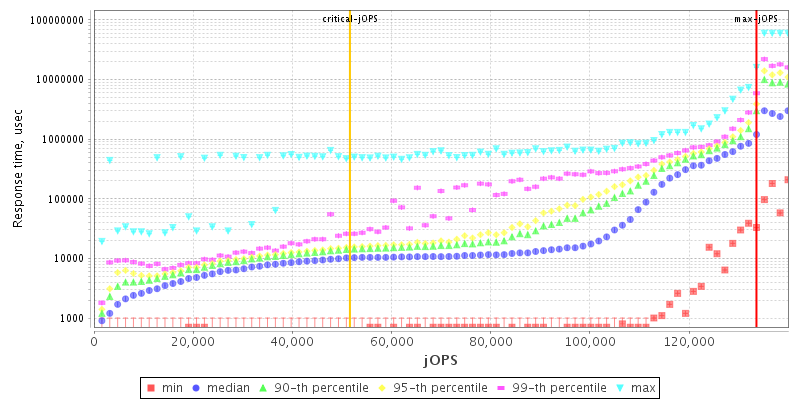

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYes
Total Nodes1
All Nodes IdenticalYes
Nodes Per System1
Total Chips2
Total Cores64
Total Threads128
Total Memory Amount (GB)1024
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameProLiant DL385 Gen10
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
AvailableNov-2017
ModelProLiant DL385 Gen10
Form Factor2U Rack
CPU NameAMD Epyc 7601
CPU Characteristics32 Core, 2.20 GHz, 8MB L3 cache per 4 core (Turbo Boost Technology up to 3.2 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System64
Cores Per Chip32
Threads Per System128
Threads Per Core2
VersionA40 10/06/2017
CPU Frequency (MHz)2200
Primary Cache64 KB I + 32 KB D on chip per core
Secondary Cache512 KB I+D on chip per core
Tertiary Cache64 MB I+D on chip per chip
Other CacheNone
Disk1 x 800 GB SSD SAS
File SystemXFS
Memory Amount (GB)1024
# and size of DIMM(s)16 x 64 GB
Memory Details64G 4Rx4 PC4-2666V-L
# and type of Network Interface Cards (NICs)HPE Ethernet 1Gb 4-port
Power Supply Quantity and Rating (W)2 x 800
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 12 SP3
VendorSUSE
Vendor URLhttps://www.suse.com/
Version4.4.73-5-default
AvailableSep-2017
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u144
VendorOracle
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-bit Server VM, version 1.8.0_144
AvailableJul-2017
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment Non-virtual
Tuning
  • Workload Profile=High Performance Compute
  • Thermal Configuration=Maximum Cooling
  • Memory Patrol Scrubbing=Disabled
  • Processor Power and Utilization Monitoring=Disabled
  • Memory Pre-Failure Notification=Disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(8), jvm_TxInjector_1(8)
OS Image Description os_1
Tuning
  • tuned-adm profile=throughput-performance
  • echo 16000000 > /proc/sys/kernel/sched_latency_ns
  • echo 175000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 3000000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • Added cgroup_disable=memory,cpu,cpuacct,blkio,hugetlb,pids,cpuset,perf_event,freezer,devices,net_cls,net_prio to GRUB_CMDLINE_LINUX_DEFAULT
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelOldGC
Tuning None
Notes numactl --interleave=all
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line

-XX:-UsePerfData -server -XX:AllocatePrefetchInstr=2 -XX:LargePageSizeInBytes=2m -XX:+AggressiveOpts -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:MaxMetaspaceSize=256m -XX:MetaspaceSize=256m -XX:+UseLargePages -XX:+UseParallelOldGC -Xms120g -Xmx120g -Xmn100g -XX:SurvivorRatio=68 -XX:TargetSurvivorRatio=48 -XX:ParallelGCThreads=16 -XX:MaxTenuringThreshold=15 -XX:+PrintTenuringDistribution -XX:+PrintGCDetails -XX:+PrintGCTimeStamps -XX:InlineSmallCode=10k -XX:MaxGCPauseMillis=500

Tuning None
Notes

Used numactl to affinitize each Backend JVM to physical cores in a NUMA node.

  • numactl --physcpubind=0-7,64-71 --membind=0
  • numactl --physcpubind=8-15,72-79 --membind=1
  • numactl --physcpubind=16-23,80-87 --membind=2
  • numactl --physcpubind=24-31,88-95 --membind=3
  • numactl --physcpubind=32-39,96-103 --membind=4
  • numactl --physcpubind=40-47,104-111 --membind=5
  • numactl --physcpubind=48-55,112-119 --membind=6
  • numactl --physcpubind=56-63,120-127 --membind=7
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelOldGC
Tuning None
Notes

Used numactl to affinitize each Transaction Injector JVM to a physical core in a NUMA node.

  • numactl --physcpubind=0 --membind=0
  • numactl --physcpubind=8 --membind=1
  • numactl --physcpubind=16 --membind=2
  • numactl --physcpubind=24 --membind=3
  • numactl --physcpubind=32 --membind=4
  • numactl --physcpubind=40 --membind=5
  • numactl --physcpubind=48 --membind=6
  • numactl --physcpubind=56 --membind=7
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 132012 133603 135193 136784 138374
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 24653 48510 62626 69114 70777 51616
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 1591 - / 1591 - / 1591 - / 1591 - / 1591 - / 1591
1000us 4772 / 6362 1591 / 3181 - / 1591 - / 1591 - / 1591 - / 1591
5000us 82707 / 84297 20677 / 22267 14315 / 15905 3181 / 4772 1591 / 3181 - / 1591
10000us 104974 / 106564 49306 / 50896 31810 / 33401 30220 / 31810 23858 / 25448 - / 1591
25000us 109745 / 111336 103383 / 104974 87478 / 85888 81116 / 79525 49306 / 47715 1591 / 3181
50000us 112926 / 114517 108155 / 109745 97021 / 98612 89069 / 90659 71573 / 47715 31810 / 3181
75000us 114517 / 116107 109745 / 111336 101793 / 103383 93840 / 95431 76344 / 60439 36582 / 3181
100000us 114517 / 116107 111336 / 112926 103383 / 104974 98612 / 100202 76344 / 65211 36582 / 3181
200000us 122469 / 124060 114517 / 116107 111336 / 112926 108155 / 109745 89069 / 85888 36582 / 3181
500000us 132012 / 133603 125650 / 127241 119288 / 120879 117698 / 119288 114517 / 116107 73163 / 17496
1000000us 133603 / - 132012 / 133603 128831 / 130422 127241 / 128831 125650 / 127241 112926 / 114517

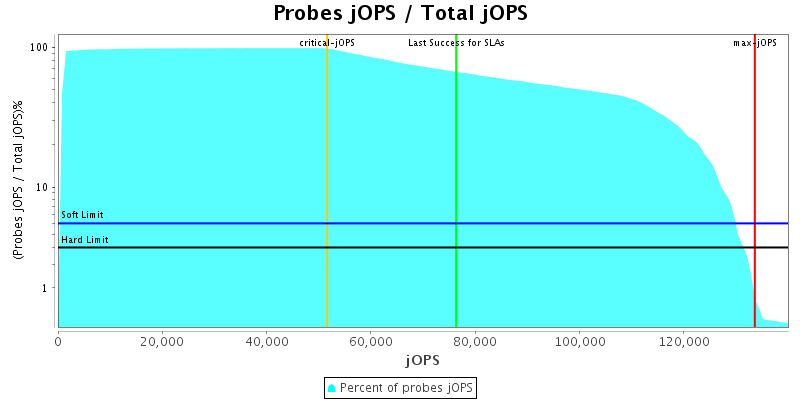

Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

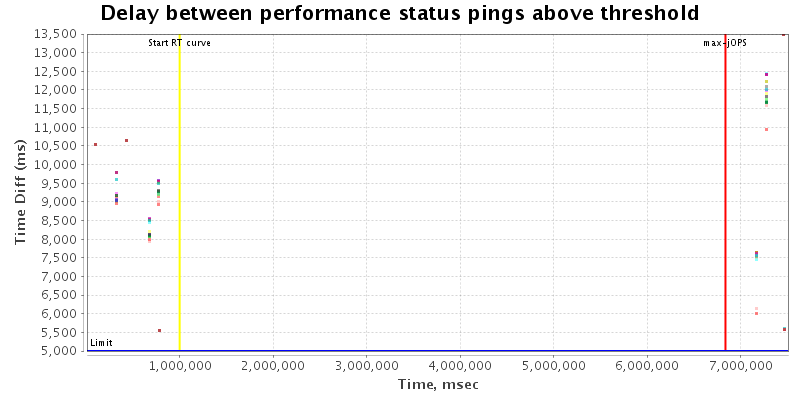

Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.selector.runner.count 0 4
specjbb.comm.connect.timeouts.connect 60000 700000
specjbb.comm.connect.timeouts.read 60000 700000
specjbb.comm.connect.timeouts.write 60000 700000
specjbb.comm.connect.worker.pool.max 256 111
specjbb.comm.connect.worker.pool.min 1 64
specjbb.customerDriver.threads 64 {=64, probe=64, saturate=64}
specjbb.forkjoin.workers 128 {Tier1=180, Tier2=1, Tier3=25}
specjbb.group.count 1 8
specjbb.mapreducer.pool.size 128 4
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 159051 IR
High-bound (settled) is 142947 IR
