Fujitsu PRIMERGY TX1330 M4 26012 SPECjbb2015-Composite max-jOPS
13098 SPECjbb2015-Composite critical-jOPS
Tested by: Fujitsu Test Sponsor: Fujitsu Test location: Kawasaki, Japan Test date: Oct 8, 2018
SPEC license #: 19 Hardware Availability: Nov-2018 Software Availability: Jul-2018 Publication: Nov 06, 2018
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorFujitsu
Vendor URLhttp://www.fujitsu.com/
System SourceSingle Supplier
System DesignationServer Tower
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips1
Total Cores6
Total Threads12
Total Memory Amount (GB)64
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameFujitsu Server PRIMERGY TX1330 M4
VendorFujitsu
Vendor URLhttp://www.fujitsu.com/
AvailableNov-2018
ModelFujitsu Server PRIMERGY TX1330 M4
Form FactorTower or 4U rack mount
CPU NameIntel Xeon E-2186G
CPU Characteristics6 core, 3.80GHz, 12MB L3 Cache (Turbo Boost Technology up to 4.70 GHz)
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System6
Cores Per Chip6
Threads Per System12
Threads Per Core2
VersionNone
CPU Frequency (MHz)3800
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache256 KB I+D on chip per core
Tertiary Cache12MB I+D on chip per chip
Other CacheNone
Disk1x 2TB SATA HDD
File Systemxfs
Memory Amount (GB)64
# and size of DIMM(s)4 x 16GB
Memory Details16GB 2Rx8 PC4-2666V-E
# and type of Network Interface Cards (NICs)1x 1 Gbit NIC
Power Supply Quantity and Rating (W)2 x 450W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
  • This result was measured on the PRIMERGY TX1320 M4. The PRIMERGY TX1320 M4 and the PRIMERGY TX1330 M4 are electrically equivalent.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 15
VendorSUSE
Vendor URLhttp://www.suse.com/
Version4.12.14-23-default
AvailableJul-2018
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 10.0.2
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 10.0.2
AvailableJul-2018
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Configuration:
  • Intel(VMX) Virtualization Technology set to Disabled
  • C states set to Disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(1)
OS Image Description os_1
Tuning
  • cpupower -c all frequency-set -g performance
  • echo 16000000 > /proc/sys/kernel/sched_latency_ns
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line -server -Xms27g -Xmx27g -Xmn26g -XX:SurvivorRatio=22 --add-modules=java.xml.bind -XX:MaxTenuringThreshold=15 -XX:+UseParallelOldGC -Xnoclassgc -XX:+UseNUMA -XX:-UseBiasedLocking -XX:-UseAdaptiveSizePolicy -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=12 -verbose:gc -XX:+UseHugeTLBFS -XX:ActiveProcessorCount=0 -XX:+UseRTMDeopt -XX:MaxGCPauseMillis=300
Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 25726 26012 26298 26584 26870
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 9075 10766 14149 15865 17580 13098
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 858 / 1143 286 / 572 - / 286 - / 286 - / 286 - / 286
1000us 10291 / 10576 1715 / 2001 1143 / 1429 858 / 1143 572 / 858 - / 286
5000us 24869 / 25155 22582 / 22868 17151 / 17437 13149 / 13435 6860 / 7146 1715 / 858
10000us 24869 / 25155 23154 / 23440 19438 / 19724 16865 / 17151 9719 / 8861 1715 / 858
25000us 25155 / 25441 24011 / 24297 20581 / 20867 18294 / 18580 11148 / 10576 2001 / 858
50000us 25155 / 25441 24297 / 24583 21725 / 22010 19724 / 20009 14007 / 14292 3430 / 858
75000us 25155 / 25441 24869 / 24583 22582 / 22868 20581 / 20867 15722 / 16008 4288 / 858
100000us 25155 / 25441 24869 / 25155 23154 / 23440 21439 / 21725 17723 / 17437 9719 / 858
200000us 25441 / 25726 24869 / 25155 24011 / 24297 23726 / 24011 22010 / 21725 18294 / 3144
500000us 25726 / 26012 25441 / 25726 24869 / 25155 24869 / 25155 24011 / 24297 23726 / 24011
1000000us 26012 / - 26012 / - 25441 / 25726 25441 / 25726 25441 / 25726 24583 / 24869

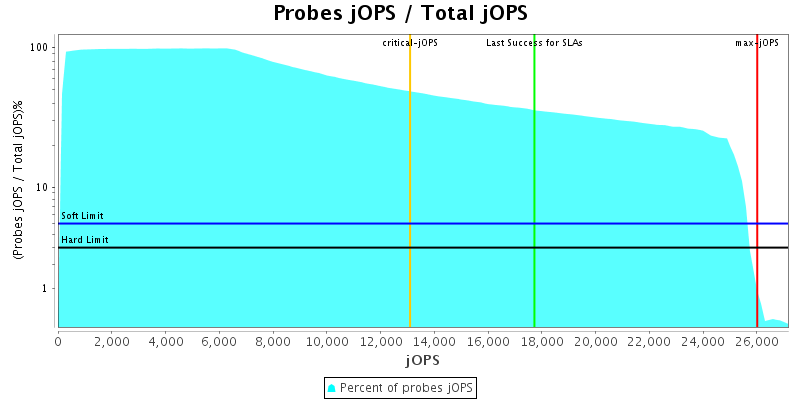

Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
User did not set any property for this run

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 28585 IR
High-bound (settled) is 27343 IR
