Hewlett Packard Enterprise Synergy 480 Gen10 95613 SPECjbb2015-Composite max-jOPS
66251 SPECjbb2015-Composite critical-jOPS
Tested by: Hewlett Packard Enterprise Test Sponsor: Hewlett Packard Enterprise Test location: Houston, TX Test date: March 12, 2019
SPEC license #: 3 Hardware Availability: Apr-2019 Software Availability: Jan-2019 Publication: Tue Apr 2 15:05:14 EDT 2019
Benchmark Results Summary

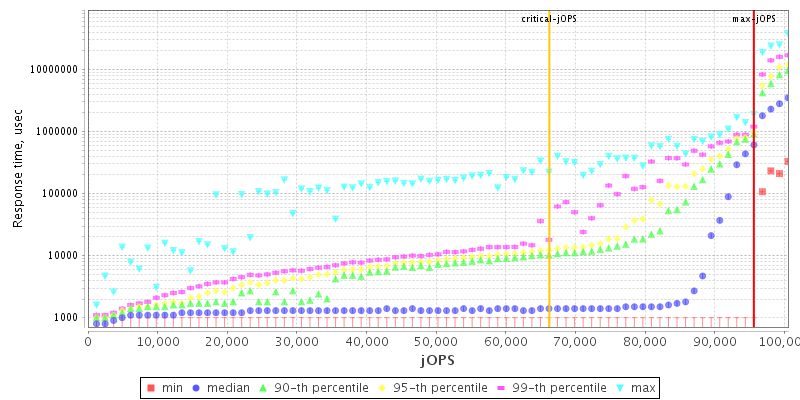

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
System SourceSingle Supplier
System DesignationServer Blade
Total Systems1
All SUT Systems IdenticalYes
Total Nodes1
All Nodes IdenticalYes
Nodes Per System1
Total Chips1
Total Cores28
Total Threads56
Total Memory Amount (GB)384
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameSynergy 480 Gen10
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
AvailableApr-2019
ModelSynergy 480 Gen10
Form FactorHalf-Height Compute Module
CPU NameIntel Xeon Platinum 8280
CPU Characteristics28 Core, 2.7 GHz, 38.5 MB L3 Cache (Turbo Boost Technology up to 4.0 GHz)
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System28
Cores Per Chip28
Threads Per System56
Threads Per Core2
VersionI42 02/02/2019
CPU Frequency (MHz)2700
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache1024 KB I+D on chip per core
Tertiary Cache38.5 MB I+D on chip per chip
Other CacheNone
Disk2 x 400 GB SSD SATA
File SystemXFS
Memory Amount (GB)384
# and size of DIMM(s)12 x 32 GB
Memory Details32 GB 2Rx4 PC4-2933Y-R
# and type of Network Interface Cards (NICs)Synergy 3820C 10/20Gb CNA
Power Supply Quantity and Rating (W)6 x 2650
Other HardwareNone
Cabinet/Housing/EnclosureSynergy 12000 Frame
Shared DescriptionNone
Shared CommentNone
Notes
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 15
VendorSUSE
Vendor URLhttp://suse.com/
Version4.12.14-23-default
AvailableJul-2018
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 11.0.2
VendorOracle
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-bit Server VM, version 11.0.2
AvailableJan-2019
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning
  • Workload Profile=High Performance Compute
  • Thermal Configuration=Maximum Cooling
  • Memory Partrol Scrubbing=Disabled
  • Enhanced Processor Performance=Enabled
  • LLC Deadline Allocation=Disabled
  • LLC Prefetcher=Enabled
  • XPT Prefetcher=Enabled
  • Advanced Memory Protection=Advanced ECC Support
  • Memory Pre-Failure notification=Disabled
  • Advanced RAS Recovery Support=Disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(1)
OS Image Description os_1
Tuning
  • tuned-adm profile=throughput-performance
  • ulimit -n 131072
  • ulimit -v 800000000
  • ulimit -m 800000000
  • ulimit -l 800000000
  • sysctl net.core.wmem_max=12582912
  • sysctl net.core.rmem_max=12582912
  • sysctl net.ipv4.tcp_rmem='10240 87380 12582912'
  • sysctl net.ipv4.tcp_wmem='10240 87380 12582912'
  • sysctl net.core.netdev_max_backlog=655560
  • sysctl net.core.somaxconn=32768
  • sysctl net.ipv4.tcp_no_metrics_save=1
  • echo 10000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 990000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 16 > /proc/sys/kernel/sched_nr_migrate
  • systemctl stop systemd-update-utmp-runlevel.service
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line -server -Xms330g -Xmx330g -Xmn310g -XX:+AggressiveOpts -XX:+UseLargePages -XX:-UsePerfData -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=48 -XX:AllocatePrefetchInstr=2 -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=15 -XX:LargePageSizeInBytes=2m -XX:+UseParallelGC -XX:+UseNUMA -XX:+AlwaysPreTouch -XX:UseAVX=0
Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 94387 95613 96839 98065 99291
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 48419 67011 70361 74161 75387 66251
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 3677 / 4903 - / 1226 - / 1226 - / 1226 - / 1226 - / 1226
1000us 90710 / 91936 4903 / 6129 2452 / 3677 2452 / 3677 - / 1226 - / 1226
5000us 93162 / 94387 88258 / 89484 39226 / 40452 34323 / 35548 25742 / 26968 9806 / 4903
10000us 93162 / 94387 88258 / 89484 63742 / 64968 57613 / 58839 47807 / 49032 14710 / 4903
25000us 93162 / 94387 89484 / 90710 82129 / 83355 76000 / 77226 71097 / 64968 23290 / 18387
50000us 93162 / 94387 90710 / 91936 82129 / 83355 79678 / 80903 72323 / 67420 35548 / 18387
75000us 93162 / 94387 90710 / 91936 85807 / 87033 82129 / 80903 73549 / 74774 35548 / 18387
100000us 93162 / 94387 91936 / 93162 85807 / 87033 82129 / 83355 76000 / 74774 35548 / 24516
200000us 94387 / 95613 91936 / 93162 88258 / 89484 85807 / 87033 82129 / 80903 71097 / 57613
500000us 95613 / - 94387 / 95613 91936 / 93162 90710 / 91936 88258 / 89484 85807 / 80903
1000000us 95613 / - 95613 / - 95613 / - 95613 / - 94387 / 95613 90710 / 91936
Probes jOPS / Total jOPS

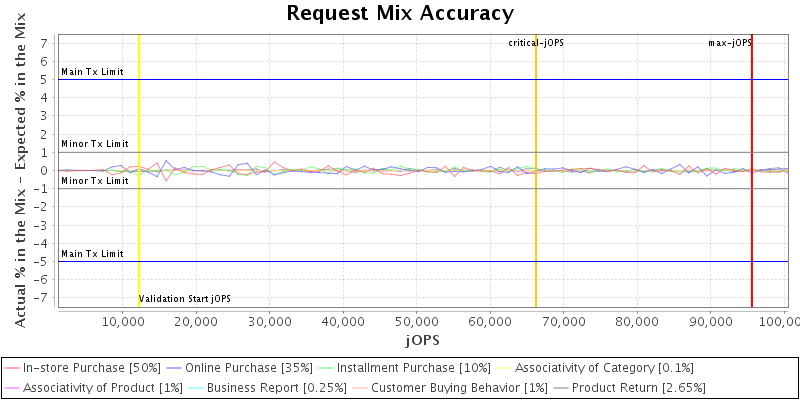

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

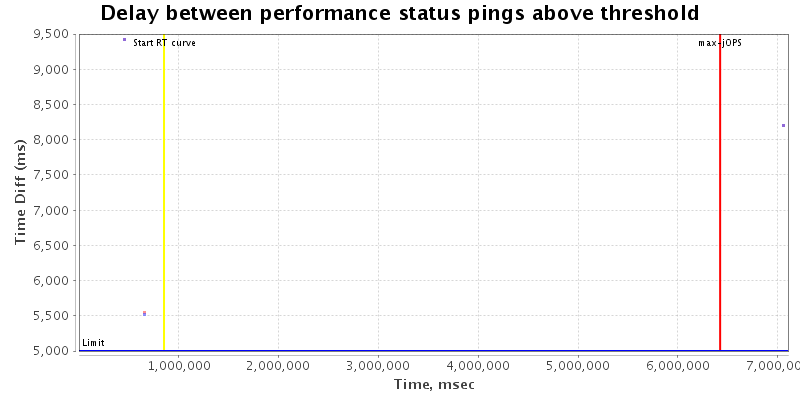

Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
User did not set any property for this run

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 122581 IR
High-bound (settled) is 102341 IR
