Cisco Systems Cisco UCS C480 M5 282719 SPECjbb2015-MultiJVM max-jOPS
175585 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Cisco Systems Test Sponsor: Cisco Systems Test location: San Jose, CA Test date: March 13, 2019
SPEC license #: 9019 Hardware Availability: April-2019 Software Availability: Jan-2019 Publication: Tue Apr 2 15:05:14 EDT 2019
Benchmark Results Summary

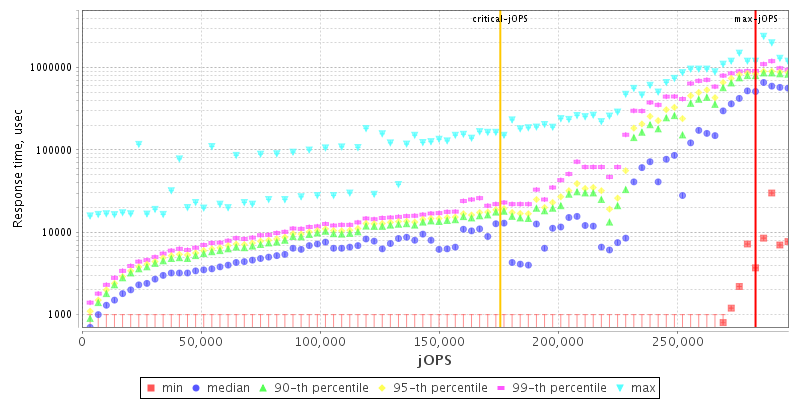

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorCisco Systems
Vendor URLhttp://www.cisco.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips4
Total Cores112
Total Threads224
Total Memory Amount (GB)3072
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameCisco UCS C480 M5
VendorCisco Systems
Vendor URLhttp://www.cisco.com/
AvailableApril-2019
ModelCisco UCS C480 M5
Form Factor4U Rack
CPU NameIntel Xeon Platinum 8280
CPU Characteristics28Cores, 2.70 GHz, 38.5MB L3 Cache (Turbo Boost Technology up to 4.0 GHz)
Number of Systems1
Nodes Per System1
Chips Per System4
Cores Per System112
Cores Per Chip28
Threads Per System224
Threads Per Core2
VersionVersion 4.0.3.34
CPU Frequency (MHz)2700
Primary Cache32KB(I)+32KB(D) per core
Secondary Cache1024 KB (I+D) per core
Tertiary Cache38.5MB (I+D) on chip per chip
Other CacheNone
Disk1x 400GB SSD SAS
File SystemNTFS
Memory Amount (GB)3072
# and size of DIMM(s)48 x 64GB
Memory Details3072 GB(48 X 64GB 2Rx4 PC4-2933V)
# and type of Network Interface Cards (NICs)2 x 10 Gbit NIC
Power Supply Quantity and Rating (W)4 x 1600W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameWindows Server 2019 Datacenter
VendorMicrosoft
Vendor URLhttp://www.microsoft.com/
VersionVersion 10.0.17763 Build 17763
AvailableOctober 2018
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 11.0.2
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 11.0.2
AvailableJan-2019
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS tuning
  • Memory Patrol Scrub disabled
  • CPU Performance set to Enterprise
  • Hyperthreading Enabled
  • IMC Interleave to AUTO
  • SNC Disabled
  • Memory RAS configuration set to Maximum performance
  • Power Technology set to performance
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning
  • Power Options is set to High performance
  • Processor scheduling is set to Programs
  • Lock Pages in Memory is Enabled
  • HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters and add a new entry . Value Name: MaxUserPort Value Type: DWORD Value data: 65534
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmn1536m -Xms2g -Xmx2g
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -XX:-UsePerfData -server -XX:AllocatePrefetchInstr=2 -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:MaxMetaspaceSize=256m -XX:MetaspaceSize=256m -XX:+UseLargePages -XX:+UseParallelOldGC -Xms710g -Xmx710g -Xmn690g -XX:SurvivorRatio=68 -XX:TargetSurvivorRatio=95 -XX:ParallelGCThreads=56 -XX:MaxTenuringThreshold=15 -XX:+UseRTMLocking -XX:InlineSmallCode=10k -XX:MaxGCPauseMillis=300
Tuning Affinitized each Backend JVM to a NUMA node
  • start /NODE [0-3]
  • Notes None
    JVM Instance jvm_TxInjector_1
    Parts of Benchmark TxInjector
    JVM Instance Description jvm_1
    Command Line -showversion -Xmn3584m -Xms4g -Xmx4g -XX:+UseLargePages -XX:+UseParallelOldGC -XX:LargePageSizeInBytes=2m
    Tuning Affinitized each Tx Injector JVM to a NUMA node
  • start /NODE [0-3]
  • Notes None
    max-jOPS = jOPS passed before the First Failure
    Pass/Fail Pass Pass Fail Fail Fail
    jOPS 279312 282719 286125 289531 292937
    critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
    Response time percentile is 99-th
    SLA (us) 10000 25000 50000 75000 100000 Geomean
    jOPS 83453 188100 207213 226515 226515 175585
      Percentile
      10-th 50-th 90-th 95-th 99-th 100-th
    500us - / 3406 - / 3406 - / 3406 - / 3406 - / 3406 - / 3406
    1000us 27250 / 30656 6812 / 10219 3406 / 6812 - / 3406 - / 3406 - / 3406
    5000us 228219 / 231625 187344 / 81750 44281 / 47687 34062 / 37469 30656 / 34062 - / 3406
    10000us 252062 / 235031 228219 / 160094 112406 / 102187 91969 / 95375 81750 / 85156 - / 3406
    25000us 255469 / 258875 228219 / 231625 224812 / 204375 221406 / 200969 194156 / 166906 85156 / 23844
    50000us 265687 / 258875 252062 / 235031 228219 / 231625 224812 / 228219 221406 / 204375 132844 / 23844
    75000us 265687 / 269094 252062 / 245250 228219 / 231625 228219 / 231625 224812 / 228219 132844 / 23844
    100000us 265687 / 269094 252062 / 255469 228219 / 231625 228219 / 231625 224812 / 228219 132844 / 23844
    200000us 275906 / 279312 265687 / 269094 252062 / 238437 231625 / 235031 228219 / 231625 197562 / 180531
    500000us 282719 / - 275906 / 279312 265687 / 269094 265687 / 262281 252062 / 255469 235031 / 231625
    1000000us 282719 / - 282719 / - 282719 / - 282719 / - 282719 / - 265687 / 269094
    Probes jOPS / Total jOPS
    Request Mix Accuracy
    Note
    (Actual % in the Mix - Expected % in the Mix) must be within:
    'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
    'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
    There were no non-critical failures in Response Time curve building

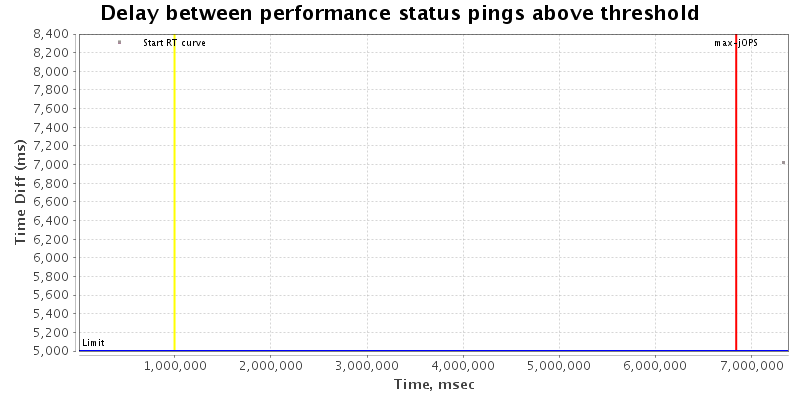

    Delay between status pings
    IR/PR Accuracy
    This section lists properties only set by user
    Property Name Default Controller
    specjbb.comm.connect.selector.runner.count 0 12
    specjbb.comm.connect.timeouts.connect 60000 800000
    specjbb.comm.connect.timeouts.read 60000 800000
    specjbb.comm.connect.timeouts.write 60000 800000
    specjbb.comm.connect.worker.pool.max 256 32
    specjbb.comm.connect.worker.pool.min 1 32
    specjbb.customerDriver.threads 64 {=64, probe=64, saturate=64, service=64}
    specjbb.forkjoin.workers 56 {Tier1=180, Tier2=1, Tier3=25}
    specjbb.group.count 1 4
    specjbb.heartbeat.threshold 100000 800000
    specjbb.mapreducer.pool.size 56 196
    specjbb.txi.pergroup.count 1 1
    View table in csv format

    Level: COMPLIANCE
    Check Agent Result
    Check properties on compliance All PASSED

    Level: CORRECTNESS
    Check Agent Result
    Compare SM and HQ Inventory All PASSED
    High-bound (max attempted) is 340625 IR
    High-bound (settled) is 306003 IR
