Nettars tech Nettmicro NR-2230 38009 SPECjbb2015-Composite max-jOPS
19308 SPECjbb2015-Composite critical-jOPS
Tested by: Telecommunications Technology Association Test Sponsor: Telecommunications Technology Association Test location: TTA, Seongnam-city, Korea Test date: Sep 04, 2019
SPEC license #: A83 Hardware Availability: Jan-2019 Software Availability: Aug-2019 Publication: Thu Sep 26 14:07:01 EDT 2019
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorNettars tech
Vendor URLhttp://nettars.co.kr
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes2
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores16
Total Threads32
Total Memory Amount (GB)512
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameNettars tech
VendorNettars tech
Vendor URLhttp://www.nettars.co.kr
AvailableJan-2019
ModelNettmicro NR-2230
Form Factor2U
CPU NameIntel Xeon Silver 4110
CPU Characteristics8Core, 2.10GHz, 11MB L3 Cache (Turbo Boost Technology up to 3.00 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System16
Cores Per Chip8
Threads Per System32
Threads Per Core2
VersionAmerican Megatrends Inc. v2.1 06/29/2018
CPU Frequency (MHz)2100
Primary Cache32KB(I)+32KB(D) per core
Secondary Cache1024 KB (I+D) per core
Tertiary Cache11264 KB (I+D) on chip per chip
Other CacheNone
Disk1TB HDD SATA
File SystemEXT4
Memory Amount (GB)512
# and size of DIMM(s)16 x 32 GB
Memory Details16 x 32 GB 2Rx4 PC4-2666V-R
# and type of Network Interface Cards (NICs)Dual LAN with 10G Base-T
Power Supply Quantity and Rating (W)800W 1+1 redundant power supply
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux Server 7.7 (Maipo)
VendorRed Hat
Vendor URLhttp://www.redhat.com/
Version3.10.0-1062.el7.x86_64-default
AvailableAug-2019
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u222
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-Bit Server VM, version 1.8.0_222
AvailableJul-2019
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning None
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(1)
OS Image Description os_1
Tuning
  • SELinux=enforcing
  • tuned-adm profile=throughput-performance
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line -Xms450g -Xmx450g -Xmn400g -server -XX:+UseParallelOldGC -XX:MaxTenuringThreshold=8 -XX:+ScavengeBeforeFullGC -XX:+UseNUMA -XX:-UseAdaptiveSizePolicy
Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 37586 38009 38431 38853 39276
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 14532 18705 20339 22030 22030 19308
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 422 - / 422 - / 422 - / 422 - / 422 - / 422
1000us 27028 / 27451 1267 / 1689 - / 422 - / 422 - / 422 - / 422
5000us 35475 / 35897 30829 / 31252 25339 / 19004 11403 / 11825 8446 / 8869 845 / 422
10000us 35897 / 36320 32096 / 32519 26184 / 26606 23650 / 23228 17315 / 10558 7179 / 422
25000us 36320 / 36742 34630 / 35053 30407 / 29985 29140 / 28295 21538 / 11825 17315 / 2112
50000us 36320 / 36742 35897 / 36320 32096 / 32519 30407 / 29985 21961 / 11825 17315 / 2956
75000us 36742 / 37164 36320 / 36742 32941 / 33363 32096 / 31252 24072 / 11825 17315 / 2956
100000us 36742 / 37164 36320 / 36742 32941 / 33363 32096 / 31252 24072 / 11825 17315 / 2956
200000us 37586 / 37164 36320 / 36742 34208 / 33363 34208 / 33363 28718 / 11825 17315 / 2956
500000us 38009 / - 37586 / 38009 36320 / 36742 36320 / 36742 35053 / 30829 26606 / 11825
1000000us 38009 / - 38009 / - 38009 / - 38009 / - 37586 / 38009 32941 / 29985

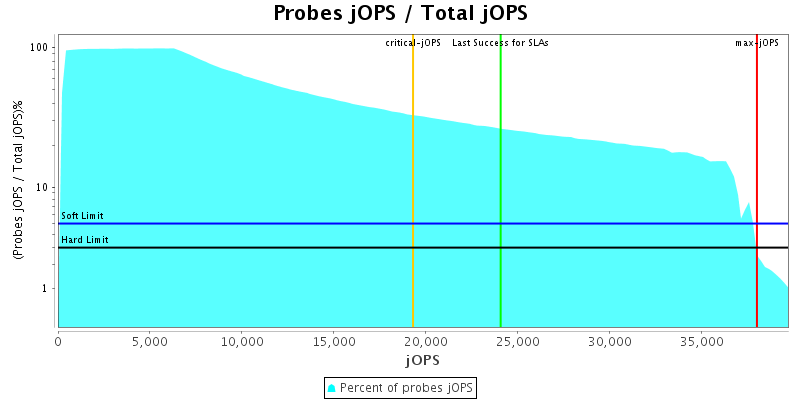

Probes jOPS / Total jOPS

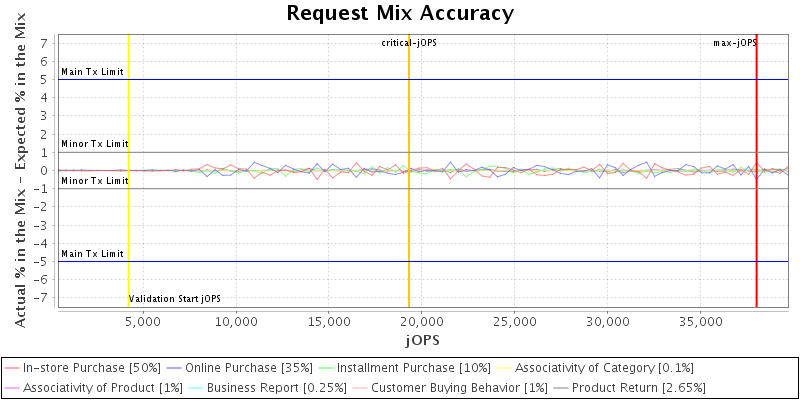

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

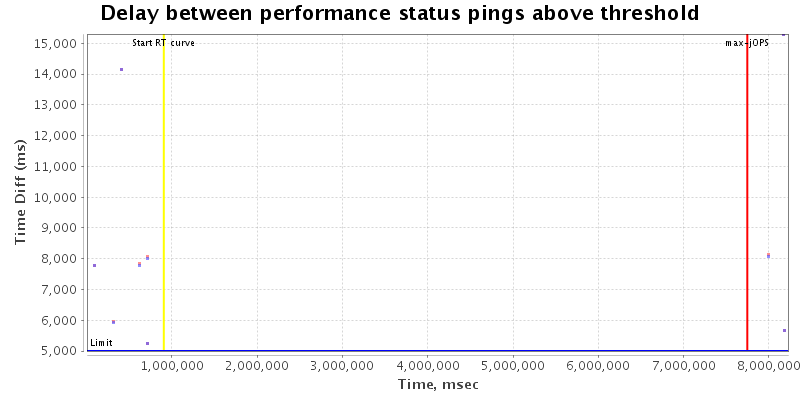

Delay between status pings

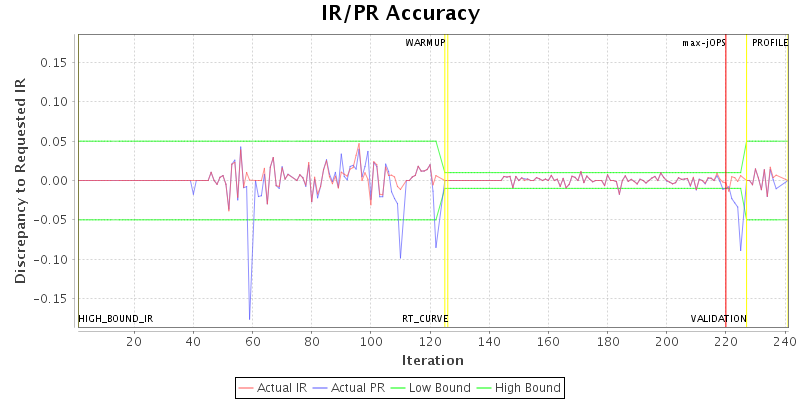

IR/PR Accuracy
This section lists properties only set by user
User did not set any property for this run

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 42232 IR
High-bound (settled) is 40907 IR
