Hewlett Packard Enterprise ProLiant DL325 Gen10 Plus 153724 SPECjbb2015-MultiJVM max-jOPS
43834 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Hewlett Packard Enterprise Test Sponsor: Hewlett Packard Enterprise Test location: Houston, TX Test date: October 17, 2019
SPEC license #: 3 Hardware Availability: Nov-2019 Software Availability: Sep-2019 Publication: Mon Nov 18 12:31:05 EST 2019
Benchmark Results Summary

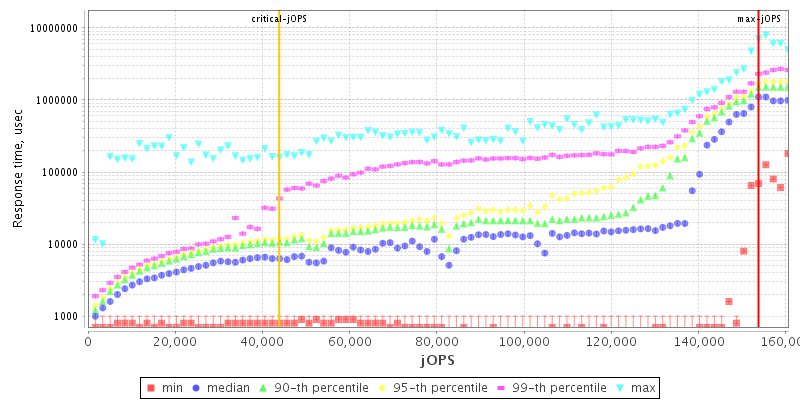

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYes
Total Nodes1
All Nodes IdenticalYes
Nodes Per System1
Total Chips1
Total Cores64
Total Threads128
Total Memory Amount (GB)512
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameProLiant DL325 Gen10 Plus
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
AvailableNov-2019
ModelProLiant DL325 Gen10 Plus
Form Factor1U Rack
CPU NameAMD EPYC 7742
CPU Characteristics64 Core, 2.25 GHz, 256 MB L3 Cache(Turbo Boost Technology up to 3.4 GHz)
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System64
Cores Per Chip64
Threads Per System128
Threads Per Core2
VersionA43 10/07/2019
CPU Frequency (MHz)2250
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache512 KB I+D on chip per core
Tertiary Cache256 MB (I+D) on chip per chip
Other CacheNone
Disk1 x 800 GB SSD SAS
File SystemNTFS
Memory Amount (GB)512
# and size of DIMM(s)16 x 32 GB
Memory Details32 GB 2Rx4 PC4-3200AA-R
# and type of Network Interface Cards (NICs)HPE Ethernet 10Gb 2-port
Power Supply Quantity and Rating (W)2 x 800
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameWindows Server 2019 Standard
VendorMicrosoft
Vendor URLhttps://www.microsoft.com/
VersionVersion 1809(OS Build 17763.615)
AvailableJul-2019
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 13
VendorOracle
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-bit Server VM, version 13
AvailableSep-2019
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment Non-virtual
Tuning
  • Workload Profile=High Performance Compute(HPC)
  • Thermal Configuration=Maximum Cooling
  • Determinism Control=Manual
  • Performance Determinism=Power Deterministic
  • Memory Patrol Scrubbing=Disabled
  • Numa Memory Domains Per Socket(NPS)=Four Memory Domains Per Socket
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning
  • Lock Pages in Memory is Enabled
  • Power Options is set to Ultimate Performance
  • Processor Performance Boost Mode is Efficient Aggressive at Guaranteed
  • Processor Scheduling is set to Programs
  • Visual Effects is set to Best Performance
  • HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters and added two new entries:
    1. MaxUserPort:- Value Type: DWORD Value data: 65534
    2. TcpNumConnections:- Value Type: DWORD Value data: 65534
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line

-Xms3g -Xmx3g -Xmn2g -XX:+UseParallelOldGC -XX:ParallelGCThreads=1 -XX:CICompilerCount=2

Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line

-showversion -server -XX:AllocatePrefetchInstr=2 -XX:LargePageSizeInBytes=2m -XX:-UsePerfData -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:+UseLargePages -XX:+UseParallelOldGC -Xms29g -Xmx29g -Xmn27g -XX:SurvivorRatio=28 -XX:TargetSurvivorRatio=98 -XX:ParallelGCThreads=32 -XX:MaxTenuringThreshold=15 -Xnoclassgc -XX:+PrintGCDetails -XX:InlineSmallCode=10k -XX:MaxGCPauseMillis=300 -XX:ThreadStackSize=1m

Tuning None
Notes

Affinitized each Backend JVM to a NUMA node.

  • start /b /NODE 0
  • start /b /NODE 1
  • start /b /NODE 2
  • start /b /NODE 3
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line

-Xms4g -Xmx4g -Xmn3g -XX:+UseParallelOldGC -XX:ParallelGCThreads=3 -XX:CICompilerCount=2

Tuning None
Notes

Affinitized each Transaction Injector JVM to a NUMA node.

  • start /b /NODE 0
  • start /b /NODE 1
  • start /b /NODE 2
  • start /b /NODE 3
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 152035 153724 155414 157103 158792
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 26183 39698 44766 54901 63348 43834
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 1689 - / 1689 - / 1689 - / 1689 - / 1689 - / 1689
1000us 3379 / 5068 1689 / 3379 - / 1689 - / 1689 - / 1689 - / 1689
5000us 130075 / 89532 25339 / 27028 15204 / 16893 11825 / 13514 10136 / 11825 - / 1689
10000us 136832 / 138521 104735 / 67571 82775 / 38853 33786 / 35475 25339 / 27028 - / 1689
25000us 140210 / 141900 136832 / 138521 119939 / 121628 86153 / 87843 38853 / 40543 3379 / 5068
50000us 141900 / 143589 136832 / 138521 130075 / 131764 111492 / 113182 43921 / 45611 3379 / 5068
75000us 143589 / 145278 138521 / 140210 131764 / 133453 119939 / 121628 54057 / 55746 3379 / 5068
100000us 143589 / 145278 140210 / 141900 133453 / 135142 125007 / 126696 62503 / 64193 3379 / 5068
200000us 145278 / 146967 140210 / 141900 136832 / 138521 133453 / 135142 125007 / 126696 50678 / 11825
500000us 152035 / 153724 146967 / 148657 140210 / 141900 140210 / 141900 138521 / 140210 131764 / 101357
1000000us 153724 / - 152035 / 153724 150346 / 152035 146967 / 148657 145278 / 146967 138521 / 140210
Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.client.pool.size 256 256
specjbb.comm.connect.selector.runner.count 0 8
specjbb.comm.connect.timeouts.connect 60000 800000
specjbb.comm.connect.timeouts.read 60000 800000
specjbb.comm.connect.timeouts.write 60000 800000
specjbb.comm.connect.worker.pool.max 256 65
specjbb.comm.connect.worker.pool.min 1 60
specjbb.customerDriver.threads 64 {probe=64, saturate=64, service=64}
specjbb.forkjoin.workers 32 {Tier1=170, Tier2=1, Tier3=26}
specjbb.group.count 1 4
specjbb.heartbeat.threshold 100000 600000
specjbb.mapreducer.pool.size 32 4
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 168928 IR
High-bound (settled) is 163628 IR
