Lenovo Global Technology ThinkSystem SR635 137649 SPECjbb2015-Composite max-jOPS
112318 SPECjbb2015-Composite critical-jOPS
Tested by: Lenovo Global Technology Test Sponsor: Lenovo Global Technology Test location: Beijing, China Test date: Mar 18, 2020
SPEC license #: 9017 Hardware Availability: Jun-2020 Software Availability: Mar-2020 Publication: Mon Apr 13 12:03:37 EDT 2020
Benchmark Results Summary

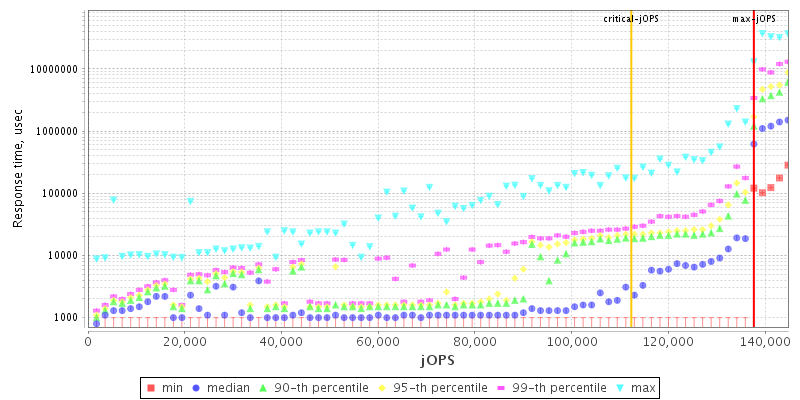

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips1
Total Cores64
Total Threads64
Total Memory Amount (GB)1024
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameThinkSystem SR635
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
AvailableJun-2020
ModelThinkSystem SR635
Form Factor1U
CPU NameAMD EPYC 7H12
CPU Characteristics64 core, 2.6GHz, 256MB L3 Cache (Turbo Boost Technology up to 3.30 GHz)
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System64
Cores Per Chip64
Threads Per System64
Threads Per Core1
VersionCFE111A
CPU Frequency (MHz)2600
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache512 KB I+D on chip per core
Tertiary Cache256MB (I+D) on chip per chip
Other CacheNone
Disk1 x 960GB SATA SSD
File SystemNTFS
Memory Amount (GB)1024
# and size of DIMM(s)16 x 64 GB
Memory Details64GB 2Rx4 PC4-2933Y-R
# and type of Network Interface Cards (NICs)1 x 1 GbE OCP NIC
Power Supply Quantity and Rating (W)1 x 750W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameWindows Server 2019 Datacenter
VendorMicrosoft
Vendor URLhttps://www.microsoft.com/
VersionVersion 1809(OS Build 17763.1098)
AvailableMar-2020
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 13.0.2
VendorOracle Corporation
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-Bit Server VM, version 13.0.2
AvailableJan-2020
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Configuration:
  • Operating Mode set to Maximum Performance
  • Memory Speed set to 2933
  • NUMA Nodes per sockert = NPS1
  • cTDP = 280
  • SMT Mode set to Disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(1)
OS Image Description os_1
Tuning
  • Add DWORD registry HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters\MaxUserPort=65534
  • Power Options is set to High performance
  • Processor scheduling is set to Programs
  • Visual Effects Adjust for best performance
  • Lock Pages in Memory is Enabled
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line -server -Xms800g -Xmx800g -Xmn795g -XX:SurvivorRatio=50 -XX:MaxTenuringThreshold=15 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseParallelOldGC -Xnoclassgc -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:-UsePerfData -XX:ParallelGCThreads=64
Tuning affinitize Composite JVM to a single memory node
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 135884 137649 139414 141178 142943
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 76766 106766 126178 131472 131472 112318
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 79413 / 3529 - / 1765 - / 1765 - / 1765 - / 1765 - / 1765
1000us 120002 / 14118 68824 / 3529 1765 / 3529 - / 1765 - / 1765 - / 1765
5000us 135884 / 137649 114707 / 116472 95295 / 30000 88236 / 26471 77648 / 26471 - / 1765
10000us 135884 / 137649 130590 / 132355 97060 / 91766 90001 / 91766 81178 / 72354 56471 / 5294
25000us 135884 / 137649 135884 / 137649 128825 / 130590 123531 / 125296 105884 / 107649 58236 / 5294
50000us 135884 / 137649 135884 / 137649 132355 / 134119 130590 / 132355 125296 / 127061 74119 / 5294
75000us 135884 / 137649 135884 / 137649 132355 / 134119 132355 / 134119 130590 / 132355 84707 / 5294
100000us 135884 / 137649 135884 / 137649 135884 / 137649 132355 / 134119 130590 / 132355 90001 / 61766
200000us 135884 / 137649 135884 / 137649 135884 / 137649 135884 / 137649 135884 / 134119 112943 / 100590
500000us 137649 / - 135884 / 137649 135884 / 137649 135884 / 137649 135884 / 137649 128825 / 130590
1000000us 137649 / - 137649 / - 135884 / 137649 135884 / 137649 135884 / 137649 130590 / 132355
Probes jOPS / Total jOPS

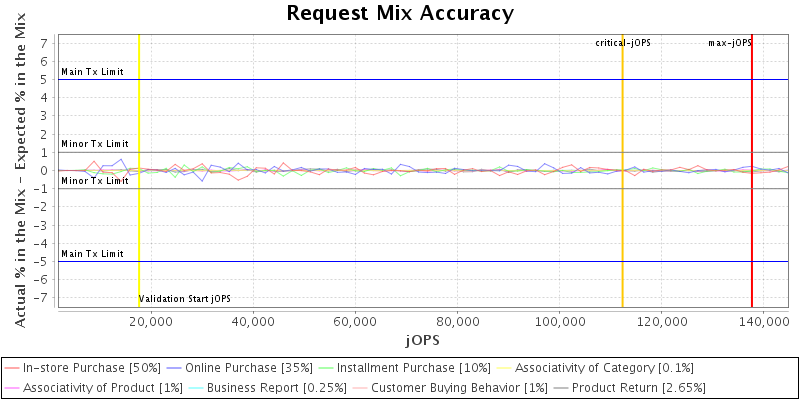

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings

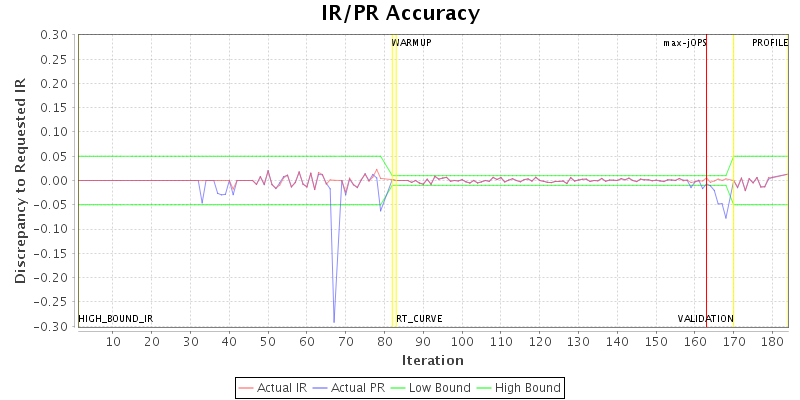

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.forkjoin.workers 64 {Tier1=64, Tier2=1, Tier3=17}
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 176473 IR
High-bound (settled) is 147077 IR
