SPECjbb2015 Report for jbb2015-20210408-00638 : 211179 max-jOPS ; 191813 critical-jOPS

SUT Description

Hardware hw_1
Name	Supermicro A+ AS-1124US-TNRP Server
Vendor	Super Micro Computer, Inc
Vendor URL	https://www.supermicro.com
Available	Mar-2021
Model	H12DSU-iN
Form Factor	1U
CPU Name	AMD EPYC 75F3
CPU Characteristics	32 core, 2.95GHz, 256MB L3 Cache (Max Boost Clock up to 4.0 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	64
Cores Per Chip	32
Threads Per System	128
Threads Per Core	2
Version	2.0 02/22/2021
CPU Frequency (MHz)	2950
Primary Cache	32KB(I)+32KB(D) per core
Secondary Cache	512KB (I+D) per core
Tertiary Cache	256MB (I+D) on chip per chip
Other Cache	None
Disk	1 x 400GB, NVMe PCIe 3.0
File System	btrfs
Memory Amount (GB)	1024
# and size of DIMM(s)	16 x 64GB
Memory Details	64GB 4Rx4 LRDIMM PC4-25600L
# and type of Network Interface Cards (NICs)	1 x 1 GbE NIC
Power Supply Quantity and Rating (W)	2 x 1600w
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 15 SP2
Vendor	SUSE
Vendor URL	http://suse.com/
Version	5.3.18-22-default
Available	July-2020
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 16
Vendor	Oracle
Vendor URL	http://oracle.com/
Version	Java HotSpot 64-bit Server VM, version 16
Available	Mar-2021
Bitness	64
Notes	note
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_Backend_1 : Backend
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Settings: NUMA nodes per socket = NPS2 Determinism Control = Manual Determinism Slider = Power cTDP Control = Manual cTDP = 280 Package Power Limit Control = Manual Package Power Limit = 280 L1 Stream HW Prefetcher = Disable L2 Stream HW Prefetcher = Disable xGMI Link Max speed = 18Gbps
Notes	notes

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(8), jvm_TxInjector_1(8)
OS Image Description	os_1
Tuning	cpupower -c all frequency-set -g performance tuned-adm profile throughput-performance echo 10000000 > /proc/sys/kernel/sched_min_granularity_ns echo 10000000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 10000 > /proc/sys/kernel/sched_migration_cost_ns echo 990000 > /proc/sys/kernel/sched_rt_runtime_us echo 24000000 > /proc/sys/kernel/sched_latency_ns echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/kernel/numa_balancing echo always > /sys/kernel/mm/transparent_hugepage/enabled echo always > /sys/kernel/mm/transparent_hugepage/defrag ulimit -n 1024000 UserTasksMax=970000 DefaultTasksMax=970000
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning	None
Notes	Used numactl to interleave memory on all CPUs numactl --interleave=all
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-Xms118g -Xmx118g -Xmn112g -server -XX:MetaspaceSize=30m -XX:AllocatePrefetchInstr=2 -XX:LargePageSizeInBytes=2m -XX:-UsePerfData -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:+UseParallelGC -XX:SurvivorRatio=70 -XX:TargetSurvivorRatio=95 -XX:ParallelGCThreads=16 -XX:MaxTenuringThreshold=15 -XX:InitialCodeCacheSize=25m -XX:+UseCompressedOops -XX:ObjectAlignmentInBytes=32 -XX:+UseTransparentHugePages -XX:-UseFastStosb -XX:+UseUnalignedLoadStores -XX:+UseXMMForArrayCopy -XX:+UseXMMForObjInit -XX:+UseFPUForSpilling
Tuning	None
Notes	Used numactl to affinitize two Backend JVM (2 Groups) to one NUMA node Group1: numactl --cpunodebind=0 --membind=0 Group2: numactl --cpunodebind=0 --membind=0 Group3: numactl --cpunodebind=1 --membind=1 Group4: numactl --cpunodebind=1 --membind=1 Group5: numactl --cpunodebind=2 --membind=2 Group6: numactl --cpunodebind=2 --membind=2 Group7: numactl --cpunodebind=3 --membind=3 Group8: numactl --cpunodebind=3 --membind=3
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning	None
Notes	Used numactl to affinitize two Transaction Injector JVM (2 Groups) to one NUMA node Group1: numactl --cpunodebind=0 --membind=0 Group2: numactl --cpunodebind=0 --membind=0 Group3: numactl --cpunodebind=1 --membind=1 Group4: numactl --cpunodebind=1 --membind=1 Group5: numactl --cpunodebind=2 --membind=2 Group6: numactl --cpunodebind=2 --membind=2 Group7: numactl --cpunodebind=3 --membind=3 Group8: numactl --cpunodebind=3 --membind=3

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	208436	211179	213921	216664	219406

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	157698	190609	198837	207064	209807	191813

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	5485 / 8228	- / 2743	- / 2743	- / 2743	- / 2743	- / 2743
1000us	123416 / 115188	16455 / 19198	5485 / 8228	- / 2743	- / 2743	- / 2743
5000us	211179 / -	205693 / 208436	153584 / 156327	126159 / 123416	79535 / 82277	10970 / 5485
10000us	211179 / -	211179 / -	197466 / 200208	186495 / 189238	159070 / 156327	32911 / 16455
25000us	211179 / -	211179 / -	211179 / -	211179 / -	191981 / 189238	32911 / 16455
50000us	211179 / -	211179 / -	211179 / -	211179 / -	197466 / 200208	46624 / 16455
75000us	211179 / -	211179 / -	211179 / -	211179 / -	208436 / 205693	46624 / 16455
100000us	211179 / -	211179 / -	211179 / -	211179 / -	208436 / 211179	101475 / 16455
200000us	211179 / -	211179 / -	211179 / -	211179 / -	211179 / -	194723 / 54852
500000us	211179 / -	211179 / -	211179 / -	211179 / -	211179 / -	211179 / -
1000000us	211179 / -	211179 / -	211179 / -	211179 / -	211179 / -	211179 / -

Number of probes

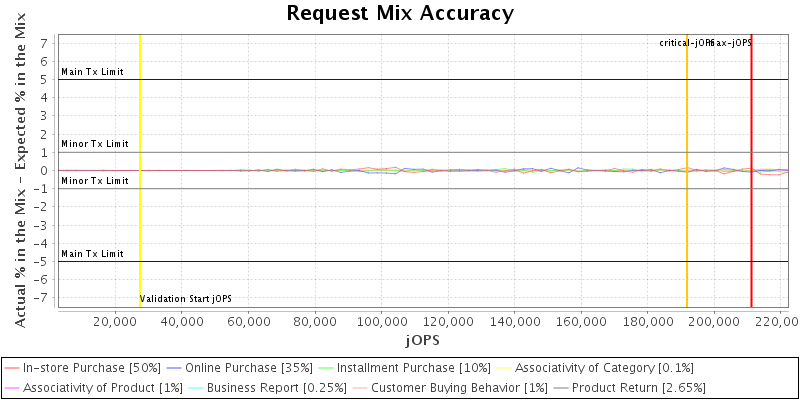

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

Delay between performance status pings during RT Curve (Response-Throughput Curve)

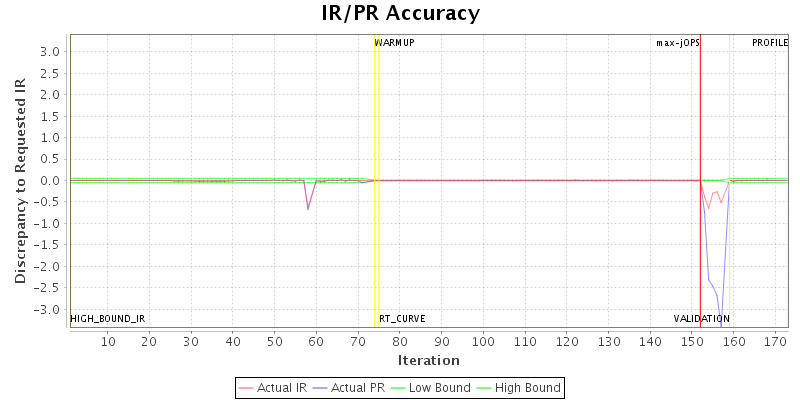

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller	Group1.Backend.beJVM	Group1.TxInjector.txiJVM1	Group2.Backend.beJVM	Group2.TxInjector.txiJVM1	Group3.Backend.beJVM	Group3.TxInjector.txiJVM1	Group4.Backend.beJVM	Group4.TxInjector.txiJVM1	Group5.Backend.beJVM	Group5.TxInjector.txiJVM1	Group6.Backend.beJVM	Group6.TxInjector.txiJVM1	Group7.Backend.beJVM	Group7.TxInjector.txiJVM1	Group8.Backend.beJVM	Group8.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size	256	256	64	64	64	64	64	64	64	64	64	64	64	64	64	64	64	64
specjbb.comm.connect.selector.runner.count	0	4
specjbb.comm.connect.timeouts.connect	60000	600000
specjbb.comm.connect.timeouts.read	60000	600000
specjbb.comm.connect.timeouts.write	60000	600000
specjbb.comm.connect.worker.pool.max	256	256	64	64	64	64	64	64	64	64	64	64	64	64	64	64	64	64
specjbb.controller.handshake.period	5000	20000
specjbb.controller.handshake.timeout	600000	800000
specjbb.forkjoin.workers	128	{Tier1=52, Tier2=2, Tier3=3}
specjbb.group.count	1	8
specjbb.heartbeat.period	10000	2000
specjbb.heartbeat.threshold	100000	600000
specjbb.mapreducer.pool.size	128	12
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 274258 IR

High-bound (settled) is 228682 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

Super Micro Computer, Inc Supermicro A+ AS-1124US-TNRP Server	211179 SPECjbb2015-MultiJVM max-jOPS 191813 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Super Micro Computer, Inc	Test Sponsor: Super Micro Computer, Inc	Test location: San Jose, California	Test date: April 07, 2021
SPEC license #: 001176	Hardware Availability: Mar-2021	Software Availability: Mar-2021	Publication: Mon Apr 26 10:18:11 EDT 2021
