SPECjbb2015
Copyright © 2015-2021 Standard Performance Evaluation Corporation
Inspur Corporation NF3180A6 177771 SPECjbb2015-Composite max-jOPS
125537 SPECjbb2015-Composite critical-jOPS
Tested by: Inspur Corporation Test Sponsor: Inspur Corporation Test location: Jinan, China Test date: Jul 26, 2021
SPEC license #: 3358 Hardware Availability: Aug-2021 Software Availability: Jul-2021 Publication: Fri Aug 13 11:52:56 EDT 2021
Benchmark Results Summary

SPECjbb2015-Composite: Single JVM/Single Host
(# of groups: 2)

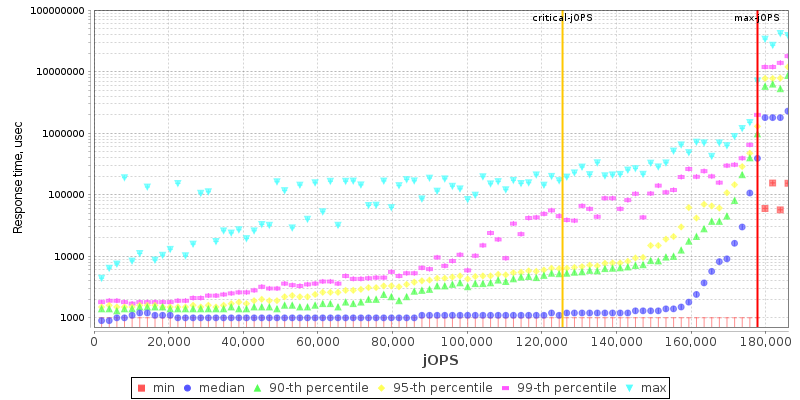

Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorInspur Corporation
Vendor URLhttp://www.inspur.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips1
Total Cores64
Total Threads128
Total Memory Amount (GB)512
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameNF3180A6
VendorInspur Corporation
Vendor URLhttp://www.inspur.com/
AvailableAug-2021
ModelNF3180A6
Form Factor1U
CPU NameAMD EPYC 7713P
CPU Characteristics64 core, 2.0GHz, 256MB L3 Cache (Max Boost Clock up to 3.675 GHz)
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System64
Cores Per Chip64
Threads Per System128
Threads Per Core2
Version1.6.1 released Jun-2021
CPU Frequency (MHz)2000
Primary Cache32KB(I)+32KB(D) on chip per core
Secondary Cache512KB (I+D) on chip per core
Tertiary Cache256MB (I+D) on chip per chip
Other CacheNone
Disk1 x 480GB SATA SSD
File Systemxfs
Memory Amount (GB)512
# and size of DIMM(s)16 x 32GB
Memory Details16 x 32GB 2Rx4 PC4-3200AA-R; each slot populated
# and type of Network Interface Cards (NICs)1 x 10 Gbit NIC
Power Supply Quantity and Rating (W)1 x 1600W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux release 8.2 (Ootpa)
VendorRed Hat
Vendor URLhttp://redhat.com/
Version4.18.0-193
AvailableApr-2020
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 16.0.2
VendorOracle
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 16.0.2
AvailableJul-2021
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Tuning
  • L1 Stream HW Prefetcher=Disabled
  • L2 Stream HW Prefetcher=Disabled
  • NUMA Nodes per socket=NPS4
  • cTDP Control=Manual
  • cTDP=240
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(2)
OS Image Description os_1
Tuning
  • ulimit -n 655360
  • tuned-adm profile throughput-performance
  • echo 15000000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • echo 80000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 16 > /proc/sys/kernel/sched_nr_migrate
  • echo 950000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 10000000 > /proc/sys/kernel/sched_latency_ns
  • echo 10000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 10 > /proc/sys/vm/dirty_background_ratio
  • echo 10 > /proc/sys/vm/swappiness
  • echo 0 > /proc/sys/kernel/numa_balancing
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag
  • echo always > /sys/kernel/mm/transparent_hugepage/enabled
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line -server -Xms480g -Xmx480g -Xmn450g -XX:+UseLargePages -XX:+UseParallelGC -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=28 -XX:+UseTransparentHugePages -XX:ParallelGCThreads=128 -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=1 -XX:+AlwaysPreTouch
Tuning None
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 175728 177771 179815 181858 183901
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 101583 113406 132031 140309 146099 125537
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 59257 / 2043 - / 2043 - / 2043 - / 2043 - / 2043 - / 2043
1000us 169598 / 171641 85821 / 10217 - / 2043 - / 2043 - / 2043 - / 2043
5000us 171641 / 173685 163468 / 165511 120558 / 122601 110341 / 108298 81734 / 79691 2043 / 4087
10000us 173685 / 175728 169598 / 171641 155295 / 157338 147121 / 149165 110341 / 98081 16347 / 8173
25000us 175728 / 177771 171641 / 173685 161425 / 163468 155295 / 157338 114428 / 112384 40867 / 8173
50000us 175728 / 177771 173685 / 175728 169598 / 171641 161425 / 159381 147121 / 122601 65387 / 8173
75000us 175728 / 177771 173685 / 175728 169598 / 171641 167555 / 169598 147121 / 136904 79691 / 8173
100000us 177771 / - 173685 / 175728 171641 / 173685 167555 / 169598 147121 / 145078 102167 / 8173
200000us 177771 / - 175728 / 177771 171641 / 173685 171641 / 173685 167555 / 159381 126688 / 118514
500000us 177771 / - 177771 / - 175728 / 177771 175728 / 177771 173685 / 175728 165511 / 155295
1000000us 177771 / - 177771 / - 177771 / - 175728 / 177771 175728 / 177771 171641 / 173685
Number of probes
Probes jOPS / Total jOPS

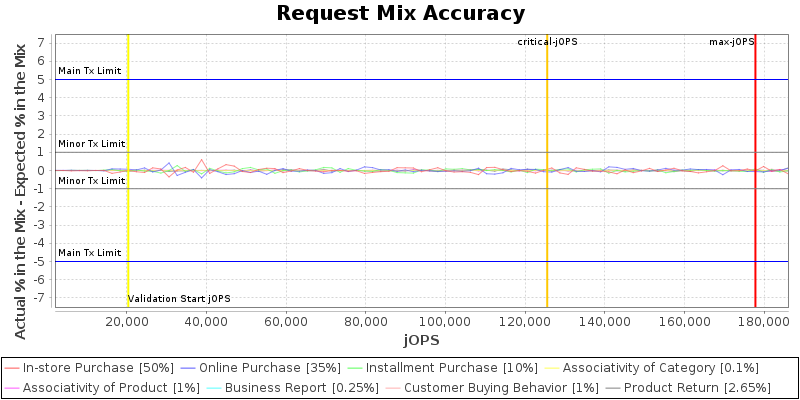

Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building
Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings

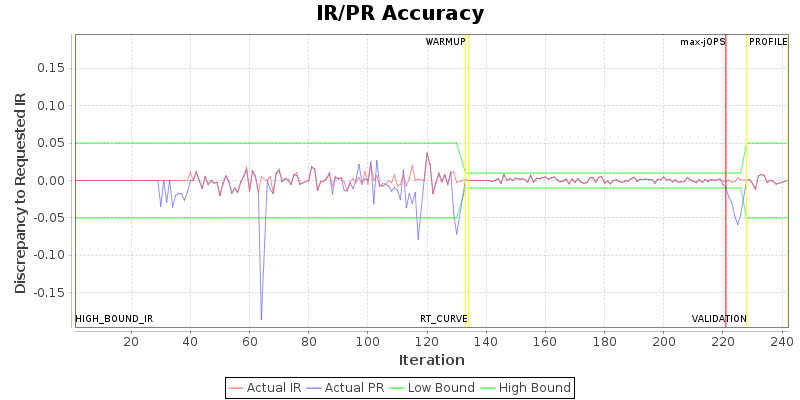

IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.forkjoin.workers 128 {Tier1=120, Tier2=1, Tier3=20}
specjbb.group.count 1 2
specjbb.mapreducer.pool.size 128 4
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 204335 IR
High-bound (settled) is 189392 IR
