ASUSTeK Computer Inc. RS700A-E11-RS12U 416200 SPECjbb2015-Distributed max-jOPS
153127 SPECjbb2015-Distributed critical-jOPS
Tested by: ASUSTeK Computer Inc. Test Sponsor: ASUSTeK Computer Inc. Test location: Taipei, Taiwan Test date: Oct 4, 2021
SPEC license #: 9016 Hardware Availability: Jul-2021 Software Availability: Sep-2021 Publication: Thu Nov 4 18:07:39 EDT 2021
Benchmark Results Summary

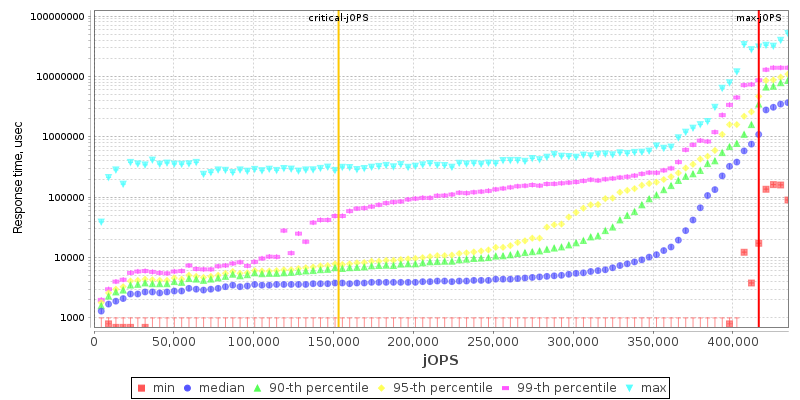

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorASUSTeK Computer Inc.
Vendor URLhttps://www.asus.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores128
Total Threads256
Total Memory Amount (GB)1024
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameRS700A-E11-RS12U
VendorASUSTeK Computer Inc.
Vendor URLhttps://www.asus.com/
AvailableJul-2021
ModelRS700A-E11-RS12U
Form Factor1U
CPU NameAMD EPYC 7763
CPU Characteristics64 Core, 2.45 GHz, 256 MB L3 Cache (Max Boost Clock up to 3.5 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System128
Cores Per Chip64
Threads Per System256
Threads Per Core2
Version0603
CPU Frequency (MHz)2450
Primary Cache32 KB (I) + 32 KB (D) on chip per core
Secondary Cache512 KB (I+D) on chip per core
Tertiary Cache256 MB (I+D) on chip per chip
Other CacheNone
Disk1 x 1 TB SATA SSD
File Systemxfs
Memory Amount (GB)1024
# and size of DIMM(s)16 x 64 GB
Memory Details64 GB 4Rx4 PC4-3200AA-L
# and type of Network Interface Cards (NICs)1 x 2 ports Intel X710 10GbE
Power Supply Quantity and Rating (W)2 x 1600
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 15 SP2
VendorSUSE
Vendor URLhttps://www.suse.com/
Version5.3.18.22-default
AvailableJul-2020
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 17
VendorOracle
Vendor URLhttp://www.oracle.com/
VersionJava HotSpot 64-bit Server VM, version 17
AvailableSep-2021
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware hw_2
NameRS700A-E11-RS12U
VendorASUSTeK Computer Inc.
Vendor URLhttps://www.asus.com/
AvailableJul-2021
ModelRS700A-E11-RS12U
Form Factor1U
CPU NameAMD EPYC 7763
CPU Characteristics64 Core, 2.45 GHz, 256 MB L3 Cache (Max Boost Clock up to 3.5 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System128
Cores Per Chip64
Threads Per System256
Threads Per Core2
Version0603
CPU Frequency (MHz)2450
Primary Cache32 KB (I) + 32 KB (D) on chip per core
Secondary Cache512 KB (I+D) on chip per core
Tertiary Cache256 MB (I+D) on chip per chip
Other CacheNone
Disk1 x 1 TB SATA SSD
File Systemxfs
Memory Amount (GB)1024
# and size of DIMM(s)16 x 64 GB
Memory Details64 GB 2Rx4 PC4-3200AA-R
# and type of Network Interface Cards (NICs)1 x 2 ports Intel X710 10GbE
Power Supply Quantity and Rating (W)2 x 1600
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_2
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_2
NameSUSE Linux Enterprise Server 15 SP2
VendorSUSE
Vendor URLhttps://www.suse.com/
Version5.3.18.22-default
AvailableJul-2020
Bitness64
NotesNone
Java Virtual Machine jvm_2
NameOracle Java SE 17
VendorOracle
Vendor URLhttp://www.oracle.com/
VersionJava HotSpot 64-bit Server VM, version 17
AvailableSep-2021
Bitness64
NotesNone
Other Software other_2
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Settings:
  • Engine Boost = Enabled
  • L1 Stream HW Prefetcher = Disable
  • L2 Stream HW Prefetcher = Disable
  • Enhanced REP MOVSB/STOSB = Disabled
  • Fast Short REP MOVSB = Disabled
  • DLWM Support = Disabled
  • NUMA nodes per socket = NPS4
  • Memory Interleaving = Disabled
  • ACPI SRAT L3 Cache as NUMA Domain = Enabled
  • APBDIS = 1
  • Fix SOC P-state = P0
Notes None
OS Image os_Image_1
JVM Instances jvm_Backend_1(16)
OS Image Description os_1
Tuning
  • cpupower frequency-set -g performance
  • tuned-adm profile throughput-performance
  • ulimit -n 655360
  • echo 960000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 40000000 > /proc/sys/kernel/sched_latency_ns
  • echo 40000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 800000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 200000000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • echo 9000 > /proc/sys/kernel/sched_nr_migrate
  • echo 10000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 10 > /proc/sys/vm/dirty_background_ratio
  • echo 10 > /proc/sys/vm/swappiness
  • echo 0 > /proc/sys/kernel/numa_balancing
  • echo 0 > /proc/sys/vm/numa_stat
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag
  • echo always > /sys/kernel/mm/transparent_hugepage/enabled
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -Xms30g -Xmx30g -Xmn27g -XX:AllocatePrefetchInstr=2 -XX:+UseParallelGC -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:SurvivorRatio=30 -XX:TargetSurvivorRatio=99 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=32 -XX:+UseTransparentHugePages -XX:MaxInlineSize=900 -XX:FreqInlineSize=900 -XX:LoopUnrollLimit=30 -XX:InlineSmallCode=3k -XX:AutoBoxCacheMax=5000
Tuning Used numactl to affinitize each Backend JVM to 8 Cores / 16 Threads
  • numactl --physcpubind=0-7,128-135 --localalloc
  • numactl --physcpubind=8-15,136-143 --localalloc
  • numactl --physcpubind=16-23,144-151 --localalloc
  • numactl --physcpubind=24-31,152-159 --localalloc
  • numactl --physcpubind=32-39,160-167 --localalloc
  • numactl --physcpubind=40-47,168-175 --localalloc
  • numactl --physcpubind=48-55,176-183 --localalloc
  • numactl --physcpubind=56-63,184-191 --localalloc
  • numactl --physcpubind=64-71,192-199 --localalloc
  • numactl --physcpubind=72-79,200-207 --localalloc
  • numactl --physcpubind=80-87,208-215 --localalloc
  • numactl --physcpubind=88-95,216-223 --localalloc
  • numactl --physcpubind=96-103,224-231 --localalloc
  • numactl --physcpubind=104-111,232-239 --localalloc
  • numactl --physcpubind=112-119,240-247 --localalloc
  • numactl --physcpubind=120-127,248-255 --localalloc
Notes None
Hardware
OS Images os_Image_2(1)
Hardware Description hw_2
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Settings:
  • Engine Boost = Enabled
  • L1 Stream HW Prefetcher = Disable
  • L2 Stream HW Prefetcher = Disable
  • Enhanced REP MOVSB/STOSB = Disabled
  • Fast Short REP MOVSB = Disabled
  • DLWM Support = Disabled
  • NUMA nodes per socket = NPS4
  • Memory Interleaving = Disabled
  • ACPI SRAT L3 Cache as NUMA Domain = Enabled
  • APBDIS = 1
  • Fix SOC P-state = P0
Notes None
OS Image os_Image_2
JVM Instances jvm_Ctr_1(1), jvm_TxInjector_1(16)
OS Image Description os_2
Tuning
  • cpupower frequency-set -g performance
  • tuned-adm profile throughput-performance
  • ulimit -n 655360
  • echo 960000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 40000000 > /proc/sys/kernel/sched_latency_ns
  • echo 40000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 800000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 200000000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • echo 9000 > /proc/sys/kernel/sched_nr_migrate
  • echo 10000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 10 > /proc/sys/vm/dirty_background_ratio
  • echo 10 > /proc/sys/vm/swappiness
  • echo 0 > /proc/sys/kernel/numa_balancing
  • echo 0 > /proc/sys/vm/numa_stat
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag
  • echo always > /sys/kernel/mm/transparent_hugepage/enabled
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_2
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning Used numactl to interleave memory on all CPUs
  • numactl --interleave=all
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_2
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning Used numactl to affinitize each TxInjector JVM to 8 Cores / 16 Threads
  • numactl --physcpubind=0-7,128-135 --localalloc
  • numactl --physcpubind=8-15,136-143 --localalloc
  • numactl --physcpubind=16-23,144-151 --localalloc
  • numactl --physcpubind=24-31,152-159 --localalloc
  • numactl --physcpubind=32-39,160-167 --localalloc
  • numactl --physcpubind=40-47,168-175 --localalloc
  • numactl --physcpubind=48-55,176-183 --localalloc
  • numactl --physcpubind=56-63,184-191 --localalloc
  • numactl --physcpubind=64-71,192-199 --localalloc
  • numactl --physcpubind=72-79,200-207 --localalloc
  • numactl --physcpubind=80-87,208-215 --localalloc
  • numactl --physcpubind=88-95,216-223 --localalloc
  • numactl --physcpubind=96-103,224-231 --localalloc
  • numactl --physcpubind=104-111,232-239 --localalloc
  • numactl --physcpubind=112-119,240-247 --localalloc
  • numactl --physcpubind=120-127,248-255 --localalloc
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 411627 416200 420774 425348 429921
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 107480 129204 157790 180658 212674 153127
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 4574 - / 4574 - / 4574 - / 4574 - / 4574 - / 4574
1000us - / 4574 - / 4574 - / 4574 - / 4574 - / 4574 - / 4574
5000us 370464 / 375038 288139 / 292712 91473 / 86899 73178 / 59457 18295 / 22868 - / 4574
10000us 379611 / 384185 343022 / 347596 246976 / 251550 205813 / 210387 105193 / 109767 - / 4574
25000us 388759 / 393332 365890 / 370464 315580 / 320154 278991 / 283565 132635 / 118914 - / 4574
50000us 388759 / 393332 375038 / 379611 333875 / 338449 297286 / 301860 155503 / 160077 4574 / 9147
75000us 393332 / 397906 379611 / 384185 343022 / 347596 311007 / 315580 178372 / 182945 4574 / 9147
100000us 393332 / 397906 379611 / 384185 347596 / 352170 324728 / 329301 210387 / 214961 4574 / 9147
200000us 402479 / 407053 388759 / 393332 365890 / 370464 356743 / 361317 320154 / 324728 18295 / 9147
500000us 411627 / 416200 402479 / 407053 388759 / 393332 384185 / 388759 365890 / 370464 311007 / 288139
1000000us 416200 / - 411627 / 416200 402479 / 407053 388759 / 393332 384185 / 388759 365890 / 370464

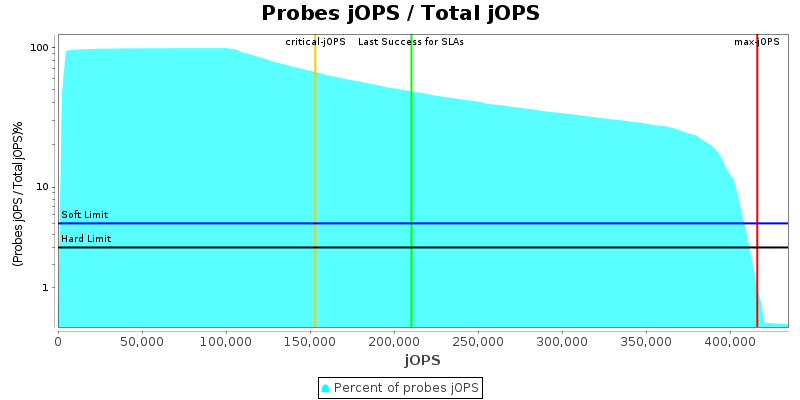

Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings

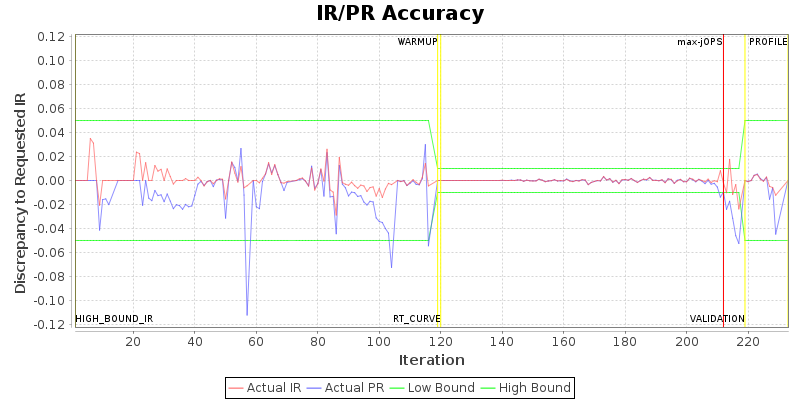

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller Group1.Backend.beJVM Group1.TxInjector.txiJVM1 Group10.Backend.beJVM Group10.TxInjector.txiJVM1 Group11.Backend.beJVM Group11.TxInjector.txiJVM1 Group12.Backend.beJVM Group12.TxInjector.txiJVM1 Group13.Backend.beJVM Group13.TxInjector.txiJVM1 Group14.Backend.beJVM Group14.TxInjector.txiJVM1 Group15.Backend.beJVM Group15.TxInjector.txiJVM1 Group16.Backend.beJVM Group16.TxInjector.txiJVM1 Group2.Backend.beJVM Group2.TxInjector.txiJVM1 Group3.Backend.beJVM Group3.TxInjector.txiJVM1 Group4.Backend.beJVM Group4.TxInjector.txiJVM1 Group5.Backend.beJVM Group5.TxInjector.txiJVM1 Group6.Backend.beJVM Group6.TxInjector.txiJVM1 Group7.Backend.beJVM Group7.TxInjector.txiJVM1 Group8.Backend.beJVM Group8.TxInjector.txiJVM1 Group9.Backend.beJVM Group9.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size 256 256
specjbb.comm.connect.selector.runner.count 0 4 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0
specjbb.comm.connect.timeouts.connect 60000 900000
specjbb.comm.connect.timeouts.read 60000 800000
specjbb.comm.connect.timeouts.write 60000 800000
specjbb.comm.connect.worker.pool.max 256 128 111 256 111 256 111 256 111 256 111 256 111 256 111 256 111 256 111 256 111 256 111 256 111 256 111 256 111 256 111 256 111 256
specjbb.comm.connect.worker.pool.min 1 32 64 1 64 1 64 1 64 1 64 1 64 1 64 1 64 1 64 1 64 1 64 1 64 1 64 1 64 1 64 1 64 1
specjbb.controller.host localhost 192.168.0.10
specjbb.customerDriver.threads 64 {probe=64, saturate=64}
specjbb.forkjoin.workers 256 {Tier1=224, Tier2=72, Tier3=32}
specjbb.group.count 1 16
specjbb.mapreducer.pool.size 256 32
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 457363 IR
High-bound (settled) is 432520 IR
