SPECjbb2015
Copyright © 2015-2022 Standard Performance Evaluation Corporation
Nettrix R620 G40 74497 SPECjbb2015-Composite max-jOPS
65649 SPECjbb2015-Composite critical-jOPS
Tested by: Nettrix Test Sponsor: Nettrix Test location: Beijing,China Test date: Jun 23, 2022
SPEC license #: 6138 Hardware Availability: Jun-2022 Software Availability: May-2022 Publication: Fri Jul 29 10:57:54 EDT 2022
Benchmark Results Summary

SPECjbb2015-Composite: Single JVM/Single Host
(# of groups: 2)

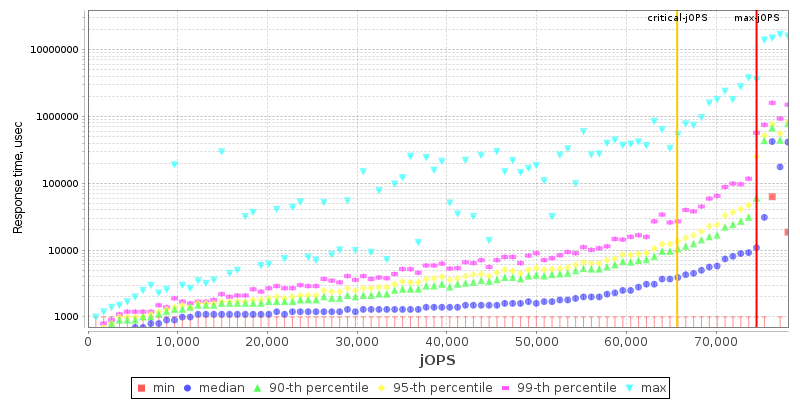

Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorNettrix
Vendor URLhttps://www.nettrix.com.cn
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores24
Total Threads48
Total Memory Amount (GB)2048
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameR620 G40
VendorNettrix
Vendor URLhttps://www.nettrix.com.cn
AvailableJun-2022
ModelR620 G40
Form Factor2U
CPU NameIntel(R) Xeon(R) Silver 4310 CPU @ 2.10GHz
CPU Characteristics12core, 2.1GHz, 18MB L3 Cache (Turbo Boost Technology up to 3.30 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System24
Cores Per Chip12
Threads Per System48
Threads Per Core2
Version0PYH001040
CPU Frequency (MHz)2100
Primary Cache32 KB I + 48 KB D on chip per core
Secondary Cache1.25 MB I+D on chip per core
Tertiary Cache18 MB I+D on chip per chip
Other CacheNone
Disk1x80GB SATA SSD
File Systembtrfs
Memory Amount (GB)2048
# and size of DIMM(s)16 x 128GB
Memory Details16 x 128GB_Hynix_DDR4_3200_2Rx4
# and type of Network Interface Cards (NICs)2 x 25 Gbit NICs
Power Supply Quantity and Rating (W)2 x 1200W
Other Hardware1 x OCP with 2 x 25 Gbit NICs
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 15 SP3
VendorSUSE
Vendor URLhttps://www.suse.com
Version5.3.18-57-default
AvailableJun-2021
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 18.0.1.1
VendorOracle
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 18.0.1.1
AvailableMay-2022
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning
  • SNC = Enable SNC2 (2-clusters)
  • Patrol Scrub = Disabled
  • DCU Streamer Prefetcher = Disabled
  • DCU IP Prefetcher = Disabled
  • UPI Prefetcher = Disbaled
  • LLC Prefetch = Disabled
  • XPT Prefetch = Disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(1)
OS Image Description os_1
Tuning
  • cpupower frequency-set -g performance
  • tuned-adm profile throughput-performance
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag
  • echo always > /sys/kernel/mm/transparent_hugepage/enabled
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line -server -Xms650g -Xmx650g -Xmn600g -XX:+UseLargePages -XX:+UseParallelGC -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=28 -XX:+UseTransparentHugePages -XX:ParallelGCThreads=160 -XX:+UseHugeTLBFS -XX:-UseNUMAInterleaving -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=1 -XX:+UseNUMA -XX:+AlwaysPreTouch -XX:+UseRTMLocking -XX:InlineSmallCode=13k -XX:UseAVX=0
Tuning numactl used to interleave the controller amongst all available nodes, eg:
  • numactl --cpunodebind=0-3 --interleave=0-3
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 73620 74497 75373 76249 77126
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 54777 62665 68800 70552 73182 65649
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 14023 / 13146 1753 / 2629 876 / 1753 876 / 1753 - / 876 - / 876
1000us 61350 / 62227 11394 / 12270 7011 / 7888 6135 / 7011 2629 / 3506 876 / 1753
5000us 74497 / - 68362 / 69238 54339 / 55215 48204 / 46451 36810 / 35057 16652 / 9641
10000us 74497 / - 73620 / 74497 64856 / 65732 62227 / 63103 54339 / 55215 33304 / 9641
25000us 74497 / - 74497 / - 71867 / 72744 70114 / 70991 62227 / 63103 44698 / 9641
50000us 74497 / - 74497 / - 73620 / 74497 73620 / 74497 68362 / 69238 51709 / 9641
75000us 74497 / - 74497 / - 74497 / - 73620 / 74497 70114 / 70991 51709 / 9641
100000us 74497 / - 74497 / - 74497 / - 73620 / 74497 72744 / 73620 54339 / 9641
200000us 74497 / - 74497 / - 74497 / - 73620 / 74497 73620 / 74497 54339 / 14899
500000us 74497 / - 74497 / - 74497 / - 74497 / - 73620 / 74497 64856 / 55215
1000000us 74497 / - 74497 / - 74497 / - 74497 / - 74497 / - 68362 / 69238

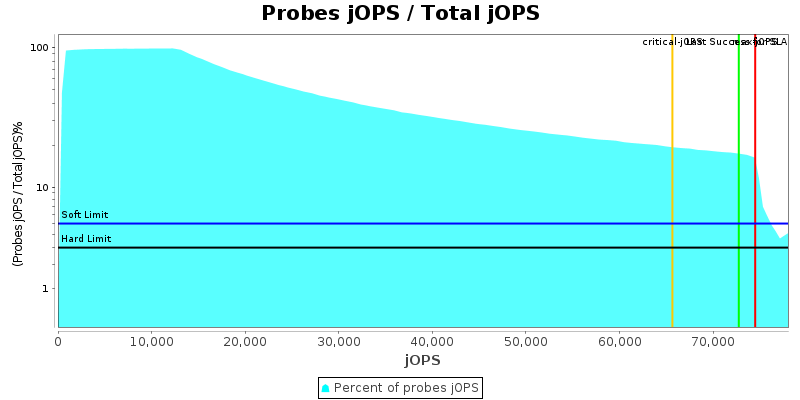

Number of probes
Probes jOPS / Total jOPS

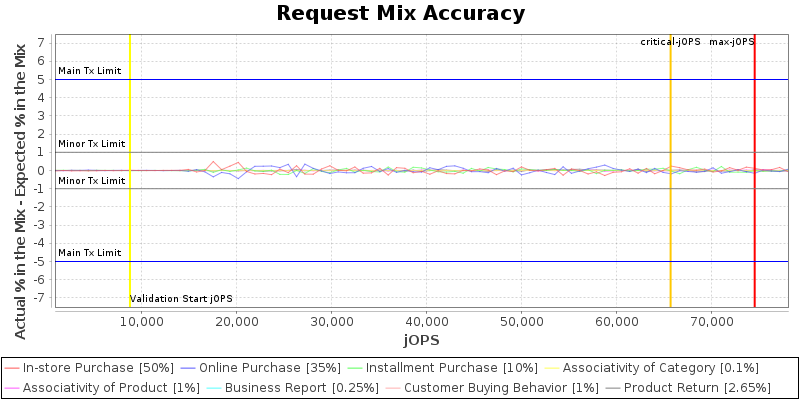

Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building
Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings

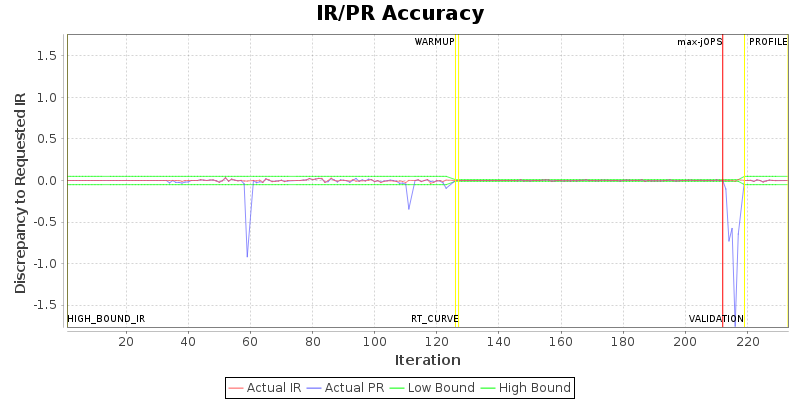

IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.selector.runner.count 0 40
specjbb.comm.connect.timeouts.connect 60000 800000
specjbb.comm.connect.timeouts.read 60000 800000
specjbb.comm.connect.timeouts.write 60000 800000
specjbb.customerDriver.threads 64 {probe=64, saturate=80, service=64}
specjbb.forkjoin.workers 48 {Tier1=190, Tier2=2, Tier3=10}
specjbb.group.count 1 2
specjbb.txi.pergroup.count 1 1
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 87643 IR
High-bound (settled) is 84463 IR
Copyright © 2015-2022 Standard Performance Evaluation Corporation
http://www.spec.org - info@spec.org
SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]
