SPECjms2007 ® Result
Copyright © 2011   Standard Performance Evaluation Corporation
JBoss Enterprise Application Platform 5.1.2 on HP ProLiant BL490c G6 (HT on) using AIO
491   SPECjms2007@Horizontal
Submitter:
Red Hat Inc.
SPEC License # 98Test Date:
May-2011
Software Products
JBoss Enterprise Application Platform 5.1.2
OpenJDK Runtime Environment (IcedTea6 1.9.3) (rhel-1.16.1.b20.el5-x86_64)/OpenJDK 64-Bit Server VM (build 19.0-b09, mixed mode)
Software Configurations
JMS Server SW
Client SW Config
Hardware Systems
JMS Server HW (SUT hardware)
Client Node 1/2/3/4 HW (SUT hardware)

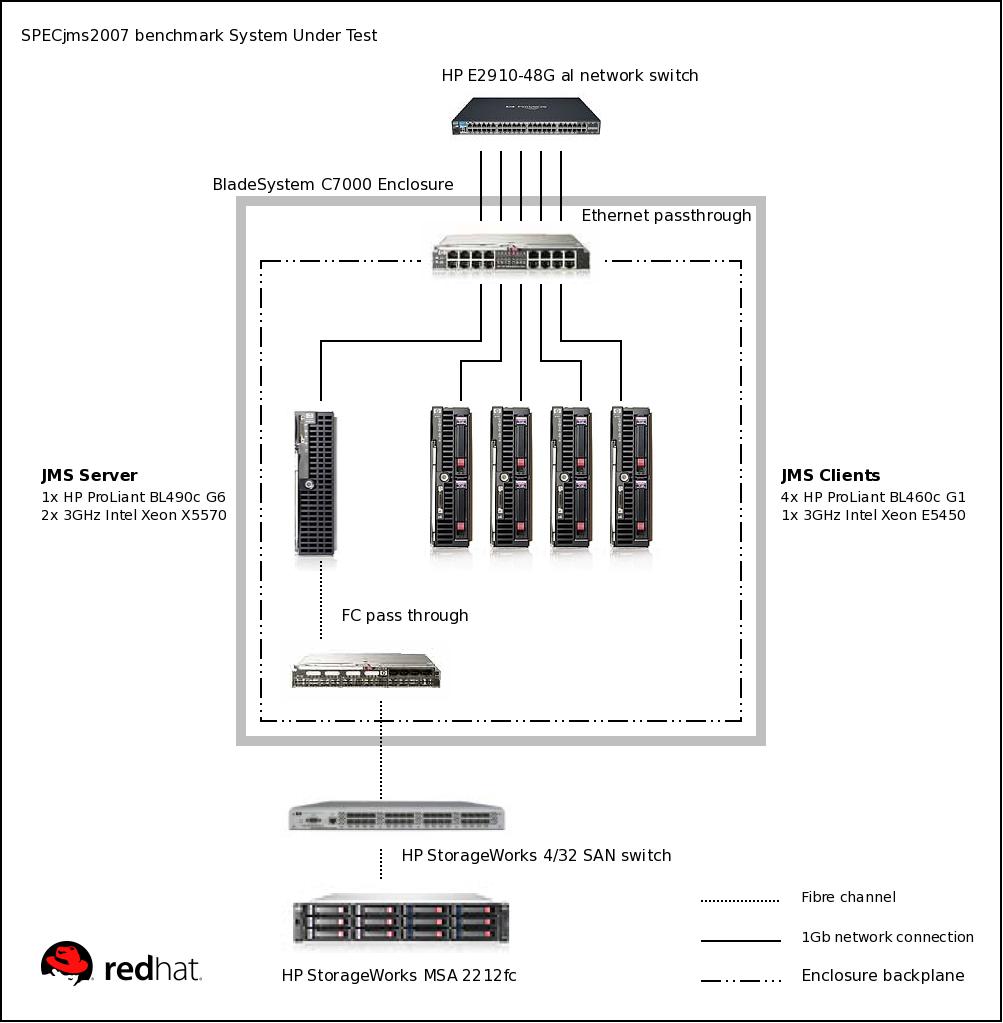

System Configuration Diagram
Benchmark
SUT Configuration
Benchmark Settings
Bill Of Materials
General Notes
Detailed Results
Full Disclosure Archive
Runtime Graph


SUT Configuration
JMS Server Nodes:1 JMS Client Nodes:4
JMS Server CPUs:8 cores, 2 chips, 4 core/chip  JMS Client CPUs:4 cores, 1 chips, 4 core/chip
JMS Server Instances:1 JMS Client JVMs:16
DB Server Nodes:0
DB Server CPUs:0 cores, 0 chips, 0 core/chip
DB Server Instances:0
Other SUT Components:
HP StorageWorks 16 port SAN Switch 4/32, HP E2910-48G al Network Switch

Benchmark Settings
Topology:horizontal
Scale (BASE):491
 # Locations# Agents Per Location# JVMs Per NodeMax Connections Per Agent
HQ50111
SM491111
DC99111
SP197111
Warm Up Period600
Measurement Period2000
Drain Period600

Detailed Results
Run ID00473
Typehorizontal
All tests passedPASS
Valid ConfigurationPASS
  Input Rate Messages Processed Messages Sent Messages Received Input rate is within +-5% of configured value Total message count is within +-5% of configured value Input rate distribution deviations do not exceed 20%
Interaction 1 1.1193 21216084 10608042 10608042 PASS PASS PASS
Interaction 2 1.5526 9403973 4453247 4950726 PASS PASS PASS
Interaction 3 4.3382 6866352 13956 6852396 PASS PASS PASS
Interaction 4 2.4567 7760904 3880452 3880452 PASS PASS PASS
Interaction 5 8.3976 26528674 13264337 13264337 PASS PASS PASS
Interaction 6 8.2571 13068996 26563 13042433 PASS PASS PASS
Interaction 7 6.7289 10650324 21647 10628677 PASS PASS PASS

JBoss Enterprise Application Platform 5.1.2
Vendor:Red Hat, Inc. Availability:Sep-2011
OS Name:RHEL 5.5


OpenJDK Runtime Environment (IcedTea6 1.9.3) (rhel-1.16.1.b20.el5-x86_64)/OpenJDK 64-Bit Server VM (build 19.0-b09, mixed mode)
Vendor:OpenJDK Availability:Aug-2010
OS Name:RHEL 5.5 (2.6.18-194.el5)


JMS Server SW
JMS Product:JBoss Enterprise Application Platform 5.1.2
JVM Product:OpenJDK Runtime Environment (IcedTea6 1.9.3) (rhel-1.16.1.b20.el5-x86_64)/OpenJDK 64-Bit Server VM (build 19.0-b09, mixed mode)
JDBC Product:
Other Product(s):
Hardware:JMS Server HW (SUT hardware)
# of Instances:1
Notes / Tuning Information
 HornetQ connection factory configuration was modified to change default time-out limits. The configuration file is included in the FDA.

 ------------------------------
| JBoss EAP 5.1.2 jvm options |
 ------------------------------
JAVA_OPTS=" -Xms3800m -Xmx3800m -XX:MaxPermSize=150m -XX:NewRatio=4 -XX:+UseLargePages -XX:LargePageSizeInBytes=4m -XX:+UseParallelGC -XX:ParallelGCThreads=16"



Client SW Config
JVM Product:
Other Product(s):
# of JVM Instances:16
Hardware:Client Node 1/2/3/4 HW (SUT hardware)
# of Instances:4
Agents:16
Notes / Tuning Information
 -----------------------------
| HQ Agent jvm options       |
 -----------------------------
org.spec.jms.hq.jvmOptions=-Xms250m -Xmx250m -XX:MaxPermSize=50m -XX:NewRatio=4 -XX:+UseParallelGC -XX:ParallelGCThreads=8 -verbose:gc -XX:+PrintGCTimeStamps -XX:+PrintGCDetails -XX:-HeapDumpOnOutOfMemoryError -Xloggc:/tmp/verbose-gc-hq.txt
 -----------------------------
| DC Agent jvm options       |
 -----------------------------
org.spec.jms.dc.jvmOptions=-Xms250m -Xmx250m -XX:MaxPermSize=100m -XX:NewRatio=4 -XX:+UseParallelGC -XX:ParallelGCThreads=8  -verbose:gc -XX:+PrintGCTimeStamps -XX:+PrintGCDetails -XX:-HeapDumpOnOutOfMemoryError -Xloggc:/tmp/verbose-gc-dc.txt
 -----------------------------
| SM Agent jvm options       |
 -----------------------------
org.spec.jms.sm.jvmOptions=-Xms750m -Xmx750m -XX:MaxPermSize=400m -XX:NewRatio=4 -XX:+UseParallelGC -XX:ParallelGCThreads=8  -verbose:gc -XX:+PrintGCTimeStamps -XX:+PrintGCDetails -XX:-HeapDumpOnOutOfMemoryError -Xloggc:/tmp/verbose-gc-sm.txt
 -----------------------------
| SP Agent jvm options       |
 -----------------------------
org.spec.jms.sp.jvmOptions=-Xms320m -Xmx320m -XX:MaxPermSize=220m -XX:NewRatio=4 -XX:+UseParallelGC -XX:ParallelGCThreads=8  -verbose:gc -XX:+PrintGCTimeStamps -XX:+PrintGCDetails -XX:-HeapDumpOnOutOfMemoryError -Xloggc:/tmp/verbose-gc-sp.txt





JMS Server HW (SUT hardware)
Hardware Vendor:HP OS Vendor:Red Hat, Inc
Model Name:ProLiant BL490c G6 OS Name:RHEL 5.5
Processor:Intel Xeon X5570 Filesystem:ext2
MHz:2930 Disks:2x72GB 15K SAS SFF, 12x146GB 15K dual port SAS LFF, HP MSA 2000 (300GB)
# of CPUS4 cores, 2 chips, 4 core/chip  Network Interface:1 GbE
Memory (MB):24576 Other Hardware:
L1 Cache:4 x 32 KB instruction caches, 4 x 32 KB data caches # of Systems:1
L2 Cache:4 x 256 KB H/W Available:Mar-2009
Other Cache:8MB OS Available:Mar-2010
Notes / Tuning Information

 EAP 5.1.2 with HornetQ messaging.

 Stop iptables.

 MSA2000 used for storing HornetQ messaging journal files.

 Configured with Hyper Threading (HT) enabled.


Client Node 1/2/3/4 HW (SUT hardware)
Hardware Vendor:HP OS Vendor:Red Hat, Inc
Model Name:ProLiant BL460c G1 OS Name:RHEL 5.5
Processor:Quad-Core Xeon Processor E5450 Filesystem:ext3
MHz:3000 Disks:2x 72GB SAS 15K RAID1
# of CPUS4 cores, 1 chips, 4 core/chip  Network Interface:1GbE NC373i
Memory (MB):22528 Other Hardware:
L1 Cache:4 x 32 KB instruction caches, 4 x 32 KB write-back data caches # of Systems:4
L2 Cache:2 x 6 MB shared caches H/W Available:Nov-2007
Other Cache: OS Available:Mar-2010
Notes / Tuning Information
 Stop iptables.

 Configured with Hyper Threading (HT) enabled.



Bill Of Materials
-------- -------------------------------------------------------------------------------- ---------- --------
Supplier Description                                                                      Product #   Quantity
-------- -------------------------------------------------------------------------------- ---------- --------

RedHat   Red Hat Enterprise Linux Server, Standard (1-2 sockets) (Up to 1 guest) 3 year   RH0101594F3 5
JBoss    EAP, 16 Core Premium, 3 Years                                                    MCT2065     1
HP       3 year 4 hour 24x7 BL4xxc Server Blade Hardware Support                          UK066E      5
HP       3 Year 4 hour 24x7 Modular Smart Array 2000 Enclosure HW Support                 UK229E      1
HP       3 year SupportPlus 24 Storage Switch 32 Ports Power Pack Service                 U5958E      1
HP       3 year 4 hour 24x7 c7000 Enclosure Hardware Support                              UE479E      1
HP       3 year 4 hour 24x7 Networks Stack 48 Hardware Support                            H2893E      1

--- SUT

HP       BladeSystem C7000 Enclosure                                                      658959-S21  1
HP       ProLiant BL490c G6                                                               509314-B21  1
-           2x Intel Xeon X5570
-              12x4GB Memory DIMMS
HP       Dual Port 1Gb NIC for c-Class BladeSystem                                        NC360m      1
HP       1/10Gb VC-Enet Module for c-Class BladeSystem                                    447047-B21  1
HP       1Gb Ethernet Pass-Thru Module for c-Class BladeSystem                            406740-B21  1
HP       4Gb Fibre Channel Pass-Thru Module for c-Class BladeSystem                       403626-B21  1
HP       StorageWorks MSA2212fc storage cabinet                                           AJ745A      1
HP       StorageWorks 146GB 15K dual port SAS LFF disk drives                             512547-B21  12
HP       StorageWorks 16 port SAN Switch 4/32                                             A7537A      1
HP       QLogic QMH2462 4Gb Fibre Channel Host Bus Adapter for c-Class BladeSystem        403619-B21  2
HP       E2910-48G al Network Switch                                                      J9147A      1

--- Clients

HP       ProLiant BL460c G1                                                               459483-B21  4
-           2x Intel Xeon E5450
-              4x4GB Memory DIMMS
-              2x1GB memory DIMMS
HP       Dual Port Multifunction 1Gb NIC for c-Class BladeSystem                          NC373m      4
HP       72GB 15K SAS SFF disk drives                                                     512545-B21  8



General Notes
Steady State Requirement:
The HornetQ journal implements a compaction and cleanup algorithm which runs parallel to normal operation,
this allows a high sustained workload to be supported by the SUT without it running out of disk resources.
The default values for compaction were used in the tests.

Recoverability Requirement:
HornetQ servers are able to recover to full operation in just a few seconds,
even when the RAM queue state is several GigaBytes, and there are potential TeraBytes of queue data in
further paging storage.

Storage Requirement:
Non-Volatile Storage using a battery backed cache.

Other Information:
None.



For questions about this result, please contact the submitter: Red Hat Inc.
For other inquiries, please contact webmaster@spec.org

Copyright © 2011   Standard Performance Evaluation Corporation


First published at SPEC.org on 29-Jun-2011
