SPEC® MPIM2007 Result

Copyright 2006-2010 Standard Performance Evaluation Corporation

Hewlett-Packard Company

HP ProLiant DL160 G5

SPECmpiM_peak2007 = Not Run

MPI2007 license: 1 Test date: Nov-2008
Test sponsor: Hewlett-Packard Company Hardware Availability: Jun-2008
Tested by: HP Richardson Software Availability: Jan-2009

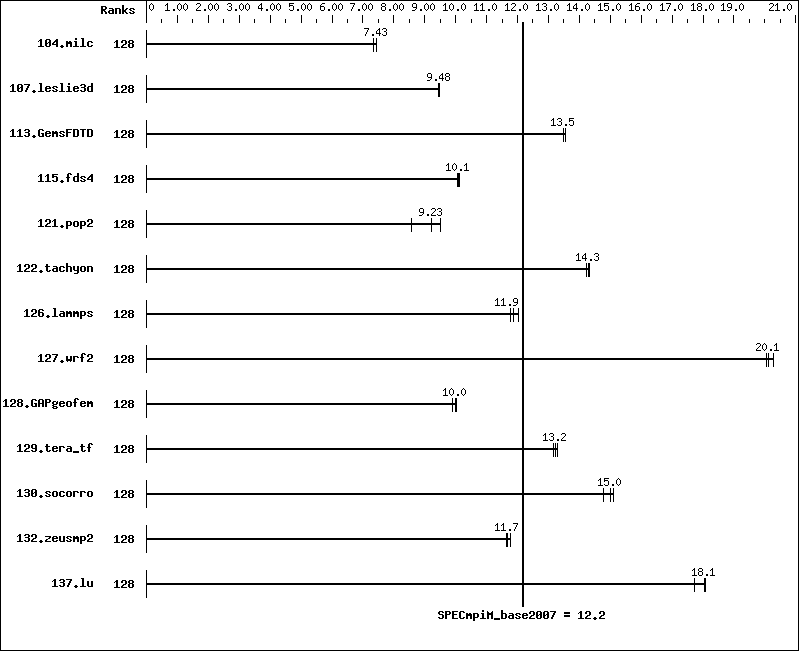

Benchmark results graph

Results Table

Benchmark Base Peak
Ranks Seconds Ratio Seconds Ratio Seconds Ratio Ranks Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
104.milc 128 213 7.34 211 7.43 210 7.44
107.leslie3d 128 553 9.45 551 9.48 550 9.49
113.GemsFDTD 128 468 13.5  468 13.5  466 13.5
115.fds4 128 194 10.1  193 10.1  194 10.1
121.pop2 128 434 9.51 447 9.23 482 8.56
122.tachyon 128 197 14.2  195 14.3  196 14.3
126.lammps 128 247 11.8  242 12.0  246 11.9
127.wrf2 128 385 20.3  388 20.1  389 20.0
128.GAPgeofem 128 207 10.0  209 9.90 206 10.0
129.tera_tf 128 208 13.3  209 13.2  210 13.2
130.socorro 128 258 14.8  254 15.0  253 15.1
132.zeusmp2 128 266 11.7  266 11.6  264 11.8
137.lu 128 207 17.7  203 18.1  204 18.1
Hardware Summary
Type of System: Homogeneous
Compute Nodes: DL160 G5 Compute Node
DL160 G5 Head Node
Interconnects: Gigabit Ethernet Switch
InfiniBand Switch
File Server Node: DL160 G5 Head Node
Head Node: DL160 G5 Head Node
Total Compute Nodes: 16
Total Chips: 32
Total Cores: 128
Total Threads: 128
Total Memory: 256 GB
Base Ranks Run: 128
Minimum Peak Ranks: --
Maximum Peak Ranks: --
Software Summary
C Compiler: Intel C++ Compiler 10.1 for Linux (10.1.018)
C++ Compiler: Intel C++ Compiler 10.1 for Linux (10.1.018)
Fortran Compiler: Intel Fortran Compiler 10.1 for Linux (10.1.018)
Base Pointers: 64-bit
Peak Pointers: 64-bit
MPI Library: HP-MPI v2.3
Other MPI Info: --
Pre-processors: No
Other Software: --

Node Description: DL160 G5 Compute Node

Hardware
Number of nodes: 15
Uses of the node: compute
Vendor: Hewlett-Packard Company
Model: DL160 G5
CPU Name: Intel Xeon CPU E5462
CPU(s) orderable: 1-2 chips
Chips enabled: 2
Cores enabled: 8
Cores per chip: 4
Threads per core: 1
CPU Characteristics: 1600 MHz FSB
CPU MHz: 2800
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 6 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 16 GB (FBDIMM 8x2-GB 667 Mtf/s)
Disk Subsystem: 2x146GB 15k RPM SAS (RAID 0 mode)
Other Hardware: HP Smart Array E200 Raid Controller
Adapter: NetXtreme BCM5722 Gigabit Ethernet
Number of Adapters: 1
Slot Type: Builtin PCI-Express
Data Rate: 1 Gb/s Ethernet
Ports Used: 1
Interconnect Type: Ethernet
Adapter: HP 448397-B21 (4x DDR)
Number of Adapters: 1
Slot Type: PCIe x16 Gen2
Data Rate: InfiniBand 4x DDR
Ports Used: 1
Interconnect Type: InfiniBand
Software
Adapter: NetXtreme BCM5722 Gigabit Ethernet
Adapter Driver: tg3 version 3.86b
Adapter Firmware: 5722-v3.07, ASFIPMI v6.02
Adapter: HP 448397-B21 (4x DDR)
Adapter Driver: OFED 1.3
Adapter Firmware: 2.5.0
Operating System: SLES 10 update 1
Local File System: Linux/ext3
Shared File System: NFS
System State: Multi-User
Other Software: none

Node Description: DL160 G5 Head Node

Hardware
Number of nodes: 1
Uses of the node: head, fileserver, compute
Vendor: Hewlett-Packard Company
Model: DL160 G5
CPU Name: Intel Xeon CPU E5462
CPU(s) orderable: 1-2 chips
Chips enabled: 2
Cores enabled: 8
Cores per chip: 4
Threads per core: 1
CPU Characteristics: 1600 MHz FSB
CPU MHz: 2800
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 6 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 16 GB (FBDIMM 8x2-GB 667 Mtf/s)
Disk Subsystem: 2x146GB 15k RPM SAS (RAID 0 mode)
Other Hardware: HP Smart Array E200 Raid Controller
Adapter: NetXtreme BCM5722 Gigabit Ethernet
Number of Adapters: 1
Slot Type: Builtin PCI-Express
Data Rate: 1 Gb/s Ethernet
Ports Used: 1
Interconnect Type: Ethernet
Adapter: HP 448397-B21 (4x DDR)
Number of Adapters: 1
Slot Type: PCIe x16 Gen2
Data Rate: InfiniBand 4x DDR
Ports Used: 1
Interconnect Type: InfiniBand
Software
Adapter: NetXtreme BCM5722 Gigabit Ethernet
Adapter Driver: tg3 version 3.86b
Adapter Firmware: 5722-v3.07, ASFIPMI v6.02
Adapter: HP 448397-B21 (4x DDR)
Adapter Driver: OFED 1.3
Adapter Firmware: 2.5.0
Operating System: SLES 10 update 1
Local File System: Linux/ext3
Shared File System: NFS
System State: Multi-User
Other Software: none

Interconnect Description: Gigabit Ethernet Switch

Hardware
Vendor: Hewlett-Packard Company
Model: ProCurve J8693A Switch 3500yl-48G
Switch Model: ProCurve J8693A Switch 3500yl-48G
Number of Switches: 1
Number of Ports: 48
Data Rate: 1Gbps Ethernet
Firmware: K.12.16
Topology: single switch
Primary Use: Cluster File System

Interconnect Description: InfiniBand Switch

Hardware
Vendor: Hewlett-Packard Company
Model: HP 445825-B21 (4x DDR)
Switch Model: HP 445825-B21
Number of Switches: 1
Number of Ports: 144
Data Rate: InfiniBand 4x DDR
Firmware: 4.1.1.1.11
Topology: single switch
Primary Use: MPI traffic

General Notes

Required alternate sources:
   129.tera_tf: fixbuffer
Optional alternate sources:
   104.milc: calloc
   113.GemsFDTD: maxprocandstop

% cat submit.sh
#!/bin/bash
ulimit -s 326780
exec $*
%

BASE PORTABILITY FLAG NOTICE:
	130.socorro: Discontinue use of -DSPEC_EIGHT_BYTE_LONG because it
                 doesn't appear in the source code.

Base Compiler Invocation

C benchmarks:

 /lvol_nfs/brent/mpi2007_v1.0/hpmpi23_20081105/bin/mpicc

C++ benchmarks:

126.lammps:  /lvol_nfs/brent/mpi2007_v1.0/hpmpi23_20081105/bin/mpiCC

Fortran benchmarks:

 /lvol_nfs/brent/mpi2007_v1.0/hpmpi23_20081105/bin/mpif90

Benchmarks using both Fortran and C:

 /lvol_nfs/brent/mpi2007_v1.0/hpmpi23_20081105/bin/mpicc   /lvol_nfs/brent/mpi2007_v1.0/hpmpi23_20081105/bin/mpif90

Base Portability Flags

121.pop2:  -DSPEC_MPI_CASE_FLAG
127.wrf2:  -DSPEC_MPI_LINUX   -DSPEC_MPI_CASE_FLAG
130.socorro:  -DSPEC_EIGHT_BYTE_LONG

Base Optimization Flags

C benchmarks:

 -O3   -no-prec-div   -xT

C++ benchmarks:

126.lammps:  -O3   -no-prec-div   -xT

Fortran benchmarks:

 -O3   -no-prec-div   -xT

Benchmarks using both Fortran and C:

 -O3   -no-prec-div   -xT

The flags file that was used to format this result can be browsed at
http://www.spec.org/mpi2007/flags/EM64T_Intel101_flags.20090108.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/mpi2007/flags/EM64T_Intel101_flags.20090108.xml.
