SPEC® MPIM2007 Result

Copyright 2006-2010 Standard Performance Evaluation Corporation

Intel Corporation

Endeavor (Intel Xeon E5462, 2.80 GHz)

SPECmpiM_peak2007 = Not Run

MPI2007 license: 13 Test date: Dec-2008
Test sponsor: Intel Corporation Hardware Availability: Dec-2007
Tested by: Pavel Shelepugin Software Availability: Nov-2008

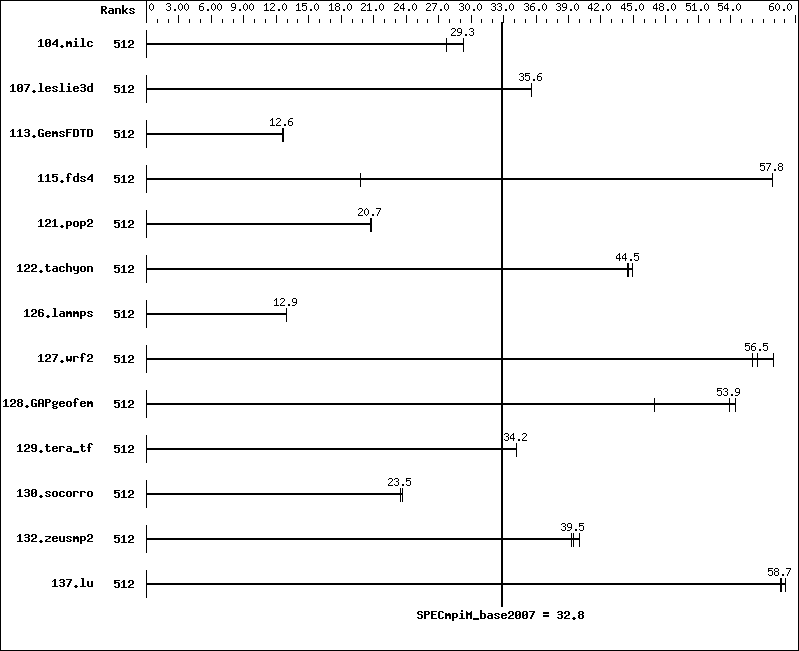

Benchmark results graph

Results Table

Benchmark Base Peak
Ranks Seconds Ratio Seconds Ratio Seconds Ratio Ranks Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
104.milc 512 56.4 27.7 53.4 29.3 53.4 29.3
107.leslie3d 512 147   35.6 147   35.5 147   35.6
113.GemsFDTD 512 500   12.6 500   12.6 500   12.6
115.fds4 512 98.6 19.8 33.7 57.9 33.7 57.8
121.pop2 512 199   20.7 199   20.7 198   20.8
122.tachyon 512 62.3 44.9 62.8 44.5 62.9 44.5
126.lammps 512 225   12.9 225   12.9 225   12.9
127.wrf2 512 139   56.0 135   57.9 138   56.5
128.GAPgeofem 512 44.0 47.0 37.9 54.4 38.3 53.9
129.tera_tf 512 80.9 34.2 81.0 34.2 84.1 32.9
130.socorro 512 161   23.6 163   23.5 163   23.4
132.zeusmp2 512 77.5 40.0 79.0 39.3 78.6 39.5
137.lu 512 62.7 58.7 62.7 58.6 62.2 59.1
Hardware Summary
Type of System: Homogeneous
Compute Node: Endeavor Node
Interconnects: IB Switch
Gigabit Ethernet
File Server Node: HOME
Total Compute Nodes: 64
Total Chips: 128
Total Cores: 512
Total Threads: 512
Total Memory: 1 TB
Base Ranks Run: 512
Minimum Peak Ranks: --
Maximum Peak Ranks: --
Software Summary
C Compiler: Intel C++ Compiler 10.1 for Linux (10.1.018)
C++ Compiler: Intel C++ Compiler 10.1 for Linux (10.1.018)
Fortran Compiler: Intel Fortran Compiler 10.1 for Linux (10.1.018)
Base Pointers: 64-bit
Peak Pointers: 64-bit
MPI Library: Intel MPI Library 3.2 for Linux (3.2.011)
Other MPI Info: None
Pre-processors: No
Other Software: Intel MPI Library 3.2 for Linux Multi-Purpose
Daemon (MPD)

Node Description: Endeavor Node

Hardware
Number of nodes: 64
Uses of the node: compute
Vendor: Intel
Model: SR1560SF
CPU Name: Intel Xeon CPU E5462
CPU(s) orderable: 1-2 chips
Chips enabled: 2
Cores enabled: 8
Cores per chip: 4
Threads per core: 1
CPU Characteristics: 1600 MHz FSB
CPU MHz: 2800
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 6 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 16 GB (FBDIMM 16x1-GB 667 MHz)
Disk Subsystem: Seagate Barracuda ES 250 GB ST3250620NS
Other Hardware: None
Adapter: Intel (ESB2) 82563EB Dual-Port Gigabit Ethernet
Controller
Number of Adapters: 1
Slot Type: PCI-Express x8
Data Rate: 1Gbps Ethernet
Ports Used: 1
Interconnect Type: Ethernet
Adapter: Mellanox MHGH28-XTC
Number of Adapters: 1
Slot Type: PCIe x16 Gen2
Data Rate: InfiniBand 4x DDR
Ports Used: 1
Interconnect Type: InfiniBand
Software
Adapter: Intel (ESB2) 82563EB Dual-Port Gigabit Ethernet
Controller
Adapter Driver: e1000
Adapter Firmware: None
Adapter: Mellanox MHGH28-XTC
Adapter Driver: OFED 1.3.1
Adapter Firmware: 2.5.0
Operating System: Red Hat EL 4 Update 4, kernel 2.6.9-67
Local File System: Linux/ext2
Shared File System: DirectFlow
System State: Multi-User
Other Software: PBS Pro 8.0

Node Description: HOME

Hardware
Number of nodes: 1
Uses of the node: fileserver
Vendor: Intel
Model: SSR212CC
CPU Name: Intel Xeon CPU
CPU(s) orderable: 2 chips
Chips enabled: 2
Cores enabled: 2
Cores per chip: 1
Threads per core: 1
CPU Characteristics: --
CPU MHz: 2800
Primary Cache: 12 KB I + 16 KB D on chip per chip
Secondary Cache: 1 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 6 GB
Disk Subsystem: 10 disks, 300GB/disk, 3TB total
Other Hardware: None
Adapter: Intel 82546GB Dual-Port Gigabit Ethernet
Controller
Number of Adapters: 1
Slot Type: PCI-Express x8
Data Rate: 1Gbps Ethernet
Ports Used: 1
Interconnect Type: Ethernet
Software
Adapter: Intel 82546GB Dual-Port Gigabit Ethernet
Controller
Adapter Driver: e1000
Adapter Firmware: N/A
Operating System: RedHat EL 4 Update 4
Local File System: None
Shared File System: NFS
System State: Multi-User
Other Software: None

Interconnect Description: IB Switch

Hardware
Vendor: Cisco
Model: Cisco SFS 7024D
Switch Model: Cisco SFS 7024D
Number of Switches: 1
Number of Ports: 288
Data Rate: InfiniBand 4x DDR
Firmware: 4.1.1.1.11
Topology: Single switch
Primary Use: MPI traffic

Interconnect Description: Gigabit Ethernet

Hardware
Vendor: Cisco
Model: Cisco Catalyst 4510
Switch Model: Cisco Catalyst 4510
Number of Switches: 1
Number of Ports: 332
Data Rate: 1Gbps Ethernet
Firmware: --
Topology: Star
Primary Use: Cluster File System

Submit Notes

The config file option 'submit' was used.

General Notes

 Environment:
   -genv DAPL_CM_ROUTE_TIMEOUT_MS 20000
     Determines the uDAPL path resolution timeouts,
     measured in milliseconds. Default: 4000ms

Base Compiler Invocation

C benchmarks:

 mpiicc

C++ benchmarks:

126.lammps:  mpiicpc

Fortran benchmarks:

 mpiifort

Benchmarks using both Fortran and C:

 mpiicc   mpiifort

Base Portability Flags

121.pop2:  -DSPEC_MPI_CASE_FLAG
126.lammps:  -DMPICH_IGNORE_CXX_SEEK
127.wrf2:  -DSPEC_MPI_CASE_FLAG   -DSPEC_MPI_LINUX

Base Optimization Flags

C benchmarks:

 -O3   -xT   -ipo   -no-prec-div

C++ benchmarks:

126.lammps:  -O3   -xT   -ipo   -no-prec-div

Fortran benchmarks:

 -O3   -xT   -ipo   -no-prec-div

Benchmarks using both Fortran and C:

 -O3   -xT   -ipo   -no-prec-div

The flags file that was used to format this result can be browsed at
http://www.spec.org/mpi2007/flags/EM64T_Intel101_flags.20080618.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/mpi2007/flags/EM64T_Intel101_flags.20080618.xml.
