SPEC® MPIM2007 Result

Copyright 2006-2010 Standard Performance Evaluation Corporation

SGI

SGI Altix ICE 8200EX
(Intel Xeon X5570, 2.93 GHz, PMPI 5.6.6)

SPECmpiM_peak2007 = Not Run

MPI2007 license: 021 Test date: Mar-2009
Test sponsor: Platform Computing Inc. Hardware Availability: Mar-2009
Tested by: Platform Computing Inc. Software Availability: Feb-2009

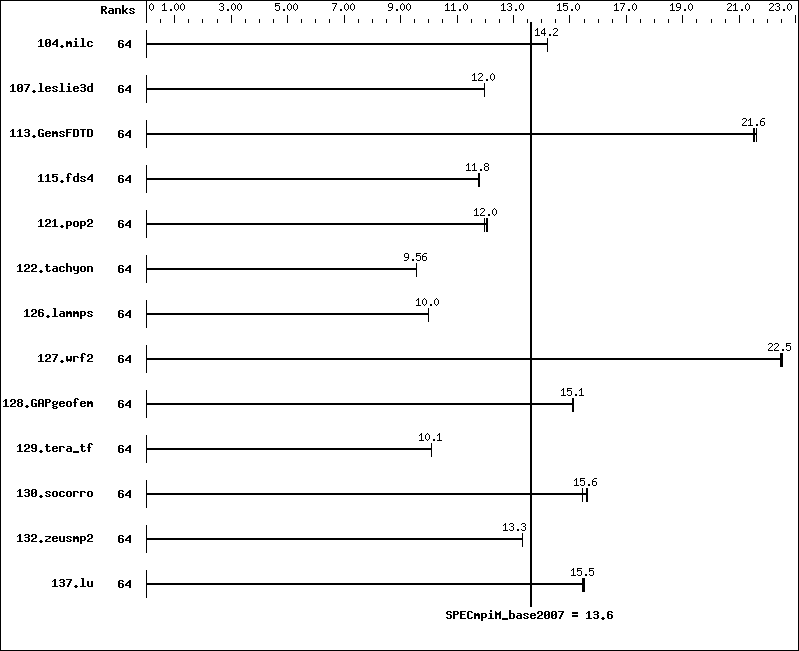

Benchmark results graph

Results Table

Benchmark Base Peak
Ranks Seconds Ratio Seconds Ratio Seconds Ratio Ranks Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
104.milc 64 110 14.2  110 14.2  110 14.2
107.leslie3d 64 436 12.0  436 12.0  436 12.0
113.GemsFDTD 64 292 21.6  293 21.6  294 21.5
115.fds4 64 166 11.8  166 11.8  166 11.8
121.pop2 64 343 12.0  345 12.0  342 12.1
122.tachyon 64 293 9.56 292 9.56 293 9.55
126.lammps 64 292 10.0  292 10.0  292 10.0
127.wrf2 64 346 22.5  347 22.5  346 22.5
128.GAPgeofem 64 137 15.1  137 15.1  137 15.1
129.tera_tf 64 274 10.1  275 10.1  274 10.1
130.socorro 64 245 15.6  247 15.5  244 15.6
132.zeusmp2 64 233 13.3  233 13.3  233 13.3
137.lu 64 237 15.5  237 15.5  238 15.5
Hardware Summary
Type of System: Homogeneous
Compute Node: SGI Altix ICE 8200EX Compute Node
Interconnects: InfiniBand (MPI)
InfiniBand (I/O)
File Server Node: SGI InfiniteStorage Nexis 2000 NAS
Total Compute Nodes: 8
Total Chips: 16
Total Cores: 64
Total Threads: 128
Total Memory: 384 GB
Base Ranks Run: 64
Minimum Peak Ranks: --
Maximum Peak Ranks: --
Software Summary
C Compiler: Intel C Compiler for Linux
Version 10.1, Build 20080801
C++ Compiler: Intel C++ Compiler for Linux
Version 10.1, Build 20080801
Fortran Compiler: Intel Fortran Compiler for Linux
Version 10.1, Build 20080801
Base Pointers: 64-bit
Peak Pointers: 64-bit
MPI Library: Platform MPI 5.6.6-59413
Other MPI Info: OFED 1.3.1
Platform Computing Inc has acquired
Scali MPI Connect, hence Platform MPI
and Scali MPI Connect are used synonymously.
Pre-processors: None
Other Software: None

Node Description: SGI Altix ICE 8200EX Compute Node

Hardware
Number of nodes: 8
Uses of the node: compute
Vendor: SGI
Model: SGI Altix ICE 8200EX (Intel Xeon X5570, 2.93 GHz)
CPU Name: Intel Xeon X5570
CPU(s) orderable: 1-2 chips
Chips enabled: 2
Cores enabled: 8
Cores per chip: 4
Threads per core: 2
CPU Characteristics: Intel Turbo Boost Technology up to 3.33 GHz,
6.4 GT/s QPI, Hyper-Threading enabled
CPU MHz: 2934
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory: 48 GB (12*4GB DDR3-1066 CL7 RDIMMs)
Disk Subsystem: None
Other Hardware: None
Adapter: Mellanox MT26418 ConnectX IB DDR
(PCIe x8 Gen2 5 GT/s)
Number of Adapters: 1
Slot Type: PCIe x8 Gen2
Data Rate: InfiniBand 4x DDR
Ports Used: 2
Interconnect Type: InfiniBand
Software
Adapter: Mellanox MT26418 ConnectX IB DDR
(PCIe x8 Gen2 5 GT/s)
Adapter Driver: OFED-1.3.1
Adapter Firmware: 2.5.0
Operating System: SUSE Linux Enterprise Server 10 (x86_64) SP2
Kernel 2.6.16.60-0.30-smp
Local File System: NFSv3
Shared File System: NFSv3 IPoIB
System State: Multi-user, run level 3
Other Software: SGI ProPack 6 for Linux Service Pack 2

Node Description: SGI InfiniteStorage Nexis 2000 NAS

Hardware
Number of nodes: 1
Uses of the node: fileserver
Vendor: SGI
Model: SGI Altix XE 240 (Intel Xeon 5140, 2.33 GHz)
CPU Name: Intel Xeon 5140
CPU(s) orderable: 1-2 chips
Chips enabled: 2
Cores enabled: 4
Cores per chip: 2
Threads per core: 1
CPU Characteristics: 1333 MHz FSB
CPU MHz: 2328
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 4 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 24 GB (6*4GB DDR2-400 DIMMS)
Disk Subsystem: 7 TB RAID 5
48 x 147 GB SAS (Seagate Cheetah 15000 rpm)
Other Hardware: None
Adapter: Mellanox MT25208 InfiniHost III Ex
(PCIe x8 Gen1 2.5 GT/s)
Number of Adapters: 2
Slot Type: PCIe x8 Gen1
Data Rate: InfiniBand 4x DDR
Ports Used: 2
Interconnect Type: InfiniBand
Software
Adapter: Mellanox MT25208 InfiniHost III Ex
(PCIe x8 Gen1 2.5 GT/s)
Adapter Driver: OFED-1.3
Adapter Firmware: 5.3.0
Operating System: SUSE Linux Enterprise Server 10 (x86_64) SP1
Kernel 2.6.16.54-0.2.5-smp
Local File System: xfs
Shared File System: --
System State: Multi-user, run level 3
Other Software: SGI ProPack 5 for Linux Service Pack 5

Interconnect Description: InfiniBand (MPI)

Hardware
Vendor: Mellanox Technologies
Model: MT26418 ConnectX
Switch Model: Mellanox MT47396 InfiniScale III
Number of Switches: 8
Number of Ports: 24
Data Rate: InfiniBand 4x DDR
Firmware: 2020001
Topology: Bristle hypercube with express links
Primary Use: MPI traffic

Interconnect Description: InfiniBand (I/O)

Hardware
Vendor: Mellanox Technologies
Model: MT26418 ConnectX
Switch Model: Mellanox MT47396 InfiniScale-III
Number of Switches: 8
Number of Ports: 24
Data Rate: InfiniBand 4x DDR
Firmware: 2020001
Topology: Bristle hypercube with express links
Primary Use: I/O traffic

Submit Notes

The config file option 'submit' was used.

General Notes

 Software environment:
   limit stacksize unlimited
     Removes limits on the maximum size of the automatically-
     extended stack region of the current process and each
     process it creates.
 PBS Pro batch scheduler (www.altair.com) is used with
   placement sets to ensure each MPI job is assigned to
   a topologically compact set of nodes
 BIOS settings:
   AMI BIOS version 8.15
   Hyper-Threading Technology enabled (default)
   Intel Turbo Boost Technology enabled (default)
   Intel Turbo Boost Technology activated in the OS via
     /etc/init.d/acpid start
     /etc/init.d/powersaved start
     powersave -f

Base Compiler Invocation

C benchmarks:

 mpicc -ccl icc

C++ benchmarks:

126.lammps:  mpicc -ccl icpc

Fortran benchmarks:

 mpif77 -ccl ifort

Benchmarks using both Fortran and C:

 mpicc -ccl icc   mpif77 -ccl ifort

Base Portability Flags

121.pop2:  -DSPEC_MPI_CASE_FLAG
127.wrf2:  -DSPEC_MPI_CASE_FLAG   -DSPEC_MPI_LINUX

Base Optimization Flags

C benchmarks:

 -O3   -ipo   -xT   -no-prec-div

C++ benchmarks:

126.lammps:  -O3   -ipo   -xT   -no-prec-div   -ansi-alias

Fortran benchmarks:

 -O3   -ipo   -xT   -no-prec-div

Benchmarks using both Fortran and C:

 -O3   -ipo   -xT   -no-prec-div

The flags files that were used to format this result can be browsed at
http://www.spec.org/mpi2007/flags/MPI2007_flags.20081204.html,
http://www.spec.org/mpi2007/flags/EM64T_Intel101_flags.20080618.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/mpi2007/flags/MPI2007_flags.20081204.xml,
http://www.spec.org/mpi2007/flags/EM64T_Intel101_flags.20080618.xml.
