SPEC® MPIM2007 Result

Copyright 2006-2010 Standard Performance Evaluation Corporation

IBM

iDP (Intel Xeon L5420, 2.50 GHz)

SPECmpiM_peak2007 = Not Run

MPI2007 license: 37 Test date: Dec-2009
Test sponsor: Indiana University Hardware Availability: Sep-2008
Tested by: Jens Doleschal Software Availability: Jan-2009

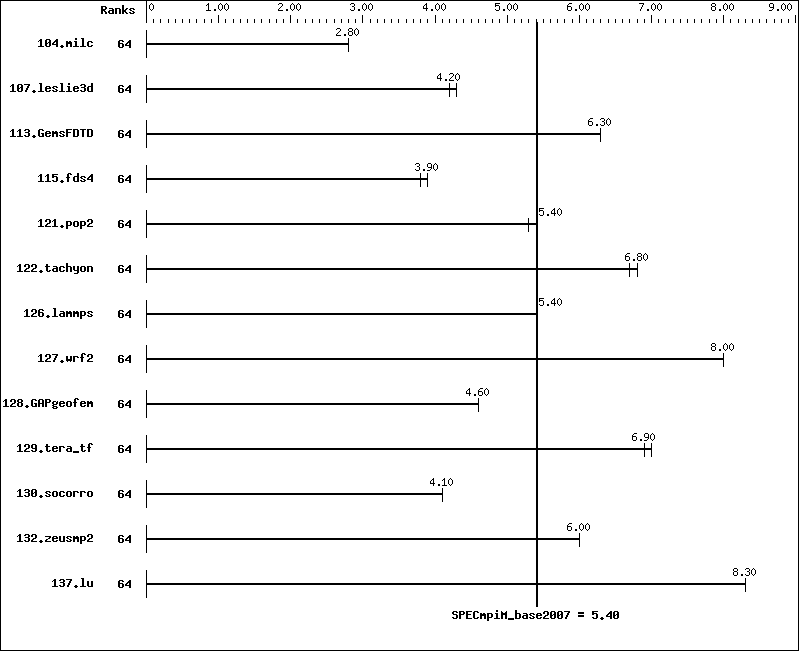

Benchmark results graph

Results Table

Benchmark Base Peak
Ranks Seconds Ratio Seconds Ratio Seconds Ratio Ranks Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
104.milc 64 559 2.80 559 2.80 560 2.80
107.leslie3d 64 1228 4.20 1229 4.20 1228 4.30
113.GemsFDTD 64 1007 6.30 1002 6.30 996 6.30
115.fds4 64 507 3.80 502 3.90 503 3.90
121.pop2 64 783 5.30 766 5.40 761 5.40
122.tachyon 64 415 6.70 414 6.80 414 6.80
126.lammps 64 541 5.40 539 5.40 540 5.40
127.wrf2 64 973 8.00 970 8.00 969 8.00
128.GAPgeofem 64 452 4.60 453 4.60 452 4.60
129.tera_tf 64 398 7.00 402 6.90 401 6.90
130.socorro 64 929 4.10 929 4.10 933 4.10
132.zeusmp2 64 519 6.00 519 6.00 519 6.00
137.lu 64 442 8.30 443 8.30 443 8.30
Hardware Summary
Type of System: Homogeneous
Compute Node: iDP node
Interconnects: Gigabit Ethernet
IB Switch
Total Compute Nodes: 8
Total Chips: 16
Total Cores: 64
Total Threads: 64
Total Memory: 256 GB
Base Ranks Run: 64
Minimum Peak Ranks: --
Maximum Peak Ranks: --
Software Summary
C Compiler: Intel C++ Compiler 11.1 for Windows (11.1.038)
C++ Compiler: Intel C++ Compiler 11.1 for Windows (11.1.038)
Fortran Compiler: Intel Fortran Compiler 11.1 for Windows (11.1.038)
Base Pointers: 64-bit
Peak Pointers: 64-bit
MPI Library: MS MPI 1.0.6
Other MPI Info: None
Pre-processors: No
Other Software: None

Node Description: iDP node

Hardware
Number of nodes: 8
Uses of the node: compute
Vendor: IBM
Model: System x iDataPlex dx340
CPU Name: Intel Xeon L5420
CPU(s) orderable: 1-2 chips
Chips enabled: 2
Cores enabled: 8
Cores per chip: 4
Threads per core: 1
CPU Characteristics: 1333 MHz FSB
CPU MHz: 2500
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 6 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 32 GB (FBDIMM 8x4-GB 667 MHz)
Disk Subsystem: Western Digital 160 GB SATA WD160YS-23SHBO
Other Hardware: None
Adapter: Intel Corporation 80003ES2LAN Gigabit Ethernet
Controller (Copper) (rev 01)
Number of Adapters: 2
Slot Type: --
Data Rate: Gigabit Ethernet
Ports Used: 1
Interconnect Type: Ethernet
Adapter: Mellanox Technologies MT26418 [ConnectX IB DDR,
PCIe 2.0 5GT/s] (rev a0)
Number of Adapters: 1
Slot Type: PCIe x8 Gen2
Data Rate: InfiniBand 4x DDR
Ports Used: 1
Interconnect Type: InfiniBand
Software
Adapter: Intel Corporation 80003ES2LAN Gigabit Ethernet
Controller (Copper) (rev 01)
Adapter Driver: OS default (v.9.11.5.7)
Adapter Firmware: 2.4-0
Adapter: Mellanox Technologies MT26418 [ConnectX IB DDR,
PCIe 2.0 5GT/s] (rev a0)
Adapter Driver: Mellanox WinOF (v. 2.0.0)
Adapter Firmware: 2.5.0
Operating System: Windows HPC Server 2008
Service Pack 2
Local File System: Windows/NTFS
Shared File System: Network shared NTFS directory
System State: Multi-User
Other Software: --

Interconnect Description: Gigabit Ethernet

Hardware
Vendor: ProCurve Networking
Model: HP ProCurve Switch 5406zl Intelligent Edge J8697A
Switch Model: HP ProCurve Switch 5406zl Intelligent Edge J8697A
Number of Switches: 1
Number of Ports: 144
Data Rate: 1Gbps Ethernet
Firmware: --
Topology: Single switch
Primary Use: Cluster File System

Interconnect Description: IB Switch

Hardware
Vendor: Cisco
Model: Cisco SFS 7024D
Switch Model: Cisco SFS 7024D
Number of Switches: 1
Number of Ports: 288
Data Rate: InfiniBand 4x DDR
Firmware: 4.1.1.1.11
Topology: Single switch
Primary Use: MPI traffic

Submit Notes

The config file option 'submit' was used.

Base Compiler Invocation

C benchmarks:

 icl

C++ benchmarks:

126.lammps:  icl

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   ifort

Base Portability Flags

115.fds4:  /DSPEC_MPI_UC_NO_TRAILING_UNDERSCORE   /fpscomp:general
121.pop2:  /DSPEC_MPI_WINDOWS_ICL
127.wrf2:  /DSPEC_MPI_CASE_FLAG   /DSPEC_MPI_WINDOWS_ICL   /DSPEC_MPI_COMM_F2C   /us   /Qlowercase
129.tera_tf:  /fpscomp:general
130.socorro:  /DSPEC_NO_UNDERSCORE   /DSPEC_MPI_COMM_F2C   /Qlowercase
132.zeusmp2:  /DSPEC_MPI_WINDOWS_ICL   /fpscomp:general

Base Optimization Flags

C benchmarks:

 /O3   /QxSSE3   /Qipo   /Qprec-div-   /F3950000000

C++ benchmarks:

126.lammps:  /O3   /QxSSE3   /Qipo   /Qprec-div-   /F3950000000

Fortran benchmarks:

 /O3   /QxSSE3   /Qipo   /Qprec-div-   /F3950000000

Benchmarks using both Fortran and C:

 /O3   /QxSSE3   /Qipo   /Qprec-div-   /F3950000000

Base Other Flags

C benchmarks:

 /c   /Fooptions   /I:C:\Program Files\Microsoft HPC Pack 2008 SDK\Include   /link   /libpath:C:\Program Files\Microsoft HPC Pack 2008 SDK\Lib\amd64 msmpifec.lib msmpifmc.lib msmpi.lib   /Feoptions

C++ benchmarks:

126.lammps:  /c   /Fooptions   /I:C:\Program Files\Microsoft HPC Pack 2008 SDK\Include   /link   /libpath:C:\Program Files\Microsoft HPC Pack 2008 SDK\Lib\amd64 msmpifec.lib msmpifmc.lib msmpi.lib   /Feoptions

Fortran benchmarks:

 /c   /Fooptions   /I:C:\Program Files\Microsoft HPC Pack 2008 SDK\Include   /link   /libpath:C:\Program Files\Microsoft HPC Pack 2008 SDK\Lib\amd64 msmpifec.lib msmpifmc.lib msmpi.lib   /Feoptions

Benchmarks using both Fortran and C:

 /c   /Fooptions   /I:C:\Program Files\Microsoft HPC Pack 2008 SDK\Include   /link   /libpath:C:\Program Files\Microsoft HPC Pack 2008 SDK\Lib\amd64 msmpifec.lib msmpifmc.lib msmpi.lib   /Feoptions

The flags file that was used to format this result can be browsed at
http://www.spec.org/mpi2007/results/flags/dell.ic10.windows.flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/mpi2007/results/flags/dell.ic10.windows.flags.xml.
