SPEC® MPIM2007 Result

Copyright 2006-2010 Standard Performance Evaluation Corporation

Huawei

Tecal RH2288 V2 (Intel Xeon E5-2690, 2.90 GHz,
DDR3-1600 MHz)

SPECmpiM_peak2007 = Not Run

MPI2007 license: 24 Test date: Apr-2013
Test sponsor: Huawei Hardware Availability: Mar-2012
Tested by: Huawei Software Availability: Oct-2012

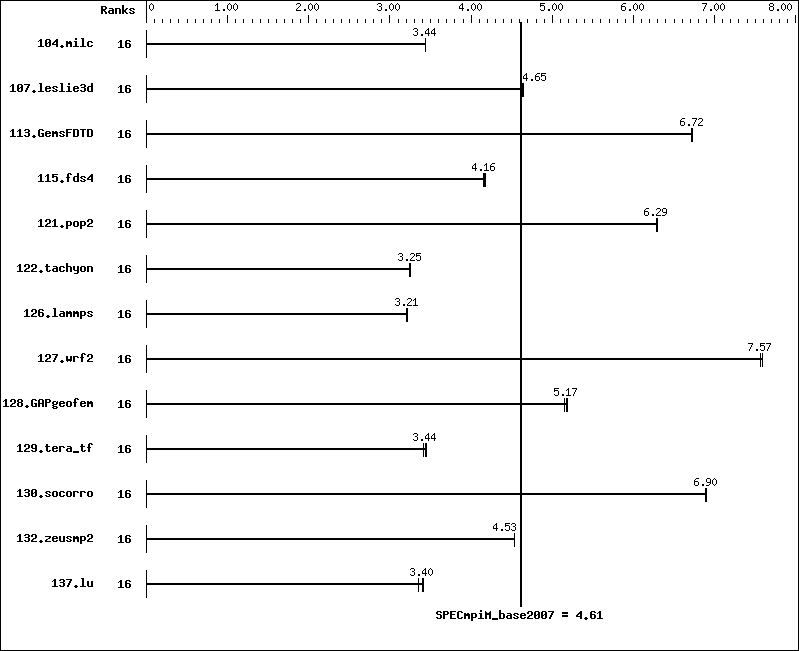

Benchmark results graph

Results Table

Benchmark Base Peak
Ranks Seconds Ratio Seconds Ratio Seconds Ratio Ranks Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
104.milc 16 455 3.44 455 3.44 455 3.44
107.leslie3d 16 1123 4.65 1123 4.65 1127 4.63
113.GemsFDTD 16 939 6.72 938 6.72 938 6.72
115.fds4 16 467 4.18 470 4.15 469 4.16
121.pop2 16 657 6.29 655 6.30 657 6.28
122.tachyon 16 861 3.25 861 3.25 863 3.24
126.lammps 16 909 3.21 907 3.21 908 3.21
127.wrf2 16 1026 7.60 1030 7.57 1030 7.57
128.GAPgeofem 16 399 5.17 401 5.15 398 5.19
129.tera_tf 16 812 3.41 804 3.44 803 3.45
130.socorro 16 554 6.89 553 6.90 553 6.90
132.zeusmp2 16 685 4.53 684 4.53 685 4.53
137.lu 16 1081 3.40 1095 3.36 1075 3.42
Hardware Summary
Type of System: Homogeneous
Compute Node: RH2288 V2
Interconnects: IB Switch
Gigabit Ethernet
File Server Node: Tecal RH2285
Total Compute Nodes: 1
Total Chips: 2
Total Cores: 16
Total Threads: 16
Total Memory: 64 GB
Base Ranks Run: 16
Minimum Peak Ranks: --
Maximum Peak Ranks: --
Software Summary
C Compiler: Intel C++ Composer XE for Linux, Version
13.0.1.117 Build 20121010
C++ Compiler: Intel C++ Composer XE for Linux, Version
13.0.1.117 Build 20121010
Fortran Compiler: Intel Fortran Composer XE for Linux, Version
13.0.1.117 Build 20121010
Base Pointers: 64-bit
Peak Pointers: 64-bit
MPI Library: Intel MPI Library 4.1 Build 20120831 for
Linux
Other MPI Info: None
Pre-processors: No
Other Software: None

Node Description: RH2288 V2

Hardware
Number of nodes: 1
Uses of the node: compute
Vendor: Huawei
Model: Tecal RH2288 V2
rack server
CPU Name: Intel Xeon E5-2690
CPU(s) orderable: 1-2 chips
Chips enabled: 2
Cores enabled: 16
Cores per chip: 8
Threads per core: 1
CPU Characteristics: Intel Turbo Boost Technology up to 3.8 GHz,
8.0 GT/s QPI, Hyper-Threading disabled
CPU MHz: 2900
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 20 MB I+D on chip per chip, 20 MB shared / 8 cores
Other Cache: None
Memory: 64 GB (8 x 8 GB 2Rx4 PC3-12800R-11, ECC)
Disk Subsystem: Seagate ST9146803SS, 146 GB SAS 10K RPM
Other Hardware: None
Adapter: Onboard Intel 82580
Ethernet Controller
Number of Adapters: 1
Slot Type: PCI-Express x8
Data Rate: 1Gbps Ethernet
Ports Used: 1
Interconnect Type: Ethernet
Adapter: MCX353A-QCBT
Number of Adapters: 1
Slot Type: PCIe x8 Gen2
Data Rate: InfiniBand 4x QDR
Ports Used: 1
Interconnect Type: InfiniBand
Software
Adapter: Onboard Intel 82580
Ethernet Controller
Adapter Driver: 3.0.6-k
Adapter Firmware: 3.2-9
Adapter: MCX353A-QCBT
Adapter Driver: MLNX_OFED_LINUX-1.5.3-3.1.0-rhel6.2-x86_64
Adapter Firmware: 2.11.500
Operating System: Red Hat EL 6.2, kernel 2.6.32-220.el6.x86_64
Local File System: Linux/ext4
Shared File System: NFS
System State: Multi-User
Other Software: None

Node Description: Tecal RH2285

Hardware
Number of nodes: 1
Uses of the node: fileserver
Vendor: Huawei
Model: Tecal RH2285
CPU Name: Intel Xeon X5670 CPU
CPU(s) orderable: 1-2 chips
Chips enabled: 2
Cores enabled: 12
Cores per chip: 6
Threads per core: 1
CPU Characteristics: N/A
CPU MHz: 2930
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory: 32 GB
Disk Subsystem: 1 x 500 GB SATA 7200 RPM
Other Hardware: None
Adapter: Dual port Broadcom BCM 5709
Ethernet Controller
Number of Adapters: 1
Slot Type: Integrated
Data Rate: 1Gbps Ethernet
Ports Used: 1
Interconnect Type: Ethernet
Software
Adapter: Dual port Broadcom BCM 5709
Ethernet Controller
Adapter Driver: 2.2.3
Adapter Firmware: 4.6.4
Operating System: Red Hat EL 6.2, kernel 2.6.32-220.el6.x86_64
Local File System: None
Shared File System: NFS
System State: Multi-User
Other Software: None

Interconnect Description: IB Switch

Hardware
Vendor: Mellanox
Model: Mellanox IS5025
Switch Model: 1U IB Switch
Number of Switches: 1
Number of Ports: 36
Data Rate: InfiniBand 4x QDR
Firmware: 7.4.0000
Topology: Fat tree
Primary Use: MPI traffic

Interconnect Description: Gigabit Ethernet

Hardware
Vendor: Huawei
Model: Quidway S5328
Switch Model: Quidway S5328
Number of Switches: 1
Number of Ports: 28
Data Rate: 1Gbps Ethernet
Firmware: 5.1.2
Topology: Fat tree
Primary Use: Cluster File System

Submit Notes

The config file option 'submit' was used.
mpiexec.hydra -f /mpi/nodes -genv I_MPI_DEVICE rdssm
-genv I_MPI_FALLBACK_DEVICE disable -n $ranks $command

General Notes

130.socorro (base): "nullify_ptrs" src.alt was used.

 MPI startup command:
   mpiexec.hydra command was used to start MPI jobs.

 BIOS settings:
   Intel Hyper-Threading Technology (SMT): Disabled (default is Enabled)
   Intel Turbo Boost Technology (Turbo)  : Enabled (default is Enabled)

 RAM configuration:
   Compute nodes have 1x8-GB RDIMM on each memory channel.

 Network:
   One 20-port switch

 Compute Node Environment:
   ulimit -s = unlimited
   ulimit -l = unlimited
   File "/etc/modprobe.d/mlx4_core.conf" modified to contain "options
   mlx4_core log_mtts_per_seg=5"






Base Compiler Invocation

C benchmarks:

 mpiicc

C++ benchmarks:

126.lammps:  mpiicpc

Fortran benchmarks:

 mpiifort

Benchmarks using both Fortran and C:

 mpiicc   mpiifort

Base Portability Flags

121.pop2:  -DSPEC_MPI_CASE_FLAG
126.lammps:  -DMPICH_IGNORE_CXX_SEEK
127.wrf2:  -DSPEC_MPI_CASE_FLAG   -DSPEC_MPI_LINUX
130.socorro:  -assume nostd_intent_in

Base Optimization Flags

C benchmarks:

 -O3   -xAVX   -no-prec-div

C++ benchmarks:

126.lammps:  -O3   -xAVX   -no-prec-div

Fortran benchmarks:

 -O3   -xAVX   -no-prec-div

Benchmarks using both Fortran and C:

 -O3   -xAVX   -no-prec-div

The flags file that was used to format this result can be browsed at
http://www.spec.org/mpi2007/flags/EM64T_Huawei_flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/mpi2007/flags/EM64T_Huawei_flags.xml.
