SPEC® MPIM2007 Result

SGI

SGI Rackable C2112-4RP4
(Intel Xeon E5-2697 v2, 2.70 GHz)

SPECmpiM_peak2007 = 87.4

SPECmpiM_base2007 = 84.1

MPI2007 license:	4	Test date:	Aug-2013
Test sponsor:	SGI	Hardware Availability:	Sep-2013
Tested by:	SGI	Software Availability:	Jun-2013

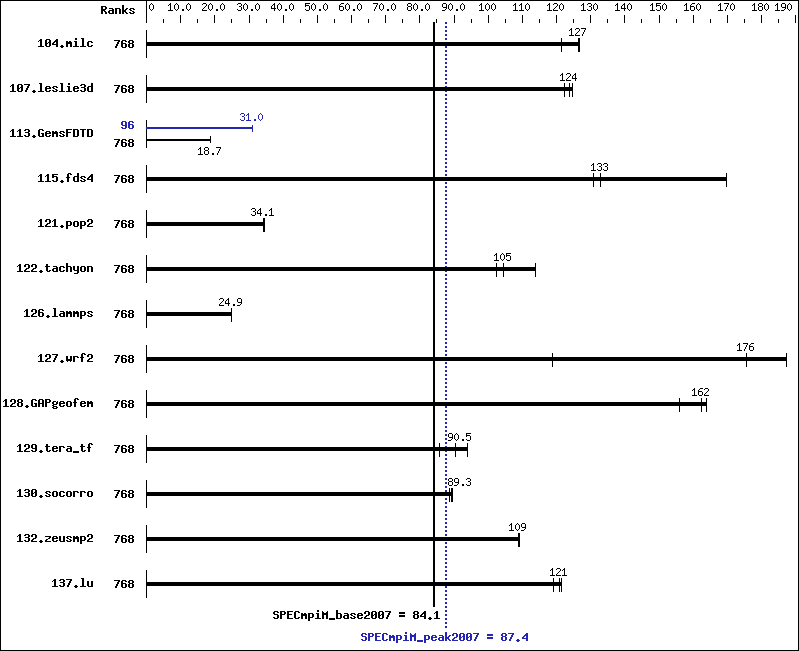

Results Table

Benchmark	Base							Peak
Benchmark	Ranks	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Ranks	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
104.milc	768	12.9	121	12.3	127	12.4	127	768	12.9	121	12.3	127	12.4	127
107.leslie3d	768	42.1	124	42.6	122	41.9	125	768	42.1	124	42.6	122	41.9	125
113.GemsFDTD	768	339	18.6	337	18.7	337	18.7	96	203	31.0	204	31.0	204	31.0
115.fds4	768	11.5	170	14.7	133	14.9	131	768	11.5	170	14.7	133	14.9	131
121.pop2	768	121	34.1	121	34.1	120	34.5	768	121	34.1	121	34.1	120	34.5
122.tachyon	768	27.3	102	24.6	114	26.7	105	768	27.3	102	24.6	114	26.7	105
126.lammps	768	118	24.8	117	24.9	117	25.0	768	118	24.8	117	24.9	117	25.0
127.wrf2	768	41.6	187	65.6	119	44.4	176	768	41.6	187	65.6	119	44.4	176
128.GAPgeofem	768	12.6	164	13.2	156	12.7	162	768	12.6	164	13.2	156	12.7	162
129.tera_tf	768	32.3	85.7	29.4	94.0	30.6	90.5	768	32.3	85.7	29.4	94.0	30.6	90.5
130.socorro	768	42.6	89.5	43.1	88.6	42.7	89.3	768	42.6	89.5	43.1	88.6	42.7	89.3
132.zeusmp2	768	28.5	109	28.5	109	28.4	109	768	28.5	109	28.5	109	28.4	109
137.lu	768	30.9	119	30.4	121	30.3	121	768	30.9	119	30.4	121	30.3	121

Hardware Summary
Type of System:	Homogeneous
Compute Node:	SGI Rackable C2112-4RP4 Compute Node
Interconnect:	InfiniBand (MPI and I/O)
File Server Node:	SGI MIS Server
Total Compute Nodes:	32
Total Chips:	64
Total Cores:	768
Total Threads:	1536
Total Memory:	4 TB
Base Ranks Run:	768
Minimum Peak Ranks:	96
Maximum Peak Ranks:	768

Software Summary
C Compiler:	Intel C++ Composer XE 2013 for Linux, Version 14.0.0.051 Build 20130529
C++ Compiler:	Intel C++ Composer XE 2013 for Linux, Version 14.0.0.051 Build 20130529
Fortran Compiler:	Intel Fortran Composer XE 2013 for Linux, Version 14.0.0.051 Build 20130529
Base Pointers:	64-bit
Peak Pointers:	64-bit
MPI Library:	SGI MPT 2.08 Patch 11012
Other MPI Info:	OFED 1.5.2
Pre-processors:	None
Other Software:	None

Node Description: SGI Rackable C2112-4RP4 Compute Node

Hardware
Number of nodes:	32
Uses of the node:	compute
Vendor:	SGI
Model:	SGI Rackable C2112-4RP4 (Intel Xeon E5-2697 v2, 2.70GHz)
CPU Name:	Intel Xeon E5-2697 v2
CPU(s) orderable:	1-2 chips
Chips enabled:	2
Cores enabled:	24
Cores per chip:	12
Threads per core:	2
CPU Characteristics:	Twelve Core, 2.7 GHz, 8.0 GT/s QPI Intel Turbo Boost Technology up to 3.5 GHz Hyper-Threading Technology enabled
CPU MHz:	2700
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	256 KB I+D on chip per core
L3 Cache:	30 MB I+D on chip per chip, 30 MB shared / 12 cores
Other Cache:	None
Memory:	128 GB (8 x 16 GB 2Rx4 PC3-14900R-13, ECC)
Disk Subsystem:	None
Other Hardware:	None
Adapter:	Mellanox MT27500 with ConnectX-3 ASIC (PCIe x8 Gen3 8.0 GT/s)
Number of Adapters:	2
Slot Type:	PCIe x8 Gen3
Data Rate:	InfiniBand 4x FDR
Ports Used:	1
Interconnect Type:	InfiniBand

Software
Adapter:	Mellanox MT27500 with ConnectX-3 ASIC (PCIe x8 Gen3 8.0 GT/s)
Adapter Driver:	OFED-1.5.2
Adapter Firmware:	2.10.2370
Operating System:	SUSE Linux Enterprise Server 11 SP2, Kernel 3.0.74-0.6.6-default
Local File System:	xfs
Shared File System:	NFSv3 IPoIB
System State:	Multi-user, run level 3
Other Software:	SGI Accelerate 1.6, Build 708r14.sles11sp2-1304102205

Node Description: SGI MIS Server

Hardware
Number of nodes:	1
Uses of the node:	fileserver
Vendor:	SGI
Model:	SGI MIS Server (Intel Xeon X2670, 2.60 GHz)
CPU Name:	Intel Xeon E5-2670
CPU(s) orderable:	1-2 chips
Chips enabled:	2
Cores enabled:	16
Cores per chip:	8
Threads per core:	2
CPU Characteristics:	Intel Turbo Boost Technology up to 3.33 GHz Hyper-Threading Technology enabled
CPU MHz:	2600
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	256 KB I+D on chip per chip
L3 Cache:	20 MB I+D on chip per chip
Other Cache:	None
Memory:	128 GB (8*16 GB 12800R-11, ECC)
Disk Subsystem:	57.6 TB RAID6 64 x 900 GB SAS (Western Digital WD9001BKHG 10K)
Other Hardware:	None
Adapter:	Mellanox MT27500 with ConnectX-3 ASIC (PCIe x8 Gen3 8 GT/s)
Number of Adapters:	2
Slot Type:	PCIe x8 Gen3
Data Rate:	InfiniBand 4x FDR
Ports Used:	2
Interconnect Type:	InfiniBand

Software
Adapter:	Mellanox MT27500 with ConnectX-3 ASIC (PCIe x8 Gen3 8 GT/s)
Adapter Driver:	OFED-1.5.2
Adapter Firmware:	2.11.500
Operating System:	SUSE Linux Enterprise Server 11 SP2 (x86_64) Kernel 3.0.74-0.6.6-default
Local File System:	xfs
Shared File System:	--
System State:	Multi-user, run level 3
Other Software:	SGI Foundation Software 2.8, Build 708r14.sles11sp2-1304102205

Interconnect Description: InfiniBand (MPI and I/O)

Hardware
Vendor:	Mellanox Technologies
Model:	None
Switch Model:	Mellanox SX6025 InfiniBand Switch
Number of Switches:	4
Number of Ports:	36
Data Rate:	InfiniBand 4x FDR
Firmware:	9.1.7000
Switch Model:	Mellanox SX6036 InfiniBand Switch
Number of Switches:	2
Number of Ports:	36
Data Rate:	InfiniBand 4x FDR
Firmware:	9.1.6500
Topology:	Fat Tree
Primary Use:	MPI and I/O traffic

Submit Notes

The config file option 'submit' was used.

General Notes

130.socorro (base): "nullify_ptrs" src.alt was used.

 Software environment:
   export MPI_REQUEST_MAX=65536
   export MPI_TYPE_MAX=32768
   export MPI_BUFS_THRESHOLD=1
   ulimit -s unlimited

 Transparent Hugepage : disabled
   Transparent Hugepage is disabled by
   echo never > /sys/kernel/mm/transparent_hugepage/enabled

 BIOS settings:
   Intel BIOS version SE5C600.86B.99.99.x067.060720130951
   Hyper-Threading Technology enabled (default)
   Intel Turbo Boost Technology enabled (default)
   Intel Turbo Boost Technology activated in the OS via
     /etc/init.d/acpid start
     /etc/init.d/powersaved start
     powersave -f

 Peak run:
   In the peak run, some benchmarks used different number of ranks
   from base. It is the only difference between base and peak.
