SPEC® MPIL2007 Result

Copyright 2006-2010 Standard Performance Evaluation Corporation

SGI

SGI ICE X
(Intel Xeon E5-2690 v3, 2.6 GHz)

SPECmpiL_peak2007 = Not Run

MPI2007 license: 14 Test date: Jul-2014
Test sponsor: SGI Hardware Availability: Sep-2014
Tested by: SGI Software Availability: Apr-2014

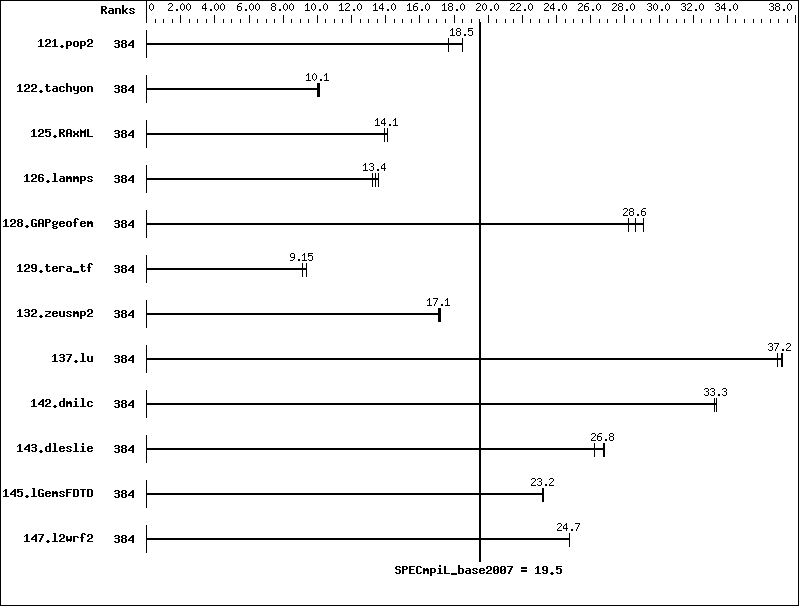

Benchmark results graph

Results Table

Benchmark Base Peak
Ranks Seconds Ratio Seconds Ratio Seconds Ratio Ranks Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
121.pop2 384 220 17.7  210 18.5  210 18.5
122.tachyon 384 193 10.1  192 10.1  194 10.0
125.RAxML 384 207 14.1  207 14.1  209 13.9
126.lammps 384 181 13.6  184 13.4  186 13.2
128.GAPgeofem 384 204 29.1  207 28.6  210 28.2
129.tera_tf 384 120 9.15 117 9.37 120 9.15
132.zeusmp2 384 123 17.2  124 17.1  124 17.1
137.lu 384 114 36.9  113 37.2  113 37.2
142.dmilc 384 110 33.4  111 33.2  110 33.3
143.dleslie 384 116 26.8  116 26.8  118 26.2
145.lGemsFDTD 384 190 23.2  190 23.2  190 23.2
147.l2wrf2 384 331 24.7  331 24.7  332 24.7
Hardware Summary
Type of System: Homogeneous
Compute Node: SGI ICE X IP-131 Compute Node
Interconnect: InfiniBand (MPI and I/O)
File Server Node: SGI Rackable C1103-TY12
Total Compute Nodes: 16
Total Chips: 32
Total Cores: 384
Total Threads: 384
Total Memory: 2 TB
Base Ranks Run: 384
Minimum Peak Ranks: --
Maximum Peak Ranks: --
Software Summary
C Compiler: Intel C++ Composer XE 2013 for Linux,
Version 14.0.3.174 Build 20140422
C++ Compiler: Intel C++ Composer XE 2013 for Linux
Version 14.0.3.174 Build 20140422
Fortran Compiler: Intel Fortran Composer XE 2013 for Linux,
Version 14.0.3.174 Build 20140422
Base Pointers: 64-bit
Peak Pointers: Not Applicable
MPI Library: SGI MPT 2.09 Patch 11049
Other MPI Info: OFED 1.5.4
Pre-processors: None
Other Software: None

Node Description: SGI ICE X IP-131 Compute Node

Hardware
Number of nodes: 16
Uses of the node: compute
Vendor: SGI
Model: SGI ICE X (Intel Xeon E5-2690 v3, 2.6 GHz)
CPU Name: Intel Xeon E5-2690 v3
CPU(s) orderable: 1-2 chips
Chips enabled: 2
Cores enabled: 24
Cores per chip: 12
Threads per core: 1
CPU Characteristics: 12 Core, 2.60 GHz, 9.6 GT/s QPI
Intel Turbo Boost Technology up to 3.50 GHz
Hyper-Threading Technology disabled
CPU MHz: 2600
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 30 MB I+D on chip per chip
Other Cache: None
Memory: 128 GB (8 x 16 GB 2Rx4 PC4-17000R-15, ECC)
Disk Subsystem: None
Other Hardware: None
Adapter: Mellanox MT27500 with ConnectX-3 ASIC
(PCIe x8 Gen3 8 GT/s)
Number of Adapters: 2
Slot Type: PCIe x8 Gen3
Data Rate: InfiniBand 4x FDR
Ports Used: 2
Interconnect Type: InfiniBand
Software
Adapter: Mellanox MT27500 with ConnectX-3 ASIC
(PCIe x8 Gen3 8 GT/s)
Adapter Driver: OFED-1.5.4
Adapter Firmware: 2.30.3000
Operating System: SUSE Linux Enterprise Server 11 SP3 (x86_64),
Kernel 3.0.93-0.8-default
Local File System: NFSv3
Shared File System: NFSv3 IPoIB
System State: Multi-user, run level 3
Other Software: SGI Tempo Service Node 2.8.1,
Build 709rp49.sles11sp3-1402182002

Node Description: SGI Rackable C1103-TY12

Hardware
Number of nodes: 1
Uses of the node: fileserver
Vendor: SGI
Model: SGI Rackable C1103-TY12 (Intel Xeon X5670, 2.93
GHz)
CPU Name: Intel Xeon X5670
CPU(s) orderable: 1-2 chips
Chips enabled: 2
Cores enabled: 12
Cores per chip: 6
Threads per core: 2
CPU Characteristics: Intel Turbo Boost Technology up to 3.33 GHz
Hyper-Threading Technology enabled
CPU MHz: 2933
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per chip
L3 Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory: 96 GB (12 * 8 GB 2Rx4 PC3-10600R-9, ECC)
Disk Subsystem: 12 TB RAID 6
12 x 1 TB SATA (Seagate Constellation, 7200RPM)
Other Hardware: None
Adapter: Mellanox MT27500 with ConnectX-3 ASIC
(PCIe x8 Gen3 8 GT/s)
Number of Adapters: 2
Slot Type: PCIe x8 Gen3
Data Rate: InfiniBand 4x FDR
Ports Used: 2
Interconnect Type: InfiniBand
Software
Adapter: Mellanox MT27500 with ConnectX-3 ASIC
(PCIe x8 Gen3 8 GT/s)
Adapter Driver: OFED-1.5.2
Adapter Firmware: 2.30.3000
Operating System: SUSE Linux Enterprise Server 11 SP1 (x86_64),
Kernel 2.6.32.46-0.3-default
Local File System: xfs
Shared File System: --
System State: Multi-user, run level 3
Other Software: SGI Foundation Software 2.5,
Build 705r10.sles11-1110192111

Interconnect Description: InfiniBand (MPI and I/O)

Hardware
Vendor: Mellanox Technologies and SGI
Model: None
Switch Model: SGI FDR Integrated IB Switch Blade 2SW9x27 with
Mellanox SwitchX device 51000
Number of Switches: 4
Number of Ports: 36
Data Rate: InfiniBand 4x FDR
Firmware: 09.02.3000
Topology: Enhanced Hypercube
Primary Use: MPI and I/O traffic

Submit Notes

The config file option 'submit' was used.

General Notes

 Software environment:
   export MPI_REQUEST_MAX=65536
   export MPI_TYPE_MAX=32768
   export MPI_IB_RAILS=2
   ulimit -s unlimited

 BIOS settings:
   AMI BIOS version DY2E6044
   Hyper-Threading Technology disabled
   Intel Turbo Boost Technology enabled (default)
   Intel Turbo Boost Technology activated with
     modprobe acpi_cpufreq
     cpupower frequency-set -u 2601MHz -d 2601MHz -g performance

 Job Placement:
   Each MPI job was assigned to a topologically compact set
   of nodes, i.e. the minimal needed number of switches was
   used for each job: 2 switches for up to 192 ranks,
   4 switches for up to 384 ranks, 8 switches for 768 ranks,
   and 16 switches for 1536 ranks.

 Additional notes regarding interconnect:
   The Infiniband network consists of two independent planes,
   with half the switches in the system allocated to each plane.
   I/O traffic is restricted to one plane, while MPI traffic can
   use both planes.

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

126.lammps:  icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Base Portability Flags

121.pop2:  -DSPEC_MPI_CASE_FLAG

Base Optimization Flags

C benchmarks:

 -O3   -xCORE-AVX2   -no-prec-div

C++ benchmarks:

126.lammps:  -O3   -xCORE-AVX2   -no-prec-div   -ansi-alias

Fortran benchmarks:

 -O3   -xCORE-AVX2   -no-prec-div

Benchmarks using both Fortran and C:

 -O3   -xCORE-AVX2   -no-prec-div

Base Other Flags

C benchmarks:

 -lmpi

C++ benchmarks:

126.lammps:  -lmpi

Fortran benchmarks:

 -lmpi

Benchmarks using both Fortran and C:

 -lmpi

The flags file that was used to format this result can be browsed at
http://www.spec.org/mpi2007/flags/SGI_x86_64_Intel14_flags.20140908.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/mpi2007/flags/SGI_x86_64_Intel14_flags.20140908.xml.
