SPEC® MPIL2007 Result

Lenovo Global Technology

ThinkSystem SR655
(AMD EPYC 7H12 CPU, 2.6 GHz)

SPECmpiL_peak2007 = Not Run

SPECmpiL_base2007 = 2.84

MPI2007 license:	28	Test date:	Jan-2020
Test sponsor:	Lenovo Global Technology	Hardware Availability:	Jun-2020
Tested by:	Lenovo Global Technology	Software Availability:	Jun-2020

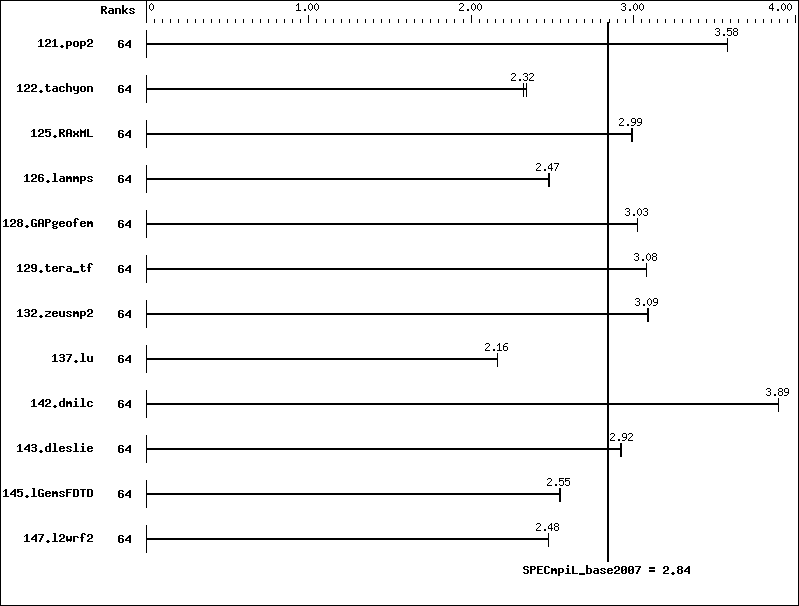

Results Table

Benchmark	Base							Peak
Benchmark	Ranks	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Ranks	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
121.pop2	64	1087	3.58	1087	3.58
122.tachyon	64	831	2.34	837	2.32
125.RAxML	64	976	2.99	976	2.99
126.lammps	64	994	2.47	991	2.48
128.GAPgeofem	64	1960	3.03	1960	3.03
129.tera_tf	64	357	3.08	357	3.08
132.zeusmp2	64	685	3.09	686	3.09
137.lu	64	1946	2.16	1943	2.16
142.dmilc	64	946	3.90	946	3.89
143.dleslie	64	1061	2.92	1060	2.92
145.lGemsFDTD	64	1728	2.55	1733	2.55
147.l2wrf2	64	3313	2.48	3313	2.48

Hardware Summary
Type of System:	Homogeneous
Compute Node:	ThinkSystem SR655
Total Compute Nodes:	1
Total Chips:	1
Total Cores:	64
Total Threads:	64
Total Memory:	256 GB
Base Ranks Run:	64
Minimum Peak Ranks:	--
Maximum Peak Ranks:	--

Software Summary
C Compiler:	Intel C++ Compiler 20.0 for Linux Version 19.1.0.166 Build 20191121
C++ Compiler:	Intel C++ Compiler 20.0 for Linux Version 19.1.0.166 Build 20191121
Fortran Compiler:	Intel Fortran Compiler 20.0 for Linux Version 19.1.0.166 Build 20191121
Base Pointers:	64-bit
Peak Pointers:	Not Applicable
MPI Library:	Open MPI Library Version 4.0.2
Other MPI Info:	None
Pre-processors:	No
Other Software:	None

Node Description: ThinkSystem SR655

Hardware
Number of nodes:	1
Uses of the node:	compute
Vendor:	Lenovo Global Technology
Model:	SR655
CPU Name:	AMD EPYC 7H12 CPU
CPU(s) orderable:	1 chip
Chips enabled:	1
Cores enabled:	64
Cores per chip:	64
Threads per core:	1
CPU Characteristics:	None
CPU MHz:	2600
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	512 KB I+D on chip per core
L3 Cache:	256 MB I+D on chip per chip 16 MB shared / 4 cores
Other Cache:	None
Memory:	256 GB (8 x 32 GB 2Rx8 PC4-3200AA-R)
Disk Subsystem:	1 x 480 GB SATA 2.5" SSD
Other Hardware:	None
Adapter:	None
Number of Adapters:	0
Slot Type:	None
Data Rate:	None
Ports Used:	0
Interconnect Type:	None

Software
Adapter:	None
Adapter Driver:	None
Adapter Firmware:	None
Operating System:	Red Hat Enterprise Linux Server release 8.1 4.18.0-147.el8.x86_64
Local File System:	xfs
Shared File System:	None
System State:	Multi-user, run level 3
Other Software:	None

Submit Notes

The config file option 'submit' was used.

General Notes

 MPI startup command:
   mpiexec command was used to start MPI jobs.

 RAM configuration:
   Compute nodes have 1 x 32 GB RDIMM on each memory channel.

 Add "idle=poll" into grub

 BIOS settings:
   Operating Mode : Maximum Performance Mode
   Hyper-Threading Technology (SMT): Disabled
   NPS4


 Yes: The test sponsor attests, as of date of publication,
 that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.

 Yes: The test sponsor attests, as of date of publication,
 that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.

 Yes: The test sponsor attests, as of date of publication,
 that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
