SPEC® MPIM2007 Result

Copyright 2006-2010 Standard Performance Evaluation Corporation

Lenovo Global Technology

ThinkSystem SR665
(AMD EPYC 7763, 2.45 GHz)

MPI2007 license: 28 Test date: Mar-2021
Test sponsor: Lenovo Global Technology Hardware Availability: Mar-2021
Tested by: Lenovo Global Technology Software Availability: Mar-2021

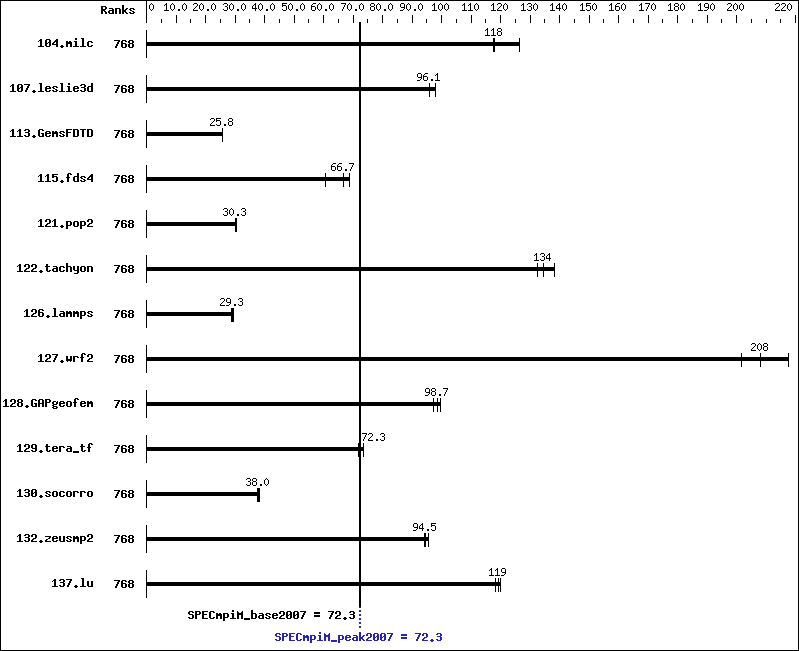

Benchmark results graph

Results Table

Benchmark Base Peak
Ranks Seconds Ratio Seconds Ratio Seconds Ratio Ranks Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
104.milc 768 12.4 127   13.3 118   13.3 118   768 12.4 127   13.3 118   13.3 118
107.leslie3d 768 54.3 96.1 53.3 97.9 54.3 96.1 768 54.3 96.1 53.3 97.9 54.3 96.1
113.GemsFDTD 768 245   25.8 245   25.8 245   25.8 768 245   25.8 245   25.8 245   25.8
115.fds4 768 28.4 68.8 32.1 60.8 29.3 66.7 768 28.4 68.8 32.1 60.8 29.3 66.7
121.pop2 768 135   30.6 136   30.3 137   30.0 768 135   30.6 136   30.3 137   30.0
122.tachyon 768 20.3 138   21.1 133   20.8 134   768 20.3 138   21.1 133   20.8 134
126.lammps 768 99.1 29.4 99.7 29.3 101   28.8 768 99.1 29.4 99.7 29.3 101   28.8
127.wrf2 768 37.5 208   35.9 217   38.7 202   768 37.5 208   35.9 217   38.7 202
128.GAPgeofem 768 20.9 98.7 20.7 99.6 21.2 97.3 768 20.9 98.7 20.7 99.6 21.2 97.3
129.tera_tf 768 37.6 73.7 38.3 72.3 38.5 71.9 768 37.6 73.7 38.3 72.3 38.5 71.9
130.socorro 768 100   38.0 99.7 38.3 101   37.7 768 100   38.0 99.7 38.3 101   37.7
132.zeusmp2 768 33.0 94.1 32.8 94.5 32.4 95.6 768 33.0 94.1 32.8 94.5 32.4 95.6
137.lu 768 30.6 120   30.9 119   31.1 118   768 30.6 120   30.9 119   31.1 118
Hardware Summary
Type of System: Homogeneous
Compute Node: ThinkSystem SR665
Interconnect: Mellanox ConnectX-6 HDR
File Server Node: NFS
Total Compute Nodes: 6
Total Chips: 12
Total Cores: 768
Total Threads: 768
Total Memory: 6 TB
Base Ranks Run: 768
Minimum Peak Ranks: 768
Maximum Peak Ranks: 768
Software Summary
C Compiler: AMD Optimizing C Compiler for Linux
Version 2.3.0 Build 2020_11_10
C++ Compiler: AMD Optimizing C++ Compiler for Linux
Version 2.3.0 Build 2020_11_10
Fortran Compiler: AMD Optimizing Fortran Compiler for Linux
Version 2.3.0 Build 2020_11_10
Base Pointers: 64-bit
Peak Pointers: Not Applicable
MPI Library: Open MPI Library
Version 4.1.0
Other MPI Info: None
Pre-processors: No
Other Software: None

Node Description: ThinkSystem SR665

Hardware
Number of nodes: 6
Uses of the node: compute
Vendor: Lenovo Global Technology
Model: SR665
CPU Name: AMD EPYC 7763
CPU(s) orderable: 1-2 chips
Chips enabled: 2
Cores enabled: 128
Cores per chip: 64
Threads per core: 1
CPU Characteristics: None
CPU MHz: 2450
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
L3 Cache: 256 MB I+D on chip per chip
32 MB shared / 8 cores
Other Cache: None
Memory: 1 TB (16 x 64 GB 2Rx4 PC4-3200AA-R)
Disk Subsystem: 1 x 480 GB SATA 2.5" SSD
Other Hardware: None
Adapter: Mellanox ConnectX-6 HDR Infiniband
Number of Adapters: 1
Slot Type: PCI-Express 4.0 x16
Data Rate: 200 Gbs/s
Ports Used: 1
Interconnect Type: Mellanox ConnectX-6 HDR Infiniband Adapter
Software
Adapter: Mellanox ConnectX-6 HDR Infiniband
Adapter Driver: 5.2-1.0.4
Adapter Firmware: 20.25.2006
Operating System: Red Hat Enterprise Linux Server release 8.3
4.18.0-240.el8.x86_64
Local File System: xfs
Shared File System: None
System State: Multi-user, run level 3
Other Software: None

Node Description: NFS

Hardware
Number of nodes: 1
Uses of the node: Fileserver
Vendor: Lenovo Global Technology
Model: ThinkSystem SR665
CPU Name: AMD EPYC 7763 CPU
CPU(s) orderable: 1-2 chips
Chips enabled: 2
Cores enabled: 128
Cores per chip: 64
Threads per core: 1
CPU Characteristics: None
CPU MHz: 2450
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
L3 Cache: 256 MB I+D on chip per chip
32 MB shared / 8 cores
Other Cache: None
Memory: 1 TB (16 x 64 GB 2Rx4 PC4-3200AA-R)
Disk Subsystem: 1 x 480 GB SATA 2.5" SSD
Other Hardware: None
Adapter: Mellanox ConnectX-6 HDR Infiniband
Number of Adapters: 1
Slot Type: PCI-Express 4.0 x16
Data Rate: 200 Gb/s
Ports Used: 1
Interconnect Type: Mellanox ConnectX-6 HDR Infiniband
Software
Adapter: Mellanox ConnectX-6 HDR Infiniband
Adapter Driver: 5.2-1.0.4
Adapter Firmware: 20.25.2006
Operating System: Red Hat Enterprise Linux Server release 8.3
Local File System: None
Shared File System: NFS
System State: Multi-User, run level 3
Other Software: None

Interconnect Description: Mellanox ConnectX-6 HDR

Hardware
Vendor: Mellanox
Model: Infiniband HDR 200Gb/s Switch
Switch Model: QM8700 Series
Number of Switches: 1
Number of Ports: 40
Data Rate: 200 Gb/s
Firmware: 3.9.0606
Topology: Mesh
Primary Use: MPI Traffic

Submit Notes

The config file option 'submit' was used.

General Notes

 MPI startup command:
   mpiexec command was used to start MPI jobs.
 RAM configuration:
   Compute nodes have 1 x 64 GB RDIMM on each memory channel.
 Add "idle=poll" into grub
 BIOS settings:
   Operating Mode : Maximum Performance Mode
   Hyper-Threading Technology (SMT): Enabled
   NPS4
 Yes: The test sponsor attests, as of date of publication,
 that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
 Yes: The test sponsor attests, as of date of publication,
 that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
 Yes: The test sponsor attests, as of date of publication,
 that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.

Base Compiler Invocation

C benchmarks:

 mpicc

C++ benchmarks:

126.lammps:  mpicxx

Fortran benchmarks:

 mpifort

Benchmarks using both Fortran and C:

 mpicc   mpifort

Base Portability Flags

121.pop2:  -DSPEC_MPI_CASE_FLAG
126.lammps:  -DMPICH_IGNORE_CXX_SEEK
127.wrf2:  -DSPEC_MPI_CASE_FLAG   -DSPEC_MPI_LINUX   -Wno-return-type

Base Optimization Flags

C benchmarks:

 -Ofast   -flto   -ffast-math   -march=znver2   -mno-avx2   -L/home/amd-libm/lib   -lamdlibm

C++ benchmarks:

126.lammps:  -Ofast   -flto   -ffast-math   -march=znver2   -mno-avx2   -L/home/amd-libm/lib   -lamdlibm

Fortran benchmarks:

 -Ofast   -flto   -ffast-math   -march=znver2   -mno-avx2   -funroll-loops   -L/home/amd-libm/lib   -lamdlibm

Benchmarks using both Fortran and C:

 -Ofast   -flto   -ffast-math   -march=znver2   -mno-avx2   -funroll-loops   -L/home/amd-libm/lib   -lamdlibm

Peak Optimization Flags

C benchmarks:

104.milc:  basepeak = yes
122.tachyon:  basepeak = yes

C++ benchmarks:

126.lammps:  basepeak = yes

Fortran benchmarks:

107.leslie3d:  basepeak = yes
113.GemsFDTD:  basepeak = yes
129.tera_tf:  basepeak = yes
137.lu:  basepeak = yes

Benchmarks using both Fortran and C:

115.fds4:  basepeak = yes
121.pop2:  basepeak = yes
127.wrf2:  basepeak = yes
128.GAPgeofem:  basepeak = yes
130.socorro:  basepeak = yes
132.zeusmp2:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/mpi2007/flags/AMD_flags.20210315.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/mpi2007/flags/AMD_flags.20210315.xml.
