SPEC® OMPG2012 Result

Dell (Test Sponsor: Indiana University)

SPECompG_base2012 = 0.778

SPECompG_energy_base2012 = 0.815

Dell PowerEdge 2970 (KVM virtual machine)

SPECompG_peak2012 = Not Run

SPECompG_energy_peak2012 = --

OMP2012 license:	3440A	Test date:	Apr-2014
Test sponsor:	Indiana University	Hardware Availability:	Jun-2010
Tested by:	Indiana University	Software Availability:	Mar-2014

Hardware
CPU Name:	Quad-Core AMD Opteron 2374 HE
CPU Characteristics:
CPU MHz:	2200
CPU MHz Maximum:	2200
FPU:	Integrated
CPU(s) enabled:	8 cores, 2 chips, 4 cores/chip
CPU(s) orderable:	1-2 chips
Primary Cache:	64 KB I + 64 KB D on chip per core
Secondary Cache:	512 KB I+D on chip per core
L3 Cache:	6 MB I+D on chip per chip
Other Cache:	None
Memory:	32 GB (8 x 4 GB 2Rx4 PC2-6400R-6, ECC)
Disk Subsystem:	704 GB (SATA 7200 RPM, RAID 5)
Other Hardware:	None
Base Threads Run:	8
Minimum Peak Threads:	--
Maximum Peak Threads:	--

Software
Operating System:	Red Hat Enterprise Linux Server release 6.5 (Santiago) Kernel 2.6.32-431.3.1.el6.x86_64 KVM Kernel 2.6.32-431.3.1.el6.x86_64 KVM version: qemu-kvm.x86_64 2:0.12.1.2-2.415.el6_5.3
Compiler:	C/C++/Fortran: Version 14.3 of the PGI Compilers
Auto Parallel:	No
File System:	ext4; KVM ext4
System State:	Multi-user, run level 3
Base Pointers:	64-bit
Peak Pointers:	Not Applicable
Other Software:	None

Power
Power Supply:	1 x 750 W
Power Supply Details:	Dell Z750P-00
Max. Power (W):	337.25
Idle Power (W):	208.0
Min. Temperature (C):	22.00

Power Analyzer
Power Analyzer:	Power Analyzer
Hardware Vendor:	ZES Zimmer
Model:	LMG450
Serial Number:	11911308
Input Connection:	RS232 via USB-adapter
Metrology Institute:	PTB (Physikalisch Technische Bundesanstalt)
Calibration By:	ZES Zimmer
Calibration Label:	0431191001
Calibration Date:	08.26.2013
PTDaemon Version:	1.6.2 (372e138a; 2013-12-04)
Setup Description:	--
Current Ranges Used:	2.5A, 5.0A
Voltage Range Used:	130V

Temperature Meter
Temperature Meter:	Temperature Meter
Hardware Vendor:	Digi
Model:	Watchport/H
Serial Number:	--
Input Connection:	USB
PTDaemon Version:	1.6.2 (372e138a; 2013-12-04)
Setup Description:	positioned in front of intake fan

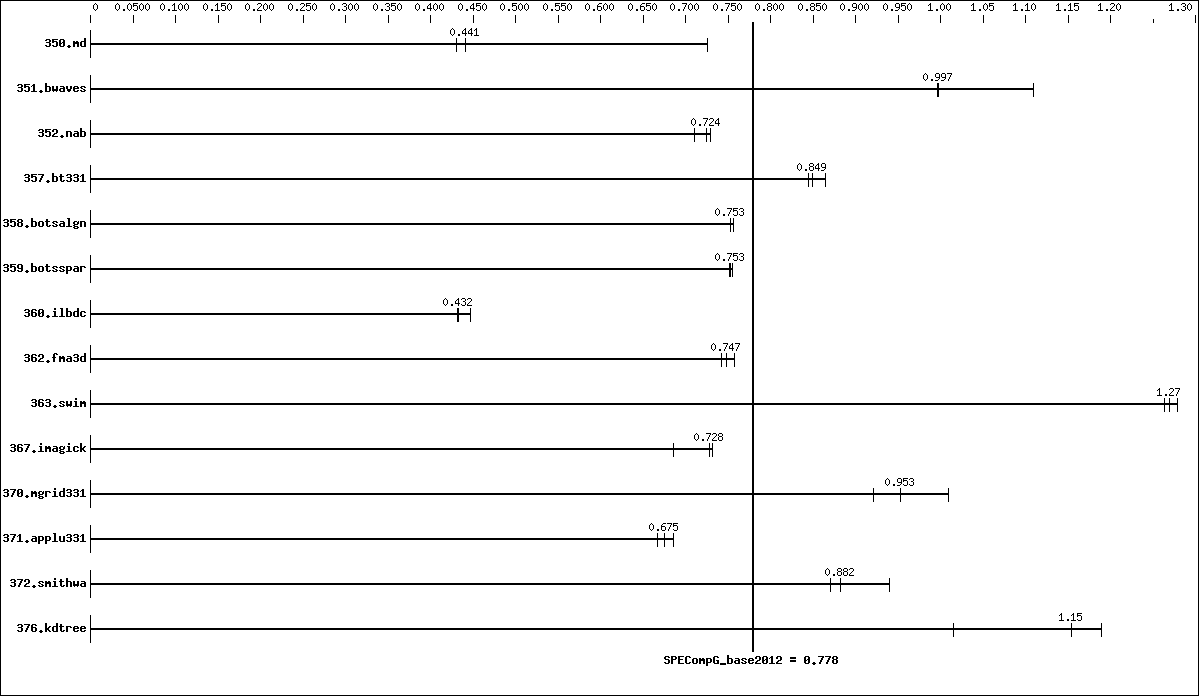

Base Results Table

Benchmark	Threads	Seconds	Ratio	Energy (kJ)	Maximum Power	Average Power	Energy Ratio	Seconds	Ratio	Energy (kJ)	Maximum Power	Average Power	Energy Ratio	Seconds	Ratio	Energy (kJ)	Maximum Power	Average Power	Energy Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
350.md	8	6386	0.725	1650	272	259	0.759	10505	0.441	2820	281	268	0.445	10768	0.430	2890	283	269	0.434
351.bwaves	8	4086	1.11	1250	321	306	1.07	4549	0.996	1370	314	301	0.978	4544	0.997	1370	312	301	0.981
352.nab	8	5338	0.729	1430	281	268	0.753	5371	0.724	1430	279	267	0.751	5473	0.711	1450	278	266	0.741
357.bt331	8	5614	0.844	1620	319	289	0.903	5483	0.864	1570	320	287	0.932	5585	0.849	1610	319	288	0.912
358.botsalgn	8	5750	0.757	1560	274	271	0.822	5781	0.753	1590	278	274	0.806	5776	0.753	1570	274	271	0.817
359.botsspar	8	6974	0.753	1960	306	282	0.802	6951	0.755	1990	310	287	0.791	6991	0.751	1980	306	283	0.797
360.ilbdc	8	7967	0.447	2240	313	281	0.492	8234	0.432	2300	307	279	0.480	8252	0.431	2290	304	277	0.483
362.fma3d	8	5122	0.742	1450	295	283	0.778	5084	0.747	1440	295	283	0.785	5020	0.757	1430	297	285	0.790
363.swim	8	3545	1.28	1090	313	308	1.27	3569	1.27	1100	314	308	1.26	3584	1.26	1110	315	310	1.24
367.imagick	8	10262	0.685	2840	290	277	0.756	9653	0.728	2730	293	283	0.789	9610	0.732	2680	290	279	0.803
370.mgrid331	8	4381	1.01	1370	322	312	1.00	4797	0.921	1460	315	304	0.935	4639	0.953	1430	320	307	0.958
371.applu331	8	8974	0.675	2700	313	301	0.688	9085	0.667	2720	310	299	0.685	8841	0.685	2650	321	300	0.701
372.smithwa	8	6158	0.870	1970	336	321	0.929	5701	0.940	1840	337	324	0.994	6076	0.882	1960	332	323	0.935
376.kdtree	8	3902	1.15	1090	283	278	1.28	4436	1.01	1240	289	279	1.12	3786	1.19	1060	285	281	1.30

Platform Notes

 Sysinfo program
 /net/energyvmhost.uits.iu.edu/var/lib/libvirt/slash_usr_extension_dir/local/energy_measurement/OMP2012-vm/Docs/sysinfo
 $Rev: 395 $ $Date:: 2012-07-25 #$ 8f8c0fe9e19c658963a1e67685e50647
 running on energyvm.uits.iu.edu Fri Apr 11 16:54:17 2014

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/omp2012/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : AMD Opteron 23xx (Gen 3 Class Opteron)
 *
 * 0 "physical id" tags found.  Perhaps this is an older system,
 * or a virtualized system.  Not attempting to guess how to
 * count chips/cores for this system.
 *
       8 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
    cache size : 512 KB

 From /proc/meminfo
    MemTotal:       28742712 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 /usr/bin/lsb_release -d
    Red Hat Enterprise Linux Server release 6.5 (Santiago)

 From /etc/*release* /etc/*version*
    redhat-release: Red Hat Enterprise Linux Server release 6.5 (Santiago)
    system-release: Red Hat Enterprise Linux Server release 6.5 (Santiago)
    system-release-cpe: cpe:/o:redhat:enterprise_linux:6server:ga:server

 uname -a:
    Linux energyvm.uits.iu.edu 2.6.32-431.5.1.el6.x86_64 #1 SMP Fri Jan 10
    14:46:43 EST 2014 x86_64 x86_64 x86_64 GNU/Linux

 run-level 3 Apr 10 15:14

 SPEC is set to:
 /net/energyvmhost.uits.iu.edu/var/lib/libvirt/slash_usr_extension_dir/local/energy_measurement/OMP2012-vm
    Filesystem
    Type  Size  Used Avail Use% Mounted on
    energyvmhost.uits.iu.edu:/var/lib/libvirt/slash_usr_extension_dir/local/energy_measurement nfs   704G  445G  224G  67% /net/energyvmhost.uits.iu.edu/var/lib/libvirt/slash_usr_extension_dir/local/energy_measurement

 Cannot run dmidecode; consider saying 'chmod +s /usr/sbin/dmidecode'

 (End of data from sysinfo program)

General Notes

 VM Configuration details:
      1 VM for OMP2012 with 8 VCPUS and 28 GB memory
      Only one VM per node
      Host and guest OS installed using default parameters
      KVM installed using default parameters
 Environment:
      ENV_OMP_NESTED=FALSE
      OMP_NESTED=FALSE
      ENV_OMP_DYNAMIC=FALSE
      ENV_OMP_NUM_THREADS=8

Base Compiler Invocation

C benchmarks:

pgcc

C++ benchmarks:

pgCC

Fortran benchmarks:

pgfortran

Base Portability Flags

350.md:	-Mfree
357.bt331:	-mcmodel=medium
363.swim:	-mcmodel=medium

Base Optimization Flags

C benchmarks:

-fast -mp -Mipa=fast -Mipa=inline -Msmartalloc=huge -Mfprelaxed

C++ benchmarks:

-fast -mp -Mipa=fast -Mipa=inline -Msmartalloc=huge -Mfprelaxed

Fortran benchmarks:

350.md:	-fast -mp -Mipa=fast -Mipa=inline -Msmartalloc=huge -Mfprelaxed
351.bwaves:	Same as 350.md
357.bt331:	-fast -mp -Mipa=fast -Mipa=inline -Msmartalloc=huge -Mfprelaxed -Bdynamic(*)
360.ilbdc:	Same as 350.md
362.fma3d:	Same as 350.md
363.swim:	Same as 357.bt331
370.mgrid331:	Same as 350.md
371.applu331:	Same as 350.md

(*) Indicates an optimization flag that was found in a portability variable.

The flags file that was used to format this result can be browsed at
http://www.spec.org/omp2012/flags/pgi2013_linux_flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/omp2012/flags/pgi2013_linux_flags.xml.
