SPEC® OMPG2012 Result

Copyright 2012-2018 Standard Performance Evaluation Corporation

Dell (Test Sponsor: University of Delaware)

SPECompG_base2012 = 6.77

Dell M630 Blade (KVM virtual machine)

SPECompG_peak2012 = Not Run

OMP2012 license: 056A Test date: Sep-2018
Test sponsor: University of Delaware Hardware Availability: Jun-2018
Tested by: University of Delaware Software Availability: Jun-2018

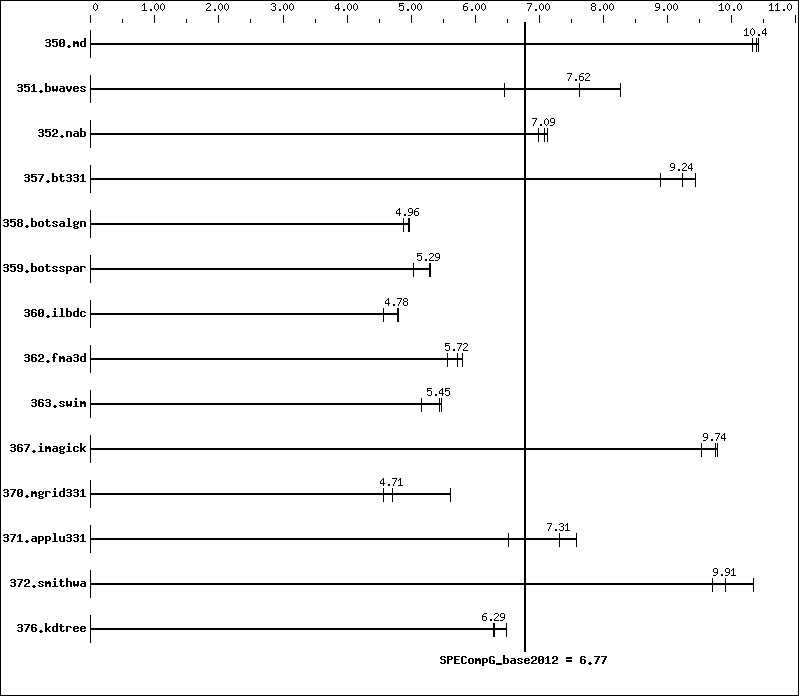

Benchmark results graph
Hardware
CPU Name: Dual Intel Xeon E5-2680 v3 (44 of 48 ht cores
allocated to KVM)
CPU Characteristics: Intel Turbo Boost Technology off,
Hyper-Threading on
CPU MHz: 2500
CPU MHz Maximum: 3300
FPU: Integrated
CPU(s) enabled: 24 cores, 2 chips, 12 cores/chip, 2 threads/core
CPU(s) orderable: 1-2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 30 MB I+D on chip per chip
Other Cache: None
Memory: 128 GB (16 x 8 GB 2Rx8 PC4-2133P-R)
118 GB (118/128 GB Allocated for KVM)
Disk Subsystem: 400GB (SATA Mix Use MLC 6Gbps 2.5in Hot-plug
Drive,13G (400-AEIX) dual SSDs, RAID-1)
Other Hardware: None
Base Threads Run: 44
Minimum Peak Threads: --
Maximum Peak Threads: --
Software
Operating System: CentOS Linux release 7.5.1804 (Core)
3.10.0-862.3.3.el7.x86_64
Compiler: C/C++/Fortran: Version 18.0.3.222 of Intel
Parallel Studio XE for Linux Build 20180410
Auto Parallel: No
File System: CephFS
System State: Run level 3 (multi-user)
Base Pointers: 64-bit
Peak Pointers: Not Applicable
Other Software: KVM Version 2.10.0-21

Results Table

Benchmark Base Peak
Threads Seconds Ratio Seconds Ratio Seconds Ratio Threads Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
350.md 44 445   10.4   446   10.4   449   10.3
351.bwaves 44 548   8.27  595   7.62  702   6.45
352.nab 44 549   7.09  546   7.12  557   6.98
357.bt331 44 502   9.44  513   9.24  533   8.89
358.botsalgn 44 876   4.97  876   4.96  890   4.89
359.botsspar 44 989   5.31  993   5.29  1042   5.04
360.ilbdc 44 742   4.80  745   4.78  779   4.57
362.fma3d 44 665   5.72  682   5.57  656   5.80
363.swim 44 827   5.48  877   5.16  832   5.45
367.imagick 44 722   9.74  719   9.77  737   9.53
370.mgrid331 44 787   5.61  939   4.71  967   4.57
371.applu331 44 829   7.31  930   6.52  800   7.58
372.smithwa 44 518   10.3   541   9.91  553   9.70
376.kdtree 44 694   6.49  715   6.29  716   6.29

Platform Notes

 Sysinfo program /home/tmh97/SPEC_OMP2012v1.1/Docs/sysinfo
 Revision 563 of 2016-06-10 (097295389cf6073d8c3b03fa376740a5)
 running on js-156-29.jetstream-cloud.org Mon Sep 17 18:45:03 2018

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/omp2012/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon(R) CPU E5-2680 v3 @ 2.50GHz
       44 "physical id"s (chips)
       44 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 1
       siblings  : 1
       physical 0: cores 0
       physical 1: cores 0
       physical 2: cores 0
       physical 3: cores 0
       physical 4: cores 0
       physical 5: cores 0
       physical 6: cores 0
       physical 7: cores 0
       physical 8: cores 0
       physical 9: cores 0
       physical 10: cores 0
       physical 11: cores 0
       physical 12: cores 0
       physical 13: cores 0
       physical 14: cores 0
       physical 15: cores 0
       physical 16: cores 0
       physical 17: cores 0
       physical 18: cores 0
       physical 19: cores 0
       physical 20: cores 0
       physical 21: cores 0
       physical 22: cores 0
       physical 23: cores 0
       physical 24: cores 0
       physical 25: cores 0
       physical 26: cores 0
       physical 27: cores 0
       physical 28: cores 0
       physical 29: cores 0
       physical 30: cores 0
       physical 31: cores 0
       physical 32: cores 0
       physical 33: cores 0
       physical 34: cores 0
       physical 35: cores 0
       physical 36: cores 0
       physical 37: cores 0
       physical 38: cores 0
       physical 39: cores 0
       physical 40: cores 0
       physical 41: cores 0
       physical 42: cores 0
       physical 43: cores 0
    cache size : 16384 KB

 From /proc/meminfo
    MemTotal:       123602104 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 /usr/bin/lsb_release -d
    CentOS Linux release 7.5.1804 (Core)

 From /etc/*release* /etc/*version*
    centos-release: CentOS Linux release 7.5.1804 (Core)
    centos-release-upstream: Derived from Red Hat Enterprise Linux 7.5 (Source)
    os-release:
       NAME="CentOS Linux"
       VERSION="7 (Core)"
       ID="centos"
       ID_LIKE="rhel fedora"
       VERSION_ID="7"
       PRETTY_NAME="CentOS Linux 7 (Core)"
       ANSI_COLOR="0;31"
       CPE_NAME="cpe:/o:centos:centos:7"
    redhat-release: CentOS Linux release 7.5.1804 (Core)
    system-release: CentOS Linux release 7.5.1804 (Core)
    system-release-cpe: cpe:/o:centos:centos:7

 uname -a:
    Linux js-156-29.jetstream-cloud.org 3.10.0-862.3.3.el7.x86_64 #1 SMP Fri Jun
    15 04:15:27 UTC 2018 x86_64 x86_64 x86_64 GNU/Linux

 run-level 5 Sep 17 18:20

 SPEC is set to: /home/tmh97/SPEC_OMP2012v1.1
    Filesystem     Type  Size  Used Avail Use% Mounted on
    /dev/sda1      xfs    60G   40G   21G  66% /
 Additional information from dmidecode:

    Warning: Use caution when you interpret this section. The 'dmidecode' program
    reads system data which is "intended to allow hardware to be accurately
    determined", but the intent may not be met, as there are frequent changes to
    hardware, firmware, and the "DMTF SMBIOS" standard.


 (End of data from sysinfo program)

General Notes

Jetstream VM Configuration:
    1 VM instance running OMP2012 on single node with 44 VCPUS and 118 GB memory
    44 of the 48 available VCPUS are allocated to KVM
Environment Variables:
    KMP_STACKSIZE=1G
    ulimit -s unlimited
    KMP_AFFINITY=compact
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown)
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1)
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2)

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Base Portability Flags

350.md:  -free
357.bt331:  -mcmodel=medium
363.swim:  -mcmodel=medium
367.imagick:  -std=c99

Base Optimization Flags

C benchmarks:

 -ansi-alias   -qopenmp   -ipo   -O3   -no-prec-div   -no-prec-sqrt   -fp-model fast=2   -xHost

C++ benchmarks:

 -ansi-alias   -qopenmp   -ipo   -O3   -no-prec-div   -no-prec-sqrt   -fp-model fast=2   -xHost

Fortran benchmarks:

 -qopenmp   -ipo   -O3   -no-prec-div   -no-prec-sqrt   -fp-model fast=2   -xHost

The flags file that was used to format this result can be browsed at
http://www.spec.org/omp2012/flags/Intel-ic17-linux64.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/omp2012/flags/Intel-ic17-linux64.xml.
