SPEC® OMPG2012 Result

Copyright 2012-2019 Standard Performance Evaluation Corporation

Hewlett Packard Enterprise (Test Sponsor: Indiana University)

SPECompG_base2012 = 5.17

Apollo 70
(Marvell ThunderX2 CN9980 v2.1, 2.20GHz)

SPECompG_peak2012 = Not Run

OMP2012 license: 3440A Test date: Aug-2019
Test sponsor: Indiana University Hardware Availability: Jun-2019
Tested by: Indiana University Software Availability: May-2019

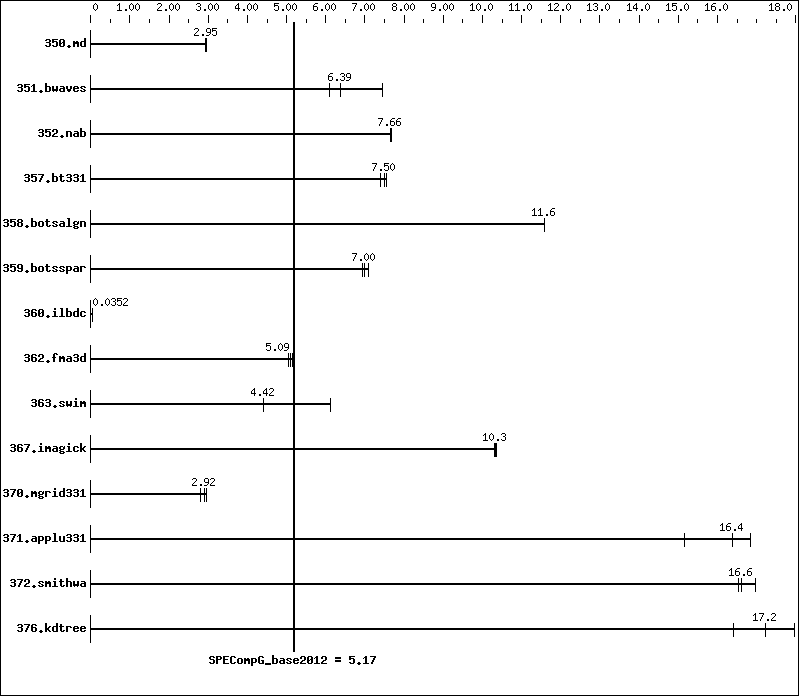

Benchmark results graph
Hardware
CPU Name: Cavium ThunderX2 CN9980 v2.1
CPU Characteristics: 4-way SMT on, Turbo on
CPU MHz: 2200
CPU MHz Maximum: 2500
FPU: Integrated
CPU(s) enabled: 64 cores, 2 chips, 32 cores/chip, 4 threads/core
CPU(s) orderable: 1-2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 32 MB I+D on chip per core
Other Cache: None
Memory: 128 GB (8 x 16 GB 2Rx8 PC4-2666V-RE2-12 )
Disk Subsystem: 1x(HPE VK000960GWSRT 960GB) SSD
Other Hardware: None
Base Threads Run: 64
Minimum Peak Threads: --
Maximum Peak Threads: --
Software
Operating System: CentOS Linux release 7.6.1810 (AltArch)
4.14.0-115.8.1.el7a.aarch64
Compiler: C/C++/Fortran: Version 9.1.0 of gcc
Auto Parallel: No
File System: XFS
System State: Run level 3 (multi-user)
Base Pointers: 64-bit
Peak Pointers: Not Applicable
Other Software: None

Results Table

Benchmark Base Peak
Threads Seconds Ratio Seconds Ratio Seconds Ratio Threads Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
350.md 64 1572   2.95    1571   2.95    1579   2.93
351.bwaves 64 709   6.39    742   6.11    607   7.46
352.nab 64 509   7.65    508   7.66    507   7.68
357.bt331 64 632   7.50    641   7.40    628   7.55
358.botsalgn 64 375   11.6     375   11.6     376   11.6
359.botsspar 64 755   6.95    750   7.00    741   7.08
360.ilbdc 64 101160   0.0352  101299   0.0351  100746   0.0353
362.fma3d 64 747   5.09    753   5.04    736   5.16
363.swim 64 1028   4.41    1025   4.42    741   6.11
367.imagick 64 680   10.3     683   10.3     679   10.4
370.mgrid331 64 1579   2.80    1494   2.96    1515   2.92
371.applu331 64 370   16.4     360   16.8     400   15.2
372.smithwa 64 316   17.0     324   16.5     323   16.6
376.kdtree 64 274   16.4     261   17.2     250   18.0

Platform Notes

 Sysinfo program /home/lijunj/spec/omp2012-1.1/Docs/sysinfo
 Revision 563 of 2016-06-10 (097295389cf6073d8c3b03fa376740a5)
 running on armstrong.sca.iu.edu Sun Jul 28 20:45:39 2019

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/omp2012/Docs/config.html#sysinfo

 From /proc/cpuinfo
 *
 * Did not identify cpu model.  If you would
 * like to write your own sysinfo program, see
 * www.spec.org/omp2012/config.html#sysinfo
 *
 *
 * 0 "physical id" tags found.  Perhaps this is an older system,
 * or a virtualized system.  Not attempting to guess how to
 * count chips/cores for this system.
 *
       256 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)

 From /proc/meminfo
    MemTotal:       133322880 kB
    HugePages_Total:       0
    Hugepagesize:     524288 kB

 From /etc/*release* /etc/*version*
    centos-release: CentOS Linux release 7.6.1810 (AltArch)
    centos-release-upstream: Derived from Red Hat Enterprise Linux 7.6 (Source)
    os-release:
       NAME="CentOS Linux"
       VERSION="7 (AltArch)"
       ID="centos"
       ID_LIKE="rhel fedora"
       VERSION_ID="7"
       PRETTY_NAME="CentOS Linux 7 (AltArch)"
       ANSI_COLOR="0;31"
       CPE_NAME="cpe:/o:centos:centos:7"
    redhat-release: CentOS Linux release 7.6.1810 (AltArch)
    system-release: CentOS Linux release 7.6.1810 (AltArch)
    system-release-cpe: cpe:/o:centos:centos:7

 uname -a:
    Linux armstrong.sca.iu.edu 4.14.0-115.8.1.el7a.aarch64 #1 SMP Wed Jun 5
    15:01:21 UTC 2019 aarch64 aarch64 aarch64 GNU/Linux

 run-level 3 Jul 2 15:36

 SPEC is set to: /home/lijunj/spec/omp2012-1.1
    Filesystem              Type  Size  Used Avail Use% Mounted on
    /dev/mapper/centos-root xfs   256G   86G  171G  34% /
 Additional information from dmidecode:

    Warning: Use caution when you interpret this section. The 'dmidecode' program
    reads system data which is "intended to allow hardware to be accurately
    determined", but the intent may not be met, as there are frequent changes to
    hardware, firmware, and the "DMTF SMBIOS" standard.


 (End of data from sysinfo program)

General Notes


Environment Variables:
    OMP_STACKSIZE=2G
    ulimit -s unlimited

BIOS Info:
     Version: L50_5.13_1.0.6
     Release Date: 07/10/2018
BIOS Settings:
     Turbo/CPPC Mode:  Autonomous Turbo

Spectre & Meltdown:
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown)
is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1)
is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2)
is mitigated in the system as tested and documented.


Base Compiler Invocation

C benchmarks:

 gcc

C++ benchmarks:

 g++

Fortran benchmarks:

 gfortran

Base Portability Flags

350.md:  -ffree-form   -fno-range-check
363.swim:  -mcmodel=large
367.imagick:  -std=c99

Base Optimization Flags

C benchmarks:

 -O3   -ffast-math   -mcpu=native   -fopenmp   -fsigned-char

C++ benchmarks:

 -O3   -ffast-math   -mcpu=native   -fopenmp

Fortran benchmarks:

 -O3   -ffast-math   -mcpu=native   -fopenmp

The flags files that were used to format this result can be browsed at
http://www.spec.org/omp2012/flags/hpe_apollo70_bios.html,
http://www.spec.org/omp2012/flags/gcc-linux64.20190904.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/omp2012/flags/hpe_apollo70_bios.xml,
http://www.spec.org/omp2012/flags/gcc-linux64.20190904.xml.
