SPEC® OMPG2012 Result

Copyright 2012-2019 Standard Performance Evaluation Corporation

Intel

SPECompG_base2012 = 37.0

Intel Server System S9248WK1HLC (2 x Intel Xeon
Platinum 9242, 2.3Ghz)

SPECompG_peak2012 = 44.1

OMP2012 license: 13 Test date: Nov-2019
Test sponsor: Intel Hardware Availability: Jun-2019
Tested by: Intel Software Availability: Jan-2019

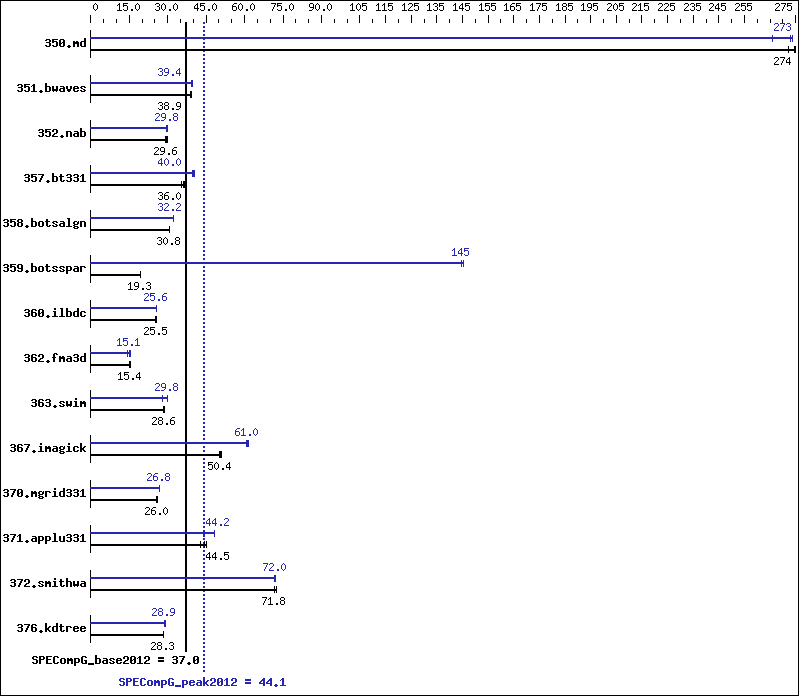

Benchmark results graph
Hardware
CPU Name: Intel Xeon Platinum 9242
CPU Characteristics: Intel Turbo Boost Technology : Up to 3.80 Ghz
CPU MHz: 2300
CPU MHz Maximum: 3800
FPU: Integrated
CPU(s) enabled: 96 cores, 2 chips, 48 cores/chip, 2 threads/core
CPU(s) orderable: 1,2 Chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: 71.5 MB I+D on chip per chip, 35.75 MB shared /
24 cores
Other Cache: None
Memory: 384 GB (24 x 16 GB 2Rx8 DDR4-2993Y-R)
Disk Subsystem: Panasas ActiveStor 14 (124TB connected via 10GB
Ethernet)
Other Hardware: --
Base Threads Run: 192
Minimum Peak Threads: 96
Maximum Peak Threads: 192
Software
Operating System: CentOS Linux release 7.7.1908 (Core)
Compiler: C/C++/Fortran: Version 19.0.2.187 of Intel
Composer XE for Linux
Auto Parallel: No
File System: Linux ext3
System State: Run Level 3 (multi-user)
Base Pointers: 64-bit
Peak Pointers: 64-bit
Other Software: None

Results Table

Benchmark Base Peak
Threads Seconds Ratio Seconds Ratio Seconds Ratio Threads Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
350.md 192 17.0  272    16.9  274    16.9  275    192 17.0  273    16.9  274    17.4  266
351.bwaves 192 116    38.9  117    38.8  116    39.2  96 115    39.4  115    39.4  114    39.7
352.nab 192 133    29.3  131    29.6  131    29.8  192 130    29.8  131    29.8  131    29.7
357.bt331 192 133    35.5  129    36.7  132    36.0  192 118    40.0  120    39.6  117    40.6
358.botsalgn 192 141    30.8  141    30.8  141    30.8  192 135    32.2  135    32.2  135    32.1
359.botsspar 192 272    19.3  270    19.5  273    19.2  96 36.1  146    36.3  145    36.3  145
360.ilbdc 192 139    25.5  139    25.6  140    25.4  192 139    25.6  138    25.7  140    25.5
362.fma3d 192 249    15.3  246    15.4  247    15.4  192 242    15.7  263    14.5  251    15.1
363.swim 192 158    28.6  158    28.7  159    28.4  96 152    29.8  151    30.0  161    28.2
367.imagick 192 137    51.2  140    50.2  139    50.4  96 114    61.6  115    61.0  116    60.7
370.mgrid331 192 170    26.0  170    26.0  171    25.8  96 165    26.8  165    26.8  165    26.9
371.applu331 192 141    42.9  136    44.5  135    45.1  192 125    48.4  137    44.2  138    44.1
372.smithwa 192 74.6  71.8  74.6  71.8  74.1  72.4  192 74.2  72.2  74.7  71.7  74.5  72.0
376.kdtree 192 159    28.3  159    28.3  159    28.3  192 156    28.9  156    28.9  155    29.0

Platform Notes

 Sysinfo program /global/panfs02/innl/aknyaze1/OMP2012/1.1/Docs/sysinfo
 Revision 563 of 2016-06-10 (097295389cf6073d8c3b03fa376740a5)
 running on eca063 Tue Nov  5 02:49:23 2019

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/omp2012/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon(R) Platinum 9242 CPU @ 2.30GHz
       4 "physical id"s (chips)
       192 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 24
       siblings  : 48
       physical 0: cores 0 1 2 3 4 5 6 8 9 10 11 12 13 16 17 18 19 20 21 25 26 27
       28 29
       physical 1: cores 0 1 2 3 4 5 6 8 9 10 11 12 13 16 17 18 19 20 21 25 26 27
       28 29
       physical 2: cores 0 1 2 3 4 5 6 8 9 10 11 12 13 16 17 18 19 20 21 25 26 27
       28 29
       physical 3: cores 0 1 2 3 4 5 6 8 9 10 11 12 13 16 17 18 19 20 21 25 26 27
       28 29
    cache size : 36608 KB

 From /proc/meminfo
    MemTotal:       394837156 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 From /etc/*release* /etc/*version*
    centos-release: CentOS Linux release 7.7.1908 (Core)
    centos-release-upstream: Derived from Red Hat Enterprise Linux 7.7 (Source)
    os-release:
       NAME="CentOS Linux"
       VERSION="7 (Core)"
       ID="centos"
       ID_LIKE="rhel fedora"
       VERSION_ID="7"
       PRETTY_NAME="CentOS Linux 7 (Core)"
       ANSI_COLOR="0;31"
       CPE_NAME="cpe:/o:centos:centos:7"
    redhat-release: CentOS Linux release 7.7.1908 (Core)
    system-release: CentOS Linux release 7.7.1908 (Core)
    system-release-cpe: cpe:/o:centos:centos:7

 uname -a:
    Linux eca063 3.10.0-1062.4.1.el7.crt1.x86_64 #1 SMP Fri Oct 18 09:12:13 MDT
    2019 x86_64 x86_64 x86_64 GNU/Linux

 run-level 3 Nov 4 15:11

 SPEC is set to: /global/panfs02/innl/aknyaze1/OMP2012/1.1
    Filesystem                Type   Size  Used Avail Use% Mounted on
    panfs://36.101.212.1/innl panfs  269T  145T  125T  54% /global/panfs02/innl
 Additional information from dmidecode:

    Warning: Use caution when you interpret this section. The 'dmidecode' program
    reads system data which is "intended to allow hardware to be accurately
    determined", but the intent may not be met, as there are frequent changes to
    hardware, firmware, and the "DMTF SMBIOS" standard.


 (End of data from sysinfo program)

General Notes

 ========================================================================
 General base OMP Library Settings
   ENV_KMP_AFFINITY=compact,0,granularity=fine,verbose

 ========================================================================
 General peak OMP Library Settings
   ENV_KMP_AFFINITY=compact,0,granularity=fine,verbose

 ========================================================================
 Per benchmark peak OMP Library Settings

 ========================================================================
 System settings notes:
   Intel Turbo Boost Technology (Turbo)  : Enabled

 ========================================================================
 General OMP Library Settings
   KMP_LIBRARY=turnaround
   KMP_STACKSIZE=292M
   KMP_BLOCKTIME=infinite
   OMP_DYNAMIC=FALSE
   OMP_NESTED=FALSE
   OMP_SCHEDULE=static

 Spectre and Meltdown
 Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown)
 is mitigated in the system as tested and documented.
 Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1)
 is mitigated in the system as tested and documented.
 Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2)
 is mitigated in the system as tested and documented.
 ========================================================================
 351.bwaves:peak:
   ENV_KMP_AFFINITY=compact,1,granularity=fine,verbose

 ========================================================================
 359.botsspar:peak:
   ENV_KMP_AFFINITY=compact,1,granularity=fine,verbose

 ========================================================================
 363.swim:peak:
   ENV_KMP_AFFINITY=compact,1,granularity=fine,verbose

 ========================================================================
 367.imagick:peak:
   ENV_KMP_AFFINITY=compact,1,granularity=fine,verbose

 ========================================================================
 370.mgrid331:peak:
   ENV_KMP_AFFINITY=compact,1,granularity=fine,verbose

 ========================================================================
 370.mgrid331:peak:
 Compiler: Fortran: Version 19.0.3.199 of Intel Composer XE for Linux

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Base Portability Flags

350.md:  -FR
357.bt331:  -mcmodel=medium
363.swim:  -mcmodel=medium
367.imagick:  -std=c99

Base Optimization Flags

C benchmarks:

 -O3   -qopenmp   -xCORE-AVX512   -qopt-zmm-usage=high   -fp-model fast=2   -ansi-alias   -no-prec-div   -no-prec-sqrt   -ipo    -qopt-prefetch=0

C++ benchmarks:

 -O3   -qopenmp   -xCORE-AVX512   -qopt-zmm-usage=high   -fp-model fast=2   -ansi-alias   -no-prec-div   -no-prec-sqrt   -ipo    -qopt-prefetch=0

Fortran benchmarks:

 -O3   -qopenmp   -xCORE-AVX512   -qopt-zmm-usage=high   -fp-model fast=2   -ansi-alias   -no-prec-div   -no-prec-sqrt   -ipo    -qopt-prefetch=0   -align all

Peak Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks (except as noted below):

 ifort
371.applu331:  /opt/intel/compiler/2019u3/bin/ifort

Peak Portability Flags

350.md:  -FR
357.bt331:  -mcmodel=medium
363.swim:  -mcmodel=medium
367.imagick:  -std=c99

Peak Optimization Flags

C benchmarks:

352.nab:  -O3   -qopenmp   -xCORE-AVX512   -qopt-zmm-usage=high   -fp-model fast=2   -ansi-alias   -no-prec-div   -no-prec-sqrt   -ipo    -qopt-prefetch=0
358.botsalgn:  -O3   -qopenmp   -xCORE-AVX512   -qopt-zmm-usage=high   -fp-model fast=2   -fno-alias   -no-prec-div   -no-prec-sqrt
359.botsspar:  Same as 358.botsalgn
367.imagick:  -O3   -qopenmp   -xCORE-AVX512   -qopt-zmm-usage=high   -fp-model fast=2   -fno-alias   -no-prec-div   -no-prec-sqrt   -ipo
372.smithwa:  Same as 352.nab

C++ benchmarks:

 -O3   -qopenmp   -xCORE-AVX512   -qopt-zmm-usage=high   -fp-model fast=2   -fno-alias   -no-prec-div   -no-prec-sqrt   -qopt-prefetch=1

Fortran benchmarks:

350.md:  -O3   -qopenmp   -xCORE-AVX512   -qopt-zmm-usage=high   -fp-model fast=2   -ansi-alias   -no-prec-div   -no-prec-sqrt   -ipo    -qopt-prefetch=0   -align all
351.bwaves:  -O3   -qopenmp   -xCORE-AVX512   -qopt-zmm-usage=high   -fp-model fast=2   -fno-alias   -no-prec-div   -no-prec-sqrt   -ipo    -qopt-prefetch=2   -align all
357.bt331:  -O3   -qopenmp   -xCORE-AVX512   -qopt-zmm-usage=high   -fp-model fast=2   -fno-alias   -no-prec-div   -no-prec-sqrt   -ipo    -qopt-prefetch=1   -align all
360.ilbdc:  -O3   -qopenmp   -xCORE-AVX512   -qopt-zmm-usage=high   -fp-model fast=2   -fno-alias   -no-prec-div   -no-prec-sqrt   -ipo    -qopt-prefetch=4   -align all
362.fma3d:  Same as 350.md
363.swim:  -O3   -qopenmp   -xCORE-AVX512   -qopt-zmm-usage=high   -fp-model fast=2   -no-prec-div   -no-prec-sqrt   -fno-alias   -qopt-malloc-options=3   -ipo    -qopt-prefetch=0   -align all
370.mgrid331:  -O3   -qopenmp   -xCORE-AVX2   -fp-model fast=2   -no-prec-div   -no-prec-sqrt   -fno-alias   -qopt-malloc-options=3   -ipo    -qopt-prefetch=0   -align all
371.applu331:  Same as 350.md

The flags file that was used to format this result can be browsed at
http://www.spec.org/omp2012/flags/Intel-ic19-linux64.20191218.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/omp2012/flags/Intel-ic19-linux64.20191218.xml.
