Introduction: Who Wants V1.1?

SPEC CPU2006 V1.1 is an incremental update to SPEC CPU2006 V1.0. Results generated with V1.1 are comparable to results from V1.0 and vice versa. V1.1 is intended to improve compatibility, stability, documentation and ease of use. Changes are intended to be useful to several kinds of users:

For users of new platforms:

For anyone who reads (or produces) a result:

For researchers and developers:

For testers of large systems:

For new users of the suite:

For those who test many platforms:

If you have already used SPEC CPU2006 V1.0 and already have configuration files, it is recommended that you read through this document, so as to avoid surprises during use of V1.1 Among the changes that you are likely to be affected by are the change to build directory locations, the reporting of parallel flags, the automatic setting of test date, and the addition of debug logs. If you still have USER numbers, it's time to stop now.


(This table of contents proceeds in rough order of time for a user of the suite: you acquire a platform, ensure that you are familiar with the rules, build the benchmarks, run them, generate reports, and occasionally use utilities and other features.)

New systems supported

Systems no longer supported

Benchmark source code changes













Run Rules

1.6 estimates

2.1.1 identifiers

3.1.2 system state

3.2.5 parallel setup

4.2.3 automatic parallelization

4.2.6 user-built systems

4.3.2 speed conversion

4.6 required disclosures

Building Benchmarks

1.  Build directories separated

2.  Bundle up binaries and config file

3.  Parallel builds on Windows too

4.  Unexpected rebuilds reduced

Running the Suite

1.  Parallel setup

2.  Per-benchmark basepeak and copies - behavior change

3.  Per-benchmark bind

4.  PreENV allows setting of environment variables

5.  Runtime monitoring

6.  $SPECUSERNUM no longer recognized


1.  Auto Parallel - changes to handle common cases

2.  CSV updated

3.  Flag reporting - multiple files supported, flag order preserved, report readability

4.  Graphs cleaned up

5.  Links and attachments

6.  Report names have changed

7.  Seconds are reported with more digits

8.  Submission check automatically included with rawformat

9.  Test date automatically set


1.  Convert to Development

2.  Dump alternative source

3.  Index

4.  Make alternative source

5.  ogo top takes you to $GO

6.  port_progress

7.  specrxp

8.  Speed metric from rate run

Other New and Changed Tools Features

1.  Benchmark lists and sets can be referenced

2.  Debug logs

3.  Keeping temporaries

4.  Submit lines continued

5.  Submit notes

6.  Trailing spaces in config files


Updated Feature Index

Note: links to SPEC CPU2006 documents on this web page assume that you are reading the page from a directory that also contains the other SPEC CPU2006 documents. If by some chance you are reading this web page from a location where the links do not work, try accessing the referenced documents at one of the following locations:

New systems supported

With this release of SPEC CPU2006, new support is added for:

Systems no longer supported

With this release of SPEC CPU2006, support is removed for:

Changes to benchmarks

The following benchmark changes were made in V1.1:

Run Rules Changes

Building Benchmarks

  1. Build directories separated: Benchmarks are now built in directories named benchspec/CPU2006/nnn.benchmark/build/build... (or, on Windows, benchspec\CPU2006\nnn.benchmark\build\build...), rather than under the benchmark's run subdirectory. The change is intended to make it easier to copy, backup, or delete build and run directories separately from each other. (It may also make problem diagnosis easier in some situations, since your habit of removing all the run directories will no longer destroy essential evidence 10 minutes before the compiler developer says "Wait - what exactly happened at build time?").

    If you prefer the V1.0 behavior, you can revert to it by setting build_in_build_dir to 0.

  2. You can now bundle up a set of binaries and their associated config file, for easy transportation and use on other systems.

    WARNING: Although the features to create and use bundles are intended to make it easier to run SPEC CPU2006, the tester remains responsible for compliance with the run rules. And, of course, both the creators and the users of bundles are responsible for compliance with any applicable software licenses.

  3. Parallel builds on Windows too: Users of Microsoft Windows systems can now use multiple processors to do parallel builds, by setting makeflags, for example:

    makeflags = -j N

    This feature has worked with SPEC CPU testing on Unix for many years; what's new in CPU2006 V1.1 is the ability to use it on Windows. Note that requesting a parallel build with makeflags = -j N causes multiple processors to be used at build time. It has no effect on whether multiple processors are used at run time, and so does not affect how you report on parallelism.

  4. Unexpected rebuilds reduced: In V1.0, the tools were much more likely to trigger automatic rebuilds of the benchmark binaries than they are in V1.1, because unrecognized options (e.g. a mis-spelled CXXOPTIMZIE, or a user-defined option such as MY_OPTS) would be passed to specmake, and the tools had no way to know what specmake did with such options. Now, the tools record only what is actually used by specmake, plus the options that are sent to the shell (e.g. via fdo_pre0). With this more careful recording, config file changes do not trigger rebuilds unless they actually affect the generated binary.

Running Benchmarks

  1. Parallel Setup: For reportable runs, substantial time may be required during the setup phase, as the tools write run directories for every copy, and validate that benchmark binaries get the correct answers for the (non-timed) test/train workloads. SPEC CPU2006 V1.1 provides several new features to allow these operations to complete more quickly by optionally doing more operations in parallel: parallel_setup, parallel_test, parallel_setup_type, parallel_setup_prefork, bench_post_setup, and post_setup.

    During testing of V1.1, a very large server (with over 600 hw_threads) was observed to complete the binary validation phase about 8x faster using parallel_test, and the ref directory setup phase more than 2x faster with parallel_setup. The net time saved on this very large server was more than 10 hours.

    Your mileage may vary:

    When considering your disk layout options, bear in mind that the run rules require use of a single file system.

    Note that these setup features (parallel_setup, parallel_test, parallel_setup_type, and parallel_setup_prefork) control parallelism during the preparation phase for running the benchmarks, not the actual runs. Therefore, they have no effect on the setting of the report field

    Auto Parallel: Yes/No

    ... discussed below

  2. Per-benchmark basepeak and copies - behavior change: If you select basepeak=1 for an individual benchmark, the number of copies in peak will be forced to be the same as in base. Note that in SPEC CPU2006 V1.0, you could set basepeak for a benchmark, and still change the number of copies in peak; this was deemed to be an error. If you want to run the same tuning in both base and peak, while changing the number of copies, you will need to build two binaries with the same compiler switches.

  3. Per-benchmark bind: The bind list can now differ on a per-benchmark basis in peak. Allowing this difference was viewed as a convenience, since the run rules already allow the submit command to differ on a per-benchmark basis in peak.

  4. The PreENV config file option allows setting of environment variables prior to the exectuion of runspec.

  5. Run-time monitoring: The monitor hooks have been a little-known feature of the SPEC CPU toolset for many years. They were first described in the ACM SIGARCH article SPEC CPU2006 Benchmark Tools and are now further described in monitors.html. The monitor hooks allow advanced users to instrument the suite in a variety of ways. SPEC can provide only limited support for their use; if your monitors break files or processes that the suite expects to find, you should be prepared to do significant diagnostic work on your own.

  6. $SPECUSERNUM no longer recognized: The field $SPECUSERNUM was deprecated in V1.0 of SPEC CPU2006, in favor of $SPECOPYNUM. $SPECUSERNUM is no longer recognized in V1.1. No error message is printed. If you still have user numbers lurking in your config file, make them into copy numbers, please.


  1. Auto Parallel - changes to handle common cases: If benchmarks are automatically optimized to use multiple threads, cores, and/or chips at run time, the tester needs to indicate this in the report as

    Auto Parallel: Yes

    For V1.0, it was sometimes difficult to ensure that reports were accurate, in part because there can be multiple sources of run-time parallelism (as described in the run rules).

    With SPEC CPU2006 V1.1, the V1.0 method of filling out the above field, sw_auto_parallel, has been retired, and three new features have been introduced to better reflect these sources of parallelism.

    The intent is that the most common case will be handled automatically:

    Overall, the setting of the Auto Parallel field in reports can be thought of as if it were derived from this logic:

       (i | ii) & (¬ iii)

    ... or for the benefit of those readers who think in FORTRAN, it is as if the derivation were:

      ( I .OR. II ) .AND. ( .NOT. III)
  2. CSV format updated - If you populate spreadsheets from your runs, you probably shouldn't be doing cut/paste of text files; you'll get more accurate data by using --output_format csv. The V1.1 CSV output now has a format that includes much more of the information in the other reports. All runs times are now included, and the selected run times are listed separately. The flags used are also included. Although details of the new features are not shown in the documentation, you should explore them, by taking the new CSV out for a test drive. It is hoped that you will find the V1.1 format more complete and more useful.

  3. Flag reporting - multiple files supported, flag order preserved, report readability There are several changes to reporting on compiler flags:

    1. You can now format a single result using multiple flags files. This feature is intended to make it easier for multiple results to share what should be shared, while separating what should be separated. Common elements (such as a certain version of a compiler) can be placed into one flags file, while the elements that differ from one system to another (such as platform notes) can be maintained separately. Suggestions on use of this feature can be found in flag-description.html.

    2. The flag reporter now does a better job of reporting flags in the same order in which they appeared on the command line.

    3. Flag reporting has been re-organized in an attempt to improve readability:

      1. Within the Optimization Flags section, the report no longer prints phrases such as "Fortran benchmarks (except as noted below):" because readers may not remember which benchmarks are in Fortran. Instead, all the Fortran benchmarks are enumerated, and if some use the same flags as others, that fact is noted in line, rather than at the top of the list.
      2. Within the Portability Flags section, benchmarks appear in order by number, rather than ordered by language.
      3. When the reporter detects that base and peak are sufficiently different from each other (e.g. different compilers, or different portability options) the flags report is ordered to put all the base information first, then all the peak information - for example:
               Base Compiler Invocation
               Base Portability Flags
               Base Optimization
               Peak Compiler Invocation
               Peak Portability Flags
               Peak Optimization
  4. Graphs cleaned up:

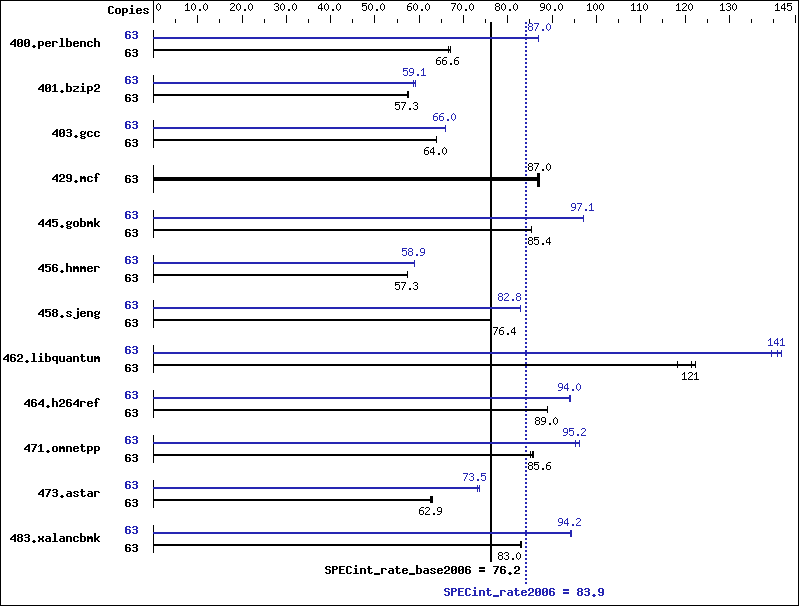

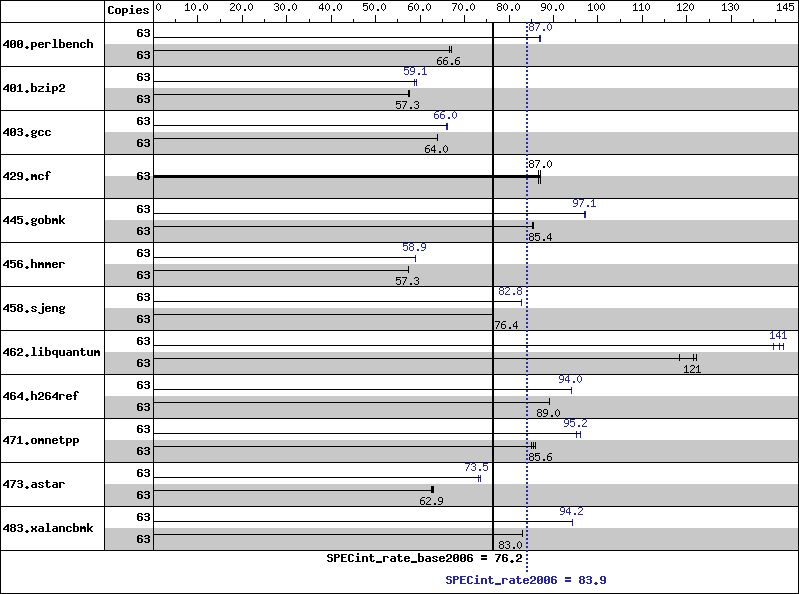

    V1.0 format:
    V1.1 format:
    Graphs have been changed to reduce the amount of shading, and to reduce painting of other pixels that were not essential to the data being presented (with a tip of the hat to Professor Tufte's notion of reducing "chartjunk", or apologies, depending on the reader's opinion of the change).
  5. Report names have changed:

    In CPU2006 V1.0, final reports had names of the form


    for example, CINT2006.003.ps, CINT2006.003.txt, CFP2006.022.pdf, and so forth. The form of the file names has changed to now be


    for example, CINT2006.003.ref.ps, CINT2006.003.ref.txt, CFP2006.022.ref.pdf.

    There are two reasons for this change:

    Note: For V1.0, a reportable run would generate three .rsf files: CPU2006.nnn.test.rsf, CPU2006.nnn.train.rsf, and CPU2006.nnn.rsf. For V1.1, for a reportable run, you will see only CPU2006.nnn.ref.rsf. You won't see CPU2006.nnn.test.rsf or CPU2006.nnn.train.rsf unless you say --size test or --size train in your runspec command.

  6. Seconds are reported with more digits:

  7. The Submission Check report is now automatically included in the output_format list when using rawformat. This change was made because the typical use of rawformat is to create final (submission quality) reports. Even if you don't plan to submit your result to SPEC, the checks that are done by Submission Check can help you to create reports that are more complete and more readable.

  8. The test_date is now automatically set from the system clock, and you should not set it yourself.

New Utilities Features

  1. Convert to Development: In order to assist with compliance with the run rules (so that results are meaningful and comparable), the SPEC CPU tools perform various checks to ensure that benchmark code, workloads, and tools match the original distribution. Sometimes, though, researchers or developers may want to work in an environment without these checks, for example, when modifying code to add performance instrumentation.

    Prior to V1.1, doing so typically required that you abandon the tools. With V1.1, you now have another choice: you can continue using the SPEC supplied toolset in a development sandbox, via the convert_to_development utility.

  2. Dump alternative source: dumpsrcalt is a utility which shows you the content of src.alts
  3. The index utility remains UNSUPPORTED, but is now documented for the first time
  4. Make alternative source: makesrcalt is a utility which is used to create packages with newly developed alternative sources. This utility is ehanced in, and is documented for the first time in, V1.1.
  5. ogo top: If you type ogo without any parameters, or if you type ogo top, the command sets your current directory to $GO instead of to $SPEC.
  6. The port_progress utility is documented now.
  7. The specrxp utility validates flags files. It is called automatically, or you can call it directly if you wish.
  8. SPECspeed metrics from SPECrate test: Using rawformat, you can now convert a 1-copy SPECrate result to a SPECspeed result.

Other New and Changed Tools Features

  1. Benchmark lists and sets: Two formerly undocumented features are now documented: your config file can reference benchmark lists and sets. Set references use the various "bset" files that are found $SPEC/benchspec/CPU2006 or %SPEC%\benchspec\CPU2006. If you are a user who already has noticed this feature, please note that the definitions of the bsets have changed, and the number of bsets has been reduced.
  2. Debug logs: Failed runs now leave behind additional detail, in files such as CPU2006.001.log.debug. Temporary files are also left behind after a failed run. If you are managing disk space on a tight budget, you'll need to adjust your cleaning methods.
  3. Keeping temporaries: If you are having trouble debugging your test setup (for example, if your new submit command or parallel_test option is failing), you may want to try the new keeptmp feature. When this option is set, the above-mentioned debug log is kept, along with the various temporary files that it mentions.

    If you leave keeptmp at its default setting, temporary files will be automatically deleted after a successful run. If you are managing disk space on a tight budget, and keeping temporaries, you'll almost certainly need to adjust your cleaning methods.

  4. submit lines continued: It is now possible to append a numeral to submit lines, to continue your submit commands over several lines. This feature is intended to improve the readability of your config file when using the submit feature.

  5. Submit notes: The tools will now automatically insert a section with notes on your submit command for runs that use submit. You can customize the section.

  6. Trailing spaces are now stripped in config files, unless preceded by a backslash, as described in the section on whitespace.

Documentation Updates

Documentation has been added for the new features mentioned in this document. Most of the changes are linked from the descriptions above. A few items might not be immediately obvious from the above links, and are called out here:

  • A new chapter About Alternate Sources was added.
  • A new section on automatic rebuilds suggests a way to test whether proposed changes would force a rebuild (without actually doing the build).
  • More examples are provided for how to specify a bind list, including use of a here document.
  • Explain that you are allowed to change the feedback options, and show how to find out the default options. Provide a couple of examples of fdo modification.
  • The discussion of free form notes for readers has been substantially expanded.
  • The documentation now tells you what happens with macros that aren't defined if you try to use them.
  • All options that affect runspec are described together. In V1.0, there were two tables, one for the options that could be mentioned either on the command line or in the config file, and a separate table for options that can only be mentioned in a config file.
  • A sidebar about quoting was added, to try to help reduce confusion when you are trying to ensure that variables are interpreted by the correct software.
  • The documentation of log files now suggests some useful search strings that can help you as you try to find your way through a log.
  • The documentation of submit was rewritten and expanded.
  • Flag file types have been clarified, using an example that points to the three files for result #00001, as posted at www.spec.org.
  • A complete example is provided to show how you can edit a flags file and use rawformat to incorporate it.
  • A "Recommended Practices" section has been added.
  • The discussions of replacement of example text - both <example> and <ex_replacement> - has been considerably expanded to explain the difference between the two, and examples of their use are shown.
  • The description of directory sharing via output_root now starts with a simple summary of the steps.
  • More details are given about --review.
  • The documentation now describes the run order for reportable runs.
  • The output format subcheck is explained.
  • The description of --update now explains that additional items might be updated, not just your flags files.

Updated Feature Index

These user-visible features are new, updated, or newly documented for SPEC CPU2006 V1.1:

  1. attachments to results
  2. basepeak, effect on copies
  3. bench_post_setup
  4. bind, per-benchmark
  5. build_in_build_dir
  6. build_post_bench
  7. build_pre_bench
  8. convert_to_development
  9. CSV format
  10. debug logs
  11. dumpsrcalt
  12. flags files, multiple
  13. graphs, format thereof
  14. index utility
  15. keeptmp
  16. links in results
  17. lists of benchmarks
  18. makeflags, on Windows
  19. makesrcalt
  20. make_bundle
  21. monitor_post
  22. monitor_post_bench
  23. monitor_pre
  24. monitor_pre_bench
  25. monitor_specrun_wrapper
  26. monitor_wrapper
  27. ogo top, destination of
  28. parallel flag attribute
  29. parallel_setup
  30. parallel_setup_prefork
  1. parallel_setup_type
  2. parallel_test
  3. port_progress
  4. post_setup
  5. preenv
  6. rebuilds, reduced
  7. reports, names of
  8. search strings in logfiles
  9. seconds, reporting thereof
  10. sets of benchmarks
  11. specrxp
  12. SPECUSERNUM, removed feature
  13. SPEC_CPU_HAVE_ERF (435.gromacs)
  14. SPEC_CPU_IA64_GCC_ALIGNMENT (400.perlbench)
  15. SPEC_CPU_NEED_COMPLEX_H (462.libquantum)
  16. SPEC_CPU_NEED_IO_H (481.wrf)
  17. SPEC_CPU_NEED_POSIX_IDS (400.perlbench)
  18. SPEC_CPU_PARANAVI (483.xalancbmk)
  19. SPEC_CPU_REDEF_TRUE_FALSE. (464.h264ref)
  20. SPECspeed, rawformat from SPECrate
  21. Submission Check, included with rawformat
  22. submit notes
  23. submit, continuation of
  24. sw_auto_parallel, removed feature
  25. sw_parallel_defeat
  26. sw_parallel_other
  27. test_date
  28. trailing spaces, stripped
  29. unpack_bundle
  30. use_bundle
