SPECjbb

SPECjbb2000		SPECjbb2000 = 169794 ops/s
IBM Corporation IBM eServer pSeries 690 HPC
IBM Corporation J2RE 1.3.1 IBM AIX 5L for PowerPC (64 bit JVM)

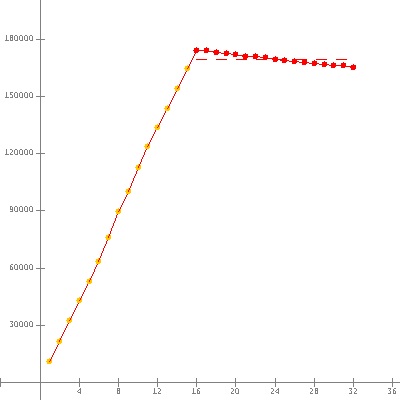

Warehouses	Ops/s	Incl. in metric
1	10801
2	21450
3	32303
4	42831
5	52966
6	63670
7	76081
8	89845
9	100313
10	113076
11	123832
12	133805
13	144063
14	154521
15	164824
16	174373	*
17	174068	*
18	173292	*
19	172640	*
20	172015	*
21	171372	*
22	170987	*
23	170460	*
24	169771	*
25	169218	*
26	168296	*
27	168057	*
28	167370	*
29	166906	*
30	166285	*
31	166247	*
32	165141	*
SPECjbb2000	(from 16 to 32)	169794 ops/s

SPEC license # 11 Tested by: IBM Corporation Test date: Sep 27, 2001

Hardware

Hardware Vendor IBM Corporation

Vendor URL http://www.ibm.com

Model IBM eServer pSeries 690 HPC

Processor POWER4

MHz 1300

# of Procs 16 cores, 16 chips, 1 core/chip

Memory (MB) 131072

Primary cache 64KBI+32KBD on chip

Secondary cache 1440KB unified on chip

Other cache 32MB * 4 unified off chip

Filesystem JFS

Disks 1x18.2GB SCSI

Other hardware

Software

Software Vendor IBM Corporation

Vendor URL http://www.ibm.com

Java Precompiler Version

Java Precompiler Command Line

Java Precompiler Way Of Excluding Classes

JVM Version J2RE 1.3.1 IBM AIX 5L for PowerPC (64 bit JVM)

JVM Command Line java -ms32768m -mx32768m -spec.jbb.JBBmain -propfile SPECjbb.props

JVM Initial Heap Memory (MB) 32768

JVM Maximum Heap Memory (MB) 32768

JVM CLASSPATH ./jbb.jar:
./jbb_no_precompile.jar:
./check.jar:
./reporter.jar

JVM BOOTCLASSPATH /java/caix64131-20010927/jre/lib/rt.jar:
/java/caix64131-20010927/jre/lib/i18n.jar:
/java/caix64131-20010927/jre/classes

OS Version AIX 5L V5.1

System state normal

Other software

Test Information

Tested by IBM Corporation

SPEC license # 11

Test location Austin, TX

Test date Sep 27, 2001

H/w available Dec-2001

JVM available Dec-2001

OS available Dec-2001

Other s/w available

Tuning

Operating system tunings
SPINLOOPTIME=120

Notes

APAR IY 22854 was applied to AIX 5L V5.1 to enable new hardware support.

Details of Runs

Warehouses	Thrput	Total heap (MB)		Thread spread %	% > 120s	transaction type	Count	Time (in seconds)
Warehouses	Thrput	Size	Used	Thread spread %	% > 120s	transaction type	Count	total	max
1	10801	32772	53.0	<0.01%	<0.01	new_order	563582	67.1	<0.01
						payment	563587	19.0	<0.01
						order_status	56358	2.63	<0.01
						delivery	56359	7.52	<0.01
						stock_level	56358	20.0	<0.01
2	21450	32772	84.8	1.19%	<0.01	new_order	1119244	137	<0.01
						payment	1119250	39.0	<0.01
						order_status	111925	5.36	<0.01
						delivery	111925	16.9	<0.01
						stock_level	111927	34.2	<0.01
3	32303	32772	119	2.79%	.092	new_order	1686896	204	<0.01
						payment	1686904	59.6	<0.01
						order_status	168690	8.58	<0.01
						delivery	168691	24.9	<0.01
						stock_level	168691	51.1	<0.01
4	42831	32772	151	4.48%	.017	new_order	2235050	273	<0.01
						payment	2235043	79.2	<0.01
						order_status	223506	11.5	<0.01
						delivery	223505	34.1	<0.01
						stock_level	223505	66.8	<0.01
5	52966	32772	187	6.80%	<0.01	new_order	2763699	342	<0.01
						payment	2763693	98.2	<0.01
						order_status	276371	14.4	<0.01
						delivery	276370	45.2	<0.01
						stock_level	276372	80.8	<0.01
6	63670	32772	216	4.73%	<0.01	new_order	3322189	409	<0.01
						payment	3322181	119	<0.01
						order_status	332217	17.4	<0.01
						delivery	332218	52.9	<0.01
						stock_level	332218	97.6	<0.01
7	76081	32772	184	4.62%	<0.01	new_order	3969784	480	.197
						payment	3969802	140	.196
						order_status	396981	20.9	<0.01
						delivery	396978	63.1	<0.01
						stock_level	396977	108	.011
8	89845	32772	205	4.02%	<0.01	new_order	4687949	541	.199
						payment	4687953	161	.199
						order_status	468794	24.3	<0.01
						delivery	468792	74.3	<0.01
						stock_level	468795	127	.015
9	100313	32772	227	8.09%	<0.01	new_order	5234166	611	.203
						payment	5234168	179	.202
						order_status	523418	26.9	<0.01
						delivery	523417	85.1	<0.01
						stock_level	523414	141	.211
10	113076	32772	249	4.56%	<0.01	new_order	5900080	677	.208
						payment	5900085	200	.207
						order_status	590012	30.4	<0.01
						delivery	590007	93.9	<0.01
						stock_level	590007	158	.214
11	123832	32772	278	3.06%	<0.01	new_order	6461329	742	.223
						payment	6461336	220	.214
						order_status	646131	33.7	.214
						delivery	646135	104	<0.01
						stock_level	646131	175	.226
12	133805	32772	297	3.88%	<0.01	new_order	6981733	811	.233
						payment	6981730	240	.224
						order_status	698171	36.5	<0.01
						delivery	698171	113	<0.01
						stock_level	698170	191	.234
13	144063	32772	319	5.26%	<0.01	new_order	7516954	880	.225
						payment	7516941	259	.225
						order_status	751690	39.2	<0.01
						delivery	751694	125	<0.01
						stock_level	751691	205	.231
14	154521	32772	349	3.87%	<0.01	new_order	8062438	946	.236
						payment	8062452	277	.233
						order_status	806246	42.8	<0.01
						delivery	806242	135	<0.01
						stock_level	806245	222	.248
15	164824	32772	365	4.75%	<0.01	new_order	8600089	1017	.245
						payment	8600083	298	.236
						order_status	860007	44.8	<0.01
						delivery	860007	146	<0.01
						stock_level	860012	234	.245
16	174373	32772	392	4.00%	<0.01	new_order	9098554	1084	.252
						payment	9098547	316	.242
						order_status	909852	48.5	<0.01
						delivery	909857	157	.251
						stock_level	909853	251	.256
17	174068	32772	409	18.6%	<0.01	new_order	9082639	1154	.382
						payment	9082650	336	.395
						order_status	908260	51.4	.236
						delivery	908268	165	.360
						stock_level	908263	266	.344
18	173292	32772	430	24.2%	<0.01	new_order	9042061	1220	.316
						payment	9042067	359	.303
						order_status	904210	54.3	.012
						delivery	904206	173	.248
						stock_level	904205	283	.382
19	172640	32772	450	24.3%	<0.01	new_order	9008044	1291	.390
						payment	9008042	376	.386
						order_status	900802	57.5	.225
						delivery	900801	184	.350
						stock_level	900807	297	.382
20	172015	32772	473	25.2%	<0.01	new_order	8975453	1354	.379
						payment	8975456	396	.386
						order_status	897551	61.1	.173
						delivery	897543	196	.383
						stock_level	897549	314	.389
21	171372	32772	494	24.9%	<0.01	new_order	8941836	1423	.427
						payment	8941842	418	.383
						order_status	894183	62.9	.167
						delivery	894185	203	.353
						stock_level	894181	332	.363
22	170987	32772	510	24.8%	<0.01	new_order	8921777	1495	.490
						payment	8921780	437	.370
						order_status	892178	65.8	.361
						delivery	892177	212	.270
						stock_level	892179	345	.422
23	170460	32772	536	28.1%	<0.01	new_order	8894326	1564	.476
						payment	8894325	456	.355
						order_status	889435	68.7	.080
						delivery	889431	224	.409
						stock_level	889433	360	.435
24	169771	32772	551	21.2%	<0.01	new_order	8858365	1629	.511
						payment	8858362	472	.347
						order_status	885837	72.0	.371
						delivery	885837	236	.377
						stock_level	885835	380	.509
25	169218	32772	571	29.4%	<0.01	new_order	8829448	1704	.446
						payment	8829443	499	.424
						order_status	882948	74.8	.209
						delivery	882948	239	.438
						stock_level	882947	388	.407
26	168296	32772	590	22.5%	<0.01	new_order	8781342	1773	.495
						payment	8781334	508	.537
						order_status	878134	77.3	.231
						delivery	878139	252	.411
						stock_level	878131	410	.508
27	168057	32772	611	18.7%	<0.01	new_order	8768941	1840	.481
						payment	8768946	530	.456
						order_status	876899	80.7	.320
						delivery	876899	261	.400
						stock_level	876895	425	.428
28	167370	32772	629	18.1%	<0.01	new_order	8733107	1904	.520
						payment	8733091	557	.491
						order_status	873308	83.0	.219
						delivery	873308	270	.298
						stock_level	873305	441	.446
29	166906	32772	651	11.9%	<0.01	new_order	8708864	1980	.514
						payment	8708871	573	.449
						order_status	870889	87.9	.290
						delivery	870894	279	.424
						stock_level	870882	450	.453
30	166285	32772	669	8.63%	<0.01	new_order	8676477	2051	.534
						payment	8676463	592	.447
						order_status	867649	89.7	.241
						delivery	867652	287	.381
						stock_level	867650	466	.370
31	166247	32772	689	11.5%	<0.01	new_order	8674486	2118	.532
						payment	8674471	614	.553
						order_status	867444	96.5	.400
						delivery	867449	298	.303
						stock_level	867449	474	.498
32	165141	32772	706	4.65%	<0.01	new_order	8616785	2187	.357
						payment	8616790	634	.350
						order_status	861674	96.4	.400
						delivery	861676	306	.308
						stock_level	861684	495	.377
