SPECjbb2000 SPECjbb2000 = 553480 ops/s
IBM Corporation IBM eServer pSeries 690 Turbo
IBM Corporation J2RE 1.4.1 IBM AIX build cadev-20030522 (32 bit JVM)

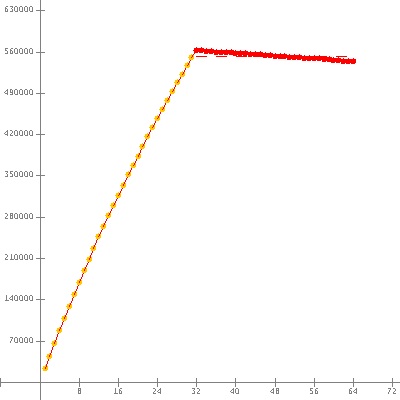

Warehouses Ops/s Incl. in metric
1 22804
2 44503
3 66229
4 87630
5 108703
6 128866
7 149201
8 169104
9 189545
10 207830
11 227330
12 246724
13 264446
14 282471
15 300338
16 316965
17 334273
18 352065
19 367941
20 383434
21 399804
22 416397
23 431476
24 447427
25 463319
26 478113
27 493329
28 508333
29 521535
30 536641
31 551079
32 563160 *
33 562677 *
34 561633 *
35 561493 *
36 559722 *
37 558643 *
38 558779 *
39 558887 *
40 558134 *
41 557395 *
42 557110 *
43 556617 *
44 555901 *
45 555450 *
46 554050 *
47 553585 *
48 553470 *
49 552807 *
50 552268 *
51 551188 *
52 551713 *
53 550622 *
54 549825 *
55 549963 *
56 549429 *
57 548917 *
58 548396 *
59 547222 *
60 546478 *
61 546342 *
62 544885 *
63 544554 *
64 543511 *
SPECjbb2000 (from 32 to 64) 553480 ops/s

SPEC license # 11 Tested by: IBM Corporation Test date: Jun 23, 2003

Hardware
Hardware Vendor IBM Corporation
Vendor URL http://www.ibm.com
Model IBM eServer pSeries 690 Turbo
Processor POWER4+
MHz 1700
# of Procs 32 cores, 16 chips, 2 cores/chip, 4 chips/MCM
Memory (MB) 65536
Primary cache 64KBI+32KBD on chip
Secondary cache 1536KB unified on chip
Other cache 128MB unified (off-chip)/MCM, 4 MCMs in SUT
Filesystem JFS
Disks 1 x 36.4GB SCSI
Other hardware
Software
Software Vendor IBM Corporation
Vendor URL http://www.ibm.com
Java Precompiler Version
Java Precompiler Command Line
Java Precompiler Way Of Excluding Classes
JVM Version J2RE 1.4.1 IBM AIX build cadev-20030522 (32 bit JVM)
JVM Command Line java -Xlp -Xcompactexplicitgc -Xgcpolicy:subpool -ms3072m -mx3072m -ss128k spec.jbb.JBBmain -propfile SPECjbb.props
JVM Initial Heap Memory (MB) 3072
JVM Maximum Heap Memory (MB) 3072
JVM CLASSPATH ./jbb.jar:
./jbb_no_precompile.jar:
./check.jar:
./reporter.jar
JVM BOOTCLASSPATH /java/cadev-20030522/jre/lib/core.jar:
/java/cadev-20030522/jre/lib/graphics.jar:
/java/cadev-20030522/jre/lib/security.jar:
/java/cadev-20030522/jre/lib/server.jar:
/java/cadev-20030522/jre/lib/xml.jar:
/java/cadev-20030522/jre/lib/charsets.jar:
/java/cadev-20030522/jre/classes
OS Version AIX 5L V5.2 APAR IY43549
System state normal
Other software
Test Information
Tested by IBM Corporation
SPEC license # 11
Test location Austin, TX
Test date Jun 23, 2003
H/w available Jul-2003
JVM available Oct-2003
OS available Jul-2003
Other s/w available
Tuning
Operating system tunings
  • SPINLOOPTIME=2000
  • vmo -r -o lgpg_regions=256 -o lgpg_size=16777216
  • setsched -S rr -P 40 -p $$
  • schedtune -t 400 -F 1
  • vmtune -S 1
Notes


Details of Runs

Warehouses Thrput Total heap (MB) Thread spread % % > 120s transaction type Count Time (in seconds)
SizeUsed totalmax
1 22804 3072 30.8 <0.01% <0.01 new_order 1189844 65.5 .019
payment 1189837 20.8 <0.01
order_status 118984 2.54 <0.01
delivery 118984 9.06 <0.01
stock_level 118984 16.2 .018
2 44503 3072 52.4 <0.01% <0.01 new_order 2321883 130 .029
payment 2321877 41.8 .029
order_status 232188 5.11 <0.01
delivery 232189 18.4 .028
stock_level 232186 32.6 <0.01
3 66229 3072 74.9 1.15% <0.01 new_order 3455684 195 .028
payment 3455691 63.1 .029
order_status 345569 7.60 .029
delivery 345568 28.0 .026
stock_level 345568 48.5 .029
4 87630 3072 93.1 2.98% <0.01 new_order 4572387 260 .028
payment 4572393 84.8 .028
order_status 457239 10.2 <0.01
delivery 457241 36.5 <0.01
stock_level 457238 65.1 .028
5 108703 3072 114 2.07% .019 new_order 5672563 326 .028
payment 5672559 106 .027
order_status 567257 12.7 .026
delivery 567256 45.8 <0.01
stock_level 567255 81.0 .028
6 128866 3072 134 2.45% <0.01 new_order 6724004 390 .028
payment 6724010 127 .028
order_status 672400 15.3 <0.01
delivery 672399 55.7 .028
stock_level 672401 98.1 .028
7 149201 3072 156 1.99% <0.01 new_order 7784639 456 .030
payment 7784638 148 .030
order_status 778461 17.8 .028
delivery 778464 66.2 <0.01
stock_level 778463 114 .030
8 169104 3072 179 2.35% <0.01 new_order 8823020 520 .031
payment 8823015 169 .031
order_status 882300 20.5 <0.01
delivery 882301 76.5 .031
stock_level 882304 129 .031
9 189545 3072 198 1.61% <0.01 new_order 9889863 588 .032
payment 9889850 188 .032
order_status 988983 22.5 <0.01
delivery 988987 87.0 .032
stock_level 988986 144 .032
10 207830 3072 221 1.85% <0.01 new_order 10844109 654 .034
payment 10844116 208 .034
order_status 1084411 25.3 <0.01
delivery 1084408 97.8 .034
stock_level 1084412 159 .034
11 227330 3072 242 1.71% <0.01 new_order 11861800 720 .037
payment 11861807 228 .036
order_status 1186181 28.0 <0.01
delivery 1186179 108 .034
stock_level 1186181 175 .037
12 246724 3072 260 1.81% <0.01 new_order 12873649 788 .037
payment 12873633 248 .037
order_status 1287362 30.2 .036
delivery 1287365 119 .037
stock_level 1287363 189 .037
13 264446 3072 278 1.94% <0.01 new_order 13798349 854 .039
payment 13798353 267 .039
order_status 1379832 32.7 .034
delivery 1379837 130 .038
stock_level 1379837 206 .039
14 282471 3072 300 1.25% <0.01 new_order 14737993 923 .041
payment 14738003 288 .041
order_status 1473804 35.0 .041
delivery 1473801 141 .039
stock_level 1473798 218 .041
15 300338 3072 319 2.08% <0.01 new_order 15671101 988 .042
payment 15671088 307 .042
order_status 1567109 37.8 .041
delivery 1567112 153 .042
stock_level 1567107 234 .042
16 316965 3072 343 2.18% <0.01 new_order 16538699 1056 .045
payment 16538696 326 .044
order_status 1653871 39.8 .043
delivery 1653865 164 .044
stock_level 1653867 250 .045
17 334273 3072 361 1.72% <0.01 new_order 17441805 1121 .046
payment 17441787 346 .046
order_status 1744182 42.1 .043
delivery 1744179 176 .045
stock_level 1744180 265 .046
18 352065 3072 386 1.94% <0.01 new_order 18370156 1194 .048
payment 18370148 364 .048
order_status 1837015 44.1 .047
delivery 1837017 186 .048
stock_level 1837015 278 .049
19 367941 3072 406 1.91% <0.01 new_order 19198519 1263 .051
payment 19198513 383 .050
order_status 1919851 45.9 .048
delivery 1919851 199 .050
stock_level 1919848 292 .051
20 383434 3072 428 2.39% <0.01 new_order 20006116 1328 .052
payment 20006096 407 .052
order_status 2000612 48.8 .051
delivery 2000614 208 .052
stock_level 2000609 306 .052
21 399804 3072 442 1.70% <0.01 new_order 20861086 1396 .053
payment 20861107 426 .053
order_status 2086104 50.9 .052
delivery 2086112 220 .052
stock_level 2086109 320 .053
22 416397 3072 468 1.91% <0.01 new_order 21725607 1466 .055
payment 21725601 445 .055
order_status 2172562 53.5 .050
delivery 2172553 233 .055
stock_level 2172559 332 .055
23 431476 3072 486 2.39% <0.01 new_order 22511974 1536 .058
payment 22511960 464 .058
order_status 2251195 55.6 .056
delivery 2251200 242 .056
stock_level 2251196 346 .058
24 447427 3072 507 1.92% <0.01 new_order 23344984 1605 .059
payment 23344980 482 .059
order_status 2334502 57.3 .059
delivery 2334496 251 .058
stock_level 2334496 363 .059
25 463319 3072 531 2.03% <0.01 new_order 24173555 1676 .061
payment 24173538 501 .061
order_status 2417353 59.9 .059
delivery 2417351 262 .061
stock_level 2417359 374 .061
26 478113 3072 545 2.10% <0.01 new_order 24945443 1742 .062
payment 24945442 520 .062
order_status 2494541 62.0 .061
delivery 2494544 273 .062
stock_level 2494545 393 .062
27 493329 3072 570 2.44% <0.01 new_order 25739554 1813 .064
payment 25739543 540 .064
order_status 2573952 64.5 .064
delivery 2573956 285 .064
stock_level 2573949 405 .064
28 508333 3072 591 1.56% <0.01 new_order 26523457 1885 .067
payment 26523472 557 .067
order_status 2652346 66.2 .066
delivery 2652349 294 .066
stock_level 2652344 419 .066
29 521535 3072 611 1.73% <0.01 new_order 27211653 1951 .068
payment 27211646 574 .067
order_status 2721165 69.0 .067
delivery 2721161 309 .067
stock_level 2721163 436 .068
30 536641 3072 629 1.70% <0.01 new_order 28000974 2025 .069
payment 28000987 592 .069
order_status 2800104 70.6 .067
delivery 2800098 318 .068
stock_level 2800093 449 .069
31 551079 3072 652 1.78% <0.01 new_order 28753649 2091 .071
payment 28753642 611 .071
order_status 2875362 73.0 .071
delivery 2875360 329 .069
stock_level 2875369 466 .071
32 563160 3072 675 2.68% .031 new_order 29391300 2159 .074
payment 29391289 629 .073
order_status 2939132 75.0 .072
delivery 2939132 341 .074
stock_level 2939124 480 .074
33 562677 3072 698 3.76% .741 new_order 29574543 2245 1.69
payment 29574561 658 .731
order_status 2957464 76.7 .366
delivery 2957460 349 .425
stock_level 2957459 502 1.16
34 561633 3072 706 9.38% .188 new_order 29357504 2302 1.66
payment 29357516 680 1.60
order_status 2935754 80.8 1.35
delivery 2935749 354 1.71
stock_level 2935748 510 1.22
35 561493 3072 721 10.7% .799 new_order 29529395 2368 1.77
payment 29529400 697 1.76
order_status 2952942 86.9 1.78
delivery 2952944 369 1.79
stock_level 2952944 543 1.83
36 559722 3072 744 9.72% 1.05 new_order 29509509 2444 1.96
payment 29509504 730 1.97
order_status 2950951 82.8 1.89
delivery 2950959 366 1.98
stock_level 2950952 562 1.95
37 558643 3072 756 11.7% .575 new_order 29314207 2514 2.03
payment 29314197 758 2.03
order_status 2931426 85.0 1.95
delivery 2931419 381 1.91
stock_level 2931414 557 2.02
38 558779 3072 785 9.09% .786 new_order 29382787 2557 1.96
payment 29382751 774 1.95
order_status 2938280 88.8 1.88
delivery 2938277 397 1.95
stock_level 2938278 603 2.02
39 558887 3072 794 11.6% .615 new_order 29338668 2615 2.05
payment 29338683 821 1.97
order_status 2933858 89.7 1.66
delivery 2933863 403 1.94
stock_level 2933863 590 2.13
40 558134 3072 818 8.08% .798 new_order 29352258 2708 1.96
payment 29352285 817 1.93
order_status 2935228 97.0 1.82
delivery 2935225 414 1.94
stock_level 2935229 613 1.94
41 557395 3072 833 8.17% .707 new_order 29287012 2741 1.97
payment 29287005 871 1.97
order_status 2928704 97.2 1.77
delivery 2928699 415 1.96
stock_level 2928696 645 1.97
42 557110 3072 847 9.45% .188 new_order 29121103 2827 2.07
payment 29121097 872 2.09
order_status 2912107 94.8 1.75
delivery 2912100 421 1.84
stock_level 2912108 641 1.95
43 556617 3072 867 11.6% .883 new_order 29297162 2883 2.04
payment 29297164 914 1.78
order_status 2929723 95.9 1.68
delivery 2929717 420 1.74
stock_level 2929714 697 1.98
44 555901 3072 888 15.7% .512 new_order 29151941 2962 3.15
payment 29151954 932 2.23
order_status 2915198 97.1 1.67
delivery 2915195 413 1.71
stock_level 2915192 705 1.97
45 555450 3072 895 13.0% .038 new_order 28991113 2937 2.23
payment 28991109 982 1.94
order_status 2899110 100 1.84
delivery 2899113 424 1.74
stock_level 2899115 753 3.23
46 554050 3072 917 10.4% .854 new_order 29153898 3120 2.42
payment 29153898 951 2.02
order_status 2915380 92.6 1.76
delivery 2915386 457 1.93
stock_level 2915387 744 1.97
47 553585 3072 947 17.5% 1.44 new_order 29298372 3125 2.06
payment 29298387 1048 2.06
order_status 2929835 99.4 2.07
delivery 2929841 440 2.03
stock_level 2929836 810 2.31
48 553470 3072 958 20.7% .850 new_order 29122102 3220 3.48
payment 29122153 1026 2.71
order_status 2912211 89.0 1.98
delivery 2912216 442 1.90
stock_level 2912212 803 2.04
49 552807 3072 966 12.2% .448 new_order 28971186 3290 2.68
payment 28971160 1019 3.22
order_status 2897114 92.0 1.85
delivery 2897107 438 2.29
stock_level 2897119 862 3.07
50 552268 3072 988 23.7% 1.03 new_order 29111969 3346 3.49
payment 29111982 1084 2.38
order_status 2911203 98.4 1.58
delivery 2911194 446 3.77
stock_level 2911207 865 3.43
51 551188 3072 1003 22.4% .393 new_order 28870528 3392 3.22
payment 28870511 1110 2.91
order_status 2887057 108 2.00
delivery 2887058 426 2.23
stock_level 2887040 873 2.36
52 551713 3072 1024 18.5% .957 new_order 29060396 3435 3.20
payment 29060427 1143 4.80
order_status 2906045 108 1.94
delivery 2906044 421 2.68
stock_level 2906045 950 2.62
53 550622 3072 1047 18.8% .203 new_order 28786257 3519 2.67
payment 28786250 1128 3.43
order_status 2878628 97.2 1.86
delivery 2878626 436 1.93
stock_level 2878632 969 3.95
54 549825 3072 1061 18.0% .939 new_order 28955932 3613 3.89
payment 28955929 1131 3.76
order_status 2895595 107 1.95
delivery 2895595 444 3.71
stock_level 2895597 1019 3.00
55 549963 3072 1079 23.3% 1.44 new_order 29107863 3638 3.81
payment 29107857 1279 5.24
order_status 2910788 99.1 1.94
delivery 2910783 441 1.94
stock_level 2910787 1014 3.83
56 549429 3072 1097 17.0% .942 new_order 28935790 3754 3.75
payment 28935752 1247 3.36
order_status 2893586 107 2.43
delivery 2893579 440 4.68
stock_level 2893577 1006 3.79
57 548917 3072 1112 28.5% 1.68 new_order 29119801 3885 6.20
payment 29119793 1198 4.03
order_status 2911973 90.5 1.92
delivery 2911981 441 2.84
stock_level 2911978 1130 3.77
58 548396 3072 1131 22.1% .660 new_order 28800815 3783 3.63
payment 28800806 1294 3.19
order_status 2880077 103 1.91
delivery 2880081 448 5.64
stock_level 2880083 1144 4.99
59 547222 3072 1146 34.5% .149 new_order 28593267 3907 5.36
payment 28593300 1285 6.66
order_status 2859327 104 1.88
delivery 2859331 425 3.50
stock_level 2859324 1118 7.98
60 546478 3072 1168 29.9% .751 new_order 28725985 3921 5.37
payment 28725979 1390 3.42
order_status 2872600 102 1.87
delivery 2872603 415 2.55
stock_level 2872589 1196 3.46
61 546342 3072 1179 30.0% .113 new_order 28537112 3941 5.90
payment 28537129 1378 10.3
order_status 2853709 130 2.58
delivery 2853715 434 5.30
stock_level 2853720 1174 6.65
62 544885 3072 1208 34.8% .755 new_order 28643439 4001 12.3
payment 28643431 1455 5.20
order_status 2864348 105 2.51
delivery 2864343 446 3.57
stock_level 2864341 1218 5.40
63 544554 3072 1219 45.2% 1.10 new_order 28724726 4228 8.89
payment 28724759 1387 11.2
order_status 2872476 110 3.30
delivery 2872477 418 2.63
stock_level 2872479 1246 10.2
64 543511 3072 1237 32.3% .193 new_order 28411688 4043 7.73
payment 28411691 1632 7.24
order_status 2841167 103 1.83
delivery 2841170 441 5.15
stock_level 2841174 1230 3.54

SPECjbb2000 Version: [SPECjbb2000 1.02, December 14, 2001]
Reporting page, Copyright © 2000-2002 SPEC. All rights reserved

First published at SPEC.org on 09-Jul-2003
