SPECjbb

SPECjbb2005		SPECjbb2005 bops = 224200, SPECjbb2005 bops/JVM = 224200
IBM Corporation IBM eServer p5 570
IBM Corporation J2RE 1.5.0 IBM J9 2.3 AIX ppc64-64 j9vmap6423-20050924

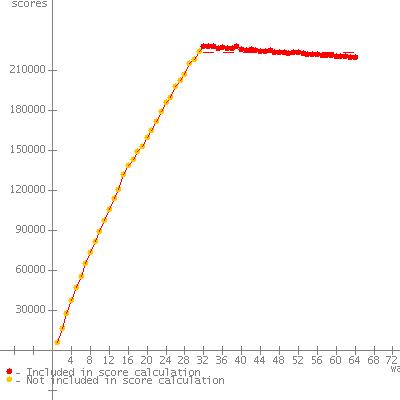

Warehouses	SPECjbb2005 bops	Incl. in metric
1	6367
2	16832
3	27615
4	37378
5	47225
6	55976
7	65200
8	73454
9	81878
10	89760
11	97971
12	105885
13	114262
14	121096
15	131893
16	138881
17	143214
18	149274
19	153219
20	160397
21	165628
22	172373
23	179204
24	186058
25	190291
26	198315
27	203107
28	207638
29	215548
30	218359
31	224560
32	228161	*
33	228129	*
34	228158	*
35	226870	*
36	227363	*
37	226914	*
38	226874	*
39	228607	*
40	226330	*
41	225575	*
42	225818	*
43	225242	*
44	224650	*
45	224844	*
46	225167	*
47	224070	*
48	223701	*
49	223669	*
50	223369	*
51	223985	*
52	223736	*
53	222836	*
54	222706	*
55	222319	*
56	222019	*
57	221861	*
58	221532	*
59	221241	*
60	221130	*
61	220855	*
62	220599	*
63	220431	*
64	219823	*
SPECjbb2005	(from 32 to 64)	224200 SPECjbb2005 bops

SPEC license # 11

Tested by: IBM Corporation

Test date: Sep 29, 2005

Hardware

Hardware Vendor IBM Corporation

Vendor URL http://www.ibm.com

Model IBM eServer p5 570

Processor POWER5

MHz 1900

# of Chips 8

# of Cores 16

# of Cores/Chip 2

HW Threading Enabled? Yes

Procs Avail to Java 32

Memory (MB) 32768

Memory Details

Primary cache 64KBI+32KBD

Secondary cache 1920KB unified on-chip

Other cache 36MB unified off-chip/DCM, 8 DCMs in SUT

Filesystem JFS

Disks 1 x 73GB SCSI

Other hardware

Software

Software Vendor IBM Corporation

Vendor URL http://www.ibm.com

JVM Version J2RE 1.5.0 IBM J9 2.3 AIX ppc64-64 j9vmap6423-20050924

JVM Command Line java -Xlp -Xgcpolicy:subpool -Xms28g -Xmx28g spec.jbb.JBBmain -propfile SPECjbb.props

JVM Initial Heap Memory (MB) 28672

JVM Maximum Heap Memory (MB) 28672

JVM Address bits 64

JVM CLASSPATH ./jbb.jar:
./check.jar:

JVM BOOTCLASSPATH /java/j9vmap6423-20050924/jre/lib/vm.jar:
/java/j9vmap6423-20050924/jre/lib/core.jar:
/java/j9vmap6423-20050924/jre/lib/charsets.jar:
/java/j9vmap6423-20050924/jre/lib/graphics.jar:
/java/j9vmap6423-20050924/jre/lib/security.jar:
/java/j9vmap6423-20050924/jre/lib/ibmpkcs.jar:
/java/j9vmap6423-20050924/jre/lib/ibmorb.jar:
/java/j9vmap6423-20050924/jre/lib/ibmcfw.jar:
/java/j9vmap6423-20050924/jre/lib/ibmorbapi.jar:
/java/j9vmap6423-20050924/jre/lib/ibmjcefw.jar:
/java/j9vmap6423-20050924/jre/lib/ibmjgssprovider.jar:
/java/j9vmap6423-20050924/jre/lib/ibmjsseprovider2.jar:
/java/j9vmap6423-20050924/jre/lib/ibmjaaslm.jar:
/java/j9vmap6423-20050924/jre/lib/ibmcertpathprovider.jar:
/java/j9vmap6423-20050924/jre/lib/server.jar:
/java/j9vmap6423-20050924/jre/lib/xml.jar

OS Version AIX 5L 5.3

Other software

Test Information

Tested by IBM Corporation

SPEC license # 11

Test location Austin, TX

Test date Sep 29, 2005

H/w available Aug-2004

JVM available Dec-2005

OS available Aug-2004

Other s/w available

AOT Compilation

Tuning

Operating system tunings
vmo -o lgpg_regions=1792 -o lgpg_size=16777216
vmo -o v_pinshm=1
schedo -o smt_snooze_delay=-1
setsched -S rr -P 30 -p $$
schedo -o timeslice=600
export SPINLOOPTIME=1000

Notes

Details of Runs

Warehouses	Thrput	Total heap (MB)		Thread spread %	% > 120s	transaction type	Count	Time (in seconds)
Warehouses	Thrput	Size	Used	Thread spread %	% > 120s	transaction type	Count	total	max
1	6367	28672	.750	<0.01%	<0.01	new_order	83916	9.72	<0.01
						payment	57881	4.17	<0.01
						order_status	5787	.660	<0.01
						delivery	5788	7.05	.020
						stock_level	5788	1.48	<0.01
						cust_report	31848	5.70	<0.01
2	16832	28672	.750	.593%	<0.01	new_order	221727	20.0	<0.01
						payment	153032	8.07	<0.01
						order_status	15303	1.16	<0.01
						delivery	15303	15.7	<0.01
						stock_level	15303	1.95	<0.01
						cust_report	84335	12.2	<0.01
3	27615	28672	.750	.830%	<0.01	new_order	363925	29.1	<0.01
						payment	251046	11.6	<0.01
						order_status	25104	1.76	<0.01
						delivery	25105	25.6	<0.01
						stock_level	25105	2.90	<0.01
						cust_report	138159	17.6	<0.01
4	37378	28672	256	1.13%	<0.01	new_order	492643	38.7	.210
						payment	339810	14.8	<0.01
						order_status	33981	2.37	<0.01
						delivery	33980	35.0	.212
						stock_level	33980	3.99	.210
						cust_report	186971	23.1	<0.01
5	47225	28672	256	1.22%	<0.01	new_order	622465	48.6	<0.01
						payment	429318	18.4	<0.01
						order_status	42931	2.94	<0.01
						delivery	42930	43.8	<0.01
						stock_level	42931	4.81	<0.01
						cust_report	236168	29.0	<0.01
6	55976	28672	375	2.06%	<0.01	new_order	737406	58.5	.215
						payment	508870	22.2	.215
						order_status	50886	3.49	<0.01
						delivery	50887	52.8	.217
						stock_level	50888	5.75	<0.01
						cust_report	280336	34.4	<0.01
7	65200	28672	436	1.37%	<0.01	new_order	859653	68.2	.228
						payment	592725	26.2	<0.01
						order_status	59273	4.11	<0.01
						delivery	59272	61.3	.231
						stock_level	59271	6.68	<0.01
						cust_report	325803	40.2	.228
8	73454	28672	495	7.63%	<0.01	new_order	968303	77.2	.218
						payment	667778	29.9	.218
						order_status	66778	4.71	<0.01
						delivery	66779	69.8	.220
						stock_level	66777	8.08	.218
						cust_report	367267	46.5	.218
9	81878	28672	556	8.30%	<0.01	new_order	1079351	87.3	.236
						payment	744348	33.6	.236
						order_status	74435	5.10	<0.01
						delivery	74435	78.5	<0.01
						stock_level	74438	8.69	<0.01
						cust_report	409347	52.5	.236
10	89760	28672	615	7.97%	<0.01	new_order	1183406	95.9	.258
						payment	816027	36.6	<0.01
						order_status	81601	6.03	.257
						delivery	81603	88.2	.259
						stock_level	81602	9.89	<0.01
						cust_report	448653	58.5	.257
11	97971	28672	675	8.09%	<0.01	new_order	1291693	105	.248
						payment	890679	40.2	<0.01
						order_status	89066	6.43	.248
						delivery	89065	97.4	.250
						stock_level	89069	10.5	<0.01
						cust_report	489662	65.1	.248
12	105885	28672	729	7.83%	<0.01	new_order	1395500	114	.254
						payment	962597	43.8	.254
						order_status	96254	6.70	<0.01
						delivery	96258	108	.257
						stock_level	96259	11.5	<0.01
						cust_report	529693	70.4	.254
13	114262	28672	789	8.33%	<0.01	new_order	1505968	124	.250
						payment	1038736	47.7	.250
						order_status	103875	7.42	<0.01
						delivery	103872	115	.253
						stock_level	103876	12.4	<0.01
						cust_report	571528	77.6	.250
14	121096	28672	848	12.4%	<0.01	new_order	1596128	135	.275
						payment	1100880	51.8	.275
						order_status	110087	7.77	<0.01
						delivery	110088	123	.278
						stock_level	110086	13.6	.253
						cust_report	605606	82.6	.275
15	131893	28672	907	8.36%	<0.01	new_order	1739155	144	.280
						payment	1199463	54.9	.280
						order_status	119945	8.32	<0.01
						delivery	119945	131	.283
						stock_level	119947	14.1	<0.01
						cust_report	659774	90.2	.280
16	138881	28672	967	22.1%	<0.01	new_order	1831556	156	.273
						payment	1262600	58.6	.273
						order_status	126260	8.92	<0.01
						delivery	126258	139	.275
						stock_level	126258	14.9	<0.01
						cust_report	693628	94.9	.273
17	143214	28672	1027	21.9%	<0.01	new_order	1888153	164	.278
						payment	1301988	62.1	.278
						order_status	130201	10.0	.278
						delivery	130196	149	.280
						stock_level	130198	15.6	<0.01
						cust_report	715825	101	.278
18	149274	28672	1085	20.3%	<0.01	new_order	1968314	173	.294
						payment	1357477	66.9	.294
						order_status	135751	10.4	.294
						delivery	135747	156	.296
						stock_level	135747	17.4	.275
						cust_report	746676	108	.294
19	153219	28672	1145	21.4%	<0.01	new_order	2019869	181	.301
						payment	1392891	70.7	.301
						order_status	139292	11.2	.301
						delivery	139286	163	.303
						stock_level	139292	17.9	.282
						cust_report	765929	117	.301
20	160397	28672	1205	21.4%	<0.01	new_order	2113870	192	.299
						payment	1458160	73.2	.298
						order_status	145814	9.36	.298
						delivery	145812	173	.302
						stock_level	145811	18.9	.298
						cust_report	802453	123	.298
21	165628	28672	1263	21.7%	<0.01	new_order	2182866	201	.305
						payment	1505858	77.0	.305
						order_status	150586	10.0	.304
						delivery	150583	180	.307
						stock_level	150585	20.7	.305
						cust_report	828862	130	.305
22	172373	28672	1323	22.3%	<0.01	new_order	2272245	213	.308
						payment	1567081	81.2	.308
						order_status	156707	10.0	<0.01
						delivery	156708	187	.311
						stock_level	156705	20.9	.308
						cust_report	861917	137	.308
23	179204	28672	1383	12.9%	<0.01	new_order	2362430	221	.323
						payment	1629564	84.8	.322
						order_status	162955	10.5	<0.01
						delivery	162950	197	.325
						stock_level	162955	21.6	.322
						cust_report	896696	145	.322
24	186058	28672	1442	12.6%	<0.01	new_order	2458520	229	.328
						payment	1695773	88.0	.328
						order_status	169578	11.0	.328
						delivery	169577	206	.331
						stock_level	169574	22.4	.313
						cust_report	933037	153	.328
25	190291	28672	1502	17.5%	<0.01	new_order	2509022	246	.331
						payment	1730385	89.8	.331
						order_status	173040	11.2	<0.01
						delivery	173036	215	.334
						stock_level	173038	21.7	.316
						cust_report	951739	154	.331
26	198315	28672	1561	14.3%	<0.01	new_order	2613949	246	.336
						payment	1803105	95.4	.336
						order_status	180308	12.5	.333
						delivery	180303	225	.338
						stock_level	180313	21.4	.322
						cust_report	992263	167	.337
27	203107	28672	1620	16.0%	<0.01	new_order	2680725	254	.337
						payment	1848272	99.1	.336
						order_status	184827	13.4	.336
						delivery	184825	237	.340
						stock_level	184829	22.0	<0.01
						cust_report	1015821	172	.336
28	207638	28672	1680	16.7%	<0.01	new_order	2738201	266	.367
						payment	1888249	101	.366
						order_status	188825	13.7	.366
						delivery	188822	242	.369
						stock_level	188827	23.4	.366
						cust_report	1038286	180	.367
29	215548	28672	1739	13.9%	<0.01	new_order	2841133	272	.350
						payment	1959653	107	.350
						order_status	195966	13.4	<0.01
						delivery	195963	252	.353
						stock_level	195969	24.2	.350
						cust_report	1078184	186	.350
30	218359	28672	1800	15.9%	<0.01	new_order	2879369	286	.375
						payment	1985406	111	.362
						order_status	198541	14.8	.362
						delivery	198538	257	.365
						stock_level	198545	25.0	.357
						cust_report	1091451	191	.362
31	224560	28672	1858	11.1%	<0.01	new_order	2962003	292	.368
						payment	2042869	113	.368
						order_status	204292	14.6	.364
						delivery	204288	271	.371
						stock_level	204289	25.9	.367
						cust_report	1123775	199	.368
32	228161	28672	1918	2.28%	.833	new_order	24258824	2429	.476
						payment	16731753	951	.386
						order_status	1673173	120	.385
						delivery	1673170	2262	.419
						stock_level	1673173	210	.380
						cust_report	9204673	1647	.386
33	228129	28672	1977	9.48%	.754	new_order	24241132	2512	3.28
						payment	16716330	982	2.53
						order_status	1671631	130	2.20
						delivery	1671629	2310	2.46
						stock_level	1671633	221	2.20
						cust_report	9191551	1694	2.28
34	228158	28672	2037	22.9%	.744	new_order	24240810	2560	3.29
						payment	16716787	1009	2.49
						order_status	1671681	121	2.20
						delivery	1671674	2402	4.37
						stock_level	1671681	224	2.21
						cust_report	9192764	1764	3.29
35	226870	28672	2096	23.4%	.632	new_order	24074366	2655	3.30
						payment	16603847	1049	3.29
						order_status	1660383	125	2.20
						delivery	1660378	2441	2.60
						stock_level	1660381	240	2.51
						cust_report	9133289	1794	3.29
36	227363	28672	2156	31.1%	.833	new_order	24176663	2716	2.48
						payment	16673248	1067	2.45
						order_status	1667327	136	3.29
						delivery	1667319	2576	4.39
						stock_level	1667328	232	2.20
						cust_report	9169832	1831	3.96
37	226914	28672	2215	39.0%	.709	new_order	24099783	2773	4.38
						payment	16619895	1113	4.36
						order_status	1661987	135	2.44
						delivery	1661982	2581	3.29
						stock_level	1661992	249	4.38
						cust_report	9139973	1934	4.38
38	226874	28672	2275	32.5%	.696	new_order	24092927	2889	3.31
						payment	16614825	1139	4.39
						order_status	1661476	124	2.20
						delivery	1661476	2703	3.28
						stock_level	1661481	249	2.20
						cust_report	9136727	1929	3.29
39	228607	28672	2334	36.5%	.356	new_order	24192883	2962	3.30
						payment	16685087	1163	4.05
						order_status	1668506	132	2.55
						delivery	1668507	2748	4.39
						stock_level	1668512	272	2.30
						cust_report	9177301	2046	4.36
40	226330	28672	2393	31.5%	.745	new_order	24045619	2994	3.29
						payment	16583027	1230	4.40
						order_status	1658301	147	3.30
						delivery	1658296	2793	4.40
						stock_level	1658304	267	3.29
						cust_report	9120451	2075	3.30
41	225575	28672	2454	44.7%	.802	new_order	23979416	3081	4.38
						payment	16537014	1248	3.55
						order_status	1653699	146	3.29
						delivery	1653696	2869	4.40
						stock_level	1653703	271	4.38
						cust_report	9094620	2109	4.38
42	225818	28672	2513	38.3%	.737	new_order	23988179	3184	4.38
						payment	16544213	1248	3.28
						order_status	1654421	152	3.28
						delivery	1654414	3010	4.40
						stock_level	1654417	276	3.28
						cust_report	9100228	2089	3.29
43	225242	28672	2571	46.5%	.078	new_order	23770456	3251	4.39
						payment	16394030	1289	4.39
						order_status	1639402	141	2.64
						delivery	1639395	2935	4.39
						stock_level	1639404	286	2.63
						cust_report	9017573	2225	4.39
44	224650	28672	2632	45.7%	.698	new_order	23854900	3321	4.38
						payment	16452289	1318	4.53
						order_status	1645227	157	2.20
						delivery	1645226	3127	4.39
						stock_level	1645228	295	4.06
						cust_report	9049714	2219	3.30
45	224844	28672	2690	44.4%	.282	new_order	23778430	3373	4.38
						payment	16398388	1352	5.78
						order_status	1639841	155	3.29
						delivery	1639838	3148	4.38
						stock_level	1639846	302	3.30
						cust_report	9018398	2309	4.39
46	225167	28672	2751	51.3%	.327	new_order	23821817	3499	4.40
						payment	16429267	1316	4.05
						order_status	1642931	154	2.60
						delivery	1642922	3263	4.38
						stock_level	1642928	287	3.29
						cust_report	9036705	2343	4.39
47	224070	28672	2810	52.7%	.853	new_order	23832818	3582	5.50
						payment	16434961	1411	4.60
						order_status	1643497	170	3.28
						delivery	1643489	3211	4.37
						stock_level	1643494	326	3.30
						cust_report	9037095	2445	4.39
48	223701	28672	2870	40.8%	.780	new_order	23771645	3611	4.39
						payment	16395987	1494	4.40
						order_status	1639596	161	3.30
						delivery	1639596	3381	4.37
						stock_level	1639597	303	3.27
						cust_report	9020346	2435	4.38
49	223669	28672	2929	42.7%	.730	new_order	23760505	3684	4.40
						payment	16385550	1412	4.37
						order_status	1638552	173	3.27
						delivery	1638548	3409	4.40
						stock_level	1638554	335	2.67
						cust_report	9010616	2503	4.40
50	223369	28672	2989	42.0%	.712	new_order	23718761	3821	4.39
						payment	16360693	1434	4.39
						order_status	1636071	189	3.30
						delivery	1636060	3433	4.38
						stock_level	1636069	326	4.36
						cust_report	9002624	2543	4.39
51	223985	28672	3048	43.1%	.028	new_order	23627997	3770	4.38
						payment	16294469	1600	4.70
						order_status	1629448	191	3.30
						delivery	1629438	3507	4.40
						stock_level	1629450	342	3.29
						cust_report	8960945	2599	4.38
52	223736	28672	3107	44.8%	.681	new_order	23754924	4003	4.39
						payment	16382475	1584	4.61
						order_status	1638246	199	4.40
						delivery	1638236	3639	4.41
						stock_level	1638242	330	4.40
						cust_report	9010022	2572	4.40
53	222836	28672	3168	41.8%	.746	new_order	23675637	3985	4.39
						payment	16327162	1585	5.20
						order_status	1632714	184	2.65
						delivery	1632703	3660	4.40
						stock_level	1632715	355	4.40
						cust_report	8978641	2675	4.38
54	222706	28672	3226	55.9%	.766	new_order	23668375	4039	4.39
						payment	16320964	1660	4.39
						order_status	1632097	201	4.34
						delivery	1632087	3676	4.40
						stock_level	1632096	370	4.39
						cust_report	8973498	2770	4.40
55	222319	28672	3287	44.8%	.625	new_order	23593163	4030	4.40
						payment	16269763	1667	4.40
						order_status	1626974	216	3.29
						delivery	1626961	3968	5.48
						stock_level	1626977	350	3.30
						cust_report	8946317	2774	4.40
56	222019	28672	3345	59.5%	.648	new_order	23565384	4226	4.39
						payment	16251410	1699	4.81
						order_status	1625143	206	3.30
						delivery	1625135	3905	4.41
						stock_level	1625145	391	4.52
						cust_report	8937471	2822	4.40
57	221861	28672	3404	63.8%	.770	new_order	23575578	4303	4.39
						payment	16259618	1761	5.13
						order_status	1625970	204	4.39
						delivery	1625957	3944	5.47
						stock_level	1625959	410	4.39
						cust_report	8943665	2869	4.39
58	221532	28672	3464	44.1%	.772	new_order	23543285	4297	5.48
						payment	16235743	1784	4.39
						order_status	1623575	225	3.34
						delivery	1623562	4127	4.40
						stock_level	1623581	377	4.38
						cust_report	8928211	2922	6.58
59	221241	28672	3524	65.2%	.517	new_order	23452487	4430	4.39
						payment	16173408	1784	5.19
						order_status	1617338	212	4.40
						delivery	1617327	4000	4.42
						stock_level	1617334	356	4.37
						cust_report	8894282	2870	4.41
60	221130	28672	3583	45.3%	.540	new_order	23444620	4356	4.41
						payment	16169128	1775	4.39
						order_status	1616914	241	4.39
						delivery	1616906	4085	4.39
						stock_level	1616909	352	3.30
						cust_report	8893617	2949	4.41
61	220855	28672	3644	59.5%	.737	new_order	23462401	4518	4.39
						payment	16180519	1830	4.39
						order_status	1618052	214	2.81
						delivery	1618050	4316	6.59
						stock_level	1618051	403	4.39
						cust_report	8898637	3178	4.41
62	220599	28672	3703	57.9%	.829	new_order	23456522	4474	4.41
						payment	16176583	1826	4.75
						order_status	1617660	235	4.39
						delivery	1617646	4232	4.45
						stock_level	1617653	424	4.40
						cust_report	8896607	3116	4.40
63	220431	28672	3761	62.0%	.733	new_order	23415810	4712	4.41
						payment	16148903	1916	5.07
						order_status	1614889	205	2.88
						delivery	1614887	4378	4.43
						stock_level	1614888	443	4.39
						cust_report	8881975	3215	4.41
64	219823	28672	3821	50.3%	.156	new_order	23215404	4588	4.40
						payment	16012087	1968	4.39
						order_status	1601201	244	2.91
						delivery	1601199	4528	5.48
						stock_level	1601203	442	4.38
						cust_report	8808759	3288	4.39
