SPECjbb2005 SPECjbb2005 bops = 80760, SPECjbb2005 bops/JVM = 80760
SGI Altix 4700 (64 Blade/128P DC)
BEA Systems BEA JRockit(R) 5.0 R27.4.0-90 (build R27.4.0-90-89592-1.5.0_12-20070928-1715-linux-ia64, compiled mode)

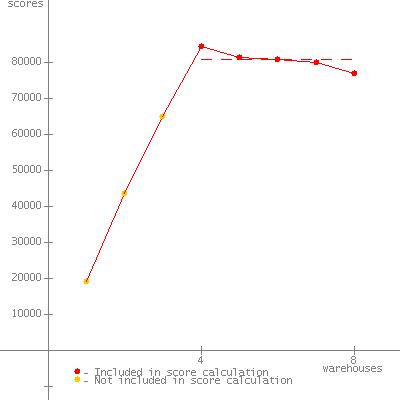

Warehouses SPECjbb2005 bops Incl. in metric
1 19284
2 43758
3 65095
4 84593 *
5 81477 *
6 80816 *
7 80051 *
8 76864 *
SPECjbb2005 (from 4 to 8) 80760 SPECjbb2005 bops
SPEC license # 4 Tested by: SGI Test date: Oct 26, 2007

Hardware
Hardware Vendor SGI
Vendor URL http://www.sgi.com
Model Altix 4700 (64 Blade/128P DC)
Processor DC Intel Itanium 9150 (24 MB/1.66 GHz/667 MHz bus)
MHz 1670
# of Chips 128
# of Cores 256
# of Cores/Chip 2
HW Threading Enabled? No
Procs Avail to Java 256
Memory (MB) 524288
Memory Details 1GB ECC DDR2 DIMMs (PC2-3200R) spread uniformly over 64 compute blades
Primary cache 16kBI + 16kBD on chip per core
Secondary cache 1024kBI + 256kBD on chip per core
Other cache 12MB (I+D) on chip per core
Filesystem xfs
Disks 1 x 146 GB SCSI (OS + classes)
Other hardware
Software
Software Vendor BEA Systems
Vendor URL http://www.bea.com
JVM Version BEA JRockit(R) 5.0 R27.4.0-90 (build R27.4.0-90-89592-1.5.0_12-20070928-1715-linux-ia64, compiled mode)
JVM Command Line numactl --cpunodebind=$node --localalloc java -Xms3600m -Xmx3600m -Xns2800m -Xgc:genpar -Xlargepages -XXaggressive -XXcallprofiling -XXgcthreads=4 -XXhpm -XXlazyUnlocking -XXthroughputCompaction -XXtlasize:min=16k,preferred=1m -cp jbb.jar:check.jar spec.jbb.JBBmain -propfile SPECjbb.props -id $id
JVM Initial Heap Memory (MB) 3600
JVM Maximum Heap Memory (MB) 3600
JVM Address bits 64
JVM CLASSPATH jbb.jar:
check.jar
JVM BOOTCLASSPATH /store/glohr/SPECjbb2005/jrockit-R27.4.0-jre1.5.0_12/lib/ia64/jrockit/jrockit1.5.0.jar:
/store/glohr/SPECjbb2005/jrockit-R27.4.0-jre1.5.0_12/lib/ia64/jrockit/jmapi.jar:
/store/glohr/SPECjbb2005/jrockit-R27.4.0-jre1.5.0_12/lib/ia64/jrockit/jmxmapi.jar:
/store/glohr/SPECjbb2005/jrockit-R27.4.0-jre1.5.0_12/lib/ia64/jrockit/rmp.jar:
/store/glohr/SPECjbb2005/jrockit-R27.4.0-jre1.5.0_12/lib/ia64/jrockit/latency.jar:
/store/glohr/SPECjbb2005/jrockit-R27.4.0-jre1.5.0_12/lib/rt.jar:
/store/glohr/SPECjbb2005/jrockit-R27.4.0-jre1.5.0_12/lib/i18n.jar:
/store/glohr/SPECjbb2005/jrockit-R27.4.0-jre1.5.0_12/lib/sunrsasign.jar:
/store/glohr/SPECjbb2005/jrockit-R27.4.0-jre1.5.0_12/lib/jsse.jar:
/store/glohr/SPECjbb2005/jrockit-R27.4.0-jre1.5.0_12/lib/jce.jar:
/store/glohr/SPECjbb2005/jrockit-R27.4.0-jre1.5.0_12/lib/charsets.jar:
/store/glohr/SPECjbb2005/jrockit-R27.4.0-jre1.5.0_12/classes
OS Version SuSE Linux Enterprise Server 10 SP1 (2.6.16.53-0.16-default)
Other software
Test Information
Tested by SGI
SPEC license # 4
Test location Mountain View, CA
Test date Oct 26, 2007
H/w available October-2007
JVM available October-2007
OS available October-2007
Other s/w available
AOT Compilation

Tuning
Operating system tunings
  • mount -t hugetlbfs nodev /mnt/hugepages
  • echo 1280 > /proc/sys/vm/nr_hugepages
Notes
Command line options are described at http://e-docs.bea.com/jrockit/jrdocs/refman/index.html
System configured to use one JVM per NUMA node (4 cores).

Details of Runs

Warehouses Thrput Total heap (MB) Thread spread % % > 120s transaction type Count Time (in seconds)
SizeUsed totalmax
1 19284 3600 2883 <0.01% <0.01 new_order 254468 12.6 .551
payment 175384 4.86 .013
order_status 17539 .536 .016
delivery 17538 3.86 .013
stock_level 17539 .641 .012
cust_report 96298 6.50 .012
2 43758 3600 2937 1.24% <0.01 new_order 577101 23.3 .100
payment 397903 10.2 .020
order_status 39791 .918 .012
delivery 39791 8.66 .014
stock_level 39791 1.30 .013
cust_report 218711 14.2 .080
3 65095 3600 3021 .989% <0.01 new_order 857690 34.6 .120
payment 591771 14.3 .080
order_status 59178 1.52 .080
delivery 59178 13.4 .120
stock_level 59178 1.94 .012
cust_report 325852 22.1 .040
4 84593 3600 3518 4.57% <0.01 new_order 8921624 373 .928
payment 6152557 160 .519
order_status 615255 17.1 .928
delivery 615255 139 .669
stock_level 615256 20.5 .229
cust_report 3383494 226 .928
5 81477 3600 3531 19.7% <0.01 new_order 8592617 467 2.10
payment 5925810 195 2.24
order_status 592580 20.3 .514
delivery 592579 179 1.96
stock_level 592578 28.1 .868
cust_report 3258993 283 2.60
6 80816 3600 3088 23.8% <0.01 new_order 8521189 589 2.56
payment 5877776 229 3.21
order_status 587781 22.1 .500
delivery 587777 214 1.27
stock_level 587779 31.3 .958
cust_report 3234376 322 1.95
7 80051 3600 3398 15.6% .295 new_order 8467585 700 2.67
payment 5839057 274 3.52
order_status 583906 25.1 .375
delivery 583905 248 1.17
stock_level 583907 33.4 .781
cust_report 3210552 378 3.37
8 76864 3600 3304 17.8% <0.01 new_order 8105470 816 5.93
payment 5590145 316 6.83
order_status 559015 33.6 4.63
delivery 559015 269 3.05
stock_level 559013 43.4 4.82
cust_report 3074793 405 6.13

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 21-Nov-2007
