SPECjbb2005 SPECjbb2005 bops = 81333, SPECjbb2005 bops/JVM = 81333
SGI Altix 4700 (64 Blade/128P DC)
BEA Systems BEA JRockit(R) 5.0 R27.4.0-90 (build R27.4.0-90-89592-1.5.0_12-20070928-1715-linux-ia64, compiled mode)

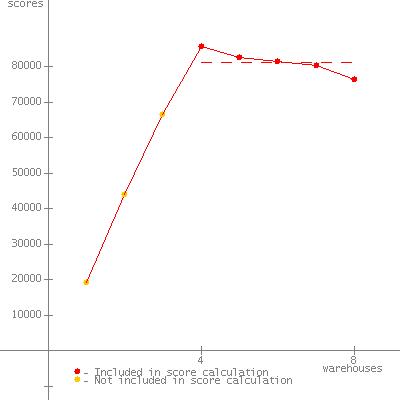

Warehouses SPECjbb2005 bops Incl. in metric
1 19156
2 43883
3 66677
4 85826 *
5 82658 *
6 81498 *
7 80325 *
8 76358 *
SPECjbb2005 (from 4 to 8) 81333 SPECjbb2005 bops
SPEC license # 4 Tested by: SGI Test date: Oct 26, 2007

Hardware
Hardware Vendor SGI
Vendor URL http://www.sgi.com
Model Altix 4700 (64 Blade/128P DC)
Processor DC Intel Itanium 9150 (24 MB/1.66 GHz/667 MHz bus)
MHz 1670
# of Chips 128
# of Cores 256
# of Cores/Chip 2
HW Threading Enabled? No
Procs Avail to Java 256
Memory (MB) 524288
Memory Details 1GB ECC DDR2 DIMMs (PC2-3200R) spread uniformly over 64 compute blades
Primary cache 16kBI + 16kBD on chip per core
Secondary cache 1024kBI + 256kBD on chip per core
Other cache 12MB (I+D) on chip per core
Filesystem xfs
Disks 1 x 146 GB SCSI (OS + classes)
Other hardware
Software
Software Vendor BEA Systems
Vendor URL http://www.bea.com
JVM Version BEA JRockit(R) 5.0 R27.4.0-90 (build R27.4.0-90-89592-1.5.0_12-20070928-1715-linux-ia64, compiled mode)
JVM Command Line numactl --cpunodebind=$node --localalloc java -Xms3600m -Xmx3600m -Xns2800m -Xgc:genpar -Xlargepages -XXaggressive -XXcallprofiling -XXgcthreads=4 -XXhpm -XXlazyUnlocking -XXthroughputCompaction -XXtlasize:min=16k,preferred=1m -cp jbb.jar:check.jar spec.jbb.JBBmain -propfile SPECjbb.props -id $id
JVM Initial Heap Memory (MB) 3600
JVM Maximum Heap Memory (MB) 3600
JVM Address bits 64
JVM CLASSPATH jbb.jar:
check.jar
JVM BOOTCLASSPATH /store/glohr/SPECjbb2005/jrockit-R27.4.0-jre1.5.0_12/lib/ia64/jrockit/jrockit1.5.0.jar:
/store/glohr/SPECjbb2005/jrockit-R27.4.0-jre1.5.0_12/lib/ia64/jrockit/jmapi.jar:
/store/glohr/SPECjbb2005/jrockit-R27.4.0-jre1.5.0_12/lib/ia64/jrockit/jmxmapi.jar:
/store/glohr/SPECjbb2005/jrockit-R27.4.0-jre1.5.0_12/lib/ia64/jrockit/rmp.jar:
/store/glohr/SPECjbb2005/jrockit-R27.4.0-jre1.5.0_12/lib/ia64/jrockit/latency.jar:
/store/glohr/SPECjbb2005/jrockit-R27.4.0-jre1.5.0_12/lib/rt.jar:
/store/glohr/SPECjbb2005/jrockit-R27.4.0-jre1.5.0_12/lib/i18n.jar:
/store/glohr/SPECjbb2005/jrockit-R27.4.0-jre1.5.0_12/lib/sunrsasign.jar:
/store/glohr/SPECjbb2005/jrockit-R27.4.0-jre1.5.0_12/lib/jsse.jar:
/store/glohr/SPECjbb2005/jrockit-R27.4.0-jre1.5.0_12/lib/jce.jar:
/store/glohr/SPECjbb2005/jrockit-R27.4.0-jre1.5.0_12/lib/charsets.jar:
/store/glohr/SPECjbb2005/jrockit-R27.4.0-jre1.5.0_12/classes
OS Version SuSE Linux Enterprise Server 10 SP1 (2.6.16.53-0.16-default)
Other software
Test Information
Tested by SGI
SPEC license # 4
Test location Mountain View, CA
Test date Oct 26, 2007
H/w available October-2007
JVM available October-2007
OS available October-2007
Other s/w available
AOT Compilation

Tuning
Operating system tunings
  • mount -t hugetlbfs nodev /mnt/hugepages
  • echo 1280 > /proc/sys/vm/nr_hugepages
Notes
Command line options are described at http://e-docs.bea.com/jrockit/jrdocs/refman/index.html
System configured to use one JVM per NUMA node (4 cores).

Details of Runs

Warehouses Thrput Total heap (MB) Thread spread % % > 120s transaction type Count Time (in seconds)
SizeUsed totalmax
1 19156 3600 2883 <0.01% <0.01 new_order 252449 12.7 .600
payment 174140 4.68 .016
order_status 17413 .585 .012
delivery 17415 4.09 .012
stock_level 17413 .706 .012
cust_report 95822 6.28 .015
2 43883 3600 2943 1.27% <0.01 new_order 578696 23.6 .140
payment 399042 9.83 .080
order_status 39905 .792 .012
delivery 39903 8.67 .014
stock_level 39904 1.30 .014
cust_report 219392 14.4 .140
3 66677 3600 3027 .611% <0.01 new_order 879241 35.0 .040
payment 606381 14.6 .052
order_status 60637 1.37 .017
delivery 60638 13.0 .060
stock_level 60637 2.19 .052
cust_report 333505 21.4 .052
4 85826 3600 3540 1.74% <0.01 new_order 9050993 379 .787
payment 6242230 151 .708
order_status 624223 16.8 .787
delivery 624221 145 .787
stock_level 624222 20.4 .600
cust_report 3433475 222 .771
5 82658 3600 3581 18.2% <0.01 new_order 8717292 481 2.42
payment 6011754 196 1.58
order_status 601177 21.2 1.87
delivery 601177 174 1.86
stock_level 601175 24.9 .626
cust_report 3306235 271 2.10
6 81498 3600 3142 29.4% <0.01 new_order 8593849 596 2.60
payment 5927363 233 2.10
order_status 592736 23.4 .600
delivery 592733 210 1.48
stock_level 592736 36.2 2.84
cust_report 3260847 317 2.83
7 80325 3600 1572 9.93% <0.01 new_order 8471983 719 2.81
payment 5842085 256 2.81
order_status 584210 28.7 .552
delivery 584209 247 1.06
stock_level 584209 36.7 1.12
cust_report 3212207 364 1.09
8 76358 3600 3334 13.6% .019 new_order 8054333 852 5.17
payment 5554372 280 6.04
order_status 555435 28.6 .508
delivery 555438 265 3.30
stock_level 555439 44.6 1.48
cust_report 3054395 414 3.46

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 21-Nov-2007
