SPECjbb2005 SPECjbb2005 bops = 664167, SPECjbb2005 bops/JVM = 83021
IBM Corporation IBM System p 570 (4.7 GHz, 16 core, RHEL)
IBM Corporation J2RE 1.6.0 (32-bit) IBM J9 2.4 Linux (build pxp3260-20071012_01)

JVM run JVM Scores
182256
282226
383580
481961
582331
683734
784158
883921
SPECjbb2005 bops = 664167, SPECjbb2005 bops/JVM = 83021

Hardware
Hardware Vendor IBM Corporation
Vendor URL http://www.ibm.com
Model IBM System p 570 (4.7 GHz, 16 core, RHEL)
Processor POWER6
MHz 4700
# of Chips 8
# of Cores 16
# of Cores/Chip 2
HW Threading Enabled? yes
Procs Avail to Java 32
Memory (MB) 131072
Memory Details 64 x 2GB DDR2
Primary cache 64KBI+64KBD on chip per core
Secondary cache 4MB on chip per core
Other cache 32MB off chip per chip
Filesystem ext3
Disks 2 x 73GB SAS
Other hardware
Software
Software Vendor IBM Corporation
Vendor URL http://www.ibm.com
JVM Version J2RE 1.6.0 (32-bit) IBM J9 2.4 Linux (build pxp3260-20071012_01)
JVM Command Line numactl --cpunodebind=node_number --localalloc -- -Xlp -Xgcpolicy:gencon -Xgcthreads4 -Xcompactgc -XlockReservation -Xnoloa -Xms2253m -Xmx2253m -Xmn1843m spec.jbb.JBBmain -propfile SPECjbb.props
JVM Initial Heap Memory (MB) 2253
JVM Maximum Heap Memory (MB) 2253
JVM Address bits 32
JVM CLASSPATH ./jbb.jar:
./check.jar:
JVM BOOTCLASSPATH /java/jre/lib/vm.jar:
/java/jre/lib/facilitators.jar:
/java/jre/lib/annotation.jar:
/java/jre/lib/beans.jar:
/java/jre/lib/java.util.jar:
/java/jre/lib/jndi.jar:
/java/jre/lib/logging.jar:
/java/jre/lib/security.jar:
/java/jre/lib/sql.jar:
/java/jre/lib/ibmorb.jar:
/java/jre/lib/ibmorbapi.jar:
/java/jre/lib/ibmcfw.jar:
/java/jre/lib/rt.jar:
/java/jre/lib/ibmclasses.jar:
/java/jre/lib/charsets.jar:
/java/jre/lib/resources.jar:
/java/jre/lib/ibmpkcs.jar:
/java/jre/lib/ibmcertpathfw.jar:
/java/jre/lib/ibmjgssfw.jar:
/java/jre/lib/ibmjssefw.jar:
/java/jre/lib/ibmsaslfw.jar:
/java/jre/lib/ibmjcefw.jar:
/java/jre/lib/ibmjgssprovider.jar:
/java/jre/lib/ibmjsseprovider2.jar:
/java/jre/lib/ibmcertpathprovider.jar:
/java/jre/lib/ibmxmlcrypto.jar:
/java/jre/lib/management-agent.jar:
/java/jre/lib/xml.jar:
/java/jre/lib/jlm.jar:
/java/jre/lib/javascript.jar:
/java/jre/lib/RACF.jar
OS Version Red Hat Enterprise Linux Advanced Platform 5.1 for IBM POWER (2.6.18-53.el5)
Other software
Test Information
Tested by IBM Corporation
SPEC license # 11
Test location Austin TX
Test date Oct 26, 2007
H/w available Jun-2007
JVM available Nov-2007
OS available Oct-2007
Other s/w available
AOT Compilation

Tuning
Operating system tunings
  • echo 2000 > /proc/sys/vm/nr_hugepages
  • echo 4000000000 > /proc/sys/kernel/shmmax
  • echo 500000 > /proc/sys/kernel/shmall
Notes

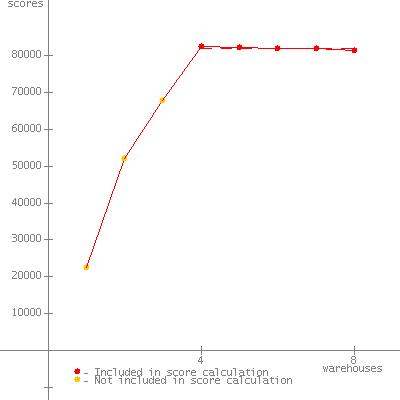

JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 23346
2 52753
3 68627
4 82532 *
5 82317 *
6 82171 *
7 81864 *
8 82397 *
SPECjbb2005 (from 4 to 8) 82256 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Oct 26, 2007

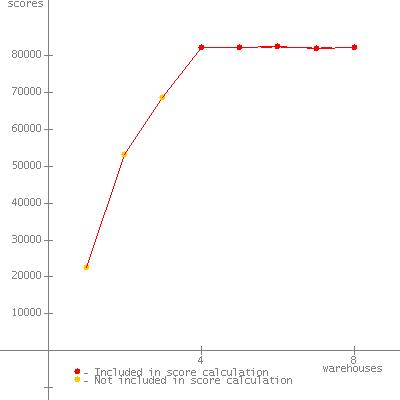

JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 22449
2 53026
3 67932
4 82371 *
5 82330 *
6 82102 *
7 82167 *
8 82158 *
SPECjbb2005 (from 4 to 8) 82226 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Oct 26, 2007


JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 24393
2 55427
3 70024
4 84005 *
5 83789 *
6 83578 *
7 83486 *
8 83040 *
SPECjbb2005 (from 4 to 8) 83580 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Oct 26, 2007


JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 22562
2 52171
3 67728
4 82507 *
5 82127 *
6 81886 *
7 81893 *
8 81391 *
SPECjbb2005 (from 4 to 8) 81961 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Oct 26, 2007


JVM 5 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 22682
2 53162
3 68768
4 82300 *
5 82309 *
6 82660 *
7 81993 *
8 82392 *
SPECjbb2005 (from 4 to 8) 82331 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Oct 26, 2007


JVM 6 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 24814
2 55662
3 69937
4 83973 *
5 83772 *
6 83476 *
7 83839 *
8 83611 *
SPECjbb2005 (from 4 to 8) 83734 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Oct 26, 2007


JVM 7 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 24307
2 54796
3 71042
4 84722 *
5 84441 *
6 84130 *
7 83847 *
8 83649 *
SPECjbb2005 (from 4 to 8) 84158 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Oct 26, 2007


JVM 8 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 24691
2 55879
3 69816
4 84430 *
5 84004 *
6 83872 *
7 84027 *
8 83273 *
SPECjbb2005 (from 4 to 8) 83921 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Oct 26, 2007

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 21-Nov-2007
