SPECjbb2005 SPECjbb2005 bops = 568283, SPECjbb2005 bops/JVM = 284142
Cisco Systems Cisco UCS B200 M1
Oracle Corporation Oracle JRockit (R) 6 P28.0.0 (build P28.0.0-29-114096-1.6.0_11-20090427-1759-windows-x86_64, compiled mode)

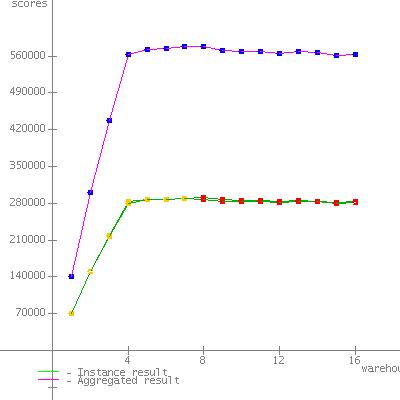

JVM run JVM Scores
1285202
2283081
SPECjbb2005 bops = 568283, SPECjbb2005 bops/JVM = 284142

Hardware
Hardware Vendor Cisco Systems
Vendor URL http://www.cisco.com
Model Cisco UCS B200 M1
Processor Intel Xeon X5570 (Intel Turbo Boost Technology up to 3.33 GHz)
MHz 2930
# of Chips 2
# of Cores 8
# of Cores/Chip 4
HW Threading Enabled? yes
Procs Avail to Java 16
Memory (MB) 24576
Memory Details 6 0f 12 DIMM slots filled with 4GB DDR3 1333MHz memory
Primary cache 32KB(I) + 32KB(D) on chip, per core
Secondary cache 256KB(I+D) on chip, per core
Other cache 8MB(I+D) on chip, per chip
Filesystem NTFS
Disks 1 x 73GB 15K RPM SAS
Other hardware Cisco UCS 6120XP 20 Port Fabric Interconnect, Cisco UCS 5108 Series Blade Server Chassis, Cisco UCS 2104XP Fabric Extender
Software
Software Vendor Oracle Corporation
Vendor URL http://www.oracle.com
JVM Version Oracle JRockit (R) 6 P28.0.0 (build P28.0.0-29-114096-1.6.0_11-20090427-1759-windows-x86_64, compiled mode)
JVM Command Line java /AFFINITY [FF, FF00] /REALTIME -Xms3900m -Xmx3900m -Xns3260m -XXaggressive -Xlargepages:exitOnFailure=true -Xgc:genpar -XXgcthreads:8 -XXcallprofiling -XXtlasize:min=4k,preferred=1024k spec.jbb.JBBmain -propfile SPECjbb-UCS-B200-M1-dX5570.props
JVM Initial Heap Memory (MB) 3900
JVM Maximum Heap Memory (MB) 3900
JVM Address bits 64
JVM CLASSPATH jbb.jar;
check.jar
JVM BOOTCLASSPATH C:\Program Files\Java\jrockit-jdk1.6.0_11\jre\bin\jrockit\jrockit1.6.0.jar;
C:\Program Files\Java\jrockit-jdk1.6.0_11\jre\bin\jrockit\jmapi.jar;
C:\Program Files\Java\jrockit-jdk1.6.0_11\jre\bin\jrockit\jmxmapi.jar;
C:\Program Files\Java\jrockit-jdk1.6.0_11\jre\bin\jrockit\rmp.jar;
C:\Program Files\Java\jrockit-jdk1.6.0_11\jre\bin\jrockit\latency.jar;
C:\Program Files\Java\jrockit-jdk1.6.0_11\jre\lib\resources.jar;
C:\Program Files\Java\jrockit-jdk1.6.0_11\jre\lib\rt.jar;
C:\Program Files\Java\jrockit-jdk1.6.0_11\jre\lib\sunrsasign.jar;
C:\Program Files\Java\jrockit-jdk1.6.0_11\jre\lib\jsse.jar;
C:\Program Files\Java\jrockit-jdk1.6.0_11\jre\lib\jce.jar;
C:\Program Files\Java\jrockit-jdk1.6.0_11\jre\lib\charsets.jar;
C:\Program Files\Java\jrockit-jdk1.6.0_11\jre\classes
OS Version Microsoft Windows Server 2008 Enterprise Edition x64
Other software None
Test Information
Tested by Cisco Systems
SPEC license # 9019
Test location San Jose, CA
Test date May 18, 2009
H/w available June-2009
JVM available May-2009
OS available Feb-2008
Other s/w available N/A
AOT Compilation

Tuning
  • Disabled "Hardware Prefetcher" in BIOS.
  • Disabled "Adjacent Cache Line Prefetch" in BIOS.
  • "Lock pages in memory" enabled for benchmark user.
  • Each JVM instance was affinitized to the cores of a chip.
Notes
Command line options are described at: http://download.oracle.com/docs/cd/E13150_01/jrockit_jvm/jrockit/jrdocs/refman/intro.html

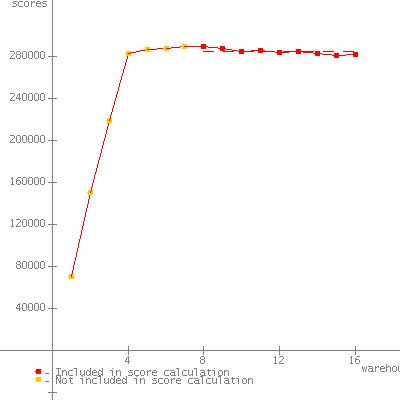

JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 70555
2 150799
3 219063
4 283360
5 286630
6 287655
7 290154
8 290277 *
9 287895 *
10 285444 *
11 286264 *
12 284300 *
13 285285 *
14 283015 *
15 281650 *
16 282687 *
SPECjbb2005 (from 8 to 16) 285202 SPECjbb2005 bops
SPEC license # 9019 Tested by: Cisco Systems Test date: May 18, 2009


JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 70141
2 150619
3 217717
4 280396
5 286609
6 286954
7 288620
8 288116 *
9 283627 *
10 283701 *
11 283429 *
12 281338 *
13 283088 *
14 283523 *
15 279903 *
16 281002 *
SPECjbb2005 (from 8 to 16) 283081 SPECjbb2005 bops
SPEC license # 9019 Tested by: Cisco Systems Test date: May 18, 2009

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 08-Jun-2009
