SPECjbb

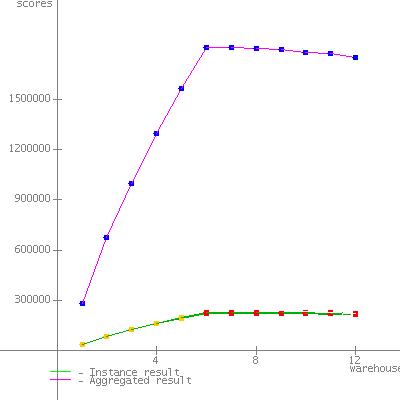

SPECjbb2005		SPECjbb2005 bops = 1791231, SPECjbb2005 bops/JVM = 223904
Dell Inc. PowerEdge R815 (AMD Opteron 6174, 2.20 GHz)
IBM Corporation IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa64 60sr5-20090519_35743 (JIT enabled, AOT enabled)

JVM run JVM Scores

1 226893

2 224397

3 221905

4 224553

5 223596

6 224164

7 220734

8 224989

SPECjbb2005 bops = 1791231, SPECjbb2005 bops/JVM = 223904

Hardware

Hardware Vendor Dell Inc.

Vendor URL http://www.dell.com

Model PowerEdge R815 (AMD Opteron 6174, 2.20 GHz)

Processor AMD Opteron 6174

MHz 2200

# of Chips 4

# of Cores 48

# of Cores/Chip 12

HW Threading Enabled? No

Procs Avail to Java 48

Memory (MB) 131072

Memory Details 32 x 4 GB DDR3-1333 DR RDIMM

Primary cache 64 KB I + 64 KB D on chip per core

Secondary cache 512 KB I+D on chip per core

Other cache 10 MB I+D L3 on chip per chip

Filesystem NTFS

Disks 1 x 50 GB SSD SATA

Other hardware N/A

Software

Software Vendor IBM Corporation

Vendor URL http://www.ibm.com

JVM Version IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa64 60sr5-20090519_35743 (JIT enabled, AOT enabled)

JVM Command Line start /HIGH /affinity [3F,FC0,3F000,FC0000,3F000000,FC0000000,3F000000000,FC0000000000] Java -Xmn1400m -Xms1875m -Xmx1875m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp spec.jbb.JBBmain -propfile SPECjbb.props

JVM Initial Heap Memory (MB) 1875

JVM Maximum Heap Memory (MB) 1875

JVM Address bits 64

JVM CLASSPATH .\jbb.jar;
.\check.jar;

JVM BOOTCLASSPATH c:\specjbb2005\jvm\jre\bin\compressedrefs\jclSC160\vm.jar;
c:\specjbb2005\jvm\jre\lib\annotation.jar;
c:\specjbb2005\jvm\jre\lib\beans.jar;
c:\specjbb2005\jvm\jre\lib\java.util.jar;
c:\specjbb2005\jvm\jre\lib\jndi.jar;
c:\specjbb2005\jvm\jre\lib\logging.jar;
c:\specjbb2005\jvm\jre\lib\security.jar;
c:\specjbb2005\jvm\jre\lib\sql.jar;
c:\specjbb2005\jvm\jre\lib\ibmorb.jar;
c:\specjbb2005\jvm\jre\lib\ibmorbapi.jar;
c:\specjbb2005\jvm\jre\lib\ibmcfw.jar;
c:\specjbb2005\jvm\jre\lib\rt.jar;
c:\specjbb2005\jvm\jre\lib\charsets.jar;
c:\specjbb2005\jvm\jre\lib\resources.jar;
c:\specjbb2005\jvm\jre\lib\ibmpkcs.jar;
c:\specjbb2005\jvm\jre\lib\ibmcertpathfw.jar;
c:\specjbb2005\jvm\jre\lib\ibmjgssfw.jar;
c:\specjbb2005\jvm\jre\lib\ibmjssefw.jar;
c:\specjbb2005\jvm\jre\lib\ibmsaslfw.jar;
c:\specjbb2005\jvm\jre\lib\ibmjcefw.jar;
c:\specjbb2005\jvm\jre\lib\ibmjgssprovider.jar;
c:\specjbb2005\jvm\jre\lib\ibmjsseprovider2.jar;
c:\specjbb2005\jvm\jre\lib\ibmcertpathprovider.jar;
c:\specjbb2005\jvm\jre\lib\ibmxmlcrypto.jar;
c:\specjbb2005\jvm\jre\lib\management-agent.jar;
c:\specjbb2005\jvm\jre\lib\xml.jar;
c:\specjbb2005\jvm\jre\lib\jlm.jar;
c:\specjbb2005\jvm\jre\lib\javascript.jar

OS Version Microsoft Windows Server 2008 R2 Enterprise Edition

Other software N/A

Test Information

Tested by Dell Inc.

SPEC license # 55

Test location Round Rock, TX

Test date Feb 19, 2010

H/w available Mar-2010

JVM available Jul-2009

OS available Oct-2009

Other s/w available N/A

AOT Compilation

N/A

Tuning

Disabled 'Hardware Prefetcher' in BIOS
Disabled 'DRAM Prefetcher' in BIOS
Disabled 'Hardware Prefetch training on Software Prefetch' in BIOS
'Power Management' set to 'Maximum Performance' in BIOS
'Lock pages in memory' enabled for benchmark user
Each JVM instance was affinitized to 6 cores

Notes

Command line options are described at:http://publib.boulder.ibm.com/infocenter/javasdk/v6r0/index.jsp

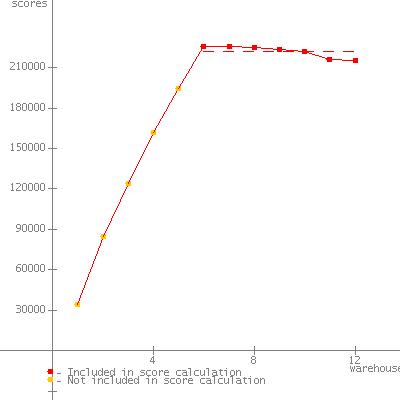

JVM 1 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	35986
2	84717
3	125790
4	164221
5	196543
6	228301	*
7	229396	*
8	228480	*
9	227090	*
10	226336	*
11	224724	*
12	223922	*
SPECjbb2005	(from 6 to 12)	226893 SPECjbb2005 bops

SPEC license # 55

Tested by: Dell Inc.

Test date: Feb 19, 2010

JVM 2 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	36049
2	84688
3	125157
4	161830
5	195294
6	228628	*
7	226210	*
8	225407	*
9	224149	*
10	223319	*
11	222879	*
12	220186	*
SPECjbb2005	(from 6 to 12)	224397 SPECjbb2005 bops

SPEC license # 55

Tested by: Dell Inc.

Test date: Feb 19, 2010

JVM 3 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	34113
2	84652
3	124008
4	161758
5	194918
6	225624	*
7	225969	*
8	224662	*
9	223676	*
10	221993	*
11	215907	*
12	215504	*
SPECjbb2005	(from 6 to 12)	221905 SPECjbb2005 bops

SPEC license # 55

Tested by: Dell Inc.

Test date: Feb 19, 2010

JVM 4 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	36003
2	84201
3	125182
4	162508
5	196759
6	227755	*
7	227624	*
8	225956	*
9	225256	*
10	223758	*
11	223550	*
12	217974	*
SPECjbb2005	(from 6 to 12)	224553 SPECjbb2005 bops

SPEC license # 55

Tested by: Dell Inc.

Test date: Feb 19, 2010

JVM 5 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	33976
2	84532
3	124055
4	161567
5	196618
6	227640	*
7	225295	*
8	224115	*
9	223111	*
10	222023	*
11	222512	*
12	220477	*
SPECjbb2005	(from 6 to 12)	223596 SPECjbb2005 bops

SPEC license # 55

Tested by: Dell Inc.

Test date: Feb 19, 2010

JVM 6 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	34956
2	84482
3	125128
4	161749
5	195756
6	226002	*
7	227539	*
8	226789	*
9	225042	*
10	224034	*
11	223538	*
12	216202	*
SPECjbb2005	(from 6 to 12)	224164 SPECjbb2005 bops

SPEC license # 55

Tested by: Dell Inc.

Test date: Feb 19, 2010

JVM 7 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	34363
2	83335
3	123440
4	161220
5	193549
6	224247	*
7	223441	*
8	219591	*
9	222082	*
10	218952	*
11	220448	*
12	216378	*
SPECjbb2005	(from 6 to 12)	220734 SPECjbb2005 bops

SPEC license # 55

Tested by: Dell Inc.

Test date: Feb 19, 2010

JVM 8 Scores:


Warehouses	SPECjbb2005 bops	Incl. in metric
1	35235
2	84496
3	125689
4	163894
5	195668
6	225596	*
7	227704	*
8	227240	*
9	227043	*
10	222566	*
11	222588	*
12	222185	*
SPECjbb2005	(from 6 to 12)	224989 SPECjbb2005 bops

SPEC license # 55

Tested by: Dell Inc.

Test date: Feb 19, 2010
