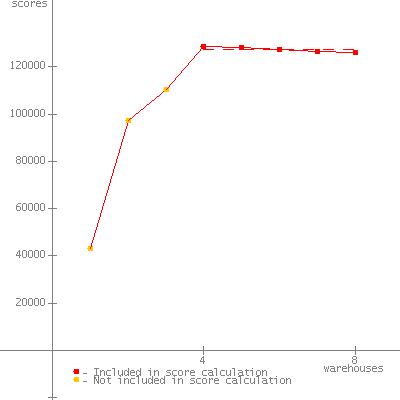

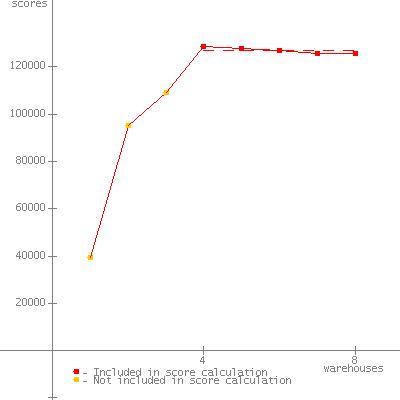

JVM run JVM Scores 1 126926 2 127423 3 127403 4 126800 5 124122 6 127148 7 127640 8 127798 SPECjbb2005 bops = 1015260, SPECjbb2005 bops/JVM = 126908

Hardware Hardware Vendor IBM Corporation Vendor URL http://www.ibm.com Model IBM System x3690 X5 Processor Intel Xeon X7560 (Intel Turbo Boost Technology up to 2.666GHz) MHz 2266 # of Chips 2 # of Cores 16 # of Cores/Chip 8 HW Threading Enabled? Yes Procs Avail to Java 32 Memory (MB) 131072 Memory Details 32 x 4 GB 4Rx8 PC3-8500R, all slots populated Primary cache 32KB I+32KB D on chip per core Secondary cache 256KB (I+D) on chip per core Other cache 24MB (I+D) on chip per chip Filesystem NTFS Disks 1 x 73GB 15K rpm SAS Other hardware None

Software Software Vendor IBM Corporation Vendor URL http://www.ibm.com JVM Version IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr5-20090519_35743 (JIT enabled, AOT enabled) JVM Command Line start /AFFINITY %HEX% java -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1400m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp spec.jbb.JBBmain -propfile SPECjbb.props JVM Initial Heap Memory (MB) 1875 JVM Maximum Heap Memory (MB) 1875 JVM Address bits 64 JVM CLASSPATH .\jbb.jar; .\check.jar; JVM BOOTCLASSPATH C:\Program Files\IBM\Java60\jre\bin\compressedrefs\jclSC160\vm.jar; C:\Program Files\IBM\Java60\jre\lib\annotation.jar; C:\Program Files\IBM\Java60\jre\lib\beans.jar; C:\Program Files\IBM\Java60\jre\lib\java.util.jar; C:\Program Files\IBM\Java60\jre\lib\jndi.jar; C:\Program Files\IBM\Java60\jre\lib\logging.jar; C:\Program Files\IBM\Java60\jre\lib\security.jar; C:\Program Files\IBM\Java60\jre\lib\sql.jar; C:\Program Files\IBM\Java60\jre\lib\ibmorb.jar; C:\Program Files\IBM\Java60\jre\lib\ibmorbapi.jar; C:\Program Files\IBM\Java60\jre\lib\ibmcfw.jar; C:\Program Files\IBM\Java60\jre\lib\rt.jar; C:\Program Files\IBM\Java60\jre\lib\charsets.jar; C:\Program Files\IBM\Java60\jre\lib\resources.jar; C:\Program Files\IBM\Java60\jre\lib\ibmpkcs.jar; C:\Program Files\IBM\Java60\jre\lib\ibmcertpathfw.jar; C:\Program Files\IBM\Java60\jre\lib\ibmjgssfw.jar; C:\Program Files\IBM\Java60\jre\lib\ibmjssefw.jar; C:\Program Files\IBM\Java60\jre\lib\ibmsaslfw.jar; C:\Program Files\IBM\Java60\jre\lib\ibmjcefw.jar; C:\Program Files\IBM\Java60\jre\lib\ibmjgssprovider.jar; C:\Program Files\IBM\Java60\jre\lib\ibmjsseprovider2.jar; C:\Program Files\IBM\Java60\jre\lib\ibmcertpathprovider.jar; C:\Program Files\IBM\Java60\jre\lib\ibmxmlcrypto.jar; C:\Program Files\IBM\Java60\jre\lib\management-agent.jar; C:\Program Files\IBM\Java60\jre\lib\xml.jar; C:\Program Files\IBM\Java60\jre\lib\jlm.jar; C:\Program Files\IBM\Java60\jre\lib\javascript.jar OS Version Microsoft Windows Server 2008 R2 Enterprise x64 Other software

Test Information Tested by IBM Corporation SPEC license # 11 Test location RTP, NC Test date Jun 16, 2010 H/w available Aug-2010 JVM available Jun-2009 OS available Oct-2009 Other s/w available

AOT Compilation   Tuning Operating system tunings Affinity Masks set to 0xf, 0xf0, 0xf00, 0xf000, 0xf0000, 0xf00000, 0xf000000, 0xf0000000 Lock Pages in memory enabled under Local Security Policies BIOS Settings Operating Mode set to Custom Mode Turbo Mode Enabled Turbo Boost Power set to Traditional Processor Data Prefetch Disabled Notes
