SPECjbb2005 SPECjbb2005 bops = 1977925, SPECjbb2005 bops/JVM = 123620
IBM Corporation IBM BladeCenter HX5
IBM Corporation IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr5-20090519_35743 (JIT enabled, AOT enabled)

JVM run JVM Scores
1124062
2125283
3122695
4123412
5121680
6122586
7124899
8123705
9123671
10124448
11122538
12124366
13124040
14122631
15124083
16123826
SPECjbb2005 bops = 1977925, SPECjbb2005 bops/JVM = 123620

Hardware
Hardware Vendor IBM Corporation
Vendor URL http://www.ibm.com
Model IBM BladeCenter HX5
Processor Intel Xeon X7560 (Intel Turbo Boost Technology up to 2.666GHz)
MHz 2266
# of Chips 4
# of Cores 32
# of Cores/Chip 8
HW Threading Enabled? Yes
Procs Avail to Java 64
Memory (MB) 262144
Memory Details 32 x 8 GB 4Rx8 PC3-8500R, all slots populated
Primary cache 32KB I+32KB D on chip per core
Secondary cache 256KB (I+D) on chip per core
Other cache 24MB (I+D) on chip per chip
Filesystem NTFS
Disks 1 x 50 GB SATA SSD
Other hardware IBM BladeCenter H
Software
Software Vendor IBM Corporation
Vendor URL http://www.ibm.com
JVM Version IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr5-20090519_35743 (JIT enabled, AOT enabled)
JVM Command Line start /AFFINITY %HEX% java -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1400m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp spec.jbb.JBBmain -propfile SPECjbb.props
JVM Initial Heap Memory (MB) 1875
JVM Maximum Heap Memory (MB) 1875
JVM Address bits 64
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH C:\Program Files\IBM\Java60\jre\bin\compressedrefs\jclSC160\vm.jar;
C:\Program Files\IBM\Java60\jre\lib\annotation.jar;
C:\Program Files\IBM\Java60\jre\lib\beans.jar;
C:\Program Files\IBM\Java60\jre\lib\java.util.jar;
C:\Program Files\IBM\Java60\jre\lib\jndi.jar;
C:\Program Files\IBM\Java60\jre\lib\logging.jar;
C:\Program Files\IBM\Java60\jre\lib\security.jar;
C:\Program Files\IBM\Java60\jre\lib\sql.jar;
C:\Program Files\IBM\Java60\jre\lib\ibmorb.jar;
C:\Program Files\IBM\Java60\jre\lib\ibmorbapi.jar;
C:\Program Files\IBM\Java60\jre\lib\ibmcfw.jar;
C:\Program Files\IBM\Java60\jre\lib\rt.jar;
C:\Program Files\IBM\Java60\jre\lib\charsets.jar;
C:\Program Files\IBM\Java60\jre\lib\resources.jar;
C:\Program Files\IBM\Java60\jre\lib\ibmpkcs.jar;
C:\Program Files\IBM\Java60\jre\lib\ibmcertpathfw.jar;
C:\Program Files\IBM\Java60\jre\lib\ibmjgssfw.jar;
C:\Program Files\IBM\Java60\jre\lib\ibmjssefw.jar;
C:\Program Files\IBM\Java60\jre\lib\ibmsaslfw.jar;
C:\Program Files\IBM\Java60\jre\lib\ibmjcefw.jar;
C:\Program Files\IBM\Java60\jre\lib\ibmjgssprovider.jar;
C:\Program Files\IBM\Java60\jre\lib\ibmjsseprovider2.jar;
C:\Program Files\IBM\Java60\jre\lib\ibmcertpathprovider.jar;
C:\Program Files\IBM\Java60\jre\lib\ibmxmlcrypto.jar;
C:\Program Files\IBM\Java60\jre\lib\management-agent.jar;
C:\Program Files\IBM\Java60\jre\lib\xml.jar;
C:\Program Files\IBM\Java60\jre\lib\jlm.jar;
C:\Program Files\IBM\Java60\jre\lib\javascript.jar
OS Version Microsoft Windows Server 2008 R2 Enterprise x64
Other software
Test Information
Tested by IBM Corporation
SPEC license # 11
Test location RTP, NC
Test date Jun 24, 2010
H/w available Oct-2010
JVM available Jun-2009
OS available Oct-2009
Other s/w available
AOT Compilation

Tuning
Operating system tunings
  • Affinity Masks set to 0xf, 0xf0, 0xf00, 0xf000, 0xf0000, 0xf00000, 0xf000000, 0xf0000000, 0xf00000000, 0xf000000000, 0xf0000000000, 0xf00000000000, 0xf000000000000, 0xf0000000000000, 0xf00000000000000, 0xf000000000000000
  • Lock Pages in memory enabled under Local Security Policies
BIOS Settings
  • Operating Mode set to Custom Mode
  • Turbo Mode Enabled
  • Turbo Boost Power set to Traditional
  • Processor Data Prefetch Disabled
Notes
Command line options are described at: http://publib.boulder.ibm.com/infocenter/javasdk/v6r0/index.jsp

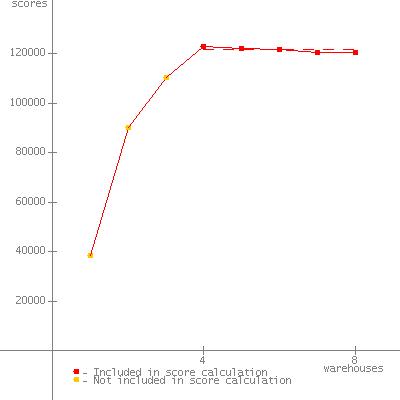

JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 40697
2 95738
3 107578
4 125154 *
5 124902 *
6 124307 *
7 123265 *
8 122682 *
SPECjbb2005 (from 4 to 8) 124062 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jun 24, 2010

JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 40713
2 94900
3 109459
4 126636 *
5 125638 *
6 125576 *
7 124824 *
8 123738 *
SPECjbb2005 (from 4 to 8) 125283 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jun 24, 2010

JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 39631
2 93331
3 108135
4 123871 *
5 123429 *
6 123052 *
7 120998 *
8 122122 *
SPECjbb2005 (from 4 to 8) 122695 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jun 24, 2010

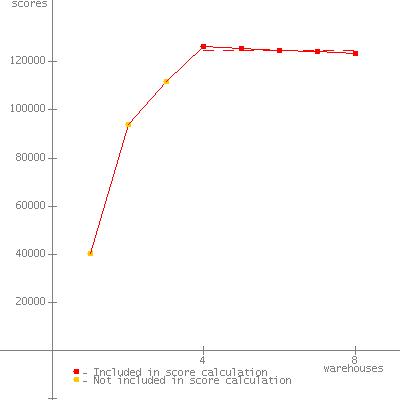

JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 42144
2 94972
3 111262
4 124335 *
5 124403 *
6 123496 *
7 122951 *
8 121876 *
SPECjbb2005 (from 4 to 8) 123412 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jun 24, 2010

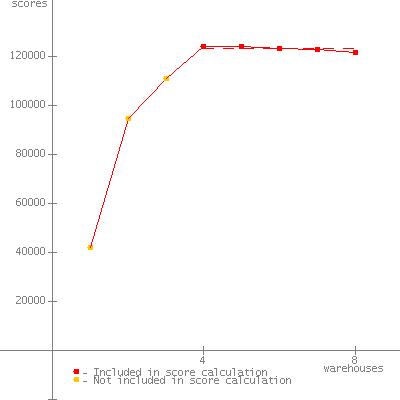

JVM 5 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 38462
2 90207
3 110376
4 123124 *
5 122294 *
6 121927 *
7 120663 *
8 120392 *
SPECjbb2005 (from 4 to 8) 121680 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jun 24, 2010

JVM 6 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 39199
2 90352
3 106902
4 123308 *
5 123463 *
6 122787 *
7 122218 *
8 121155 *
SPECjbb2005 (from 4 to 8) 122586 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jun 24, 2010

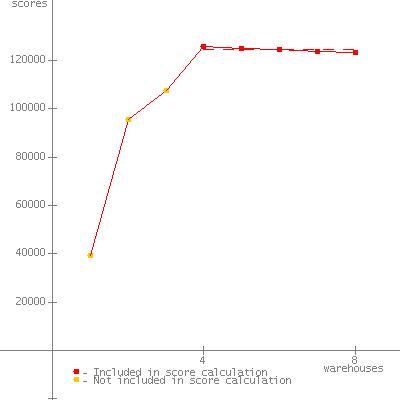

JVM 7 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 40410
2 93801
3 111672
4 126514 *
5 125390 *
6 124748 *
7 124328 *
8 123515 *
SPECjbb2005 (from 4 to 8) 124899 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jun 24, 2010

JVM 8 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 39159
2 92807
3 107713
4 124886 *
5 124628 *
6 123550 *
7 123103 *
8 122357 *
SPECjbb2005 (from 4 to 8) 123705 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jun 24, 2010

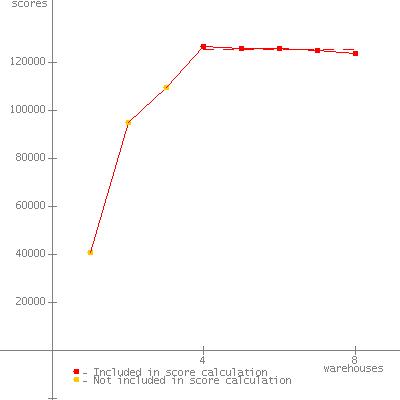

JVM 9 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 38458
2 91303
3 106710
4 124645 *
5 124678 *
6 124128 *
7 122973 *
8 121929 *
SPECjbb2005 (from 4 to 8) 123671 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jun 24, 2010

JVM 10 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 39455
2 95708
3 107720
4 125889 *
5 124855 *
6 124538 *
7 123544 *
8 123415 *
SPECjbb2005 (from 4 to 8) 124448 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jun 24, 2010

JVM 11 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 39124
2 93030
3 105550
4 122726 *
5 123481 *
6 122890 *
7 121908 *
8 121686 *
SPECjbb2005 (from 4 to 8) 122538 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jun 24, 2010

JVM 12 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 39833
2 94620
3 104189
4 125767 *
5 124880 *
6 124437 *
7 123804 *
8 122939 *
SPECjbb2005 (from 4 to 8) 124366 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jun 24, 2010

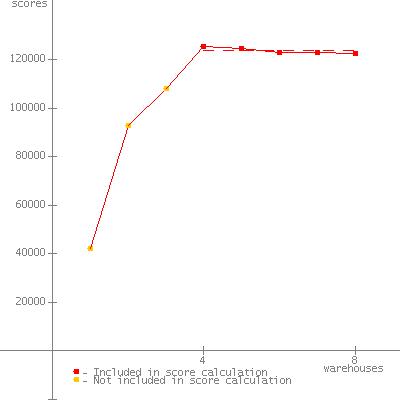

JVM 13 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 39550
2 93839
3 111471
4 125255 *
5 124663 *
6 124325 *
7 123465 *
8 122492 *
SPECjbb2005 (from 4 to 8) 124040 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jun 24, 2010

JVM 14 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 41474
2 94260
3 106550
4 123753 *
5 123261 *
6 122629 *
7 122091 *
8 121423 *
SPECjbb2005 (from 4 to 8) 122631 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jun 24, 2010

JVM 15 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 39038
2 91039
3 107583
4 125441 *
5 125263 *
6 123956 *
7 123302 *
8 122454 *
SPECjbb2005 (from 4 to 8) 124083 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jun 24, 2010

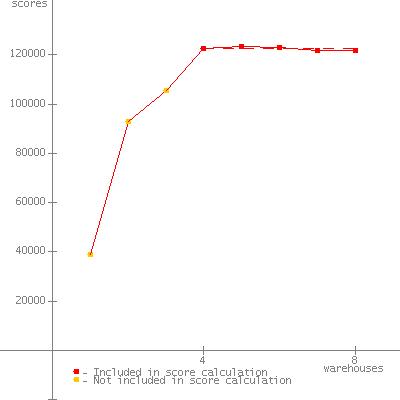

JVM 16 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 42237
2 92842
3 108412
4 125690 *
5 124642 *
6 123146 *
7 122957 *
8 122694 *
SPECjbb2005 (from 4 to 8) 123826 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Jun 24, 2010
SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 25-Aug-2010
