SPECjbb2005 SPECjbb2005 bops = 1511987, SPECjbb2005 bops/JVM = 188998
IBM Corporation IBM System x iDataPlex Server dx360 M4 (Intel Xeon E5-2680, 2.7GHz)
IBM Corporation IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120204_101769 (JIT enabled, AOT enabled)

JVM run JVM Scores
1189929
2188158
3187974
4189207
5188485
6187959
7189154
8191121
SPECjbb2005 bops = 1511987, SPECjbb2005 bops/JVM = 188998

Hardware
Hardware Vendor IBM Corporation
Vendor URL http://www.ibm.com
Model IBM System x iDataPlex Server dx360 M4 (Intel Xeon E5-2680, 2.7GHz)
Processor Intel Xeon E5-2680 (Intel Turbo Boost Technology up to 3.5 GHz)
MHz 2700
# of Chips 2
# of Cores 16
# of Cores/Chip 8
HW Threading Enabled? Yes
Procs Avail to Java 32
Memory (MB) 65536
Memory Details 16 x 4 GB 2Rx8 PC3-12800R-11, ECC; slot 1 - 16 populated
Primary cache 32 KB I + 32 KB D on chip per core
Secondary cache 256 KB I+D on chip per core
Other cache 20 MB I+D on chip per chip
Filesystem NTFS
Disks 1 x 200 GB SATA SSD, IBM P/N: 43W7742
Other hardware
Software
Software Vendor IBM Corporation
Vendor URL http://www.ibm.com
JVM Version IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120204_101769 (JIT enabled, AOT enabled)
JVM Command Line -Xaggressive -Xcompressedrefs -Xmn1400m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0
JVM Initial Heap Memory (MB) 1875
JVM Maximum Heap Memory (MB) 1875
JVM Address bits 64
JVM CLASSPATH .\jbb.jar;
.\check.jar;
JVM BOOTCLASSPATH C:\IBM\Java7\jre\bin\compressedrefs\jclSC170\vm.jar;
C:\IBM\Java7\jre\lib\se-service.jar;
C:\IBM\Java7\jre\lib\math.jar;
C:\IBM\Java7\jre\lib\jlm.jar;
C:\IBM\Java7\jre\lib\ibmorb.jar;
C:\IBM\Java7\jre\lib\ibmorbapi.jar;
C:\IBM\Java7\jre\lib\ibmcfw.jar;
C:\IBM\Java7\jre\lib\ibmpkcs.jar;
C:\IBM\Java7\jre\lib\ibmcertpathfw.jar;
C:\IBM\Java7\jre\lib\ibmjgssfw.jar;
C:\IBM\Java7\jre\lib\ibmjssefw.jar;
C:\IBM\Java7\jre\lib\ibmsaslfw.jar;
C:\IBM\Java7\jre\lib\ibmjcefw.jar;
C:\IBM\Java7\jre\lib\ibmjgssprovider.jar;
C:\IBM\Java7\jre\lib\ibmjsseprovider2.jar;
C:\IBM\Java7\jre\lib\ibmcertpathprovider.jar;
C:\IBM\Java7\jre\lib\xmldsigfw.jar;
C:\IBM\Java7\jre\lib\xml.jar;
C:\IBM\Java7\jre\lib\charsets.jar;
C:\IBM\Java7\jre\lib\resources.jar;
C:\IBM\Java7\jre\lib\rt.jar
OS Version Microsoft Windows Server 2008 Enterprise x64 Edition R2 SP1
Other software
Test Information
Tested by IBM Corporation
SPEC license # 11
Test location Taipei, Taiwan
Test date Mar 5, 2012
H/w available Apr-2012
JVM available Jun 2012
OS available Feb-2011
Other s/w available Apr-2012
AOT Compilation

Tuning
  • Each JVM instance was affinitized four threads on a single socket.
  • Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
  • Power Options: High Performance
  • BIOS Settings
    • Operating Mode: Maximum Performance
    • Hardware Prefetcher: Disable
    • Adjacent Cache Prefetch: Disable
    • DCU Streamer Prefetcher: Disable
    • Patrol Scrub: Disable
Notes
Command line options are described at: http://publib.boulder.ibm.com/infocenter/java7sdk/v7r0/index.jsp

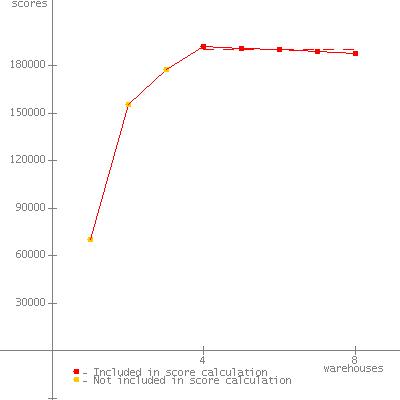

JVM 1 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 70012
2 155087
3 177481
4 192217 *
5 190831 *
6 189887 *
7 188971 *
8 187739 *
SPECjbb2005 (from 4 to 8) 189929 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 5, 2012


JVM 2 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 65341
2 155871
3 175181
4 190294 *
5 188728 *
6 187871 *
7 187487 *
8 186410 *
SPECjbb2005 (from 4 to 8) 188158 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 5, 2012


JVM 3 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 64781
2 154572
3 175509
4 190909 *
5 188523 *
6 188095 *
7 186992 *
8 185353 *
SPECjbb2005 (from 4 to 8) 187974 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 5, 2012

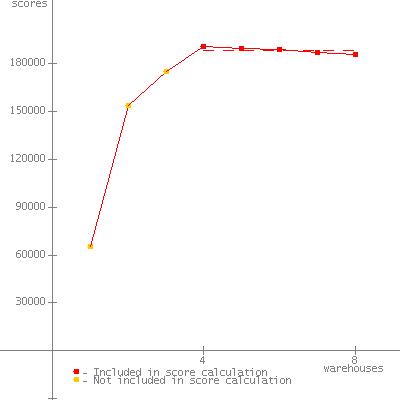

JVM 4 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 65653
2 153844
3 178538
4 192332 *
5 190648 *
6 188688 *
7 187312 *
8 187054 *
SPECjbb2005 (from 4 to 8) 189207 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 5, 2012


JVM 5 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 65613
2 153926
3 175390
4 191190 *
5 189432 *
6 188821 *
7 187158 *
8 185824 *
SPECjbb2005 (from 4 to 8) 188485 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 5, 2012


JVM 6 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 66578
2 156028
3 175623
4 190880 *
5 189312 *
6 187716 *
7 186427 *
8 185459 *
SPECjbb2005 (from 4 to 8) 187959 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 5, 2012


JVM 7 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 66934
2 154183
3 177440
4 191913 *
5 190363 *
6 188770 *
7 188263 *
8 186459 *
SPECjbb2005 (from 4 to 8) 189154 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 5, 2012


JVM 8 Scores:
Warehouses SPECjbb2005 bops Incl. in metric
1 69752
2 157798
3 176730
4 193905 *
5 192425 *
6 191162 *
7 189585 *
8 188532 *
SPECjbb2005 (from 4 to 8) 191121 SPECjbb2005 bops
SPEC license # 11 Tested by: IBM Corporation Test date: Mar 5, 2012

SPECjbb2005 Version: [SPECjbb2005 1.07, March 15, 2006]
Reporting page, Copyright © 2005-2007 SPEC. All rights reserved

First published at SPEC.org on 23-Mar-2012
