SPECsfs97_R1.v3 Result

EMC Corp. :Celerra/CX600
SPECsfs97_R1.v3 =30549 Ops/Sec (Overall Response Time = 3.13 msec)


Performance

Throughput
(ops/sec)
Response
(msec)
29741.3
60491.4
91101.8
120292.2
150772.6
182023.1
212273.5
242884.3
273645.6
3054910.4

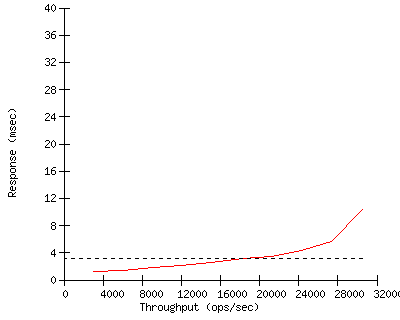

Performance Graph


Configuration

Server Configuration and Availability
Vendor EMC Corp.
Hardware Available October 2002
Software AvailableOctober 2002
Date TestedOctober 2002
SFS License Number47
Licensee LocationsHopkinton, MA

CPU, Memory and Power
Model Name Celerra/CX600
Processor 866 MHz Pentium III
# of Processors 4 (2 per node, 2 nodes)
Primary Cache 16KBI+16KBD on chip
Secondary Cache 256KB(I+D) on chip
Other Cache N/A
UPS N/A
Other Hardware 1 507 Control Station, 1 EMC DS-16B2 FC Switch
Memory Size 6GB (3 GB per node)
NVRAM Size NA
NVRAM Type NA
NVRAM DescriptionNA

Server Software
OS Name and VersionDART 5.0.9.3026
Other Software N/A
File System UxFS
NFS version 3

Server Tuning
Buffer Cache Size Dynamic
# NFS Processes 156 (per node)
Fileset Size 290.1 GB

Network Subsystem
Network Type Jumbo Gigabit Ethernet
Network Controller Desc. Alteon AceNIC
Number Networks 2 (N1,N2)
Number Network Controllers4 (2 per node)
Protocol Type TCP

Switch Type Cisco 6509 Gigabit Ethernet
Bridge Type N/A
Hub Type N/A
Other Network Hardware N/A

Disk Subsystem and Filesystems
Number Disk Controllers (4 (2 cards/2 ports per card)) per node
Number of Disks 139
Number of Filesystems 2 (fs1,fs2)
File System Creation Opsdefault
File System Config striped(64K),across 130 RAID-1 luns

Disk Controller Emulex LP9002DC-F2 Fibre Channel
# of Controller Type 2
Number of Disks 139
Disk Type Seagate Cheetah 73GB 10K RPM
File Systems on Disks OS(5)RAID-5,UxFSlog(4)RAID-1,fs1(130)RAID-1 (nos. in parens refer to phys. disks)
Special Config Notes 6.94 GB cache, 3.47GB (Write-2.00GB,Read-1.47GB) per dual storage processor,each cache is battery backed up for write thru when there is a system component failure, see notes

Load Generator (LG) Configuration
Number of Load Generators 12
Number of Processes per LG26
Biod Max Read Setting 5
Biod Max Write Setting 5

LG Type LG1
LG Model Sun Sparc 220R
Number and Type Processors2x450 MHz Sparc
Memory Size 512 MB
Operating System 2x450 MHz Sparc
Compiler Sun Forte 6.2
Compiler Options None
Network Type Intraserver Gbe

LG Type LG2
LG Model Sun Sparc 420R
Number and Type Processors2x450 MHz Sparc
Memory Size 1 GB
Operating System Solaris 2.8
Compiler Sun Forte 6.2
Compiler Options None
Network Type Intraserver Gbe

Testbed Configuration
LG #LG TypeNetworkTarget File SystemsNotes
1LG1N1/fs1, /fs2, /fs1, /fs2,...../fs1, /fs2N/A
2LG1N1/fs1, /fs2, /fs1, /fs2,...../fs1, /fs2N/A
3LG1N1/fs1, /fs2, /fs1, /fs2,...../fs1, /fs2N/A
4LG1N1/fs1, /fs2, /fs1, /fs2,...../fs1, /fs2N/A
5LG2N1/fs1, /fs2, /fs1, /fs2,...../fs1, /fs2N/A
6LG2N2/fs1, /fs2, /fs1, /fs2,...../fs1, /fs2N/A
7LG1N1/fs1, /fs2, /fs1, /fs2,...../fs1, /fs2N/A
8LG2N2/fs1, /fs2, /fs1, /fs2,...../fs1, /fs2N/A
9LG1N2/fs1, /fs2, /fs1, /fs2,...../fs1, /fs2N/A
10LG1N2/fs1, /fs2, /fs1, /fs2,...../fs1, /fs2N/A
11LG2N2/fs1, /fs2, /fs1, /fs2,...../fs1, /fs2N/A
12LG2N2/fs1, /fs2, /fs1, /fs2,...../fs1, /fs2N/A


Other Notes


Generated on Wed Nov 13 10:05:06 2002 by SPEC SFS97 HTML Formatter
Copyright © 1997-2002 Standard Performance Evaluation Corporation

First published at SPEC.org on 12-Nov-2002
