SPECsfs97.v3 Result

Fujitsu Limited :GP7000F Model 600
SPECsfs97.v3 =6018 Ops/Sec (Overall Response Time = 4.97 msec)


Performance

Throughput
(ops/sec)
Response
(msec)
5571.8
11362.4
16923.0
22783.3
28553.7
34144.0
39964.7
45515.7
51118.3
56019.1
601824.7

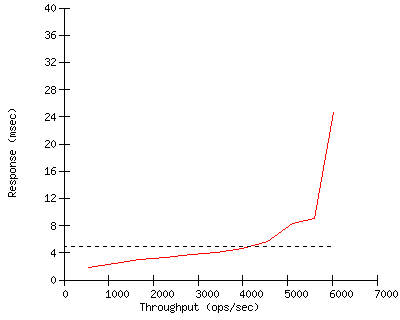

Performance Graph


Configuration

Server Configuration and Availability
Vendor Fujitsu Limited
Hardware Available July 1999
Software AvailableJuly 1999
Date TestedDecember 1999
SFS License Number19
Licensee LocationsShin-Yokohama, Japan

CPU, Memory and Power
Model Name GP7000F Model 600
Processor 296MHz SPARC64 GP
# of Processors 4
Primary Cache 64KBI+64KBD on chip
Secondary Cache 8MB(I+D) off chip
Other Cache N/A
UPS APC Smart-UPS 3000
Other Hardware GR700 disk array
Memory Size 6 GB
NVRAM Size 256MB
NVRAM Type GR700 disk array
NVRAM Description128MB per GR700 RAID controller

Server Software
OS Name and VersionSolaris7 (64bit)
Other Software N/A
File System UFS
NFS version 3

Server Tuning
Buffer Cache Size Dynamic
# NFS Processes 240
Fileset Size 60.6 GB

Network Subsystem
Network Type GigabitEthernet (1000Base-SX)
Network Controller Desc. Sun GigabitEthernet PCI adaptor 2.0
Number Networks 1 (N1)
Number Network Controllers1
Protocol Type TCP

Switch Type SB7300 Gigabit switch
Bridge Type N/A
Hub Type N/A
Other Network Hardware N/A

Disk Subsystem and Filesystems
Number Disk Controllers 3
Number of Disks 81
Number of Filesystems 16 (F1-F16)
File System Creation Opsdefault
File System Config default

Disk Controller On-board UltraWide SCSI
# of Controller Type 1
Number of Disks 1
Disk Type 9GB 10000rpm UltraWide SCSI
File Systems on Disks Operating System / swap
Special Config Notes N/A

Disk Controller UltraWide SCSI PCI Adapter (w/ 2channels)
# of Controller Type 1 (2 channels each)
Number of Disks 40
Disk Type 9GB 10000rpm UltraWide SCSI
File Systems on Disks F1,F3,F5,F7,F9,F11,F13,F15
Special Config Notes 5 disks per file system (RAID0). See notes below.

Disk Controller UltraWide SCSI PCI Adapter (w/ 2channels)
# of Controller Type 1 (2 channels each)
Number of Disks 40
Disk Type 9GB 10000rpm UltraWide SCSI
File Systems on Disks F2,F4,F6,F8,F10,F12,F14,F16
Special Config Notes 5 disks per file system (RAID0). See notes below.

Load Generator (LG) Configuration
Number of Load Generators 8
Number of Processes per LG16
Biod Max Read Setting 5
Biod Max Write Setting 5

LG Type LG1
LG Model GRANPOWER 5000 model 260
Number and Type Processors2 200MHz PentiumPro
Memory Size 512MB
Operating System Solaris 2.5.1 for x86
Compiler Sun WorkShop ProCompiler C 3.0.1
Compiler Options M.solaris2
Network Type Intel 82557 based 100Base-TX PCI card

Testbed Configuration
LG #LG TypeNetworkTarget File SystemsNotes
1/2LG1N1F1,F2,F3,...,F14,F15,F16N/A
3/4LG1N1F1,F2,F3,...,F14,F15,F16N/A
5/6LG1N1F1,F2,F3,...,F14,F15,F16N/A
7/8LG1N1F1,F2,F3,...,F14,F15,F16N/A


Other Notes


Tue Feb 22 14:14:32 2000

First published at SPEC.org on 11-Jan-2000
