SPECsfs97.v3 Result

Network Appliance, Inc. :NetApp F840 (TCP, 28x18GB FCAL, 1xGbE)
SPECsfs97.v3 =7783 Ops/Sec (Overall Response Time = 1.55 msec)

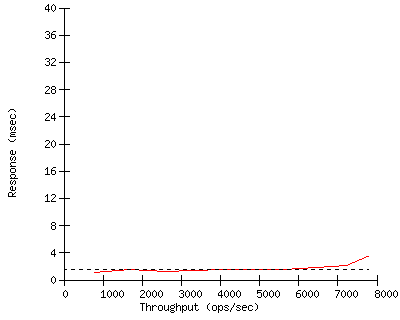

Performance Graph


Server Configuration and Availability
Vendor Network Appliance, Inc.
Hardware Available August 2000
Software AvailableOctober 2000
Date TestedOctober 2000
SFS License Number33
Licensee LocationsSunnyvale, CA

CPU, Memory and Power
Model Name NetApp F840 (TCP, 28x18GB FCAL, 1xGbE)
Processor 733-MHz Intel Pentium III Coppermine
# of Processors 1
Primary Cache 16 KB I + 16 KB D
Secondary Cache 256 KB on-die
Other Cache n/a
UPS none
Other Hardware none
Memory Size 3072 MB
NVRAM Size 128 MB
NVRAM Type DIMM on PCI card
NVRAM Description15-day battery-backed shelf-life

Server Software
OS Name and VersionData ONTAP 5.3.7
Other Software none
File System WAFL
NFS version 3

Server Tuning
Buffer Cache Size default
# NFS Processes N/A
Fileset Size 78.3 GB

Network Subsystem
Network Type Gigabit Ethernet
Network Controller Desc. X1025B PCI adapter card
Number Networks 1 (N1)
Number Network Controllers1
Protocol Type TCP

Switch Type Foundry Networks NetIron
Bridge Type N/A
Hub Type N/A
Other Network Hardware N/A

Disk Subsystem and Filesystems
Number Disk Controllers 2
Number of Disks 28 (four 7-bay JBOD shelves)
Number of Filesystems 1
File System Creation Opsdefault (checksum_blocks on)
File System Config 1 RAID-group of 27 disks

Disk Controller X2040B FC-AL adapter card (128 KB RAM standard)
# of Controller Type 2
Number of Disks 28 (14 per controller)
Disk Type X221 18GB FC-AL
File Systems on Disks F1
Special Config Notes none

Load Generator (LG) Configuration
Number of Load Generators 3
Number of Processes per LG8
Biod Max Read Setting 2
Biod Max Write Setting 2

LG Type LG1
LG Model Intel ISP1100 Internet Server Platform
Number and Type Processors1x700-MHz Pentium III
Memory Size 512 MB
Operating System FreeBSD 4.0
Compiler gcc 2.95.2
Compiler Options -g -DNO_T_TYPES -DUSE_INTTYPES -DFreeBSD
Network Type integrated Intel Pro/100+ 100BASE-T

Testbed Configuration
LG #LG TypeNetworkTarget File SystemsNotes

Other Notes

Tue Oct 31 15:32:53 2000

First published at SPEC.org on 17-Oct-2000
