SPECsfs97.v2 Result

Sun Microsystems Inc. :Sun Enterprise 6500
SPECsfs97.v2 =46840 Ops/Sec (Overall Response Time = 2.95 msec)


Performance

Throughput
(ops/sec)
Response
(msec)
45521.0
86361.2
131451.4
176961.6
223451.8
268042.1
313312.5
358373.3
404585.4
449679.5
4684017.3

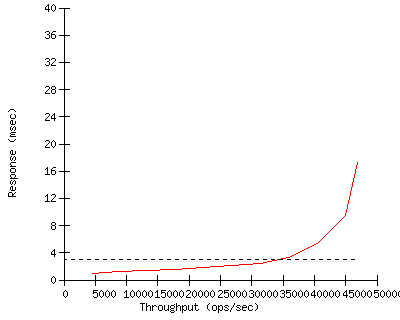

Performance Graph


Configuration

Server Configuration and Availability
Vendor Sun Microsystems Inc.
Hardware Available Aug 2000
Software AvailableApr 2000
Date TestedOct 2000
SFS License Number6
Licensee LocationsPalo Alto, CA

CPU, Memory and Power
Model Name Sun Enterprise 6500
Processor 400 MHz UltraSPARC II
# of Processors 22
Primary Cache 16KBI+16KBD on chip
Secondary Cache 8MB(I+D) off chip
Other Cache N/A
UPS N/A
Other Hardware N/A
Memory Size 28 GB
NVRAM Size 15360MB (256MB per Sun StorEdge T3 controller)
NVRAM Type Sun StorEdge T3 write cache
NVRAM Descriptionauto-sensing WB/WT depending battery charge

Server Software
OS Name and VersionSolaris8_64bit
Other Software N/A
File System UFS
NFS version 2

Server Tuning
Buffer Cache Size Dynamic
# NFS Processes 1024
Fileset Size 452.7 GB

Network Subsystem
Network Type 1000Mbit Sun GigabitEthernet
Network Controller Desc. Sun GigabitEthernet SBus adaptor 2.0
Number Networks 5 (N1-N5)
Number Network Controllers5
Protocol Type UDP

Switch Type 5 Extremenetworks Summit2 switch
Bridge Type N/A
Hub Type N/A
Other Network Hardware N/A

Disk Subsystem and Filesystems
Number Disk Controllers 31
Number of Disks 546
Number of Filesystems 60 (F1-F60)
File System Creation Opsdefault
File System Config default

Disk Controller On-board SCSI-2
# of Controller Type 1
Number of Disks 6
Disk Type 9GB 7200rpm
File Systems on Disks OS, swap
Special Config Notes

Disk Controller FC-AL SBus Adapter (FC100/S)/GBIC
# of Controller Type 30 (i=1,2,..,30)
Number of Disks 9,9/9,9/../9,9
Disk Type 18GB 10000rpm FC-AL (ST118202FC)
File Systems on Disks F1,F2/F3,F4/../F59,F60
Special Config Notes Filesystem on RAID5 LUNs (see "Other Notes")

Load Generator (LG) Configuration
Number of Load Generators 50
Number of Processes per LG120
Biod Max Read Setting 2
Biod Max Write Setting 2

LG Type LG1
LG Model Ultra1-170
Number and Type Processors1 167MHz UltraSPARC
Memory Size 256MB
Operating System Solaris7
Compiler SC4.2
Compiler Options -fast -O
Network Type SunSwift 100baseT f/w SCSI SBus Adapter

Testbed Configuration
LG #LG TypeNetworkTarget File SystemsNotes
1/2/../10LG1N12x(F1-F60)N/A
11/12/../20LG1N22x(F1-F60)N/A
21/22/../30LG1N32x(F1-F60)N/A
31/32/../40LG1N42x(F1-F60)N/A
41/42/../50LG1N52x(F1-F60)N/A


Other Notes


Tue Jan 9 21:36:56 2001

First published at SPEC.org on 09-Jan-2001
