SPECsfs97.v3 Result

IBM Corporation :RS/6000 Model S80
SPECsfs97.v3 =29083 Ops/Sec (Overall Response Time = 4.25 msec)


Performance

Throughput
(ops/sec)
Response
(msec)
28962.8
58233.9
87263.8
115653.5
145723.5
174414.1
203514.8
232865.5
262516.7
290837.8

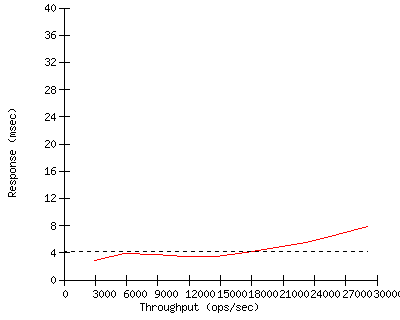

Performance Graph


Configuration

Server Configuration and Availability
Vendor IBM Corporation
Hardware Available October 1999
Software AvailableSeptember 1999
Date TestedJune 1999
SFS License Number11
Licensee LocationsAustin, Texas

CPU, Memory and Power
Model Name RS/6000 Model S80
Processor 450MHz RS64-III
# of Processors 24
Primary Cache 128KBI+128KBD on chip
Secondary Cache 8MB(I+D) off chip
Other Cache None
UPS N/A
Other Hardware N/A
Memory Size 16 GB
NVRAM Size N/A
NVRAM Type N/A
NVRAM DescriptionN/A

Server Software
OS Name and VersionAIX 4.3.3 beta
Other Software N/A
File System JFS
NFS version 3

Server Tuning
Buffer Cache Size Dynamic
# NFS Processes 240
Fileset Size 280.4 GB

Network Subsystem
Network Type Gigabit Ethernet (jumbo frames)
Network Controller Desc. Gigabit Ethernet-SX PCI Adapter
Number Networks 5 (N1-N5)
Number Network Controllers5
Protocol Type UDP

Switch Type 5 Alteon ACEswitch 180 Ethernet Switches
Bridge Type N/A
Hub Type N/A
Other Network Hardware N/A

Disk Subsystem and Filesystems
Number Disk Controllers 4
Number of Disks 289
Number of Filesystems 240 (F1-F240)
File System Creation Opsdefault
File System Config See Other Notes

Disk Controller Wide/Fast-20 SCSI I/O Controller
# of Controller Type 1
Number of Disks 1
Disk Type 9GB 7200rpm 16-bit SCSI
File Systems on Disks OS, page space
Special Config Notes N/A

Disk Controller IBM SSA 160 SerialRAID Adapter
# of Controller Type 3 (i=0,1,2)
Number of Disks 96/96/96
Disk Type 4.5GB 7200rpm SSA
File Systems on Disks F[(i*80)+1] - F[(i+1)*80], i=0,1,2
Special Config Notes SSA adapters/disks configured in JBOD mode

Load Generator (LG) Configuration
Number of Load Generators 20
Number of Processes per LG12
Biod Max Read Setting 2
Biod Max Write Setting 2

LG Type LG1
LG Model RS/6000 43P Model 260
Number and Type Processors1 200MHz POWER3
Memory Size 512MB
Operating System AIX 4.3.2
Compiler CSet++ 3.1.3
Compiler Options '-DSETPGRP_SYSV' and 'EXTRA_LINTFLAGS= -Nn6000 -Nd4000'
Network Type Gigabit Ethernet-SX PCI Adapter

Testbed Configuration
LG #LG TypeNetworkTarget File SystemsNotes
1LG1N1F1,F81,F161,F2,F82,F162,F3,F83,F163,F4,F84,F164N/A
2LG1N2F5,F85,F165,F6,F86,F166,F7,F87,F167,F8,F88,F168N/A
3LG1N3F9,F89,F169,F10,F90,F170,F11,F91,F171,F12,F92,F172N/A
4LG1N4F13,F93,F173,F14,F94,F174,F15,F95,F175,F16,F96,F176N/A
5LG1N5F17,F97,F177,F18,F98,F178,F19,F99,F179,F20,F100,F180N/A
6LG1N1F21,F101,F181,F22,F102,F182,F23,F103,F183,F24,F104,F184N/A
7LG1N2F25,F105,F185,F26,F106,F186,F27,F107,F187,F28,F108,F188N/A
8LG1N3F29,F109,F189,F30,F110,F190,F31,F111,F191,F32,F112,F192N/A
9LG1N4F33,F113,F193,F34,F114,F194,F35,F115,F195,F36,F116,F196N/A
10LG1N5F37,F117,F197,F38,F118,F198,F39,F119,F199,F40,F120,F200N/A
11LG1N1F41,F121,F201,F42,F122,F202,F43,F123,F203,F44,F124,F204N/A
12LG1N2F45,F125,F205,F46,F126,F206,F47,F127,F207,F48,F128,F208N/A
13LG1N3F49,F129,F209,F50,F130,F210,F51,F131,F211,F52,F132,F212N/A
14LG1N4F53,F133,F213,F54,F134,F214,F55,F135,F215,F56,F136,F216N/A
15LG1N5F57,F137,F217,F58,F138,F218,F59,F139,F219,F60,F140,F220N/A
16LG1N1F61,F141,F221,F62,F142,F222,F63,F143,F223,F64,F144,F224N/A
17LG1N2F65,F145,F225,F66,F146,F226,F67,F147,F227,F68,F148,F228N/A
18LG1N3F69,F149,F229,F70,F150,F230,F71,F151,F231,F72,F152,F232N/A
19LG1N4F73,F153,F233,F74,F154,F234,F75,F155,F235,F76,F156,F236N/A
20LG1N5F77,F157,F237,F78,F158,F238,F79,F159,F239,F80,F160,F240N/A


Other Notes


Mon Jun 28 16:21:38 1999

First published at SPEC.org on 13-Jul-1999
