SPECsfs97_R1.v2 Result

Hewlett-Packard :hp server rx4610
SPECsfs97_R1.v2 =18369 Ops/Sec (Overall Response Time = 1.59 msec)


Performance

Throughput
(ops/sec)
Response
(msec)
14900.8
30231.1
45431.2
60051.4
75481.5
91221.6
106501.7
125591.7
138061.8
153392.0
170222.6
183693.5

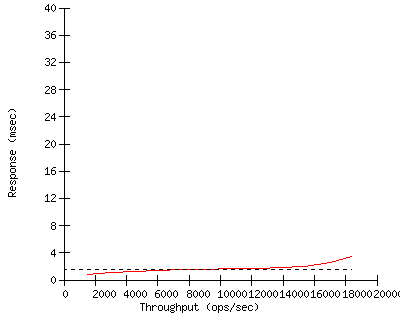

Performance Graph


Configuration

Server Configuration and Availability
Vendor Hewlett-Packard
Hardware Available June 2001
Software AvailableJune 2001
Date TestedSept 2001
SFS License Number3
Licensee LocationsRichardson, Texas

CPU, Memory and Power
Model Name hp server rx4610
Processor Itanium 800 Mhz
# of Processors 4
Primary Cache 16KB Instruction, 16KB data
Secondary Cache 96KB I+D
Other Cache L3 cache 4 MB
UPS N/A
Other Hardware Brocade Silkworm 2800 FC switch (16 port)
Memory Size 16 GB
NVRAM Size 2 GB (256MB*8)
NVRAM Type 256 MB NVRAM 5 Day battery
NVRAM DescriptionFC60 Array controller

Server Software
OS Name and VersionHP-UX 11.20
Other Software N/A
File System JFS
NFS version 2

Server Tuning
Buffer Cache Size Dynamic with ceiling at 65 percent
# NFS Processes 1
Fileset Size 174.1 GB

Network Subsystem
Network Type Gigabit Ethernet
Network Controller Desc. PCI 1000Base-SX Model #A4926A-60001
Number Networks 4
Number Network Controllers4
Protocol Type TCP

Switch Type HP Procurve 4000M Gigabit
Bridge Type N/A
Hub Type N/A
Other Network Hardware N/A

Disk Subsystem and Filesystems
Number Disk Controllers 4
Number of Disks 193
Number of Filesystems 96
File System Creation Opsmkfs -F vxfs -o logsize=2048 -bs 8192
File System Config N/A

Disk Controller QLogic 12160 dual Ultra3 SCSI
# of Controller Type 1
Number of Disks 1
Disk Type QUANTUM ATLAS_V_18_SCA
File Systems on Disks os, swap, dump
Special Config Notes N/A

Disk Controller PCI FiberChannel A3740A Shortwave
# of Controller Type 4
Number of Disks 192
Disk Type 9GB, 10000 rpm
File Systems on Disks F1,F5..F93 F2,F6..F94 F3,F7..F95 F4,F8..F96
Special Config Notes See notes below.

Load Generator (LG) Configuration
Number of Load Generators 16
Number of Processes per LG6
Biod Max Read Setting 2
Biod Max Write Setting 2

LG Type A-Class
LG Model A-180C
Number and Type ProcessorsPA-7300LC @ 180 MHz
Memory Size 256 MB
Operating System HP-UX 11.11
Compiler HP ANSI C compiler
Compiler Options +O2 -Ae
Network Type PCI 1000Base-SX Adapter. A4926A-60001

Testbed Configuration
LG #LG TypeNetworkTarget File SystemsNotes
01/02/03/04LG1N1F1..F6/F7..F12/F13..F18/F19..F24
05/06/07/08LG1N2F25..F30/F31..F36/F37..F42/F43..F48
09/10/11/12LG1N3F49..F54/F55..F60/F61..F66/F67..F72
13/14/15/16LG1N4F73..F78/F79..F84/F85..F90/F91..F96


Other Notes


Generated on Tue Oct 30 13:24:52 2001 by SPEC SFS97 HTML Formatter
Copyright © 1997-2001 Standard Performance Evaluation Corporation

First published at SPEC.org on 02-Oct-2001
