SPECsfs97_R1.v3 Result

Traakan, Inc. :RainFiler (1-Node,16x36,TCP)
SPECsfs97_R1.v3 =9051 Ops/Sec (Overall Response Time = 2.88 msec)


Performance

Throughput
(ops/sec)
Response
(msec)
8081.1
16241.5
24511.8
32422.1
40992.5
49262.8
57283.3
65603.8
73874.5
82405.1
90516.1

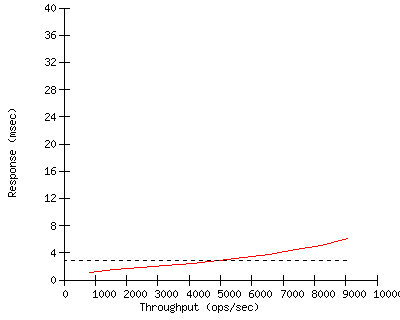

Performance Graph


Configuration

Server Configuration and Availability
Vendor Traakan, Inc.
Hardware Available January 2002
Software AvailableJanuary 2002
Date TestedJanuary 2002
SFS License Number1730
Licensee LocationsLos Altos, CA

CPU, Memory and Power
Model Name RainFiler (1-Node,16x36,TCP)
Processor Compaq Proliant DL380, 1.266GHz PIII
# of Processors 1
Primary Cache 16KBI+16KBD on chip
Secondary Cache 512KB(I+D) on chip
Other Cache N/A
UPS N/A
Other Hardware N/A
Memory Size 4 GB
NVRAM Size N/A
NVRAM Type N/A
NVRAM DescriptionN/A

Server Software
OS Name and VersionFastraak 1.19
Other Software N/A
File System Fastraak SFS2
NFS version 3

Server Tuning
Buffer Cache Size Dynamic
# NFS Processes 400
Fileset Size 86.1 GB

Network Subsystem
Network Type 100BASE-T Ethernet, all Intel 82559
Network Controller Desc. 2 Integrated + 2 on Compaq NC3134 NIC
Number Networks 4 (N1-N4)
Number Network Controllers4
Protocol Type TCP

Switch Type 4 Hewlett Packard ProCurve 4000M
Bridge Type N/A
Hub Type N/A
Other Network Hardware N/A

Disk Subsystem and Filesystems
Number Disk Controllers 2
Number of Disks 16
Number of Filesystems 8 plus HOST OS File System
File System Creation Opsdefault
File System Config default

Disk Controller Mylex E2000 with 64MB Cache+BBU
# of Controller Type 2
Number of Disks 8 per Controller
Disk Type Quantum Atlas 10KII (3.5 Series) LVD
File Systems on Disks F0-F7, 1 FS on each 2 Drive Raid0 Set
Special Config Notes F8 (200MB OS) beginning of first Raid0 Set

Load Generator (LG) Configuration
Number of Load Generators 8
Number of Processes per LG8
Biod Max Read Setting 2
Biod Max Write Setting 2

LG Type LG1
LG Model Dell L500cx
Number and Type Processors1 Intel Celeron 500 MHz
Memory Size 512 MB
Operating System Solaris 2.8
Compiler N/A, SFS97_R1 Precompiled Binaries
Compiler Options N/A
Network Type Intel Pro/100 (82559) 100BASE-T

Testbed Configuration
LG #LG TypeNetworkTarget File SystemsNotes
1,2LG1N1F0,F4,F1,F5,F2,F6,F3,F7F0-F3 on dc_00
3,4LG1N2F0,F4,F1,F5,F2,F6,F3,F7All LGs mount F0-F7
5,6LG1N3F0,F4,F1,F5,F2,F6,F3,F7F4-F7 on dc_01
7,8LG1N4F0,F4,F1,F5,F2,F6,F3,F7N/A


Other Notes


Generated on Wed Feb 6 15:04:24 2002 by SPEC SFS97 HTML Formatter
Copyright © 1997-2001 Standard Performance Evaluation Corporation

First published at SPEC.org on 06-Feb-2002
