SPECsfs97_R1.v3 Result

Spinnaker Networks, Inc. :SpinServer 3300
SPECsfs97_R1.v3 =23363 Ops/Sec (Overall Response Time = 1.93 msec)


Performance

Throughput
(ops/sec)
Response
(msec)
23380.7
46370.8
69930.9
93191.2
117361.6
140081.9
162832.6
187993.0
210144.0
233635.3

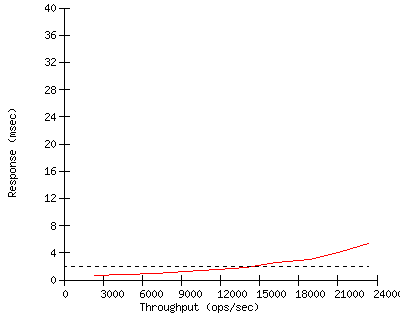

Performance Graph


Configuration

Server Configuration and Availability
Vendor Spinnaker Networks, Inc.
Hardware Available August 2002
Software AvailableAugust 2002
Date TestedAugust 2002
SFS License Number84
Licensee LocationsPittsburgh, PA

CPU, Memory and Power
Model Name SpinServer 3300
Processor 1.26 GHz Pentium III Tualatin
# of Processors 2
Primary Cache 16 KB(I) + 16 KB(D) on-chip
Secondary Cache 512 KB on-chip
Other Cache N/A
UPS APC Smart-UPS 1000
Other Hardware none
Memory Size 4 GB
NVRAM Size 1.7 GB
NVRAM Type UPS backed write cache and mirrored local SCSI drives
NVRAM Descriptionsee notes

Server Software
OS Name and VersionSpinFS 1.0.1
Other Software none
File System SpinFS
NFS version 3

Server Tuning
Buffer Cache Size default
# NFS Processes N/A
Fileset Size 222.4 GB

Network Subsystem
Network Type Gigabit Ethernet
Network Controller Desc. 3COM 3C996-T PCI Adapter
Number Networks 1 (N1)
Number Network Controllers1
Protocol Type TCP

Switch Type Extreme Summit 7i
Bridge Type N/A
Hub Type N/A
Other Network Hardware N/A

Disk Subsystem and Filesystems
Number Disk Controllers 1
Number of Disks 30
Number of Filesystems 1
File System Creation Opsdefault
File System Config 6 RAID-Groups of 5 disks each

Disk Controller Qlogic 2200 Series FC-AL Adapter
# of Controller Type 1
Number of Disks 30
Disk Type Seagate Cheetah ST336752FC 36GB 15K RPM
File Systems on Disks F1
Special Config Notes see notes

Load Generator (LG) Configuration
Number of Load Generators 4
Number of Processes per LG25
Biod Max Read Setting 4
Biod Max Write Setting 2

LG Type LG1
LG Model Dell PowerEdge 1550
Number and Type Processors2x1.0-GHz Pentium III
Memory Size 768 MB
Operating System Linux 2.4.9-31smp (Red Hat 7.2)
Compiler gcc 2.96
Compiler Options -O -DNO_T_TYPES -DUSE_INTTYPES
Network Type 3COM 3C996-T GigE, MTU=9000

Testbed Configuration
LG #LG TypeNetworkTarget File SystemsNotes
1/2/3/4LG1N1F1N/A


Other Notes


Generated on Tue Oct 15 14:28:02 2002 by SPEC SFS97 HTML Formatter
Copyright © 1997-2002 Standard Performance Evaluation Corporation

First published at SPEC.org on 15-Oct-2002
