SPECsfs97_R1.v3 Result

Maxxan Systems Inc. :SG100 Storage Gateway
SPECsfs97_R1.v3 =12083 Ops/Sec (Overall Response Time = 1.88 msec)


Performance

Throughput
(ops/sec)
Response
(msec)
12050.8
24350.9
36141.0
48661.2
60751.5
72571.9
84942.3
97412.6
109453.3
120837.0

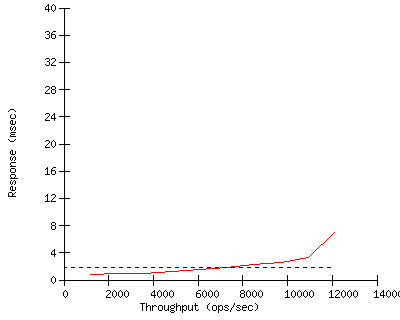

Performance Graph


Configuration

Server Configuration and Availability
Vendor Maxxan Systems Inc.
Hardware Available December 2002
Software AvailableDecember 2002
Date TestedMarch 2003
SFS License Number2581
Licensee Locations1975 Concourse Drive San Jose, CA 95131

CPU, Memory and Power
Model Name SG100 Storage Gateway
Processor 2.4 GHz Pentium IV Xeon
# of Processors 2
Primary Cache 12K uops + 8KB D
Secondary Cache 512KB on-die
Other Cache N/A
UPS N/A
Other Hardware N/A
Memory Size 4 GB
NVRAM Size N/A
NVRAM Type N/A
NVRAM DescriptionN/A

Server Software
OS Name and VersionVxOS - based on Red Hat Linux 7.2
Other Software Veritas ServPoint NAS 1.2 for Linux
File System VxFS
NFS version 3

Server Tuning
Buffer Cache Size Dynamic
# NFS Processes 128
Fileset Size 116.0 GB

Network Subsystem
Network Type Gigabit Ethernet
Network Controller Desc. Intel 82546 GbEthernet controller
Number Networks 1 (N1)
Number Network Controllers1
Protocol Type UDP

Switch Type Dell 3024 Switch
Bridge Type N/A
Hub Type N/A
Other Network Hardware N/A

Disk Subsystem and Filesystems
Number Disk Controllers 11
Number of Disks 81
Number of Filesystems 8 (F1-F8)
File System Creation Opsdefault
File System Config default

Disk Controller IDE Compact Flash
# of Controller Type 1
Number of Disks 1
Disk Type 1GB IBM microdrive
File Systems on Disks Operating System
Special Config Notes N/A

Disk Controller Qlogic 2312
# of Controller Type 5
Number of Disks 80
Disk Type SEAGATE ST318451 18GB 15K rpm
File Systems on Disks F1 - F8
Special Config Notes See other notes

Load Generator (LG) Configuration
Number of Load Generators 10
Number of Processes per LG8
Biod Max Read Setting 2
Biod Max Write Setting 2

LG Type LG1
LG Model Sun Ultra 5/10
Number and Type Processors400 MHz Ultra Sparc IIi
Memory Size 512 MB
Operating System Solaris 8
Compiler pre-compiled binaries
Compiler Options none
Network Type Integrated 10/100BASE-T

LG Type LG2
LG Model Sun Ultra 5/10
Number and Type Processors400 MHz Ultra Sparc IIi
Memory Size 256 MB
Operating System Solaris 8
Compiler pre-compiled binaries
Compiler Options none
Network Type Integrated 10/100BASE-T

LG Type LG3
LG Model Sun Ultra 5/10
Number and Type Processors360 Mhz Ultra Sparc IIi
Memory Size 512 MB
Operating System Solaris 8
Compiler pre-compiled binaries
Compiler Options none
Network Type InTegrated 10/100BASE-T

LG Type LG4
LG Model Compag DS850
Number and Type Processors1.133 GHz Pentium III
Memory Size 1 GB
Operating System Solaris 8
Compiler pre-compiled binaries
Compiler Options none
Network Type InTegrated 10/100BASE-T

Testbed Configuration
LG #LG TypeNetworkTarget File SystemsNotes
1LG11/F1, /F2, /F3, /F4, /F5, /F6, /F7, /F8N/A
2LG21/F1, /F2, /F3, /F4, /F5, /F6, /F7, /F8N/A
3LG31/F1, /F2, /F3, /F4, /F5, /F6, /F7, /F8N/A
4..10LG41/F1, /F2, /F3, /F4, /F5, /F6, /F7, /F8N/A


Other Notes


Generated on Thu May 8 11:56:03 2003 by SPEC SFS97 HTML Formatter
Copyright © 1997-2002 Standard Performance Evaluation Corporation

First published at SPEC.org on 15-Apr-2003
