SPECsfs97_R1.v2 Result

IBM Corporation :IBM eServer pSeries 655 (UDP)
SPECsfs97_R1.v2 =58830 Ops/Sec (Overall Response Time = 1.62 msec)


Performance

Throughput
(ops/sec)
Response
(msec)
58450.4
117230.8
176190.7
235440.9
294621.1
352701.3
413441.6
472871.9
530985.1
588305.0

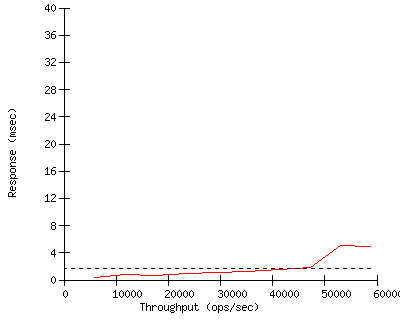

Performance Graph


Configuration

Server Configuration and Availability
Vendor IBM Corporation
Hardware Available July 2003
Software AvailableMay 2003
Date TestedApril 2003
SFS License Number11
Licensee LocationsAustin, Texas

CPU, Memory and Power
Model Name IBM eServer pSeries 655 (UDP)
Processor 1.7GHz POWER4+
# of Processors 4
Primary Cache 64KBI+32KBD on chip per CPU
Secondary Cache 1536KB unified on chip per die
Other Cache 128MB unified off chip per MCM
UPS N/A
Other Hardware N/A
Memory Size 32 GB
NVRAM Size 6 GB (6 x 1GB)
NVRAM Type 1GB battery-backed DRAM per controller
NVRAM Description5-day battery; cache bypass on battery failure

Server Software
OS Name and VersionAIX 5L V5.2 (64-bit)
Other Software N/A
File System JFS and Enhanced JFS
NFS version 2

Server Tuning
Buffer Cache Size Dynamic
# NFS Processes 1
Fileset Size 560.9 GB

Network Subsystem
Network Type Jumbo Frame Gigabit
Network Controller Desc. IBM 10/100/1000 Base-TX Ethernet PCI-X Adapter
Number Networks 3 (N1-N3)
Number Network Controllers3
Protocol Type UDP

Switch Type N/A
Bridge Type N/A
Hub Type N/A
Other Network Hardware N/A

Disk Subsystem and Filesystems
Number Disk Controllers 7
Number of Disks 211
Number of Filesystems 42 (F1-F42)
File System Creation Opsdefault
File System Config See Other Notes

Disk Controller Wide/Ultra-3 SCSI I/O Controller
# of Controller Type 1
Number of Disks 1
Disk Type 18.2GB 10Krpm 16-bit SCSI
File Systems on Disks OS, page space
Special Config Notes N/A

Disk Controller IBM Fiber Channel Adapter (2Gbps)
# of Controller Type 6
Number of Disks 210
Disk Type 18.2GB 15Krpm 2Gb FC
File Systems on Disks F1-F7,F8-F14,F15-F21,F22-F28,F29-F36,F37-F42
Special Config Notes See Other Notes

Load Generator (LG) Configuration
Number of Load Generators 3
Number of Processes per LG84
Biod Max Read Setting 2
Biod Max Write Setting 2

LG Type LG1
LG Model IBM eServer pSeries 630 Model 6E4
Number and Type Processors4 x 1.0GHz POWER4+
Memory Size 4 GB
Operating System AIX 5L V5.2
Compiler N/A, SFS97_R1 pre-compiled binaries
Compiler Options N/A
Network Type IBM 10/100/1000 Base-TX Ethernet PCI-X Adapter

Testbed Configuration
LG #LG TypeNetworkTarget File SystemsNotes
1LG1N1F1,F15,F29,F2,F16,F30,F3,F17,F31,...,F14,F28,F42,F1,F15,F29,F2,F16,F30,F3,F17,F31,..,F14,F28,F42N/A
2LG1N2F1,F15,F29,F2,F16,F30,F3,F17,F31,...,F14,F28,F42,F1,F15,F29,F2,F16,F30,F3,F17,F31,..,F14,F28,F42N/A
3LG1N3F1,F15,F29,F2,F16,F30,F3,F17,F31,...,F14,F28,F42,F1,F15,F29,F2,F16,F30,F3,F17,F31,..,F14,F28,F42N/A


Other Notes


Generated on Tue May 27 14:20:47 2003 by SPEC SFS97 HTML Formatter
Copyright © 1997-2002 Standard Performance Evaluation Corporation

First published at SPEC.org on 27-May-2003
